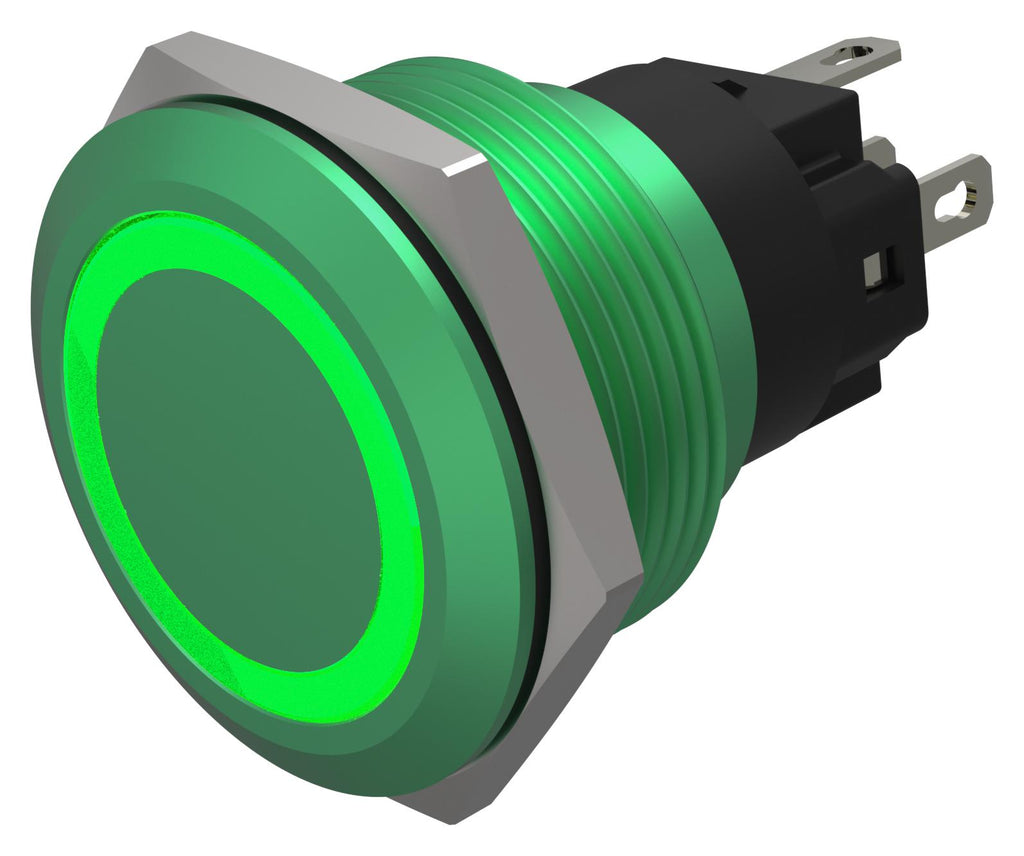

The 82-6851.1134 from EAO is a vandal resistant momentary green push button switch, manufactured from Aluminium.
- Flush front bezel
- Operating LED voltage: 24V DC
- Switchng voltage: 240V AC
- Switching voltage: 3A
- Solder terminals: 2.8mm x 0.5mm
Product details
| Product Range:
82-6x51.1114 Series
|
| Panel Cutout Diameter:
22mm
|
| Contact Configuration:
SPDT
|
| Switch Operation:
Momentary
|
| Pushbutton Actuator Style:
Round Flat Flush
|
| Actuator / Cap Colour:
Green
|
| Contact Current AC Max:
-
|
| Contact Voltage VAC:
24V
|
| Contact Current DC Max:
-
|
| Contact Voltage VDC:
24V
|
| IP Rating:
IP65, IP67
|
| Switch Mounting:
Panel Mount
|
| Switch Terminals:
Solder Lug
|
| Illumination Colour:
Green
|
| Panel Cutout (H x W):
-
|
Other details
| Brand |
EAO |
| Part Number |
82-6851.1134 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
