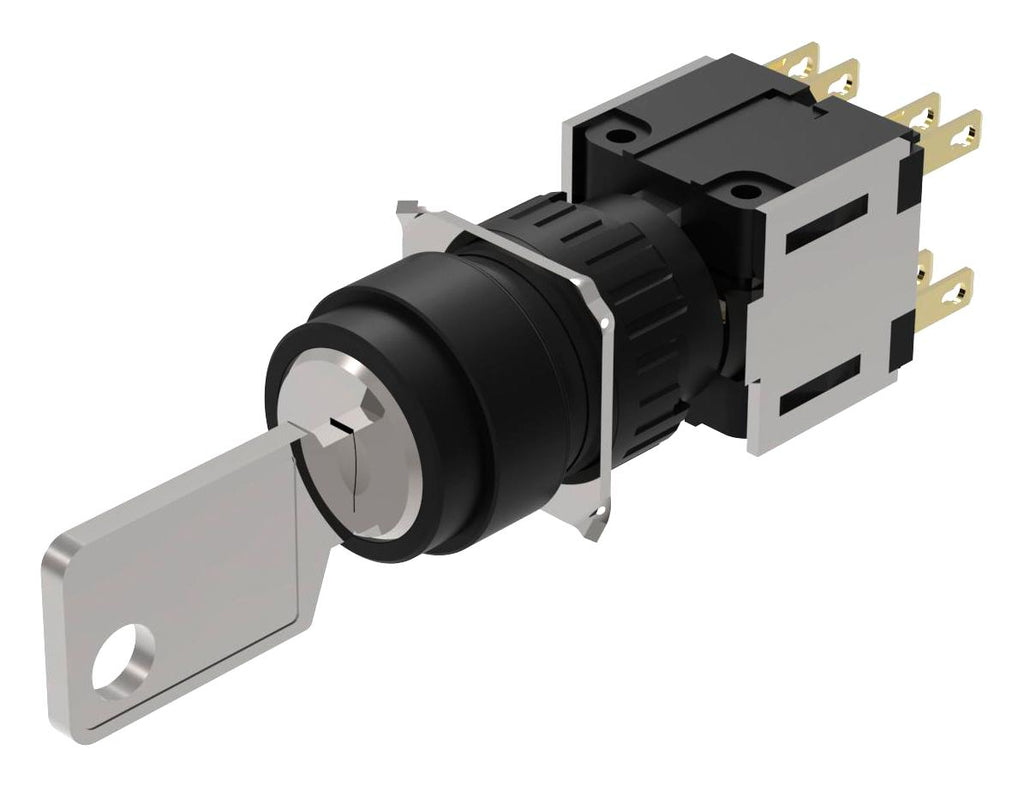

- 3 positions, key switch
- � 16mm mounting cut-out, raised design mounting
- � 18mm front dimension, round front shape
- Switching angle operating-/Indication part
- IP65 IP front protection, terminal is solder 2.8 x 0.5mm
- Maintain(a) - rest(a) - momentary switching action, 3 rotary positions
- Snap-action switching element switching system, 5A switching current
- 2 NC + 2 NO contacts, 250VAC switching voltage
Product details
| Switch Operation:
On-Off-(On)
|
| Contact Configuration:
DPST-NO, DPST-NC
|
| Product Range:
51 Series
|
| No. of Switch Positions:
3 Position
|
| Switch Terminals:
Plug In
|
| Contact Current Max:
5A
|
| Contact Voltage AC Nom:
250V
|
| Contact Voltage DC Nom:
-
|
| Angle of Throw:
90°
|
Other details
| Brand |
EAO |
| Part Number |
51-378.F22D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
