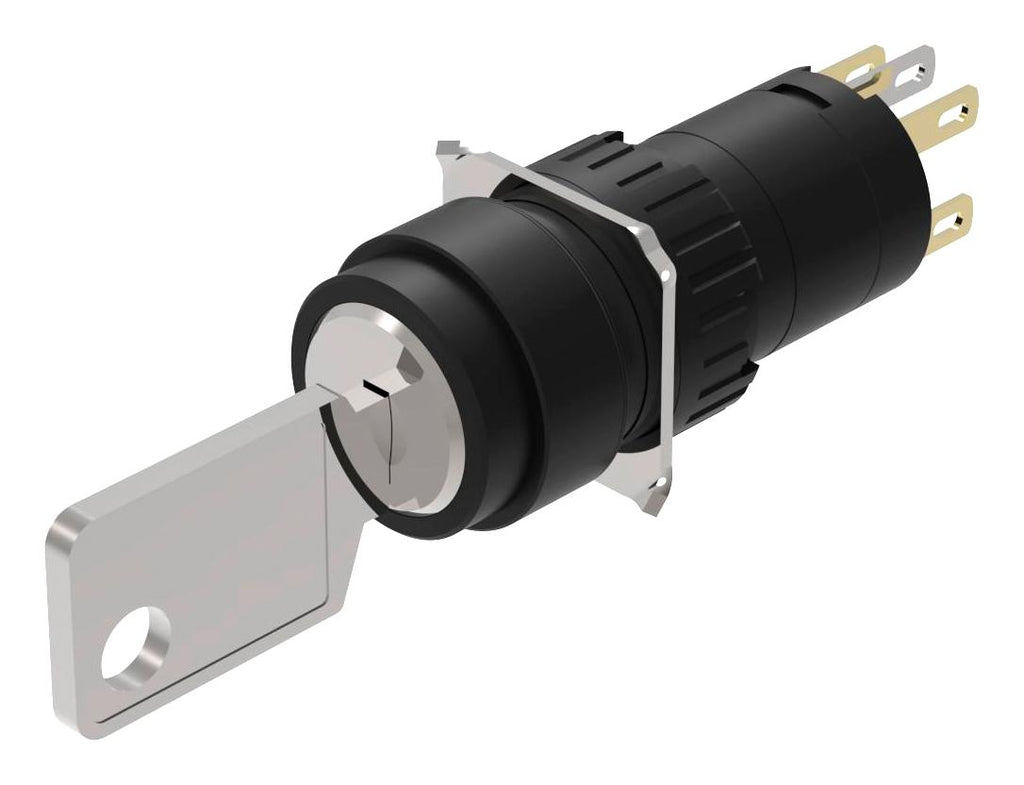

- 2 positions keylock switch
- � 16mm mounting cut-out, raised mounting, � 18mm front dimension
- Round front shape, 90° right switching angle, IP65 front protection
- Solder 2.8 x 0.5mm terminal connection method, rest(a) maintain switching action, 2 rotary positions
- Snap-action switching element system, 5A switching current
- 1 NC + 1 NO contact material, 250VAC switching voltage, raised design
- Keylock switch function, standard lock: DOM 31, gold contact material
- Two keys are supplied with each key lock switch, black housing color
- 50, 000 cycles of operation mechanical lifetime, fixing nut max. 0.5Nm tightening torque
- Operating temperature range from -25°C to +55°C
Footnotes
Optional lock numbers on request.
Product details
| Switch Operation:
On-Off
|
| Contact Configuration:
SPST-NO, SPST-NC
|
| Product Range:
51 Series
|
| No. of Switch Positions:
2 Position
|
| Switch Terminals:
Plug In
|
| Contact Current Max:
5A
|
| Contact Voltage AC Nom:
250V
|
| Contact Voltage DC Nom:
-
|
| Angle of Throw:
90°
|
Other details
| Brand |
EAO |
| Part Number |
51-235.022D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
