Description

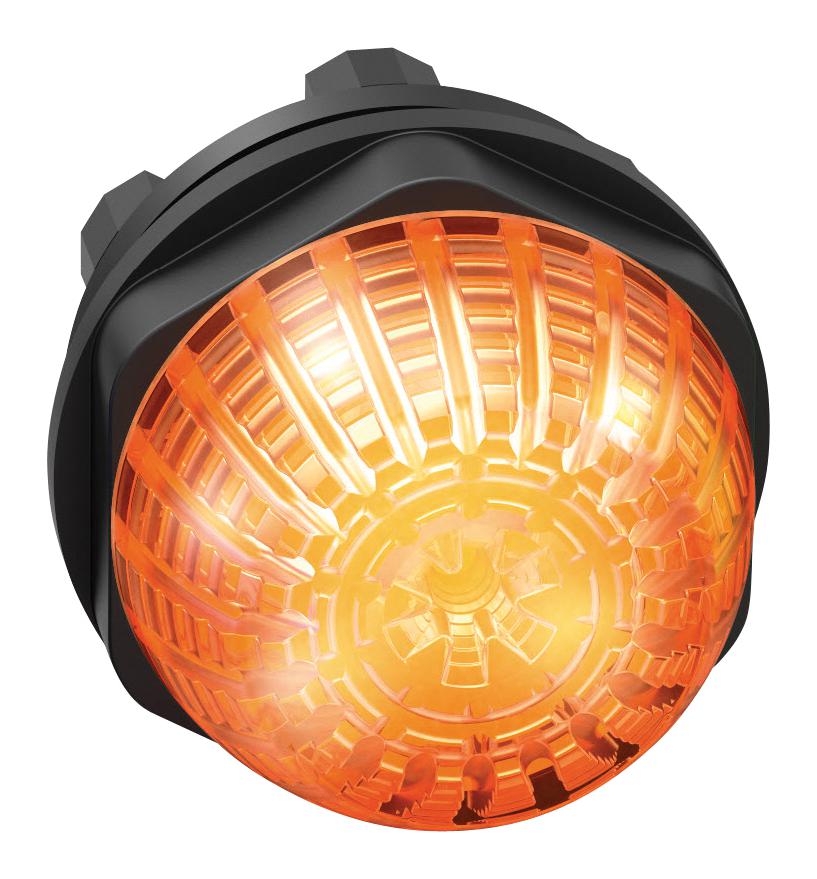

The 14-060.307 from EAO is a series 14 round compact indicator in orange colour. This indicator can be mounted directly in a threaded mounting hole or via fixing nut.
- Homogeneous LED illumination, push-in terminal connection method
- Easy to mount PIT (push-in terminal ) with low back panel depth of just 9.5mm
- 180° visibility, even from great distances
- Space saving design, black plastic actuator housing
- Long service life of > 50000h
- Operating temperature range from -25°C to +60°C
- 14 to 32VAC/DC operating voltage (24V AC/DC), <50mA current consumption
- IP65, IP67, IP69K (front side) and IP20 (rear side) degree of protection, IK07 impact resistance
- Grilamid TR55 material
- 22.5mm mounting cut-out, panel thickness of 1mm to 5mm
Applications
Signalling
Product details
| LED Colour: Orange |
| Operating Voltage: 24V |
| Mounting Hole Dia: 22.5mm |
| Forward Current If: 50mA |
| Luminous Intensity: - |
| IP / NEMA Rating: IP66, IP67, IP69K |
| Product Range: 14 |
Other details
| Brand | EAO |
| Part Number | 14-060.307 |
| Quantity | Each |
| Technical Data Sheet EN |  |
