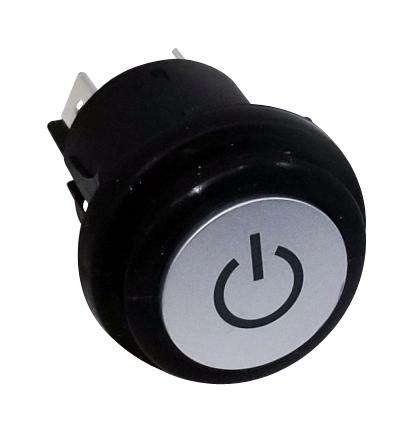

PB66EE2CR6N is a PB66 series pushbutton switch that is easy to operate and is totally protected against dust and strong jets of water at an IP66 rating. The PB66 series pushbutton switch operates in temperatures ranging from 0°C to 55°C and can be stored at -25°C to 85°C. The double-pole, double-throw (DPDT) circuits on this switch perform Off-On latching functions and come with a UL electrical rating of 16(16)A at 127VAC. The electrical life expectancy on this pushbutton switch is 50,000 cycles, and it fits a 25mm cut-out.
- Round actuator with 13N actuator force
- 6.3mm termination
- Non-illuminated power symbol laser etched
- Contact resistance of 50mohm max
- Insulation resistance of 2Mohm min at 500VDC
- Dielectric strength of 1300VAC min. for 1 minute
Product details
| Product Range:
PB66 Series
|
| Panel Cutout Diameter:
0.984"
|
| Contact Configuration:
DPDT
|
| Switch Operation:
Off-On
|
| Pushbutton Actuator Style:
Round
|
| Actuator / Cap Colour:
Natural
|
| Contact Current AC Max:
16A
|
| Contact Voltage VAC:
127V
|
| Contact Current DC Max:
-
|
| Contact Voltage VDC:
-
|
| IP Rating:
IP66
|
| Switch Mounting:
Panel Mount
|
| Switch Terminals:
Quick Connect
|
| Illumination Colour:
Non Illuminated
|
| Panel Cutout (H x W):
-
|
Other details
| Brand |
E-SWITCH |
| Part Number |
PB66EE2CR6N |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
