Description
Product Overview

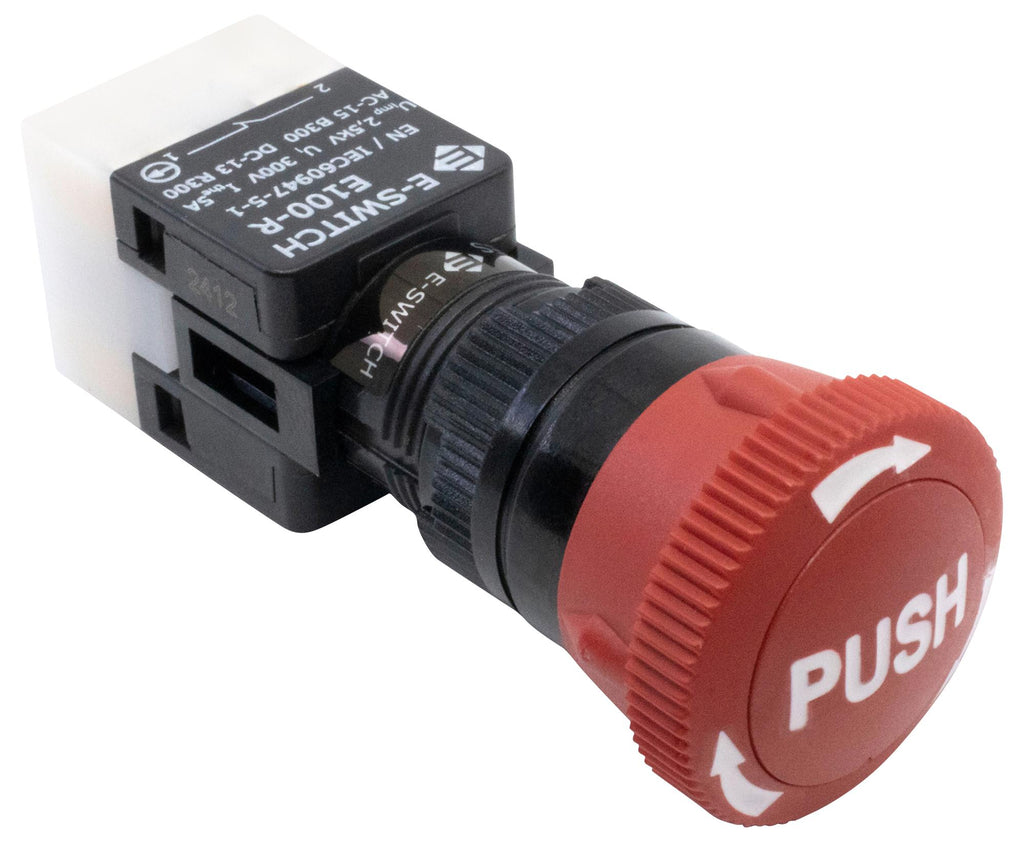

E100-R22-N10R is a E100 series pushbutton switch. This emergency stop switch (E-Stop) has an IP65 rating, requires a high actuation force (2.0kgf) and a push lock turn to reset, making it perfect for harsh and rugged industrial-use environments. Agency approvals are ANSI/UL508, TUV-SUD, EN 60947-5-1 : EN 60947-5-5. Applications include kiosks, commercial appliances, security devices, industrial controls, kiosks, electrical housewares, medical equipment.
- Non-Illuminated actuator, non-Illuminated 1NC/1NC housing
- No lamp illumination, red actuator colour
- Easy operation, high actuation force
- Push lock turn design to reset, 16mm cutout size, IP65 rated
- 3A at 125VAC, 1.5A at 250VAC, 0.22A at 25VDC, 0.11A at 250VDC contact rating
- 50mohm max contact resistance (initial), 100Mohm min at 500VDC insulation resistance
- 50,000 cycles min electrical life, 5.0mm max panel thickness
- Operating temperature range from -25°C to 70°C
Product details
Other details
| Brand | E-SWITCH |
| Part Number | E100-R22-N10R |
| Quantity | Each |
| Technical Data Sheet EN |  |
