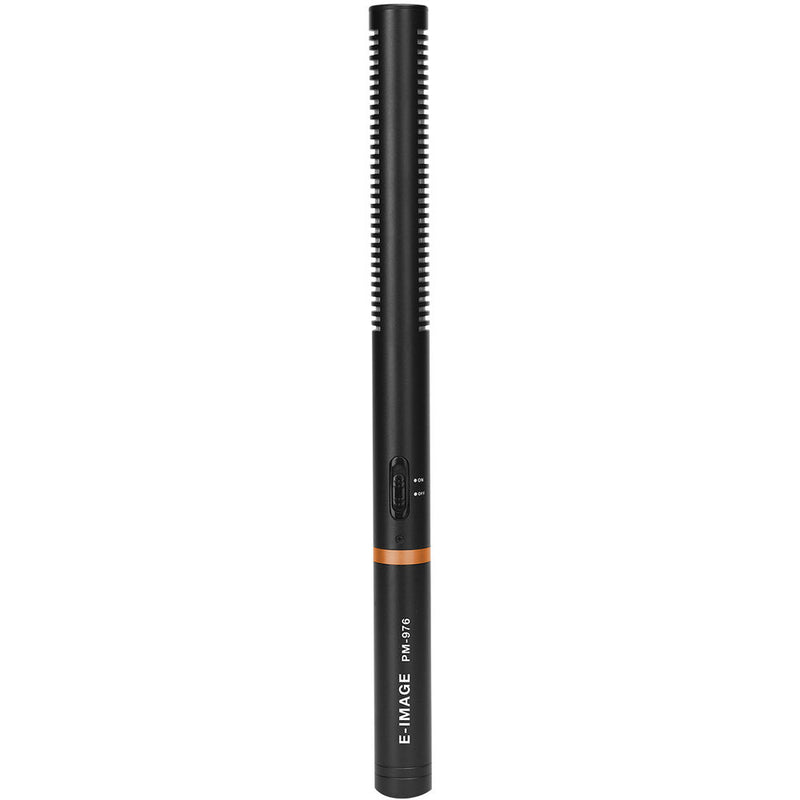

E-Image PM-976 Overview

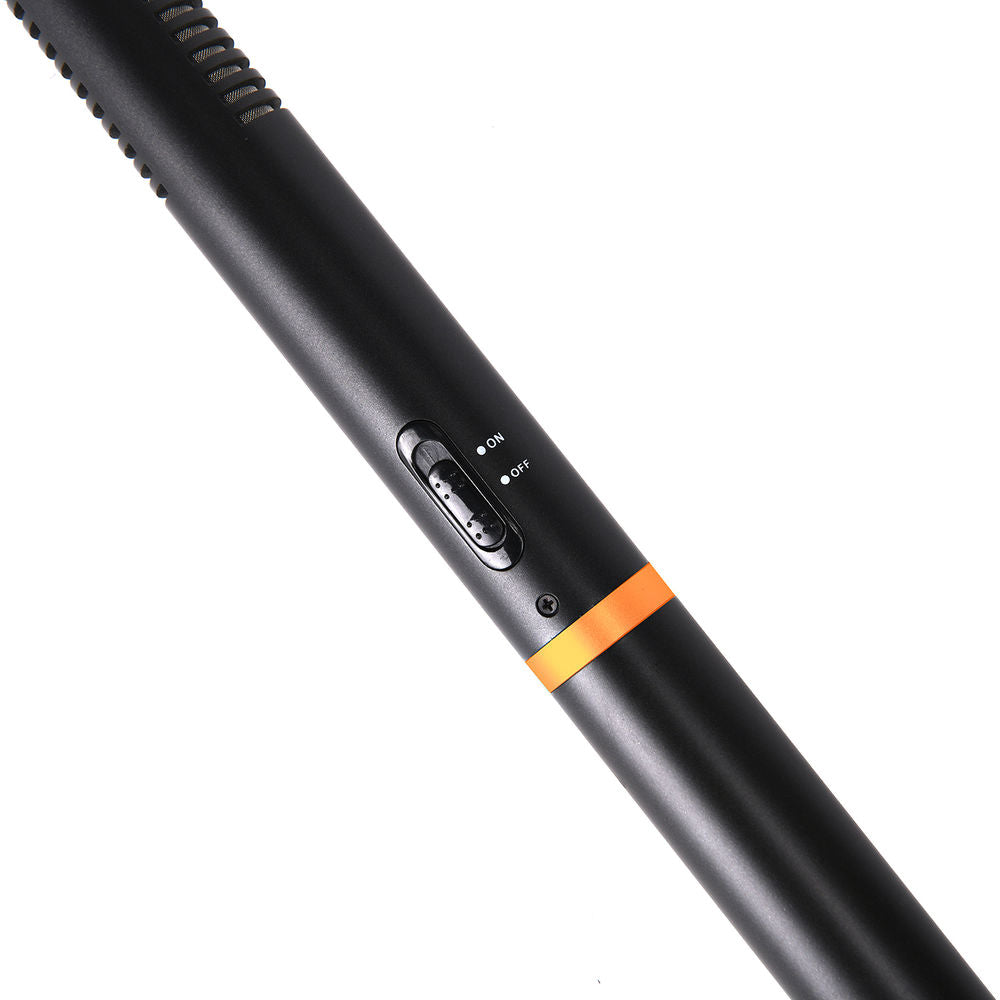

The PM-976 Hypercardioid Shotgun Microphone from E-Image features a built-in low-frequency attenuation switch and is powered by 48V phantom power or a single AA battery. It can be used to capture audio for broadcast, film, and video applications. In addition, the PM-976 is equipped with an on/off switch and a low-frequency attenuation switch. The mic is built with a gold-plated XLR connector.
UPC: 847983029464
E-Image PM-976 Specs
Microphone
Sound Field | Mono |
Capsule | Electret Condenser |
Polar Pattern | Hypercardioid |
Performance
Frequency Range | 40 Hz to 16 kHz |
Maximum SPL | 130 dB SPL Peak |
Impedance | 500 Ohms ± 20% at 1 kHz |
Sensitivity | 32/33 dB at 1 kHz |
Signal-to-Noise Ratio | 70 dB A-Weighted |
Connectivity
Output Connectors | 1 x XLR 3-Pin |
Power
Operating Voltage | 48 V |
Battery Type | 1 x AA |
Physical
Dimensions | ø: 0.89 x L: 12.01" / ø: 22.5 x L: 305 mm |
Weight | 6.63 oz / 188 g |
