E-Image PM-846 Overview

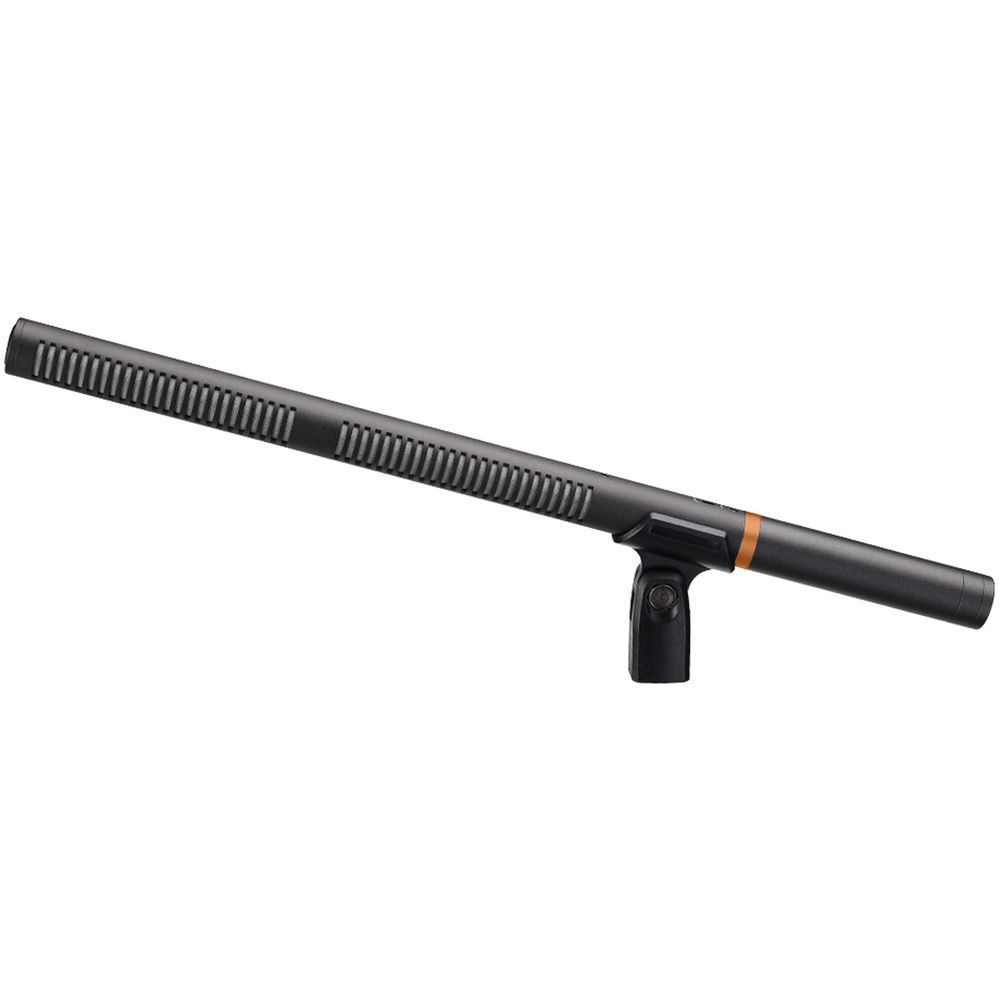

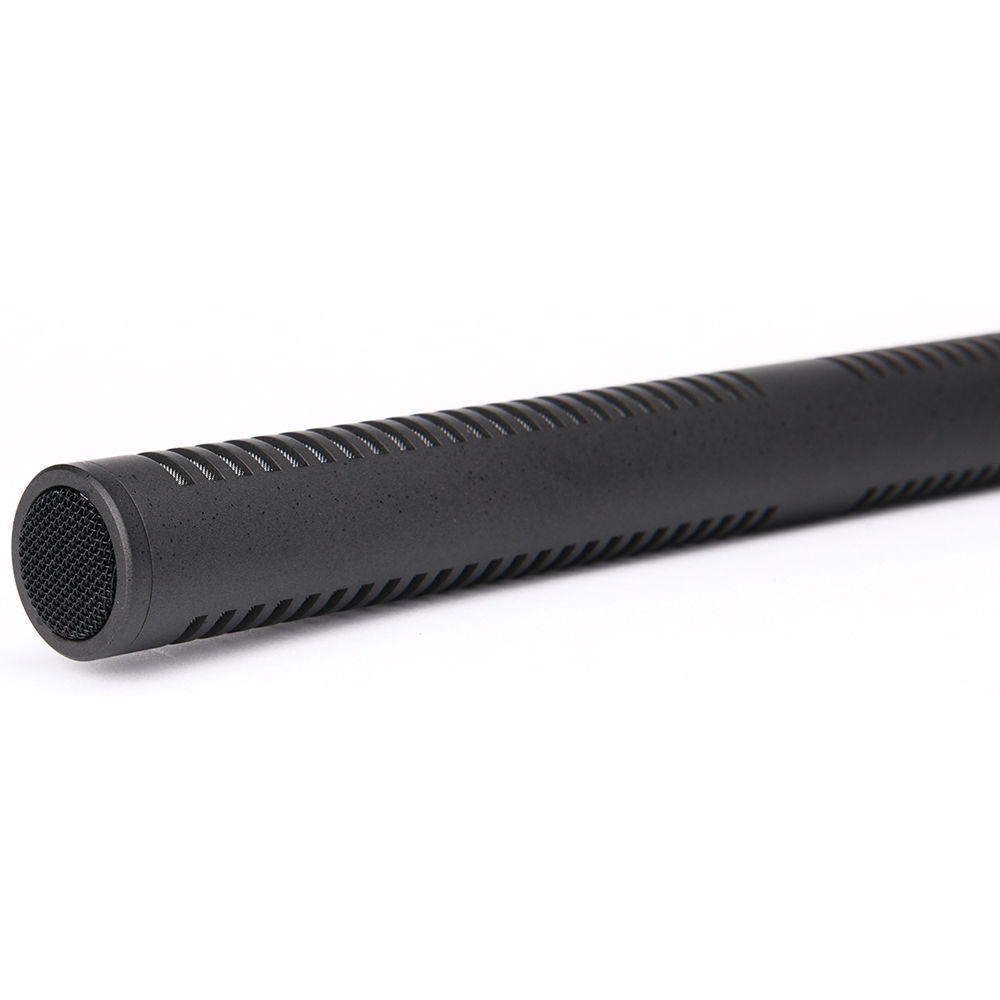

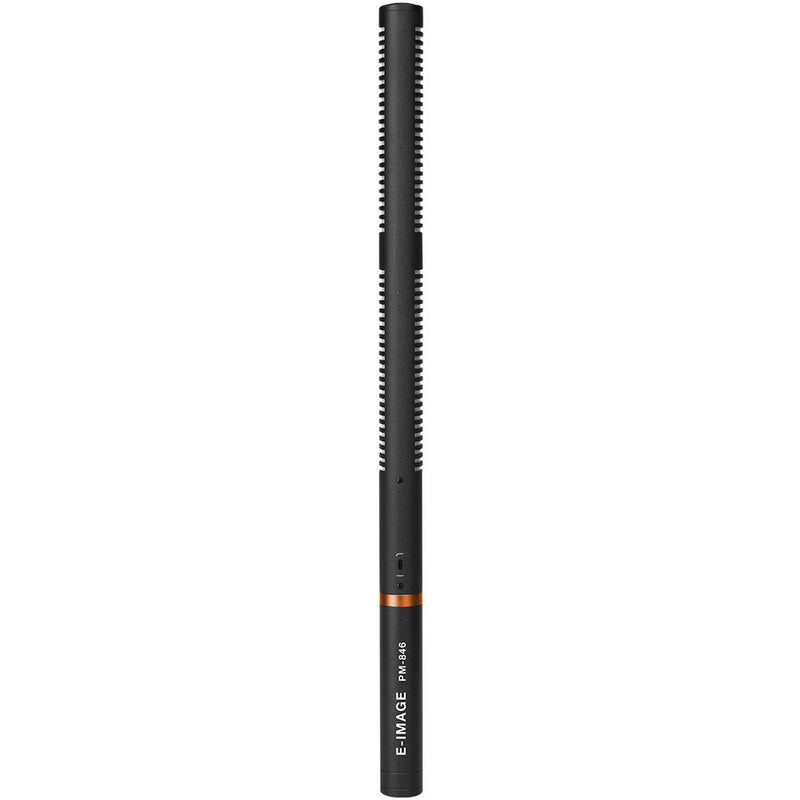

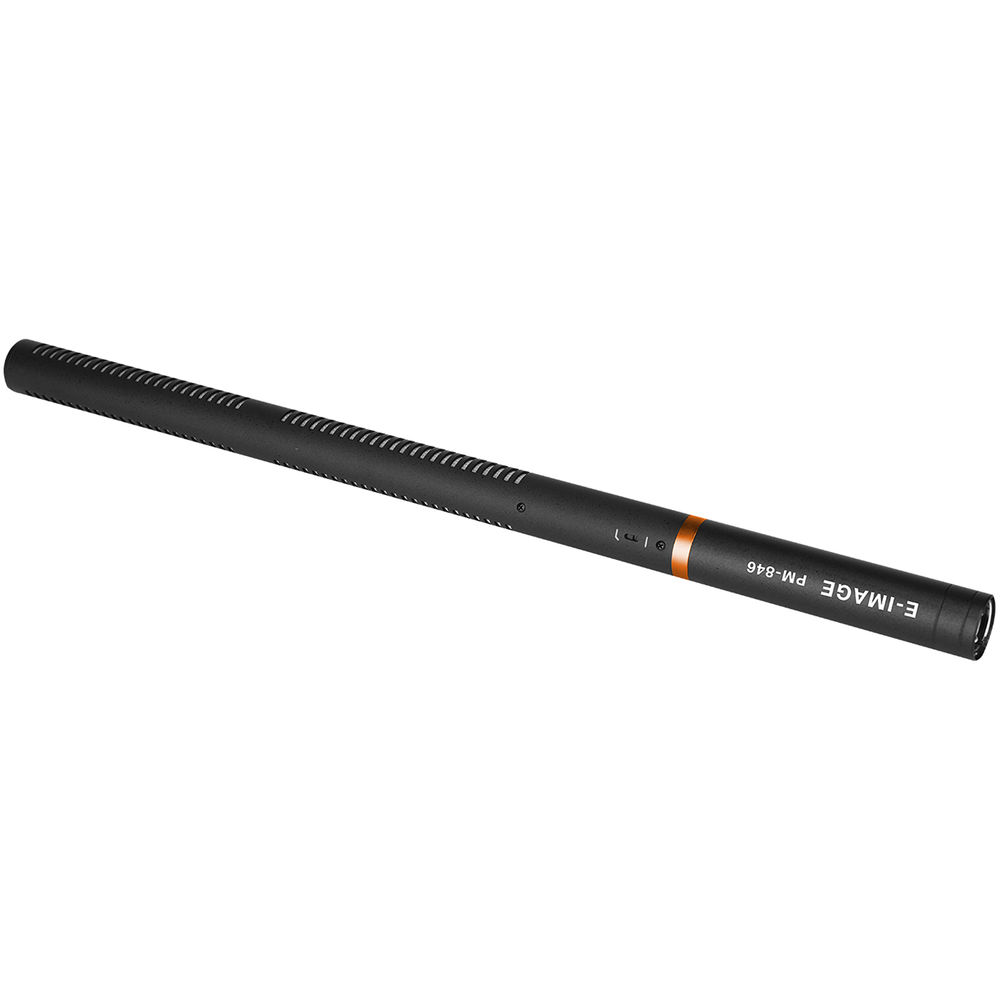

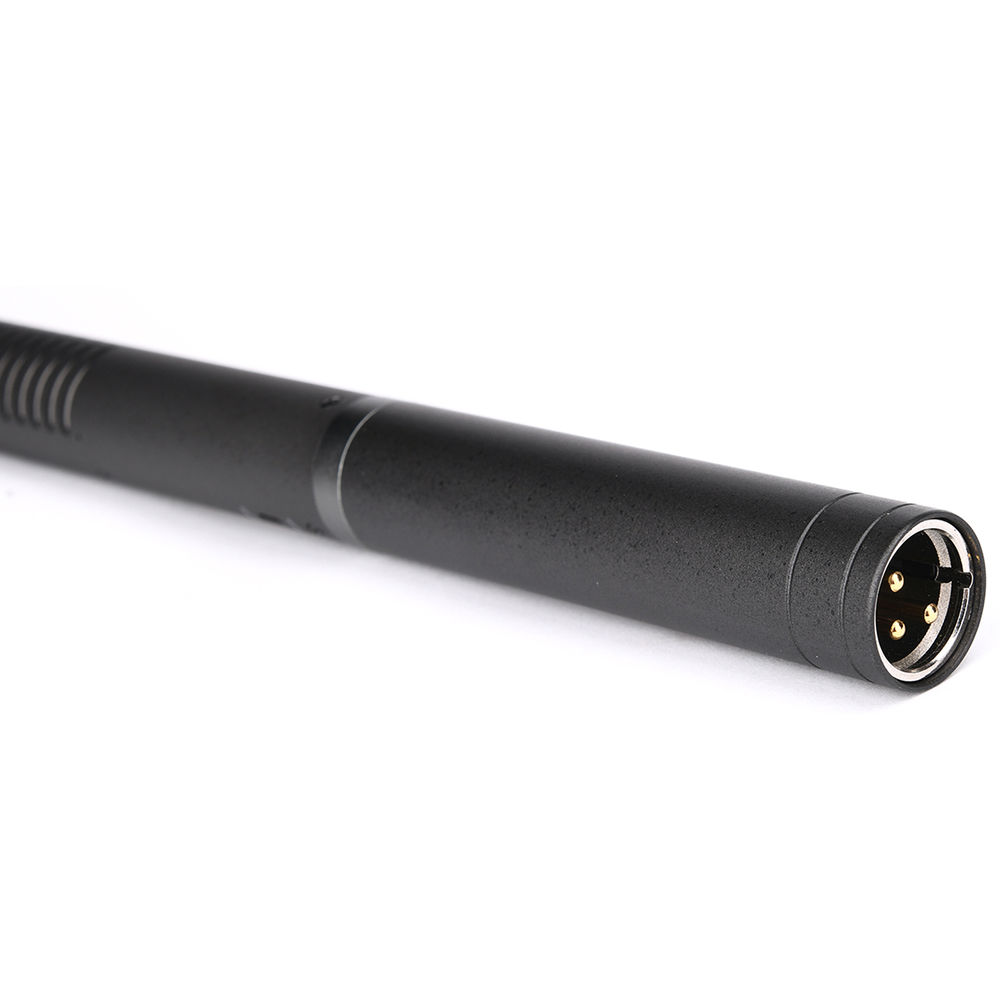

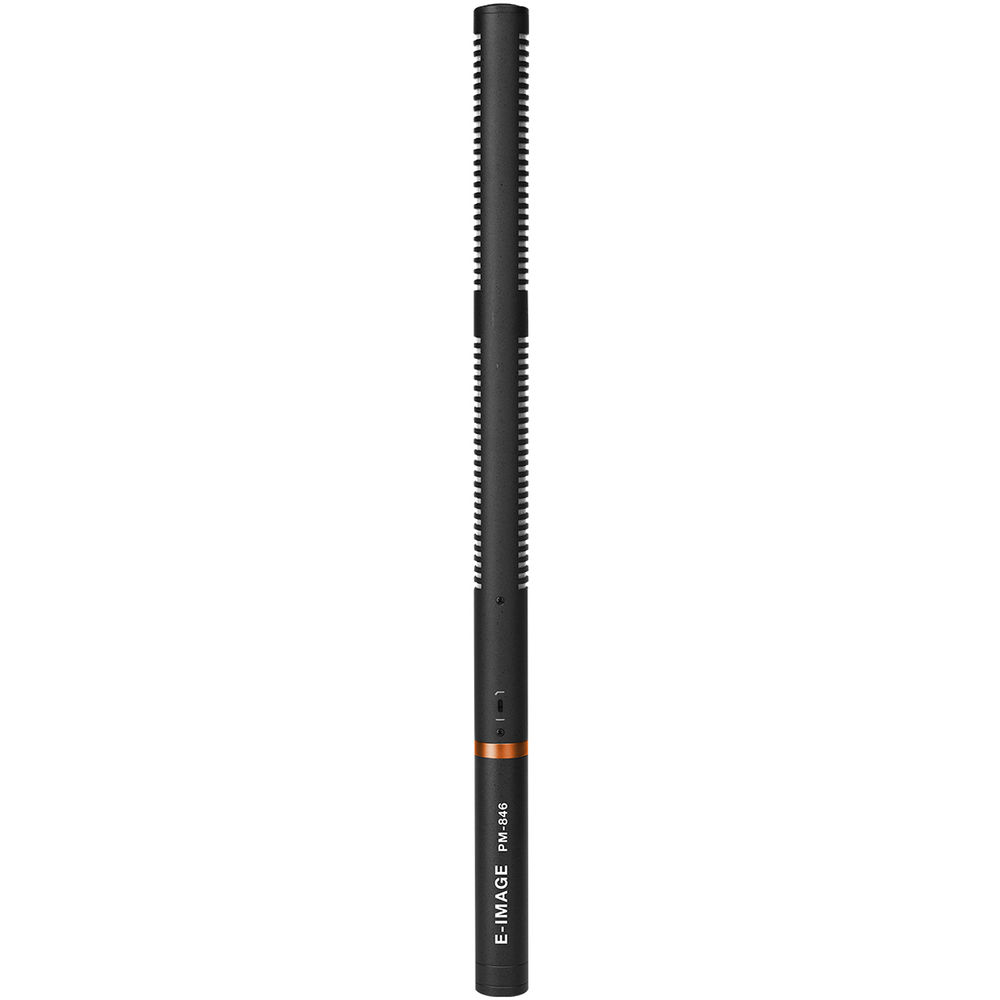

The PM-846 Hypercardioid Shotgun Microphone from E-Image is a back-electret condenser microphone that has a 40 Hz to 16 kHz frequency response, runs on a AA battery or 48V phantom power, and is built with a 3-pin gold-plated XLR output connector. The mic is 14.5" in length and can be used for film, video production, and broadcast (ENG/EFP) audio applications. The PM-846 features an all-metal construction and is equipped with a bass roll-off attenuation switch to eliminate rumble in the low end and a smooth high-pass filter switch to eliminate high-frequency noise.
In the Box
- E-Image PM-846 Hypercardioid Shotgun Microphone
- Limited 1-Year Manufacturer Warranty
E-Image PM-846 Specs
Microphone
| Sound Field |
Mono |
| Capsule |
Electret Condenser |
| Polar Pattern |
Hypercardioid |
| Gain Adjustment |
None |

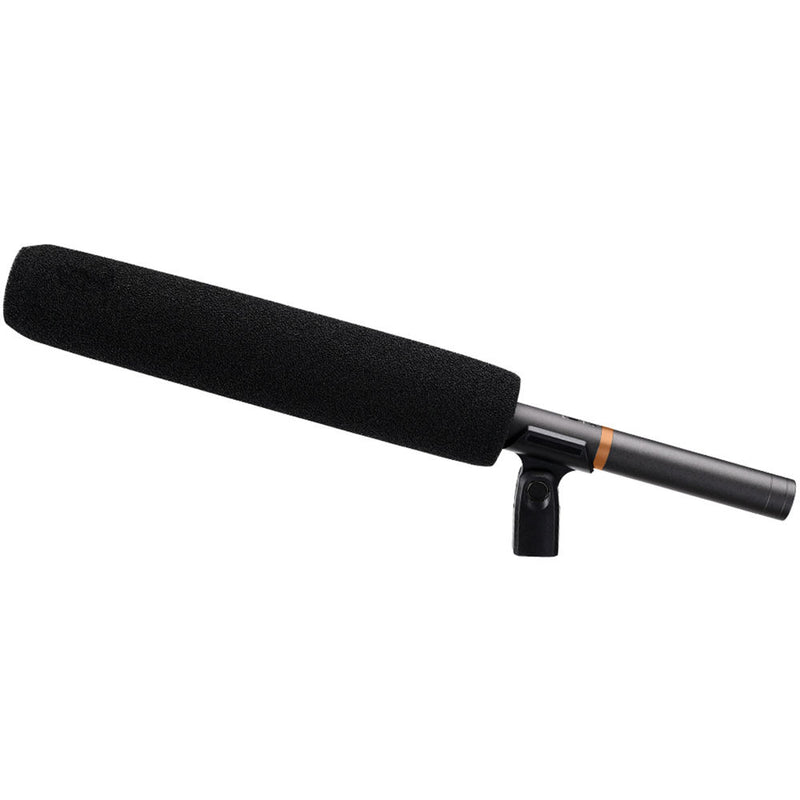

| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
40 Hz to 16 kHz |
| Maximum SPL |
130 dB SPL Peak |
| Impedance |
500 Ohms ± 20% at 1 kHz |
| Sensitivity |
39 dB at 1 kHz |
| Signal-to-Noise Ratio |
70 dB A-Weighted |
Power
| Operating Voltage |
1.5 to 48 V |
| Battery Type |
1 x AA (Not Included) |
Physical
| Included Case |
None |
| Dimensions |
ø: 0.83 x L: 14.53" / ø: 21 x L: 369 mm |
| Weight |
5.82 oz / 165 g |
