Description
E-Image EI-GH20-KIT Overview

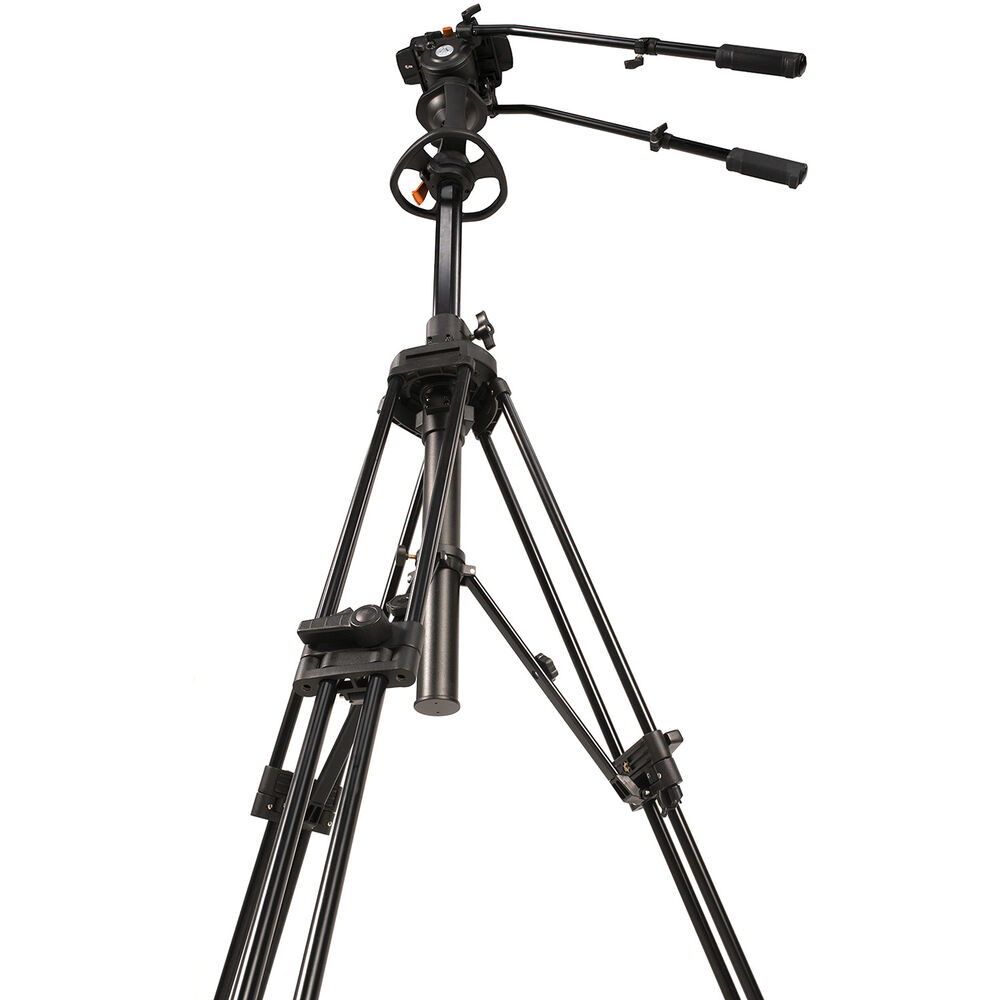

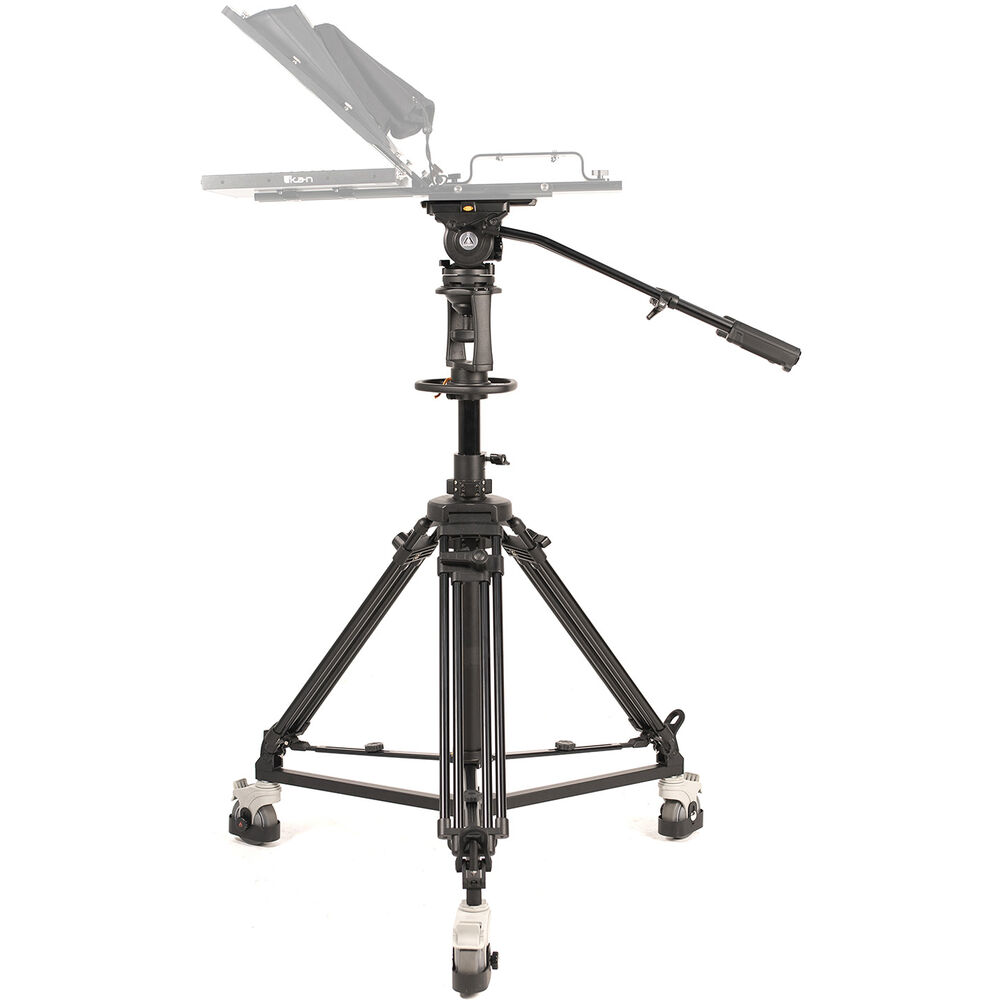

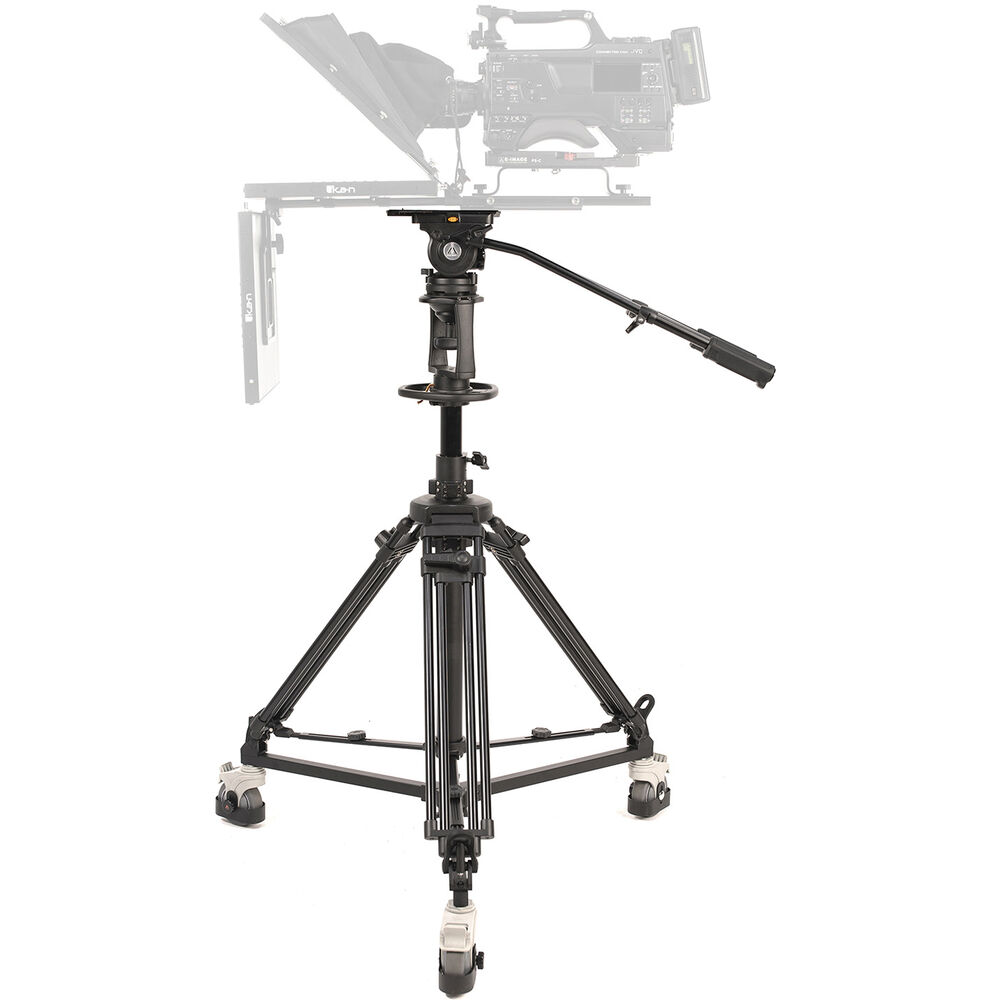

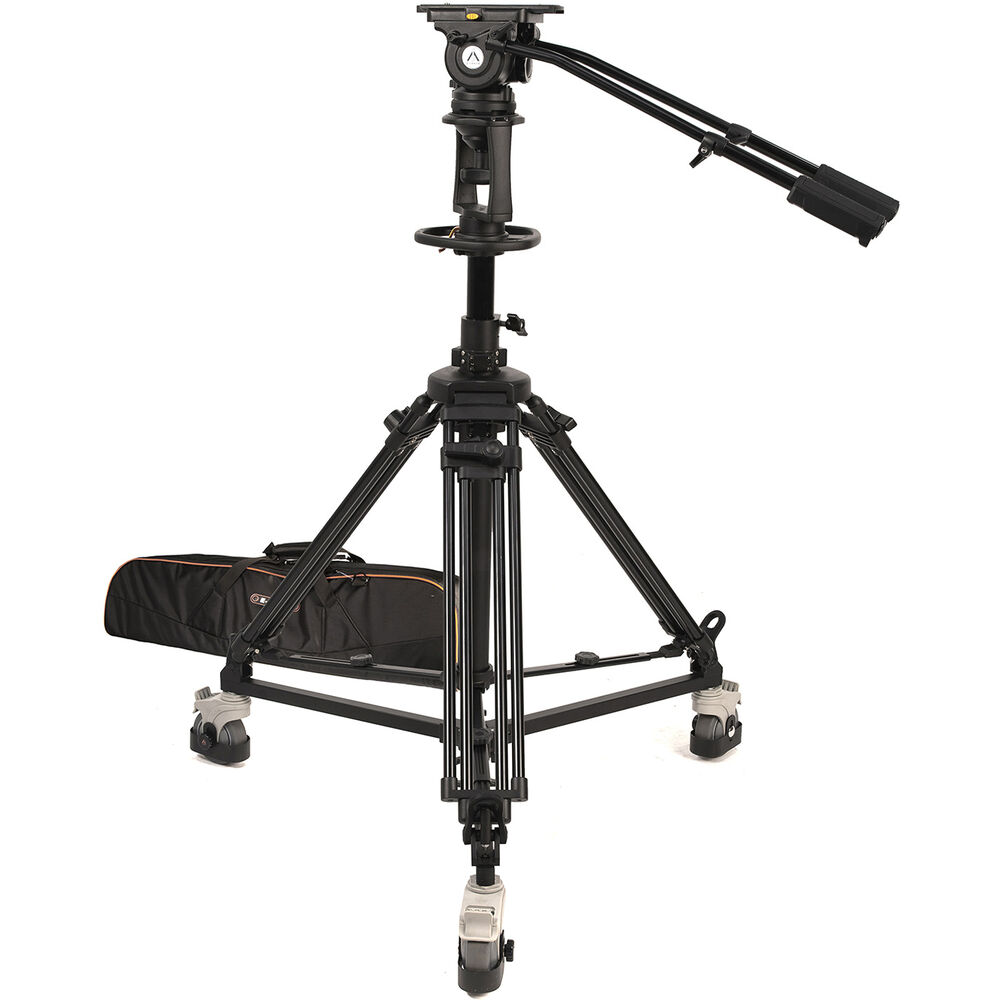

Move your camera rig with ease around your studio or on your set with this GH20 Fluid Head with AT7903 Tripod Pedestal & EI-7004B Dolly Kit from Ikan. This kit consists of the heavy-duty GH20 fluid head, the AT7903A tripod pedestal, and the EI-7004B tripod dolly.

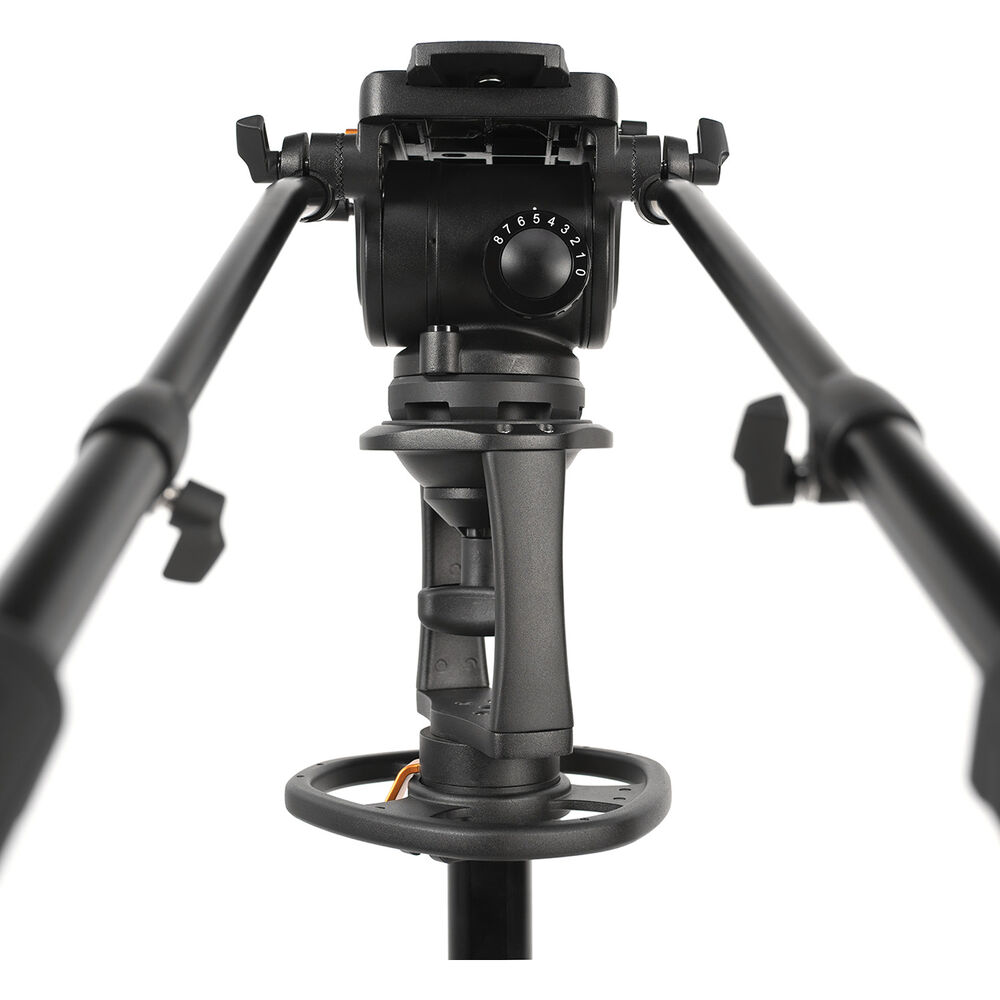

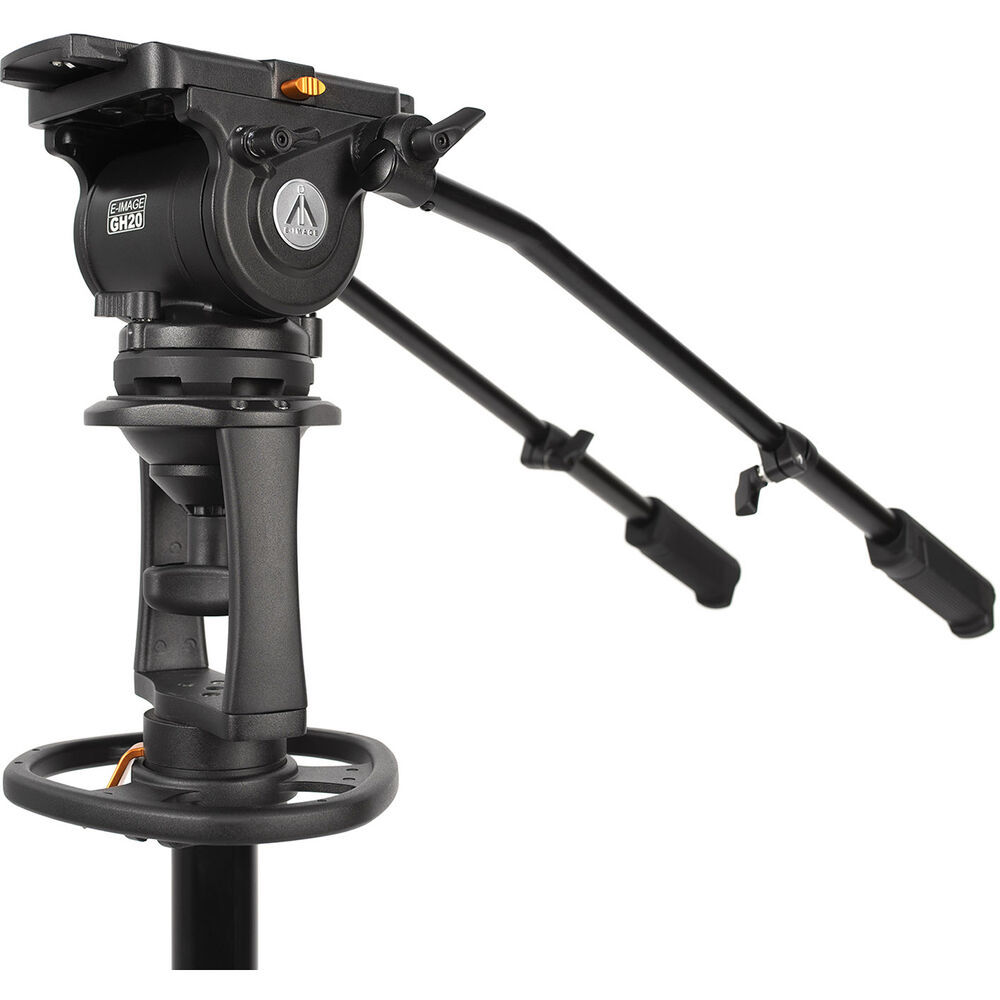

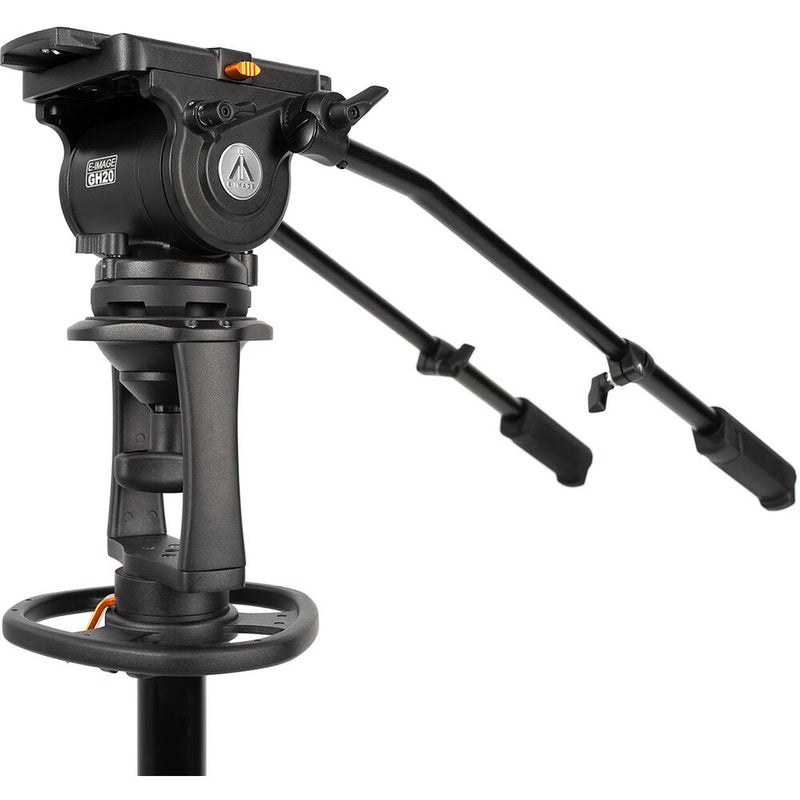

The GH20 fluid head has a nine-position counterbalance system and features a 100mm bowl. It has a tilt range of -30 to 60° and handles payloads up to 44 lb. A large quick release mounting plate offers a 6� sliding range, making this fluid head ideal for working with studio-style cameras or teleprompters. Two rosettes allow you to attach the included GB4 extendable pan handles, while individual locks enable full locking of pan and tilt functions.
The AT7903A pedestal tripod legs boast a flip-lock leg design with an adjustment lever that allows you to have control of pedestal height from 46.2? to 78?. An air-assisted center column with dampening provides flexibility when handling heavy loads, and heavy-duty locking latches provide reliability for the full system.
The EI-7004B dolly has a load capacity of 132.3 lb and a 39.4� footprint diameter. It is easily removable from the tripod legs for storage and transport and features three locking rubber wheels that are ideal for quick repositioning along flat surfaces. It also has a cable guard that keeps the cables from getting tangled in the wheels.
In the Box
- E-Image GH20 Fluid Head with AT7903 Tripod Pedestal & EI-7004B Dolly
- GH20 Fluid Head
- AT7903 Pedestal
- E-Image Medium Tripod Dolly with Cable Guards
- 2 x GB4 Pan Handle
- Limited 1-Year Manufacturer Warranty
E-Image EI-GH20-KIT Specs
| Fluid Head |
Payload: 44 lb / 20 kg
Bowl Size: 100 mm Counterbalance: Stepped, 1-8 Pan Drag Settings: Fixed Tilt Drag Settings: Fixed Tilt Lock: Thumb Lock Tilt Range: -60° to 90° Bubble Level: Yes Pan Handle Length Range: 16.7 to 24" / 42.4 to 70 cm Net Weight: 7.7 lb / 3.5 kg Net Weight with Pan Handles: 9.5 lb / 4.3 kg Sliding Plate Range: 7.87" / 19.5 cm |
| Pedestal |
Bowl Size: 100 mm
Payload: 44 lb / 20 kg Height Range: 40.2 to 72.6" / 102 to 184.5 cm Net Weight: 34.8 lb / 15.8 kg On-Shot Stroke: 12.6" / 32 cm Steering Ring Diameter: 7.67" / 19.5 cm |
| Dolly Type |
Lockable Wheels: Yes
Footprint Diameter: 39.4" / 100 cm Cable Guard Diameter: 4.92" / 12 cm Height: 6.7" / 17 cm Radius: 19.7" / 50 cm Wheel Width: 3.9" / 1 cm Payload: 132.3 lb / 60 kg |
| Mounting |
Top: 1 x Quick Release Plate
|
| Load Capacity |
44.1 lb / 20 kg
|
| Color |
Black
|
| Material of Construction |
Aluminum, Steel, Rubber
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
43.4 lb / 19.7 kg
|
| Package Weight |
62 lb
|
| Box Dimensions (LxWxH) |
45.38 x 22 x 11"
|
