- Supports Up to 13 Pounds
- Easy Lock Baseplate
- 5-Step Counterbalance with 0 Setting
- Adjustable Fluid Pan & Tilt Drag
- 75mm Ball/Bowl
- 2-Stage Legs with Mono-Lock Design
- Height Range 32.25 to 72"
- Independent Leg Adjustments
- 1/4"-20 Threaded Accessory Socket
- Padded Bag with Shoulder Strap
Combining a fluid head with a set of carbon fiber tripod legs, the E-Image GH06 Head with 2-Stage Carbon Fiber Tripod Legs supports cameras and accessories weighing up to 13 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide support platform for your camera. The legs are made from carbon fiber and feature three leg sections, with mono-lock leg locks. The mono-lock design allows you to lock and unlock all the sections of each leg using only one rotating locking lever. The tripod extends to a height of 72" and collapses down as low as 32" using the built-in mid-level spreader.
The GH06 head features an Easy Lock Baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. It provides five counterbalance settings (plus a zero setting for no counterbalance) that helps the fluid head support loads up to 13 pounds. With three fluid drag grades plus a zero setting on both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. It includes a padded carry bag with a shoulder strap
- The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate but combines the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.

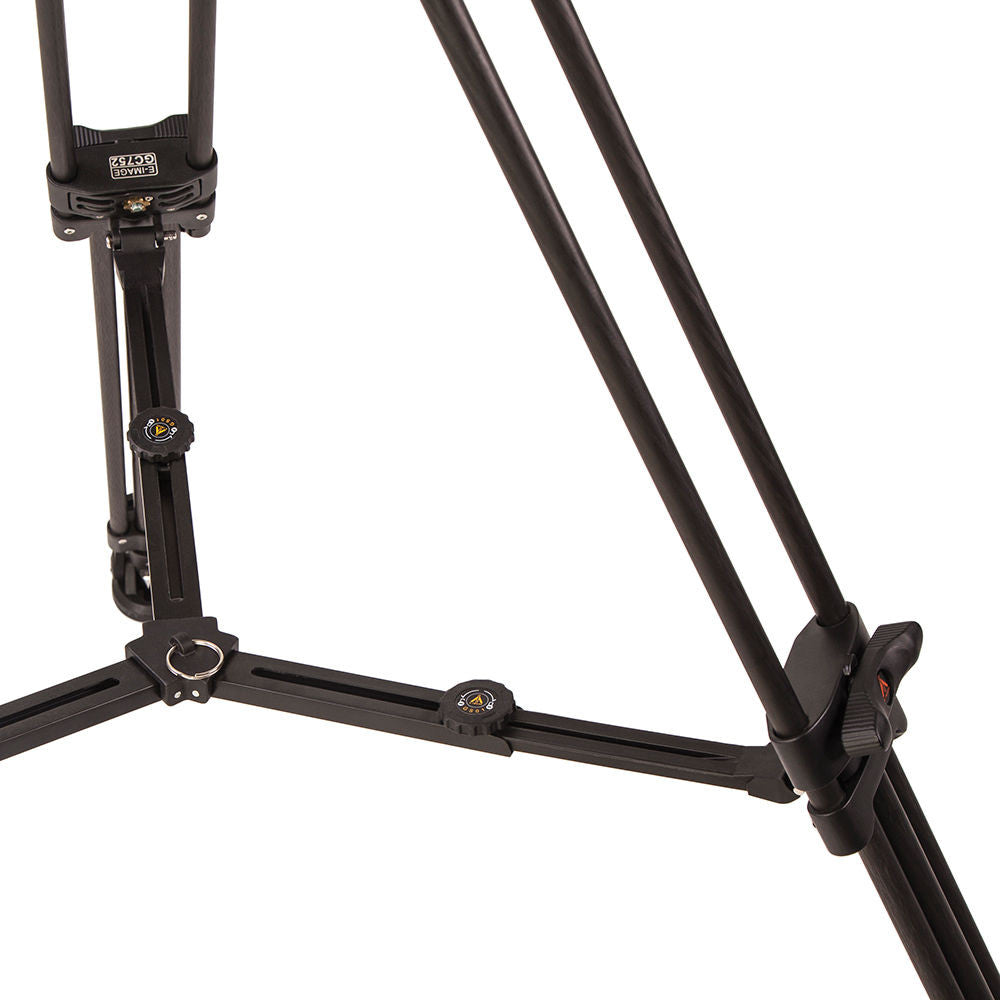

- Mono-Lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing your back from having to bend down to open a bottom leg lock to raise the legs.
- The legs feature dual spiked feet that provide solid purchase in soft surfaces when the legs are spread wide or extended to full height.
- The rubber feet attach to the spiked feet for working on delicate or hard surfaces.
- The Easy Lock camera plate features a guided sled with a locating pin and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
UPC: 847983012077
| General |
| Load Capacity | 13 lb / 6 kg |
| Maximum Height | 72" / 154.9 cm |
| Minimum Height | 30" / 66.0 cm |
| Leveling Bubble/Illuminated | Yes/No |
| Weight | 16 lb / 7.3 kg |
| Head |
| Counter Balance System | 0 to 5 plus 0 |
| Balance Plate | Easy Lock |
| Tilt Range | -60 to 90° |
| Tilt Drag | 3-steps plus 0 |
| Tilt Lock | Yes |
| Pan Drag | 3-steps plus 0 |
| Pan Lock | Yes |
| Legs |
| Material | Carbon Fiber |
| Head Attachment Fitting | 75mm Bowl |
| Leg Stages/Sections | 2/3 |
| Leg Lock Type | Mono-Lock - rotating lever |
| Spiked/Retractable Feet | Spiked Feet |
| Packaging Info |
| Package Weight | 16.4 lb |
| Box Dimensions (LxWxH) | 40.0 x 10.0 x 10.0" |
In the Box
E-Image GH06 Head with 2-Stage Carbon Fiber Tripod Legs
