E-Image GH Series Video Head Overview

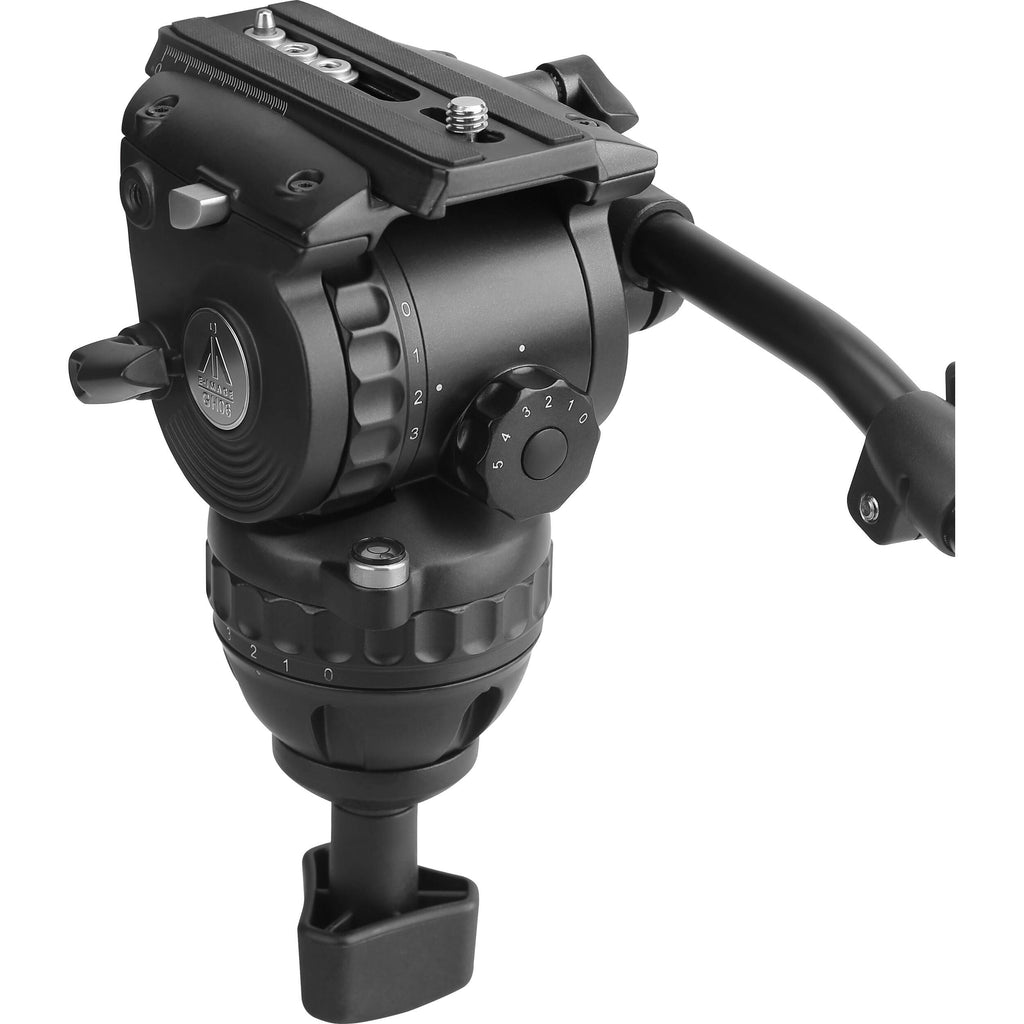

The E-Image GH06 Fluid Head supports cameras and accessories weighing up to 13 pounds. The GH06 head features an Easy Lock Baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick-release system. It provides five counterbalance settings (plus a zero setting for no counterbalance) that help the fluid head support loads up to 13 pounds.
With three fluid drag grades plus a zero setting on both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built-in 1/4"-20 accessory socket for available monitor support arms or other accessory items, and independent pan and tilt locks.

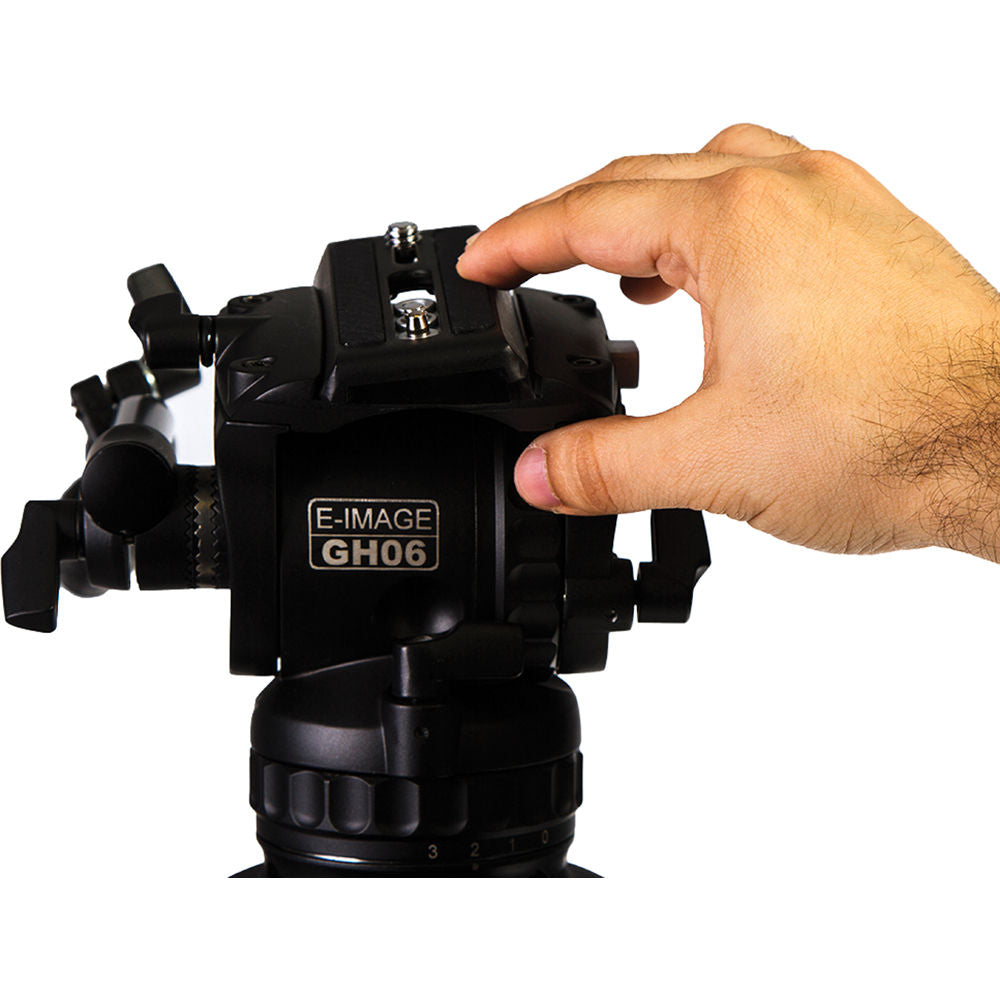

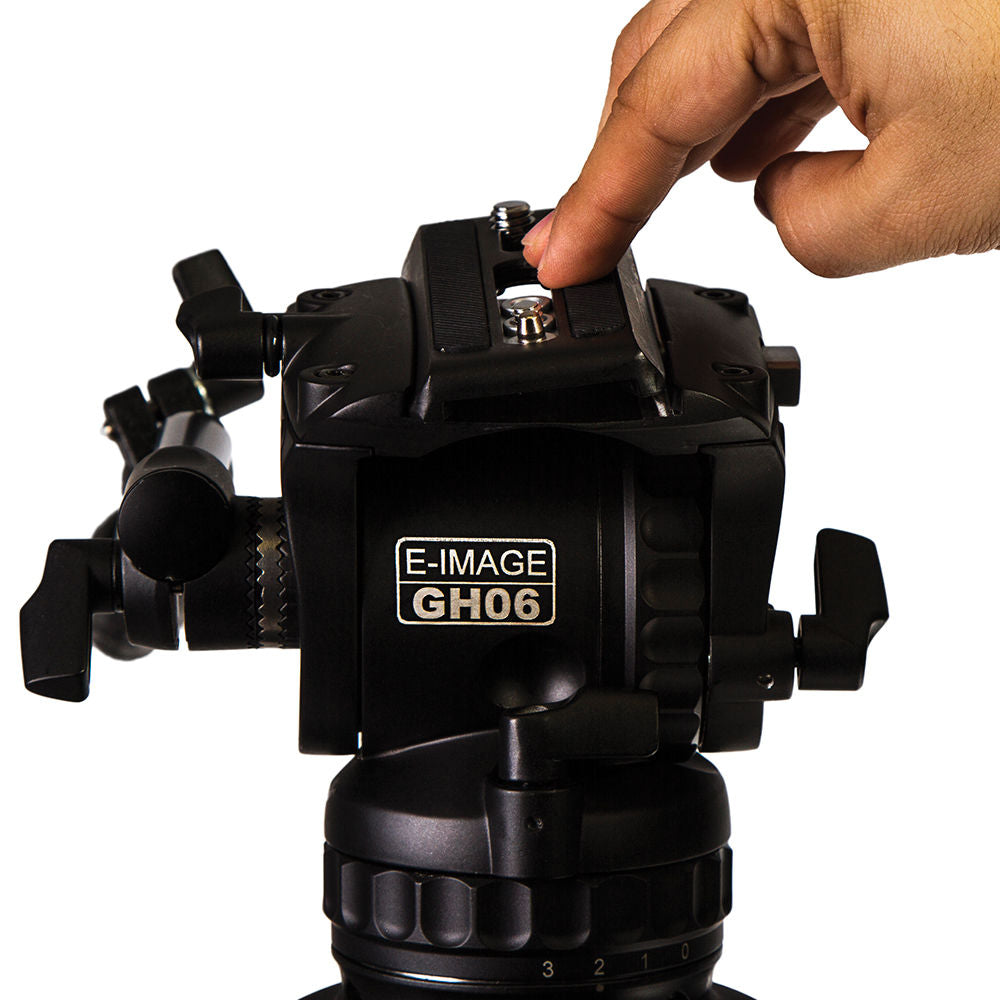

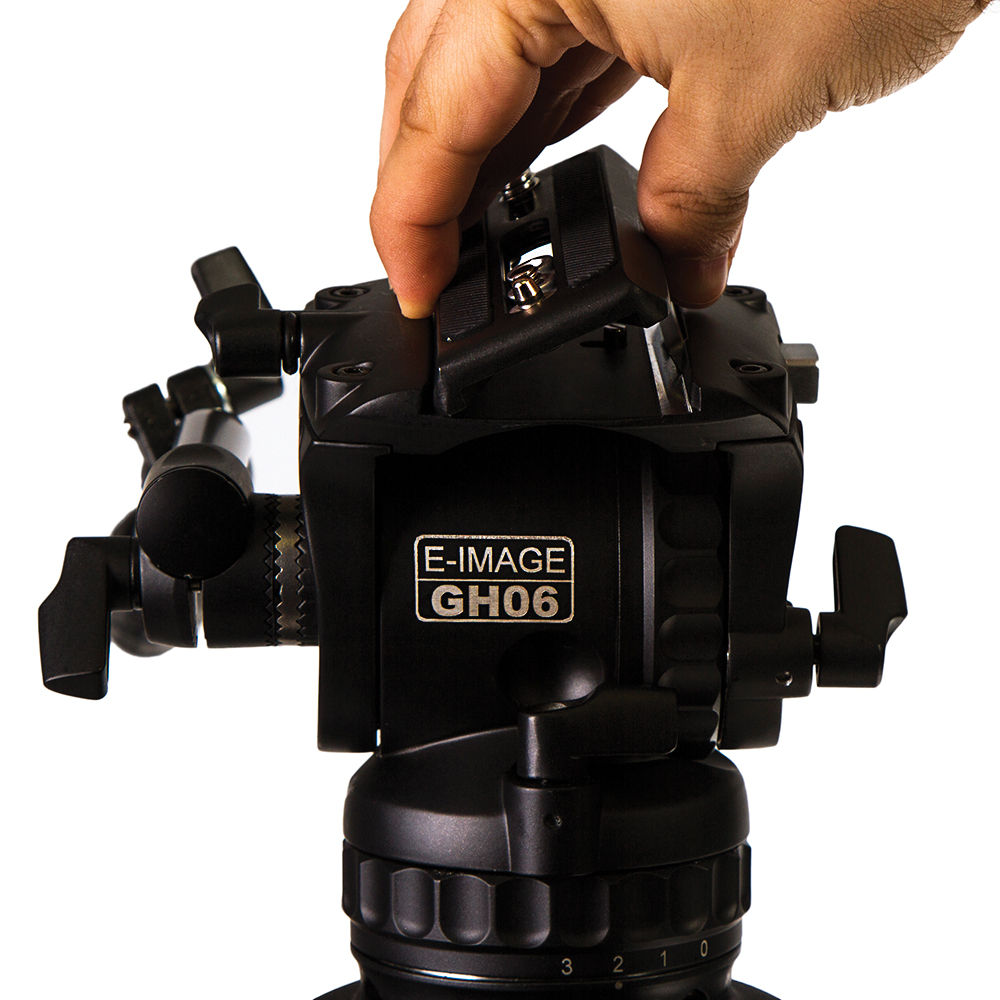

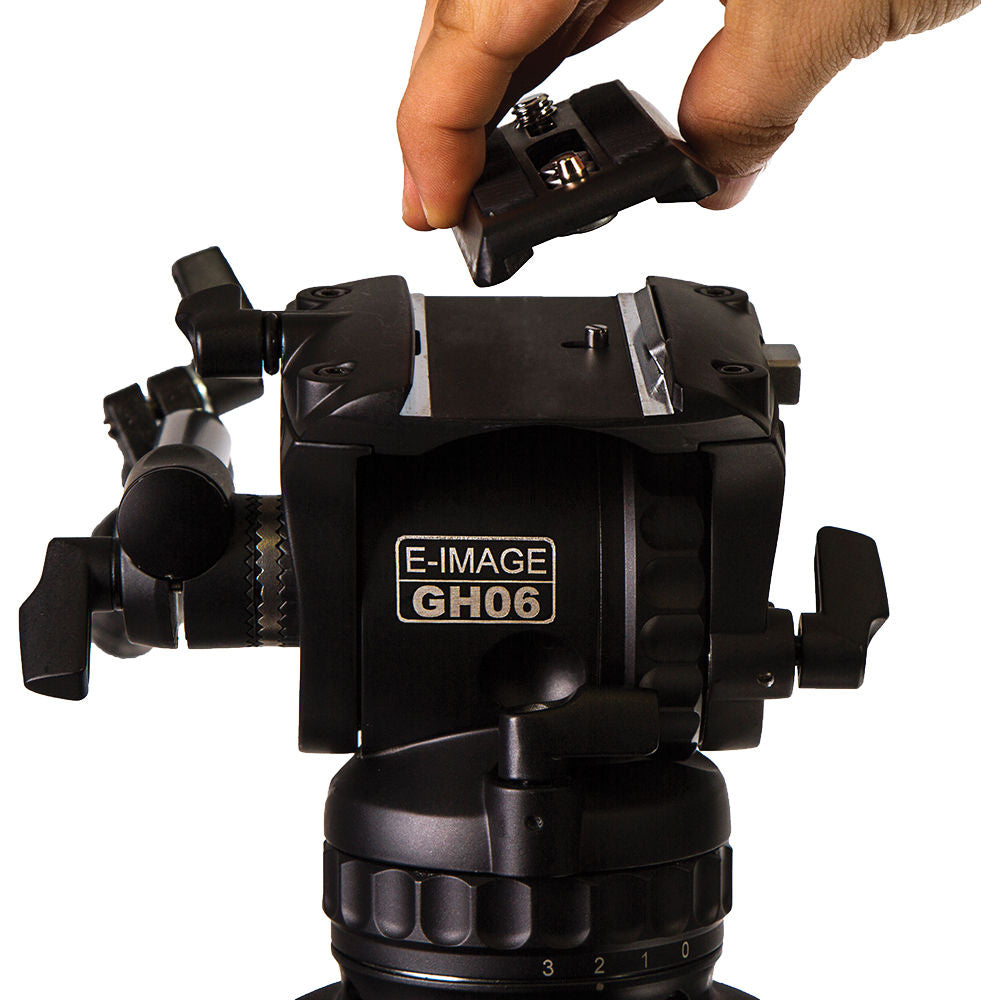

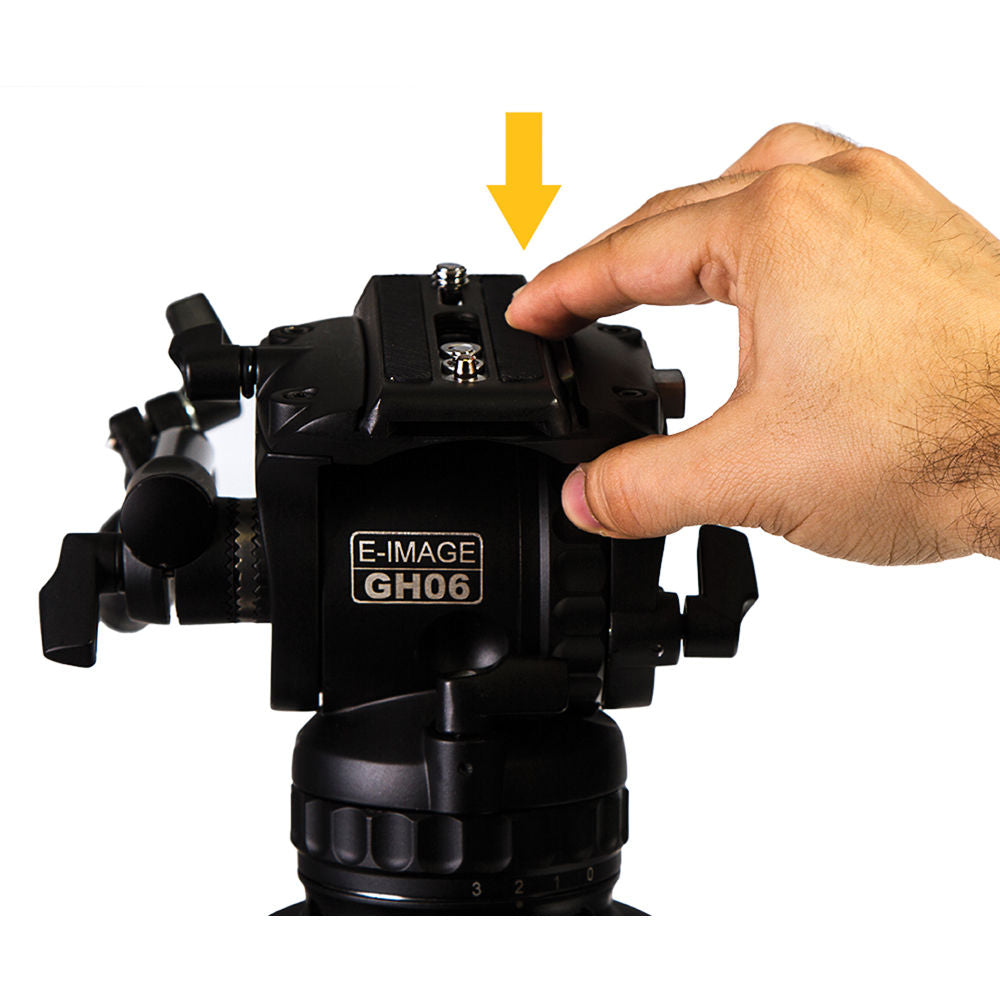

The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate but combines the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
The Easy Lock camera plate features a guided sled with a retractable locating pin and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
![]()
UPC: 847983010431
In the Box
- E-Image GH06 Fluid Head
- E-Image Pan Handle for E-Image Fluid Heads
- E-Image GP1 Quick Release Plate
- Tie-Down Knuckle
- Limited 1-Year Warranty
E-Image GH Series Video Head Specs
Camera Plate
| Camera Plate Features |
Sliding Balance Plate |
| Camera Plate Type |
Easy Lock |
Tripod Platform
| Base Mount |
75 mm Half Ball |
Pan & Tilt
| Drag Control |
Tilt: 3-Step Plus 0
Pan: 3-Step Plus 0 |
| Vertical Tilt |
+90° to -60° |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
Physical
| Load Capacity |
13 lb / 6 kg |
| Counter Balance |
Incremental 5-Step Plus 0 |
| Bubble Level |
1 |
| Dimensions |
6.5" / 16.5 cm |
| Weight |
4.4 lb / 2 kg |
Packaging Info
| Package Weight |
6.2 lb |
| Box Dimensions (LxWxH) |
18 x 9.2 x 7.9" |
