- Supports Up to 22 Pounds
- 100mm Ball/Bowl
- 3-Section Legs with Mono-Lock Design
- 18 to 63" Tripod Legs Height Range
- 7-Step Counterbalance
- 3 Steps Plus 0 Fluid Pan & Tilt Drag
- 1/4"-20 Threaded Accessory Socket
- Ground Level Spreader
- Mid-Level Spreader & Rubber Feet
- Padded Bag with Shoulder Strap

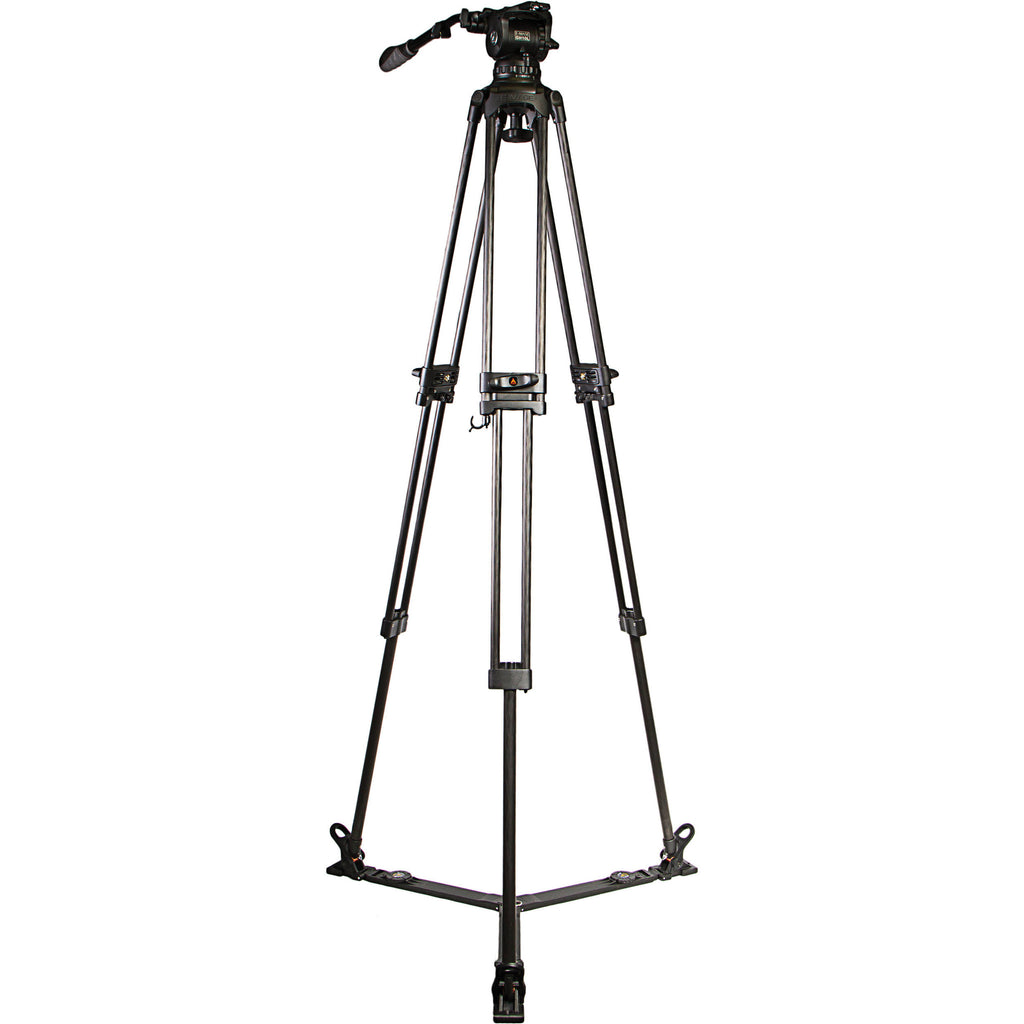

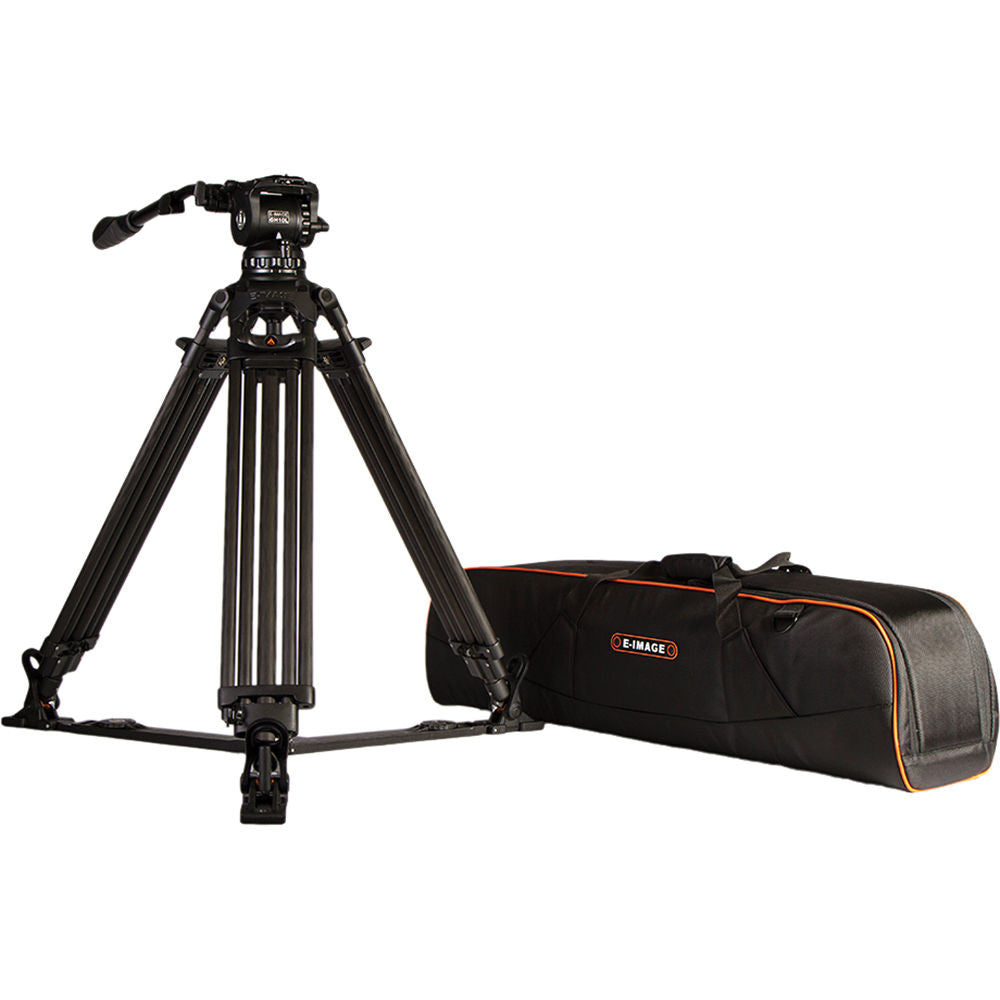

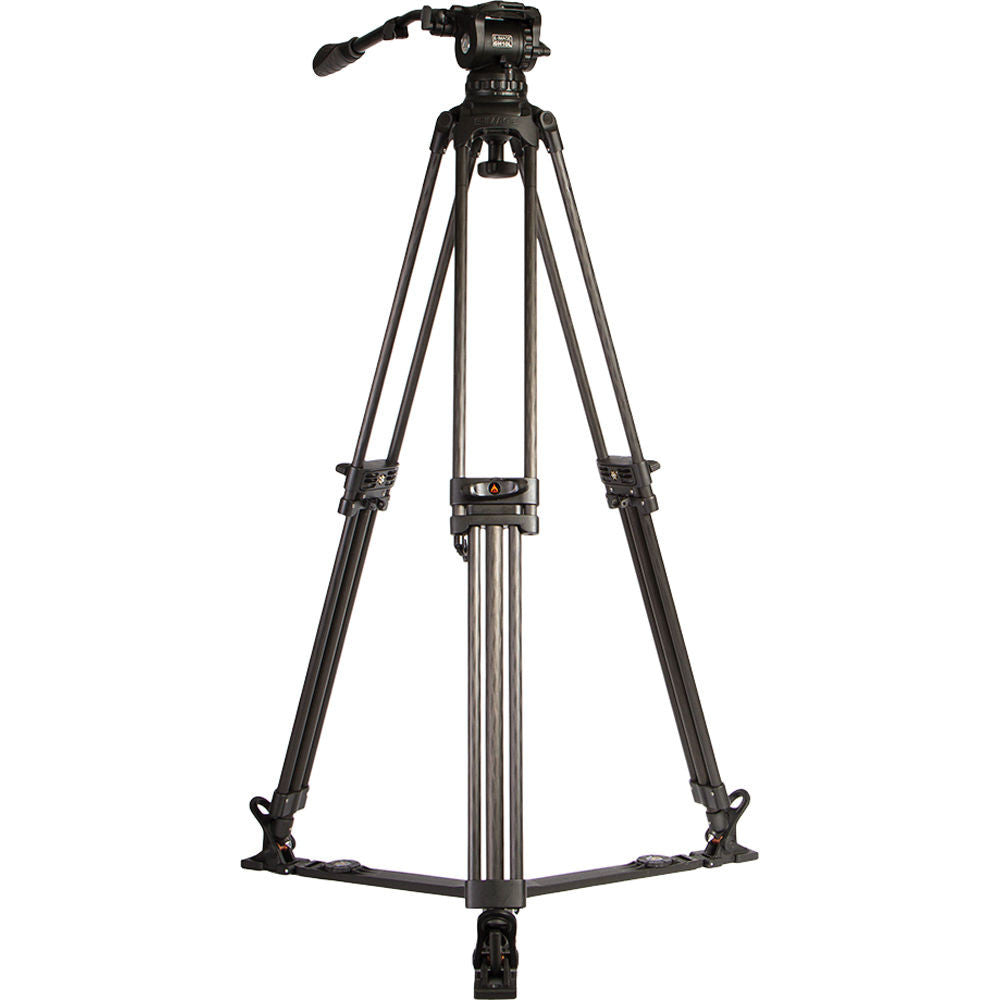

The E-Image GC102 2-Stage Carbon Fiber Tripod with GH10L Head supports cameras and accessories weighing up to 22 pounds. The head and legs feature a 100mm ball/bowl, which provides a wide support platform. The legs are made from carbon fiber so they are lightweight and corrosion resistant, and they feature three leg sections with mono-lock leg locks. The mono-lock design allows you to lock and unlock all the sections of each leg using only one rotating locking lever. The tripod legs support up to 133 lb of load and are adjustable from 18 to 63". The legs feature spiked feet and come with a ground level and a mid-level spreader, as well as rubber feet to cover the spiked feet.
The GH10L head features a sliding balance plate system for attaching the camera to the head. It provides seven counterbalance settings (1 to 7) that helps the fluid head support loads up to 22 pounds. With three fluid drag grades plus a zero setting on both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. It includes a padded carry bag with a shoulder strap.
- Mono-Lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing you from having to bend down to open a bottom leg lock to raise the legs.
- The legs feature spiked feet that provide solid purchase in soft surfaces when not using the included ground level spreader.
- The ground level spreader attaches to the spiked feet for working on delicate or hard surfaces.
- The included mid-level spreader allows you to work on uneven terrain such as stairs or rocks while preventing the legs from flying apart. When using the mid-level spreader you can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes.
- The head incorporates a push button that illuminates the built-in bubble level. The batteries are standard sized button cells that are easy to replace.
UPC: 847983010356
| General |
| Leveling Bubble/Illuminated | Yes/Yes |
| Weight | 12 lb (7.3 kg) |
| Head |
| Load Capacity | 22 lb (10 kg) |
| Counter Balance System | 7 counter balance settings |
| Quick Release/Wedge Plate | Easy Lock System |
| Balance Plate | Easy Lock |
| Tilt Range | -60 to 90° |
| Tilt Drag | 3-steps plus 0 |
| Tilt Range | -60 to 90° |
| Tilt Lock | Yes |
| Pan Drag | 3-steps plus 0 |
| Pan Lock | Yes |
| Legs |
| Material | Carbon Fiber |
| Head Attachment Fitting | 100mm Bowl |
| Minimum Height | 18" (46 cm) |
| Maximum Height | 63" (160 cm) |
| Leg Stages/Sections | 2/3 |
| Leg Lock Type | Mono-Lock - rotating lever |
| Spiked/Retractable Feet | Spiked Feet |
| Packaging Info |
| Package Weight | 22.85 lb |
| Box Dimensions (LxWxH) | 39.0 x 9.5 x 9.5" |
In the Box
E-Image GC102 2-Stage Carbon Fiber Tripod with GH10L Head
