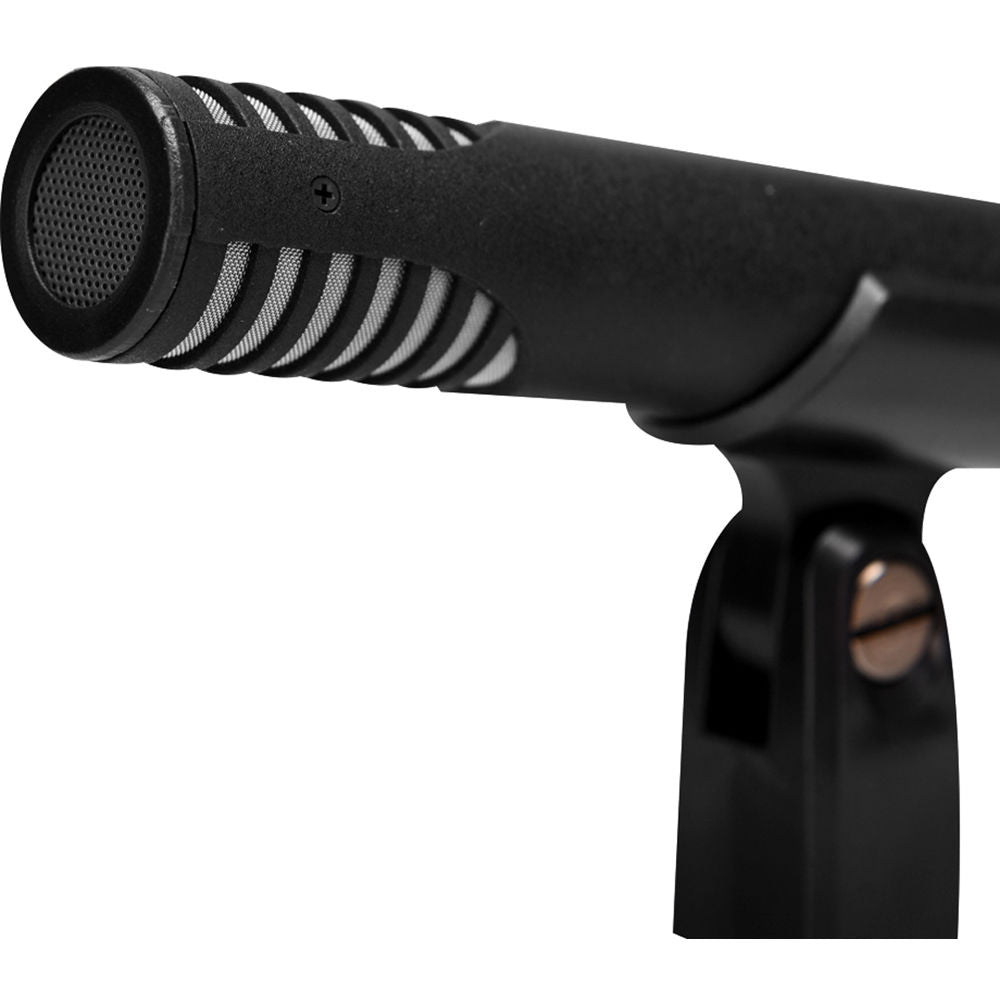

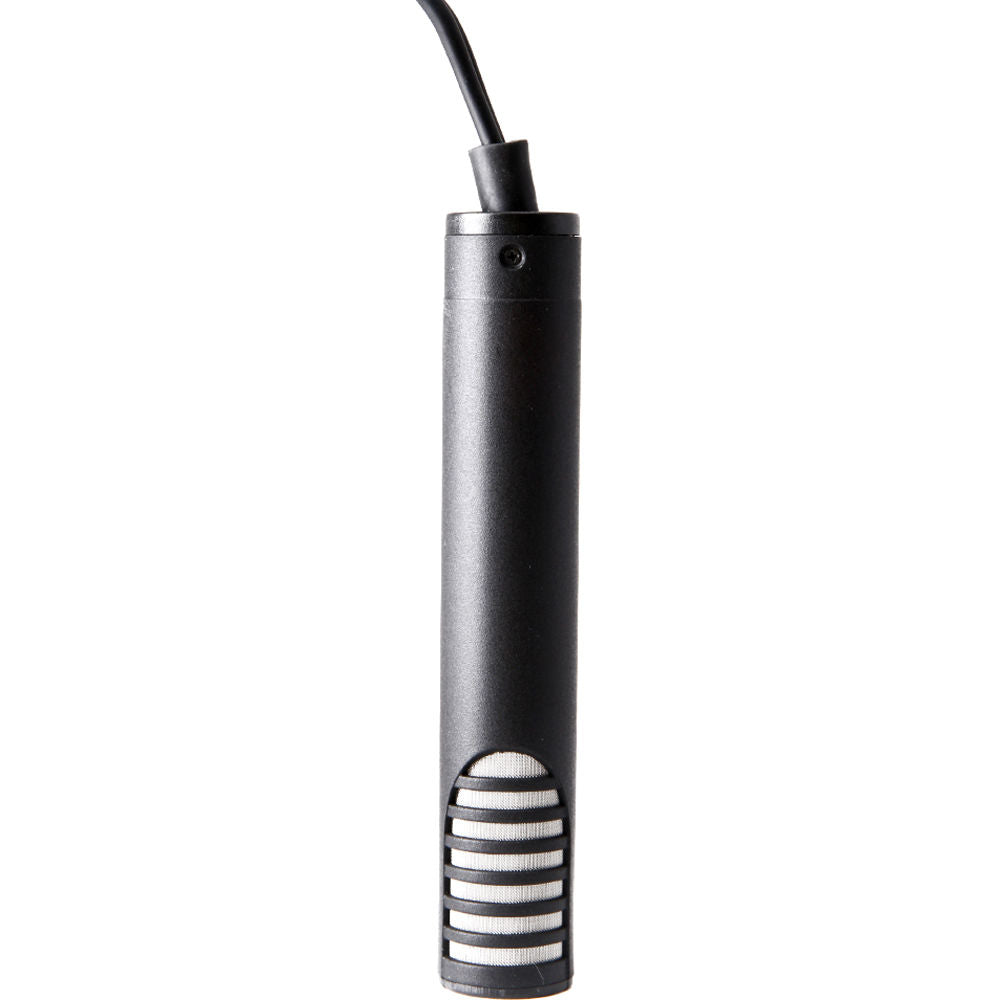

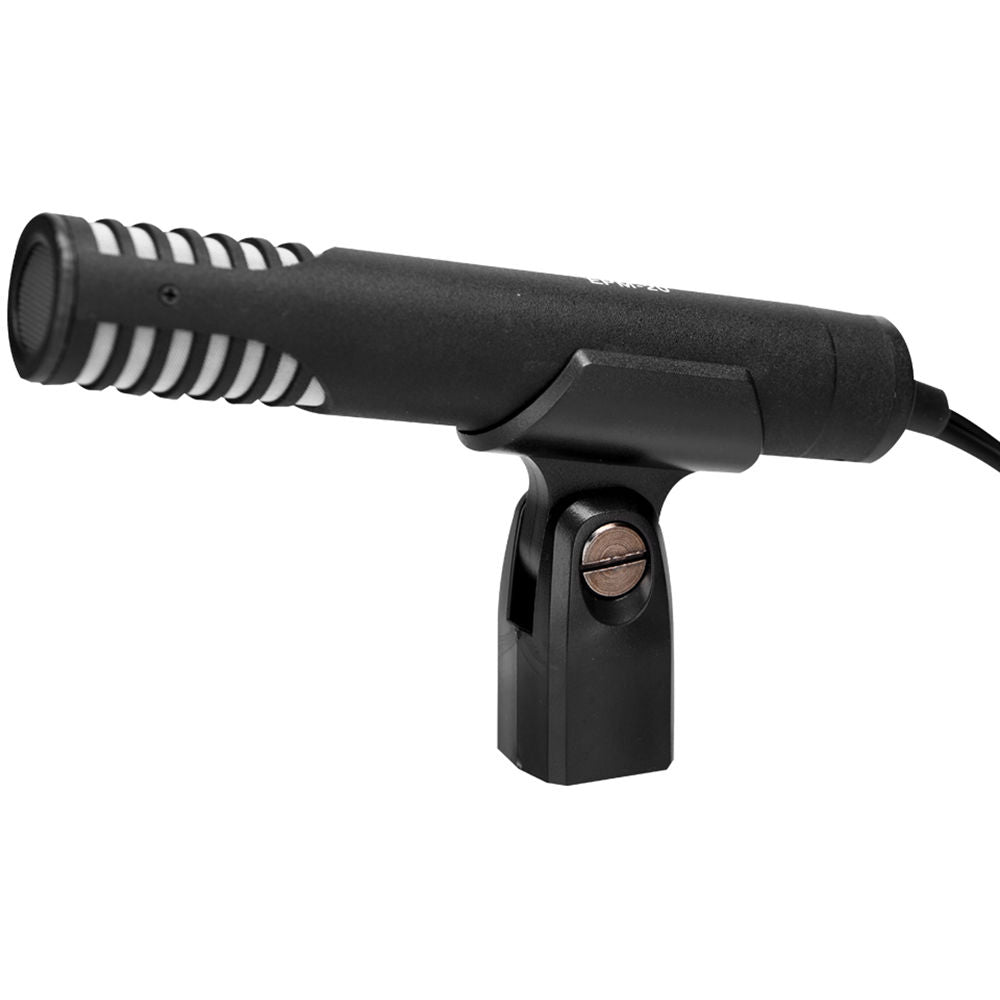

E-Image EPM-20 Overview

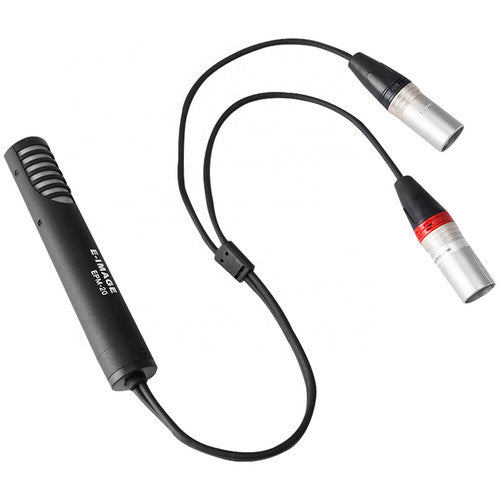

The EPM-20 Unidirectional Stereo XLR Microphone from E-Image is designed for video production and ENG broadcast audio applications. It is compact and lightweight, and suitable to pick up within a short distance. This mic offers excellent sound rejection from the sides and rear of the capsule. In addition, the microphone is built with left/right XLR connectors and is powered by 40 to 52 V phantom power.
UPC: 847983029396
E-Image EPM-20 Specs
Microphone
Sound Field | Mono, Stereo |
Capsule | Electret Condenser |
Polar Pattern | Unidirectional |
Circuitry | Solid-State |
Performance
Frequency Range | 70 Hz to 20 kHz |
Maximum SPL | 125 dB SPL |
Impedance | 30 Ohms ± 20% |
Sensitivity | 30 dB 35 dB |
Signal-to-Noise Ratio | 69 dB A-Weighted |
Connectivity

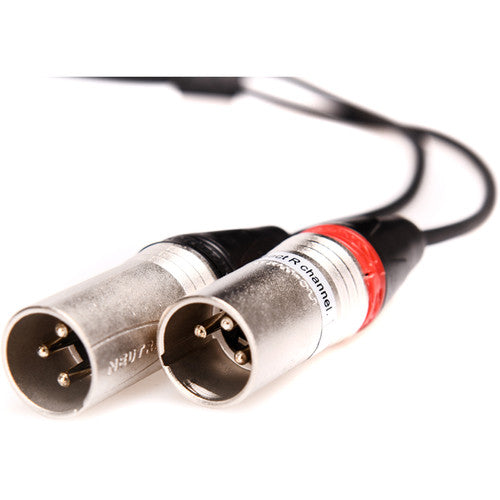

Output Connectors | 2 x XLR 3-Pin |
Power
Operating Voltage | 40 to 52 V |
Physical
Dimensions | ø: 0.94 x L: 5.39" / ø: 24 x L: 137 mm |
Weight | 5.64 oz / 160 g |
