E-Image EK650 Overview

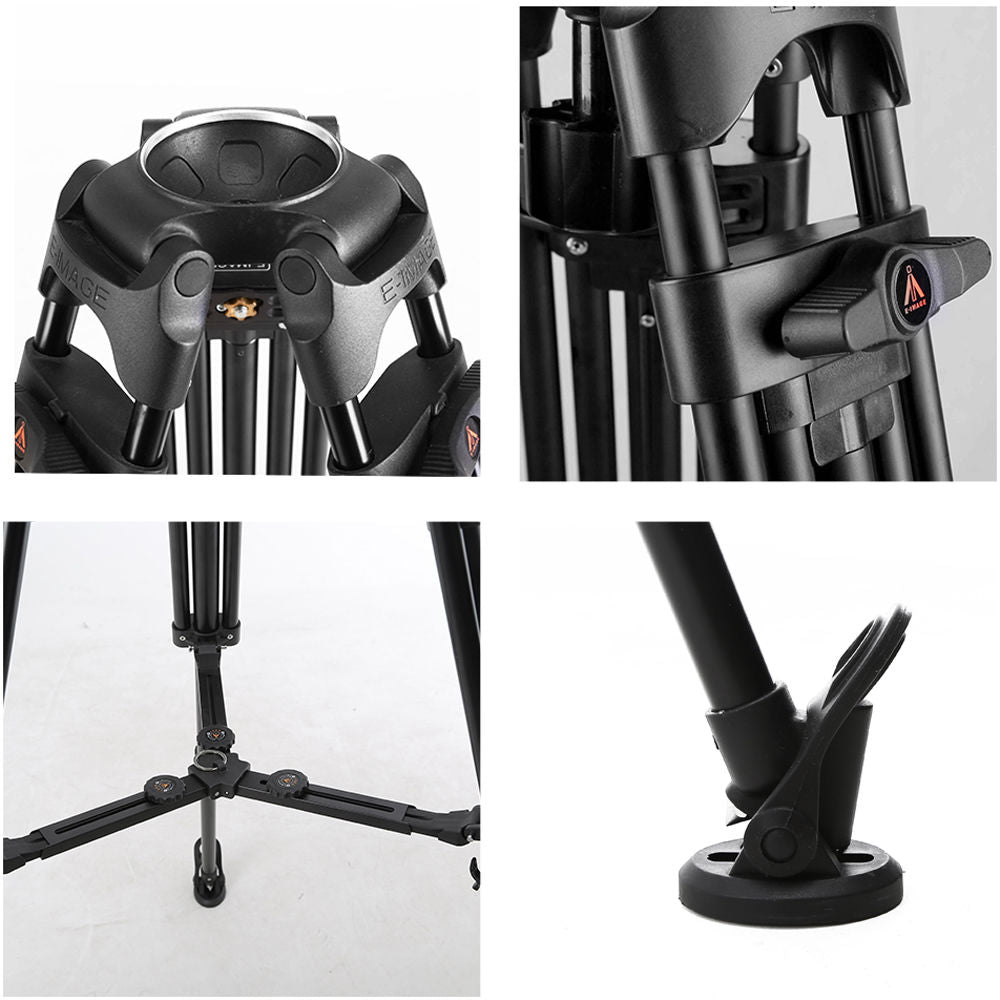

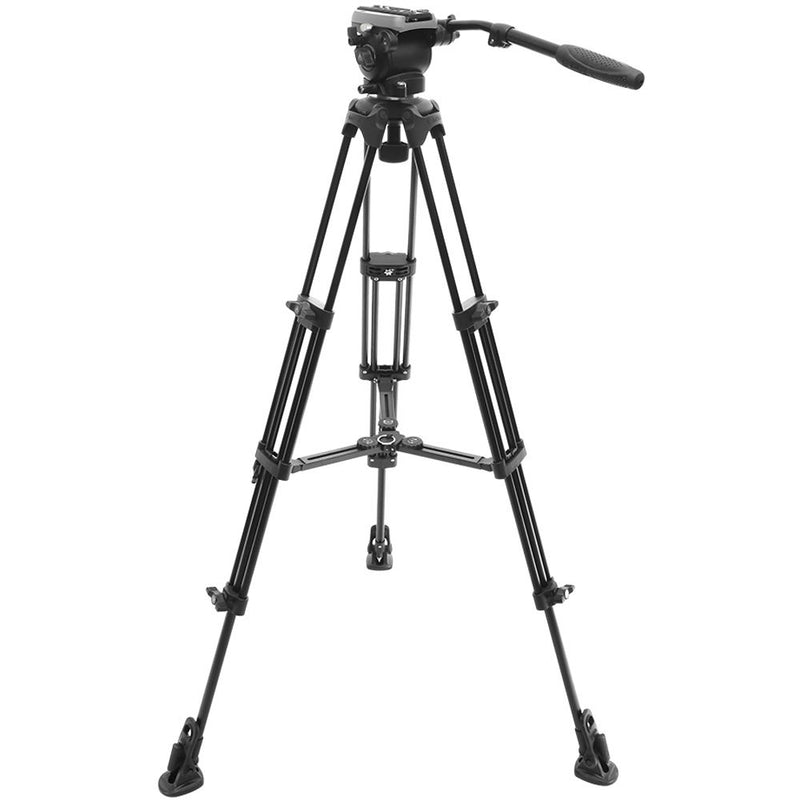

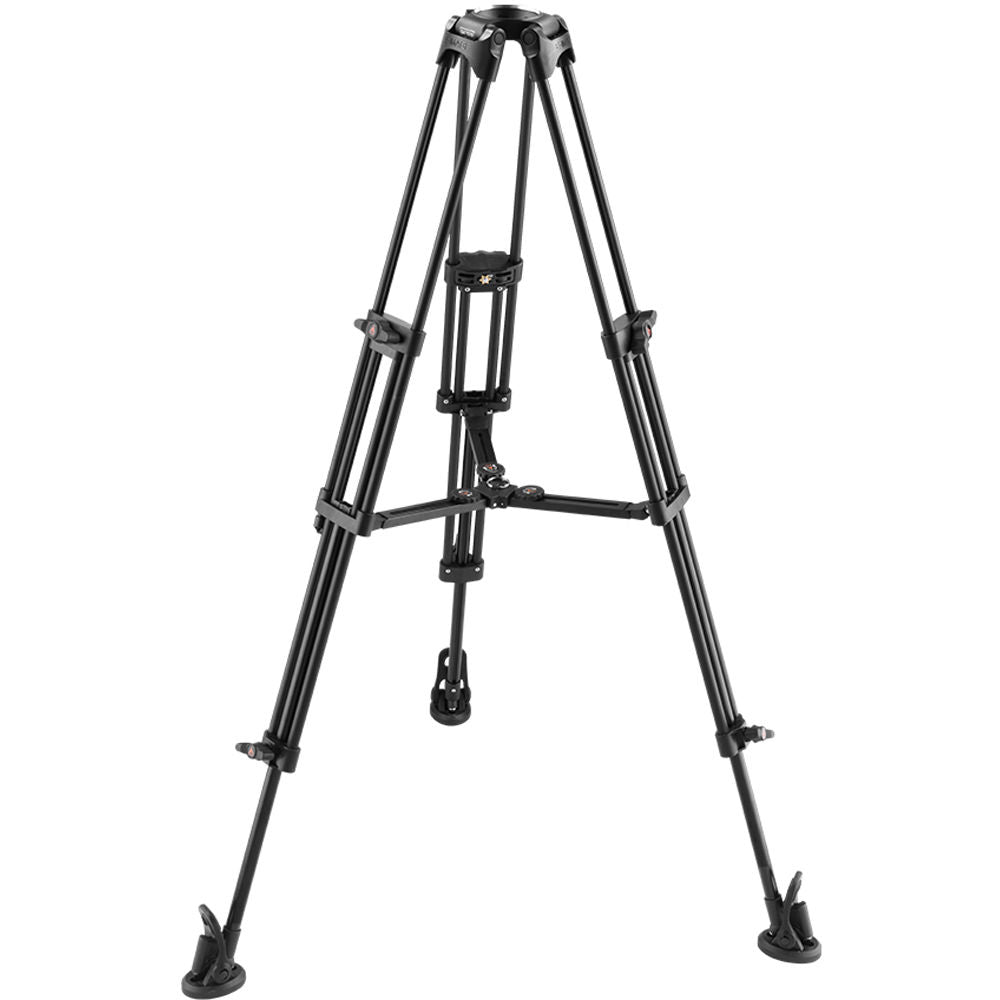

The E-Image EK650 Professional Compact Tripod with Fluid Head features dual-stage aluminum tripod legs and a 75mm half-ball fluid head. It supports up to 11 lb via a fixed counterbalance system and offers a combined height range of 30.5 to 66". The tripod legs have ergonomic twist leg locks and removable rubber feet with spikes underneath for use on both flat surfaces and soft ground. A removable mid-level spreader is included for additional stability. The fluid head has independent pan and tilt locks and comes with a quick release camera plate and removable right-sided pan bar. A carry case is also supplied that fits the legs, head, and spreader. The system is also compatible with select E-Image dollies.
Key Features
- 11 lb payload
- 30.5 to 66" height range
- Dual-stage aluminum tripod legs with 75mm bowl base
- 75mm half ball fluid head
- Fixed counterbalance
- Independent pan and tilt locks
- Removable telescoping right-sided pan bar
- Quick release camera plate
- Removable rubber feet with spikes underneath
- Removable mid-level spreader
- Ergonomic leg lock knobs
![]()
UPC: 847983007752
In the Box
- E-Image EK650 Professional Compact Tripod with Fluid Head (75mm)
- Quick Release Camera Plate
- Mid-Level Spreader
- Pan Bar
- Set of Rubber Feet
- Carry Case
- Limited 1-Year Warranty
E-Image EK650 Specs
Camera Plate
| Camera Plate Features | Quick Release |
Head
| Base Mount | 75 mm Half Ball |
| Counter Balance | Fixed |
| Pan Handle Fittings | 1 x Rosette |
| Bubble Level | 1 |
Pan & Tilt
| Drag Control | Pan: Fixed
Tilt: Continuous
Tilt: Variable |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -60° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
Legs
| Leg Lock Type | Twist Lock |
| Leg Sections | 3 |
| Feet Features | Rubber, Removable, Spiked |
| Spreader | Mid-Level (Included) |
General
| Load Capacity | 11 lb / 4.99 kg |
| Maximum Working Height | 66" / 167.64 cm |
| Minimum Working Height | 30.5" / 77.47 cm |
| Folded Length | 34" / 86.36 cm |
| Materials | Aluminum |
| Operating Temperature | -40 to 176°F / -40 to 80°C |
| Weight | 9.04 lb / 4.1 kg |
Packaging Info
| Package Weight | 16 lb |
| Box Dimensions (LxWxH) | 37 x 8.5 x 8.3" |
