E-Image EK630 Overview

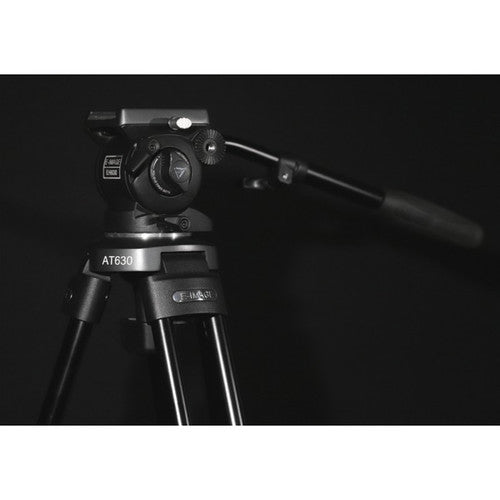

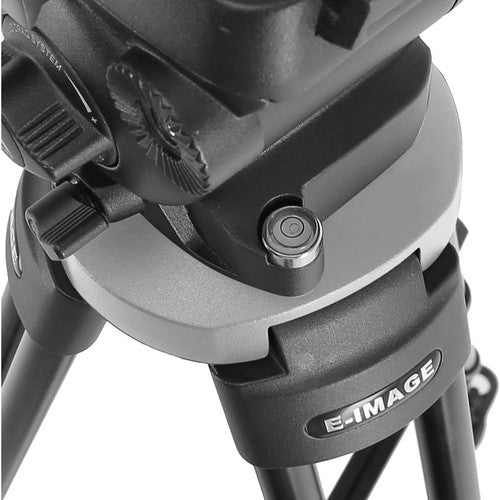

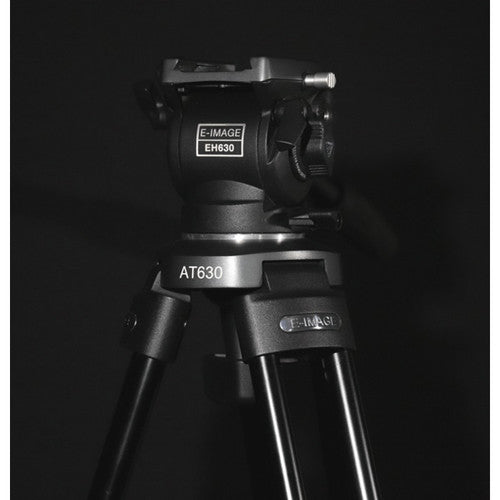

The E-Image EK630 Professional Compact Tripod with Fluid Head features dual-stage aluminum tripod legs and a 75mm half-ball fluid head. It supports up to 8.8 lb via a fixed counterbalance system and offers a combined height range of 30 to 65.5". The tripod legs have ergonomic twist leg locks and rubber feet that prevent sliding on smooth surfaces. A removable mid-level spreader is included for additional stability. The fluid head has independent pan and tilt locks and comes with a quick release camera plate and removable right-sided pan bar. A carry case is also included that fits the legs, head, and spreader. The system is also compatible with select E-Image dollies.
Key Features
- 8.8 lb payload
- 30 to 65.5" height range
- Dual-stage aluminum tripod legs with 75mm bowl base
- 75mm half ball fluid head
- Fixed counterbalance
- Independent pan and tilt locks
- Removable telescoping right-sided pan bar

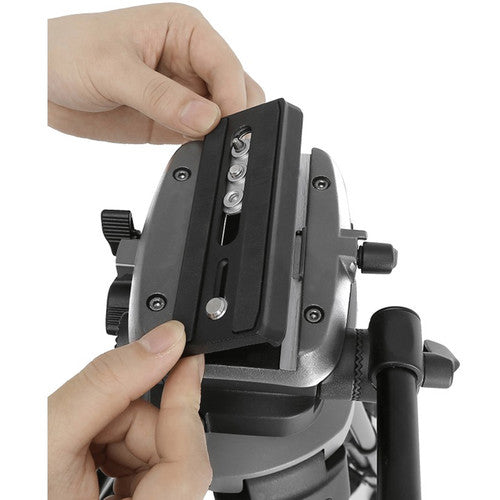

- Quick release camera plate
- Rubber feet
- Removable mid-level spreader
- Ergonomic leg lock knobs
![]()
UPC: 847983007684
In the Box
- E-Image EK630 Professional Compact Tripod with Fluid Head (75mm)
- Quick Release Camera Plate
- Mid-Level Spreader
- Pan Bar
- Carry Case
- Limited 1-Year Warranty
E-Image EK630 Specs
Camera Plate
| Camera Plate Features | Quick Release |
Head
| Base Mount | 75 mm Half Ball |
| Counter Balance | Fixed |
| Pan Handle Fittings | 1 x Rosette |
Pan & Tilt
| Drag Control | Fixed
Variable |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -50° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
Legs
| Leg Lock Type | Twist Lock |
| Leg Sections | 3 |
| Feet Features | Rubber |
| Spreader | Mid-Level (Included) |
General
| Load Capacity | 8.8 lb / 3.99 kg |
| Maximum Working Height | 65.5" / 166.37 cm |
| Minimum Working Height | 30" / 76.20 cm |
| Folded Length | 33.5" / 85.09 cm |
| Materials | Aluminum |
| Operating Temperature | -40 to 176°F / -40 to 80°C |
| Weight | 10.58 lb / 4.8 kg |
Packaging Info
| Package Weight | 16 lb |
| Box Dimensions (LxWxH) | 37 x 8.5 x 8.3" |
