Description
- 17.6 lb Capacity Fluid Drag Tripod Head
- Sliding Balance Plate with Safety Lock
- Spring-Loaded Counterbalance System
- Fixed Tilt and Pan Drag
- 75mm Claw Ball
- Two-Stage Tripod with Mid-Level Spreader
- Height Range of 31 to 63"
- Independent Leg Adjustments
- Removable Anti-Slip Pads/Spike Covers
- Soft Travel Case

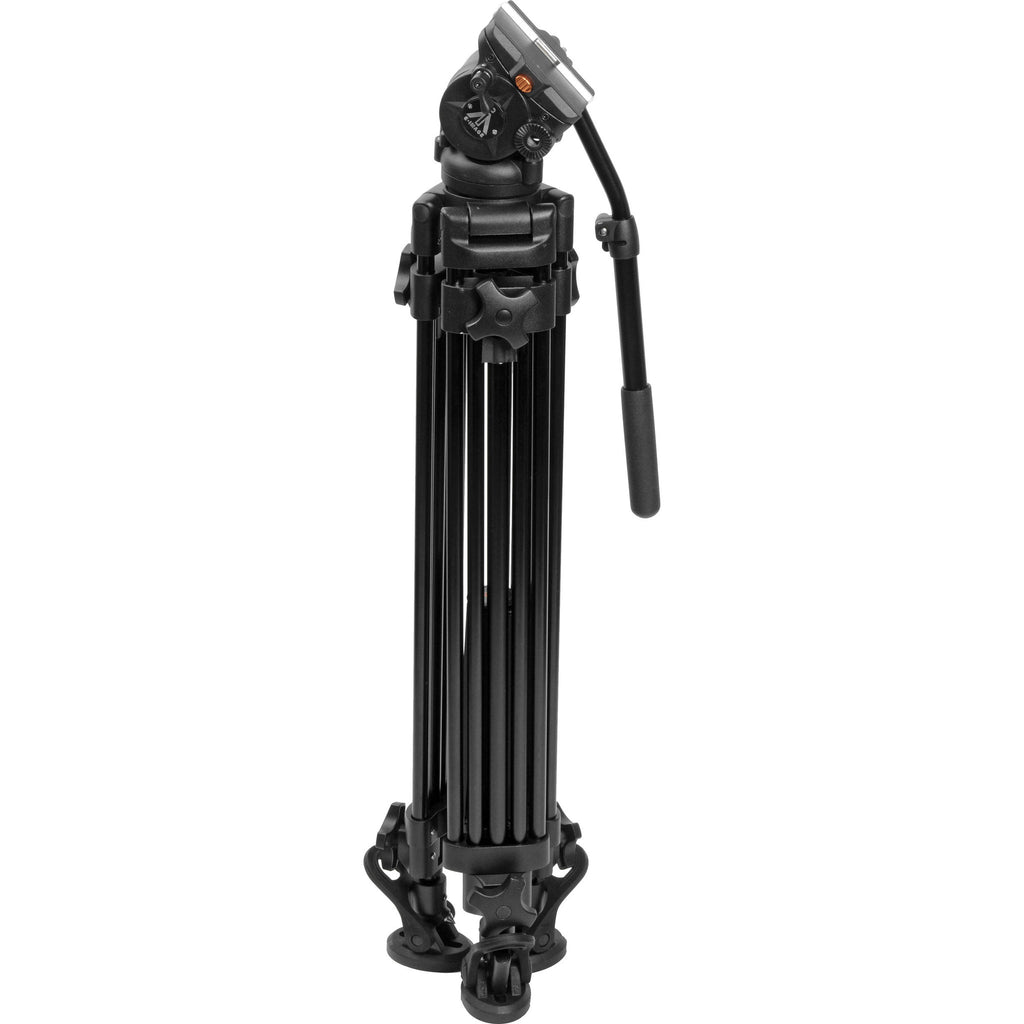

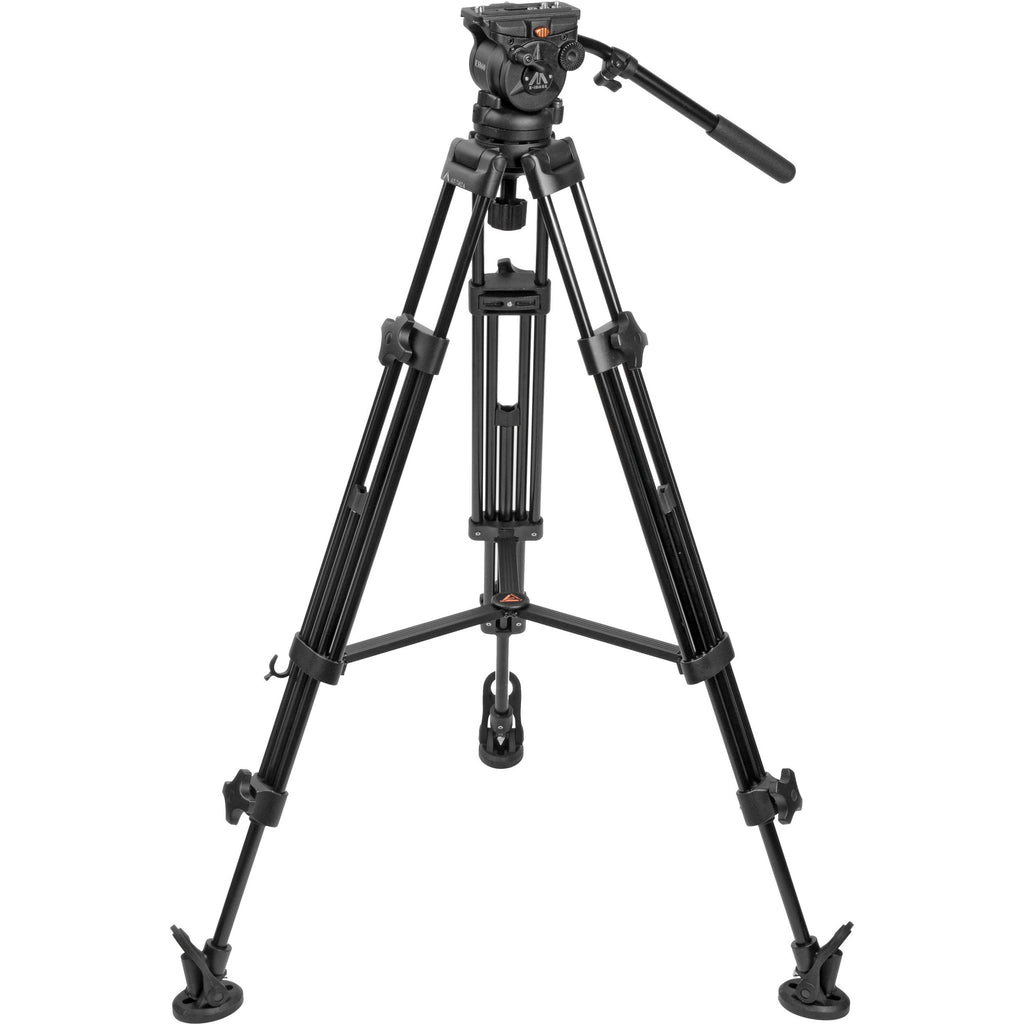

The E-Image EK60AAM Fluid Drag Video Head and Tripod is a video head and dual stage tripod leg system designed for video cameras and rigs weighing up to 17.6 pounds. The system consists of the EH60 fluid drag head, the AT7402A aluminum tripod legs with fixed mid-level spreader, one HD7060 adjustable pan handle, and a soft bag for carrying the system. The head has fixed pan and tilt fluid drag for smooth camera moves, and a spring-loaded counterbalance system adjustable in three steps
The included sliding balance plate attaches to your camera with either of the included 1/4"-20 or 3/8"-16 camera tie-down screws. It then slides into the head's top plate, quickly and securely attaching your camera to the tripod. You can adjust the balance of the camera on the tripod head by sliding the baseplate forward or backward. The sliding balance plate system features a safety release to help prevent the sliding baseplate from accidentally sliding out of the tripod head.

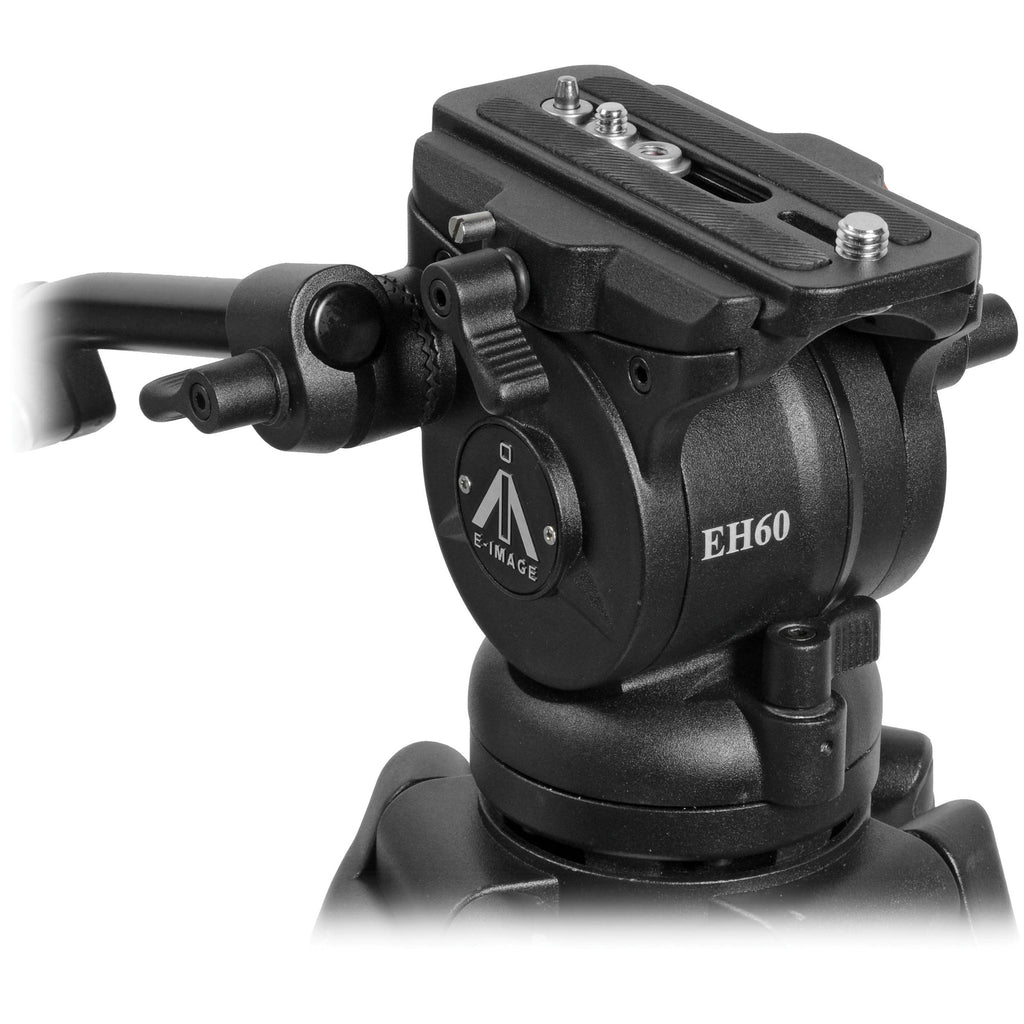

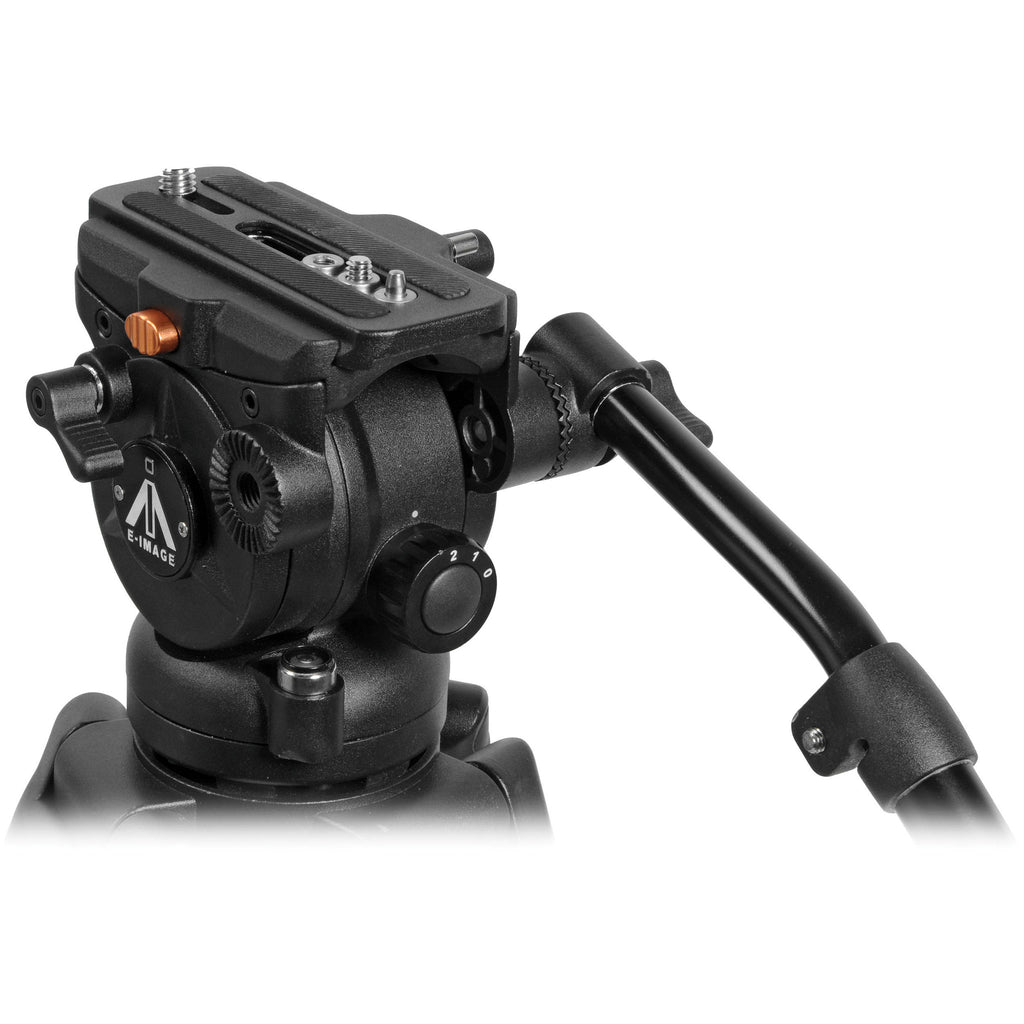

Fluid Head
-
- Fluid Drag
- Tilt: Fixed
- Pan: Fixed
- Spring-Loaded/Three-Stepped Counterbalance
- 0: 0 lb (0kg)
- 1: 6.6 lb (3kg)
- 2: 13.2 lb (6kg)
- 75mm Claw ball for fast leveling
- Bubble level
- 90° Tilt down�camera can point straight down
- 45° Tilt up
- 360° Panning
- Mounting rosettes on left and right sides
- Fluid Drag
Legs
-
- Built-in fixed spreader
- Working height range of 31 to 63"
- Rotary clamp leg locks
- Foot spikes
- Removable anti-slip pads/foot spike protectors
- Integrated leg wrap bungee and clip
| Head | |
|---|---|
| Counter Balance System | Spring-loaded |
| Counter Balance Range | Range: 6.6 - 17.6 lb (3 - 8 kg) Three steps (0, 1, 2) |
| Quick Release Plate | Sliding type 4.7 x 1.9 x 0.4" (120 x 49 x 10.5 mm) |
| Quick Release Safety | Yes |
| Camera Mounting Screw | 1/4"-20 3/8"-16 |
| Built-in Balance Plate | No |
| Tilt Drag | Fixed fluid |
| Tilt Range | +90 to -45° |
| Tilt Lock | Yes |
| Pan Drag | Fixed fluid |
| Pan Range | 360° |
| Pan Lock | Yes |
| Pan Handle Rosettes | 2 x Rosettes (one each L/R) |
| Leveling Bubble/Illuminated | Yes, non-illuminated |
| Legs | |
|---|---|
| Material | Anodized aluminum alloy |
| Head Attachment Fitting | 75 mm Ball base |
| Leg Stages/Sections | Two-stage |
| Leg Lock Type | Rotary clamp |
| Independent Leg Spread | No |
| Spreader | Mid-Level (non-removable / non-adjustable) |
| Spiked/Retractable Feet | Non-retractable spikes with removable spike protectors/anti-slip pads |
| General | |
|---|---|
| Load Capacity | 17.6 lb (8 kg) |
| Height Range | Maximum: 63" (160 cm) Minimum: 31" (79 cm) |
| Folded Length | Including Head: 32.5" (82.6 cm) |
| Weight | 11 lb (4.9 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 16.4 lb |
| Box Dimensions (LxWxH) | 37.0 x 9.0 x 9.0" |
- Quick Release Plate
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- Pan Handle
- Travel Soft Case
- Limited 2-Year Warranty
