- 13.2 lb Capacity Fluid Drag Tripod Head
- Quick Release Plate and Balance System
- Spring-Loaded Counterbalance System
- Adjustable Tilt Drag
- 65mm Half Ball with Bubble Level
- Two-Stage Tripod with Mid-Level Spreader
- Height Range of 31 to 64"
- Independent Leg Adjustments
- Removable Anti-Slip Pads/Spike Covers
- Soft Travel Case

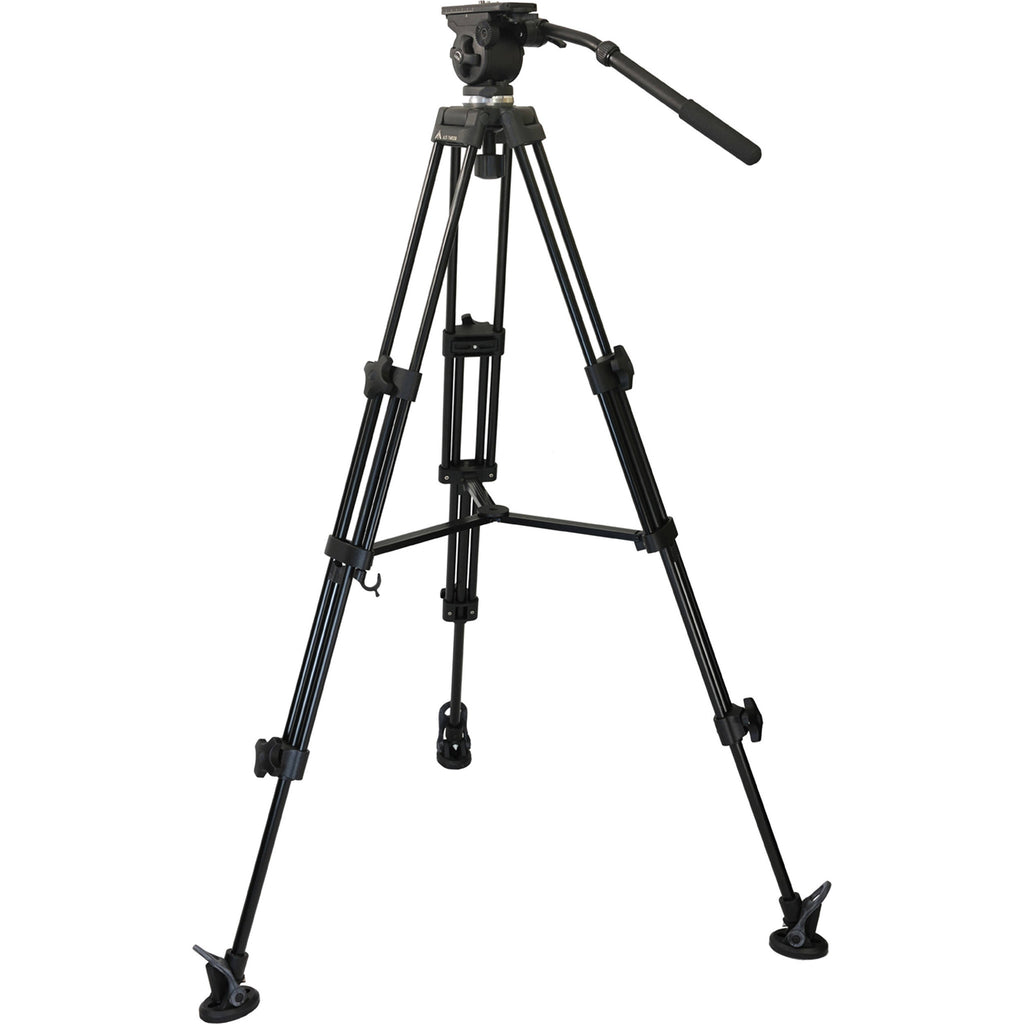

The E-Image EK50AAM Fluid Drag Video Head and Tripod is a video head and dual stage tripod leg system designed for video cameras weighing up to 13.2 pounds. The head has fixed pan and adjustable tilt fluid drag for smooth camera movements. The included quick release (QR) plate attaches to your camera with either of the included 1/4"-20 or 3/8"-16 camera tie-down screws. With the camera attached, the QR plate snaps into the cradle, which quickly and securely attaches your camera to the tripod head. The QR plate release system features a safety mechanism to help prevent accidentally releasing of the plate. The head also features an integrated forward/backward sliding plate which allows you to balance the camera on the head for optimal operation on a shot-by-shot need.
The tripod legs are made of an anodized aluminum alloy, with a fixed mid-level spreader and rotary clamping leg locks. The foot spikes are covered by removable anti-slip pads, and an integrated elastic leg wrap helps keep the legs closed for transport.

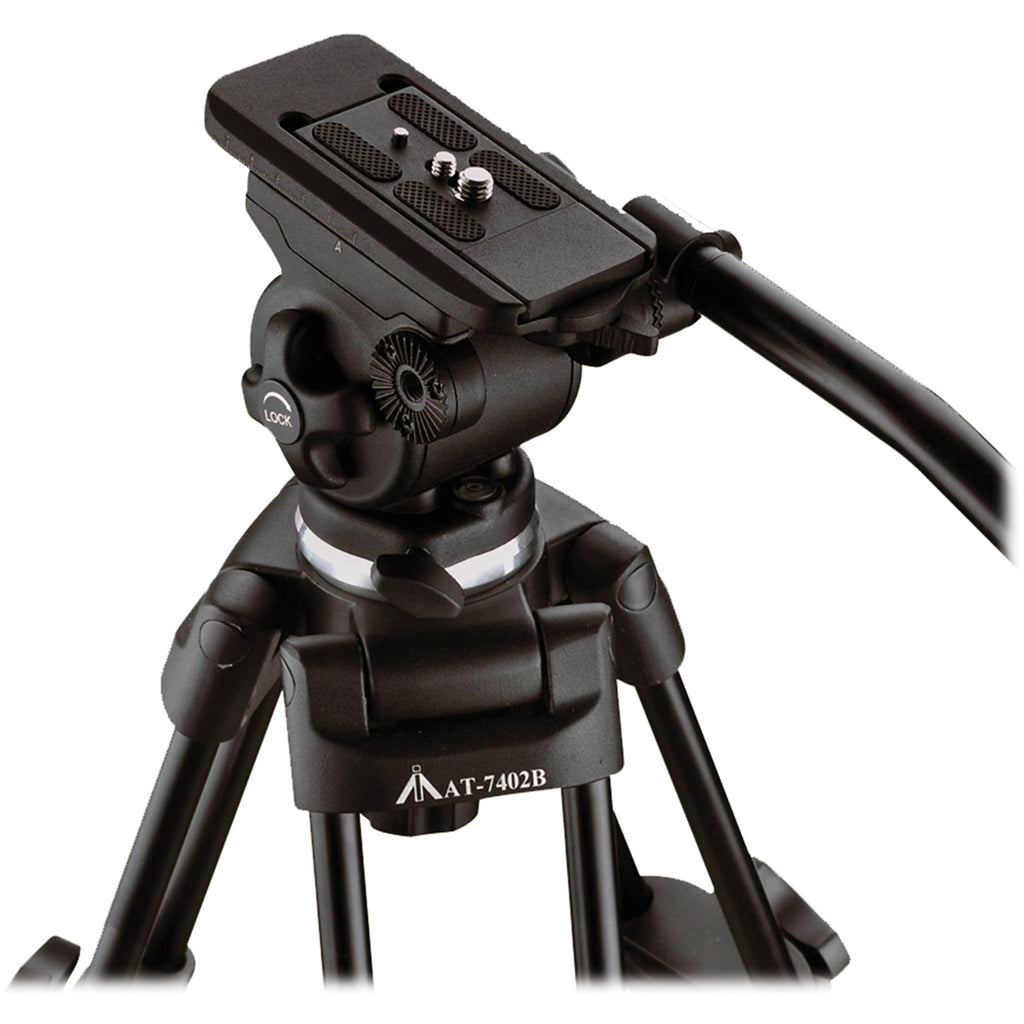

Fluid Head
-
- Load Capacity: 13.2 lb
- Fluid Drag
- Tilt: Adjustable
- Pan: Fixed
- 65mm Half ball for fast leveling
- Bubble level
- 90° Tilt down�camera can point straight down
- 75° Tilt up
- 360° Panning
- Mounting rosettes on left and right sides
Legs
-
- Load Capacity: 13.2 lb
- Built-in fixed spreader
- Working Height Range: 31 to 64"
- Rotary clamp leg locks
- Foot spikes
- Removable anti-slip pads/foot spike protectors
- Integrated leg wrap bungee and clip
- Folded Size: 32"
UPC: 610708234494
| Head |
| Counter Balance System | Spring-loaded |
| Quick Release Plate | Non-sliding type
2.7 x 1.7 x 0.3" (69 x 42 x 7 mm) |
| Quick Release Safety | Yes |
| Camera Mounting Screw | 1/4"-20
3/8"-16 |
| Built-in Balance Plate | Yes |
| Tilt Drag | Adjustable fluid |
| Tilt Range | +90 to -75° |
| Tilt Lock | Yes |
| Pan Drag | Fixed fluid |
| Pan Range | 360° |
| Pan Lock | Yes |
| Pan Handle Rosettes | 2 x Rosettes (one each L/R) |
| Leveling Bubble/Illuminated | Yes, non-illuminated |
| Legs |
| Material | Anodized aluminum alloy |
| Head Attachment Fitting | 65 mm Half ball |
| Leg Stages/Sections | Two-stage |
| Leg Lock Type | Rotary clamp |
| Independent Leg Spread | No |
| Spreader | Mid-level (non-removable / non-adjustable) |
| Spiked/Retractable Feet | Non-retractable spikes with removable spike protectors |
| General |
| Load Capacity | 13.2 lb (6 kg) |
| Height Range | Maximum: 64" (160 cm)
Minimum: 31" (79 cm) |
| Folded Length | 32" (83 cm) |
| Weight | 9.5 lb (4.3 kg) |
| Packaging Info |
| Package Weight | 15.0 lb |
| Box Dimensions (LxWxH) | 37.0 x 9.0 x 9.0" |
In the Box
E-Image EK50AAM Fluid Drag Video Head and Tripod
- Quick Release Plate
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- Pan Handle (14.5", Non-Extendable)
- Soft Travel Case
- Limited 2-Year Warranty
