Description
E-Image EI-7100-AA Overview
- 1Description
- 2Fluid Head
- 3Heavy-Duty Tripod
- 4On-Location Shooting
- 5Mid-Level Spreader
- 6Carry Bag

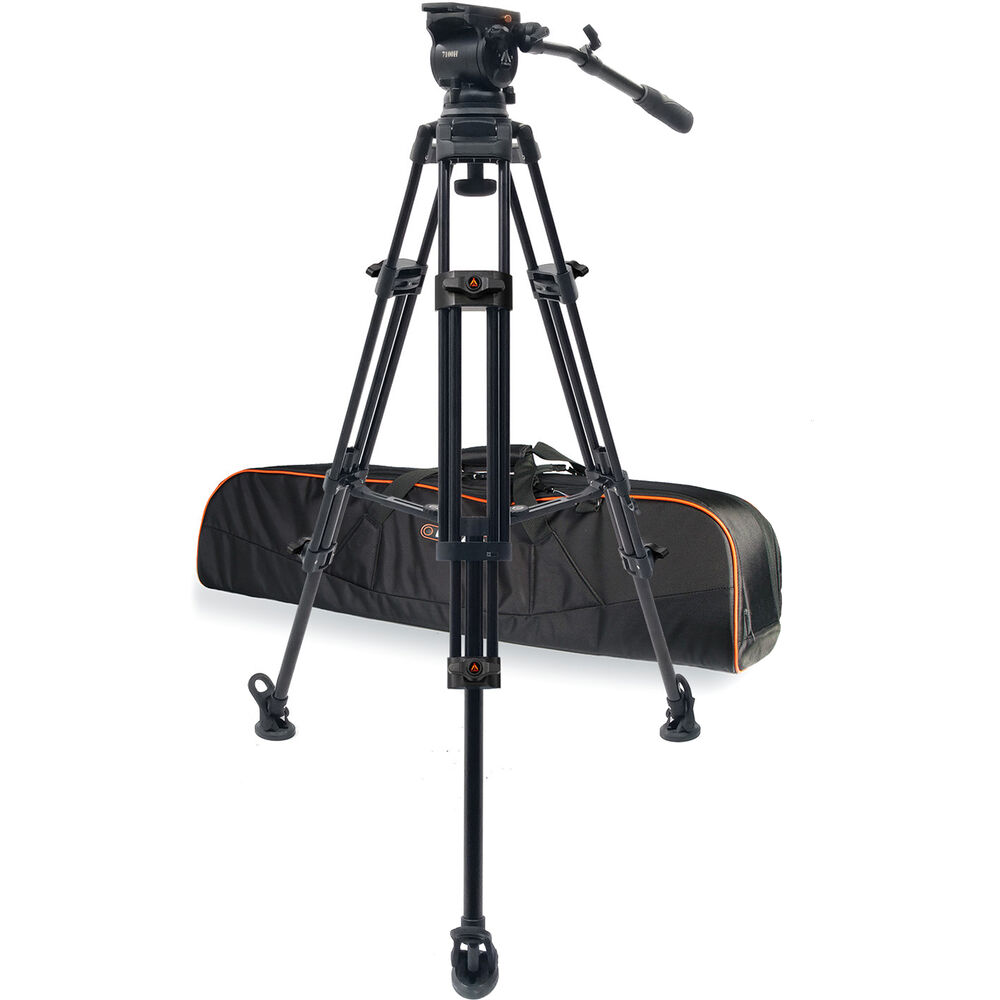

This EI-7100-AA 2-Stage Aluminum Tripod Field Kit from E-Image includes the AT7602A heavy-duty aluminum tripod legs, the EI-7100H fluid video head, a GP2 tripod plate, one GB3 pan handle, a mid-level spreader, removable rubber feet, and a carry bag to store and transport the entire system.
The aluminum legs feature a twist-lock design for quick adjustment, a mid-level spreader, and a 100mm bowl size, and they fold down to 28.1" for transport. They also incorporate spiked feet for increased grip on soft surfaces and spike covers that allow you to use the legs on hard/slippery surfaces. The fluid head mounts into the 100mm bowl and supports loads up to 33 lb. It features a sliding camera plate, 0+5 steps of counterbalance, and a fixed drag system for smooth movements.

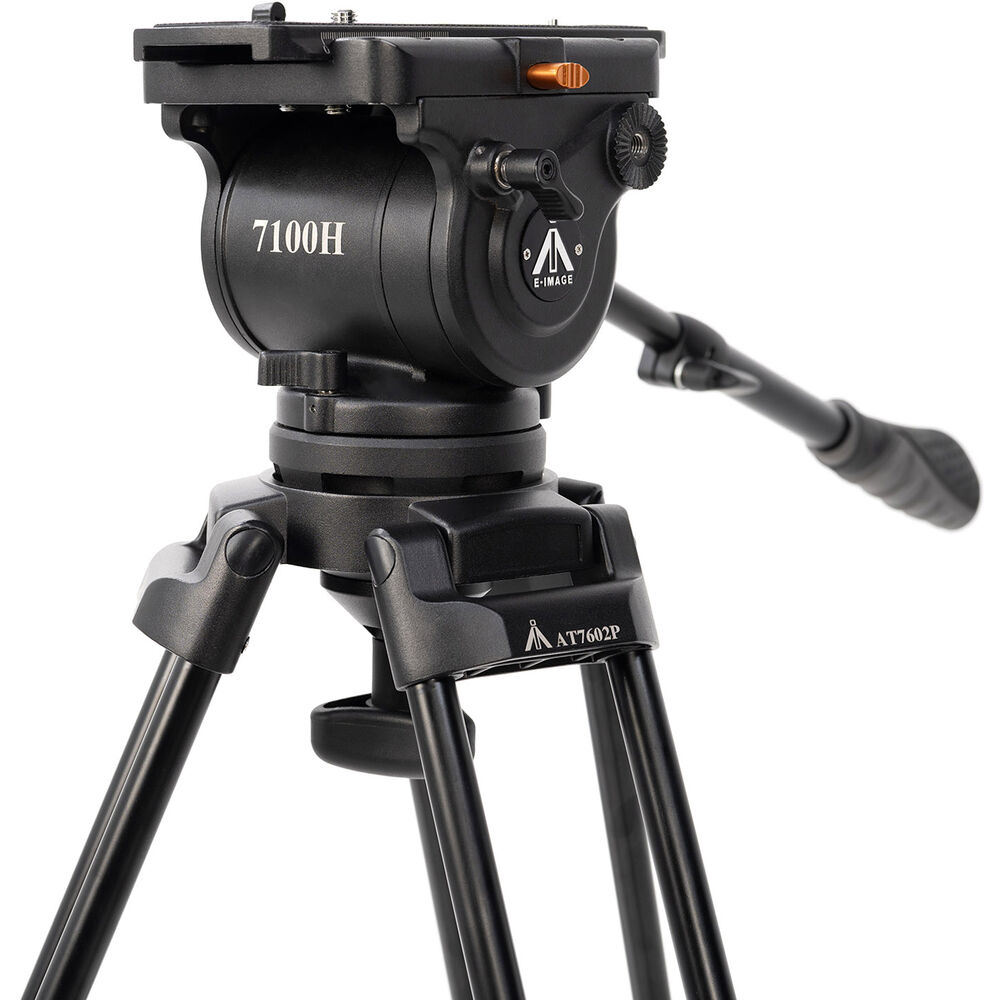

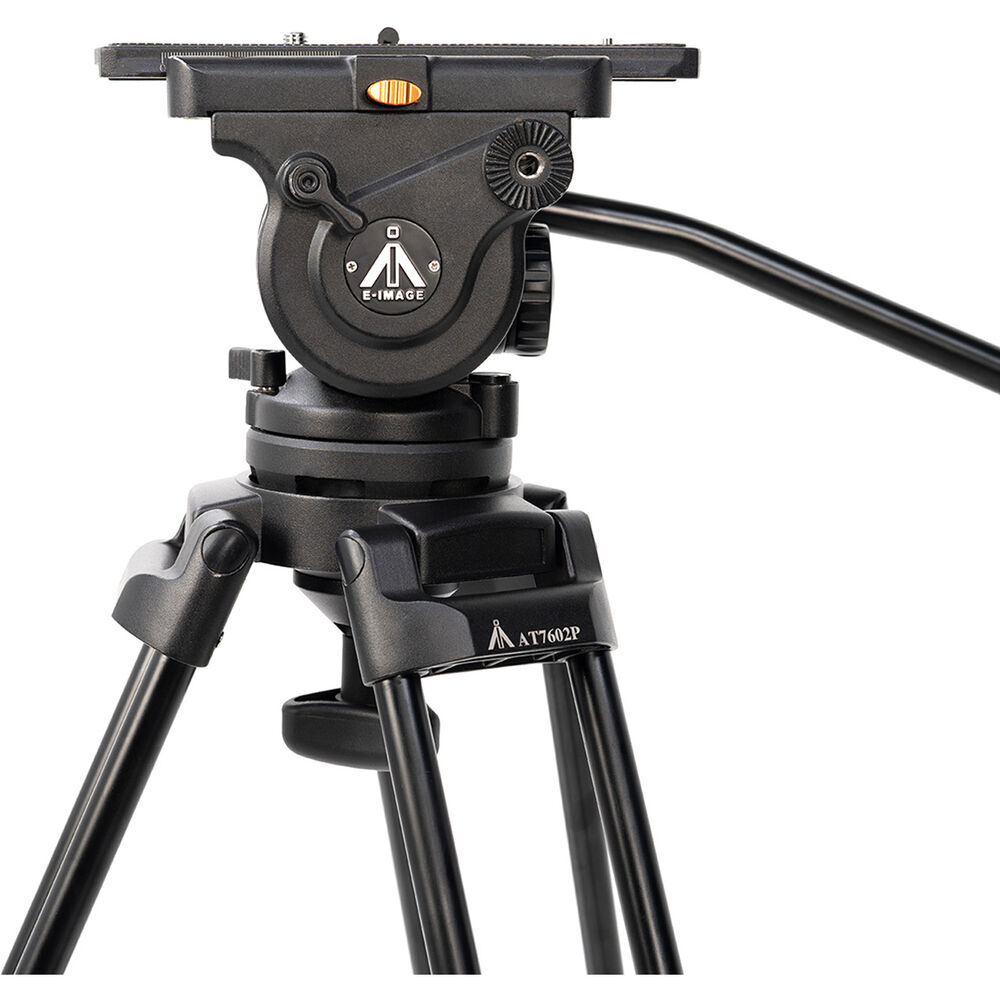

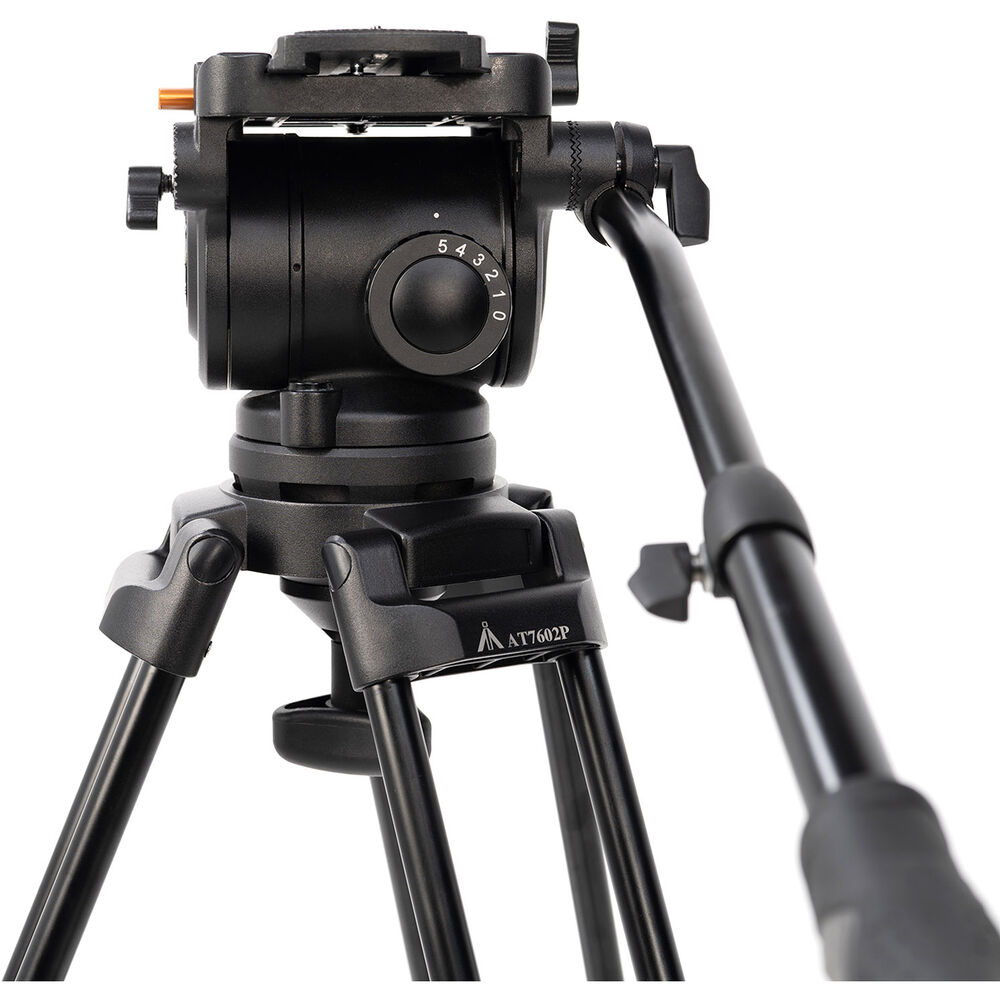

Fluid Head
The fluid head, designed with a 100mm bowl size, is adept at supporting equipment with a maximum payload of 33 lb. It features a slide range of 3.9", allowing for precise positioning and balance adjustments. The counterbalance can be finely tuned within a range of 0+5 steps, ensuring stability and smooth movement during operations. It comes with an extendable pan handle that can be adjusted from 15.9 to 23.8", offering users flexibility and enhanced control during filming.

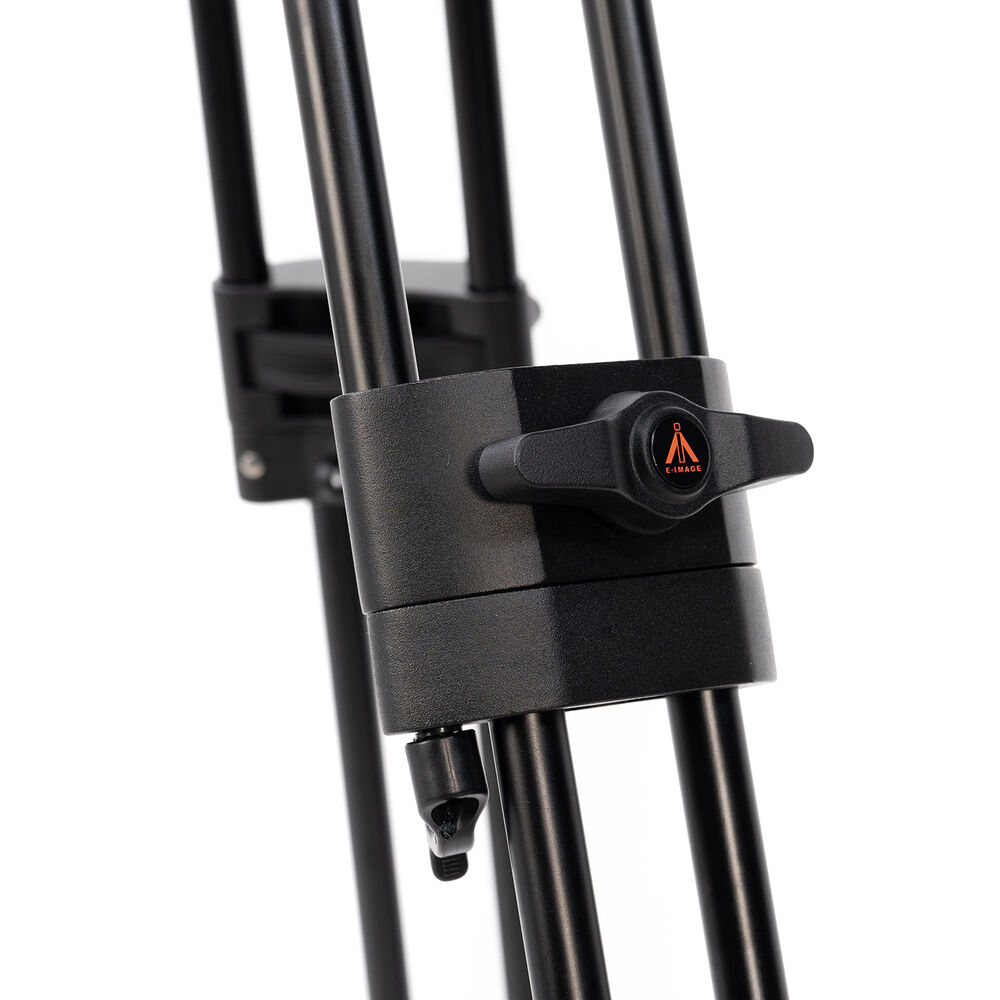

Heavy-Duty Tripod
Constructed from durable aluminum, the tripod legs ensure strength while remaining lightweight with a net weight of 10.1 lb. Designed with a 100mm bowl size, the tripod can comfortably support equipment with a substantial payload of up to 132.3 lb. The legs are versatile in terms of height adjustments, ranging from 16.9 to 60.8". When it's time to pack up and move, the tripod legs can be collapsed to a compact transport length of 28.1".
On-Location Shooting
This field version of the tripod kit is equipped with three removable rubber feet, each measuring 2.4" in width and 3.1" in length. When these rubber feet are removed, they reveal spiked feet underneath, ideal for anchoring the tripod on soft ground.

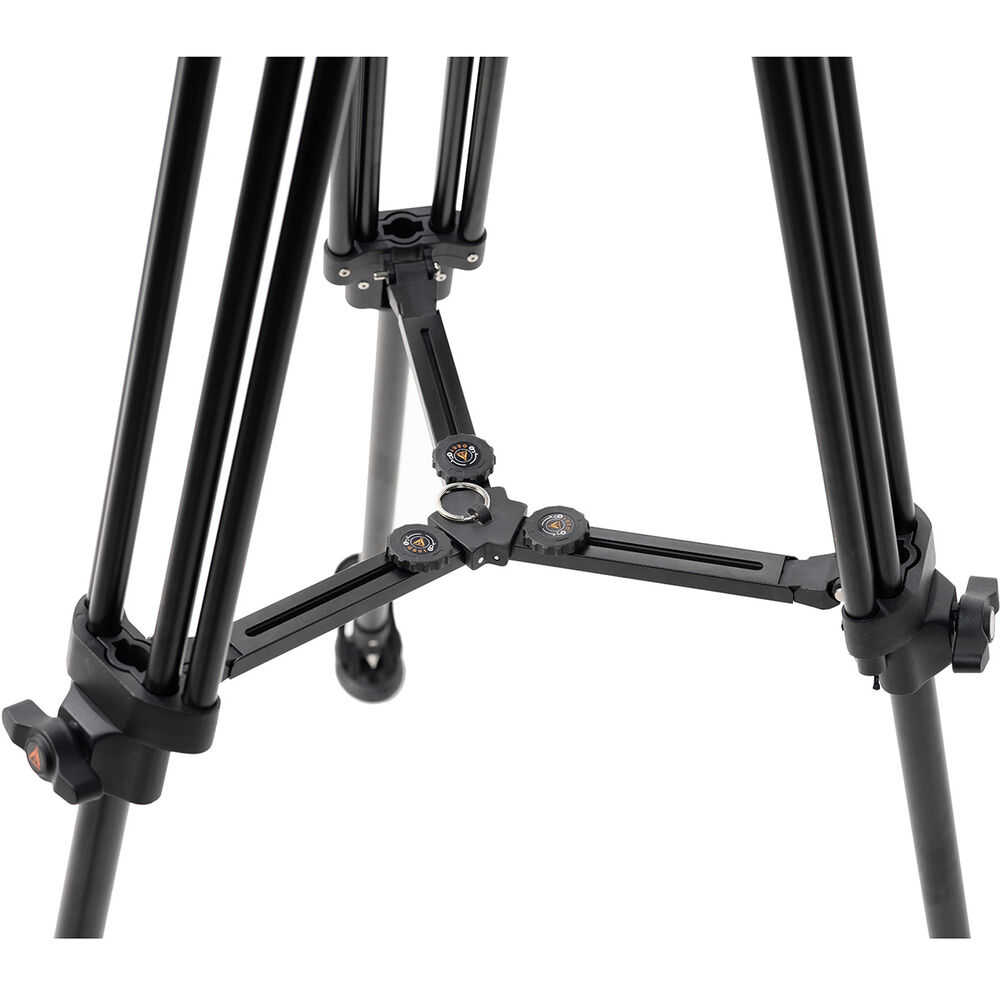

Mid-Level Spreader
The Field Kit features an adjustable mid-level spreader with a leg range of 7.2 to 12", providing enhanced stability and adaptability during setups.
Carry Bag
This kit also comes bundled with a fully padded waterproof carrying bag made of 1680D nylon that can carried with a handle, over the shoulder, or as a backpack.
UPC: 847983034840
In the Box
- E-Image EI-7100-AA 2-Stage Aluminum Tripod Field Kit
- AT7602A Aluminum Tripod Legs
- EI-7100H Fluid Head
- E-Image GP2 Camera Plate for GH15 / 25 Fluid Video Heads
- E-Image Handle for GH15/25 Heavy Duty Fluid Video Heads
- E-Image GS01 Mid-Level Spreader
- E-Image F3 Tripod Rubber Feet Set for E-image Tripods
- T10 Carry Bag
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Fluid Head
- Heavy-Duty Tripod
- On-Location Shooting
- Mid-Level Spreader
- Carry Bag
E-Image EI-7100-AA Specs
Key Specs
| Camera Plate Features |
Sliding Balance Plate
|
| Camera Plate Type |
Proprietary Camera Plate
|
| Camera Mounting Screw |
1x 1/4"-20 Male with Locating Pin
1x 3/8"-16 Male with Locating Pin |
| Counter Balance |
Continuous 5-Step Plus 0
|
| Drag Type |
Fluid
|
| Load Capacity |
33.1 lb / 15 kg
|
| Maximum Working Height |
5.4' / 166 cm
|
| Minimum Working Height |
30.7" / 78 cm
|
| Closed Length |
28.1" / 71.5 cm
|
| Materials |
Aluminum
|
| Leg Lock Type |
Twist Lock
|
| Leg Sections |
3
|
| Feet Features |
Rubber, Spiked
|
Camera Attachment
| Camera Plate Features |
Sliding Balance Plate
|
| Camera Plate Type |
Proprietary Camera Plate
|
| Camera Mounting Screw |
1x 1/4"-20 Male with Locating Pin
1x 3/8"-16 Male with Locating Pin |
| Balance Plate Sliding Range |
3.9" / 100 mm
|
| Safety Lock |
Yes
|
| Plate Dimensions |
6.3 x 2.8 x 0.5" / 160 x 70 x 13 mm
|
Head
| Base Mount |
100 mm Half Ball
|
| Counter Balance |
Continuous 5-Step Plus 0
|
| Pan Handle Fittings |
2x Rosette
|
| Included Pan Handle Length |
15.9 to 23.8" / 40.4 to 60.5 cm
|
| Bubble Level |
1
|
| Base Diameter |
3.9" / 100 mm
|
Pan & Tilt
| Drag Control |
Tilt: Fixed
Pan: Fixed |
| Drag Type |
Fluid
|
| Vertical Tilt |
+90° to -60°
|
| Panning Range |
360°
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
General
| Load Capacity |
33.1 lb / 15 kg
|
| Maximum Working Height |
5.4' / 166 cm
|
| Minimum Working Height |
30.7" / 78 cm
|
| Closed Length |
28.1" / 71.5 cm
|
| Materials |
Aluminum
|
| Weight |
17.9 lb / 8.1 kg
|
Legs
| Leg Lock Type |
Twist Lock
|
| Independent Leg Spread |
Yes
|
| Leg Sections |
3
|
| Bubble Level |
No
|
| Feet Features |
Rubber, Spiked
|
| Spreader |
Mid-Level (Included)
|
Packaging Info
| Package Weight |
24 lb
|
| Box Dimensions (LxWxH) |
37 x 8.5 x 8"
|
