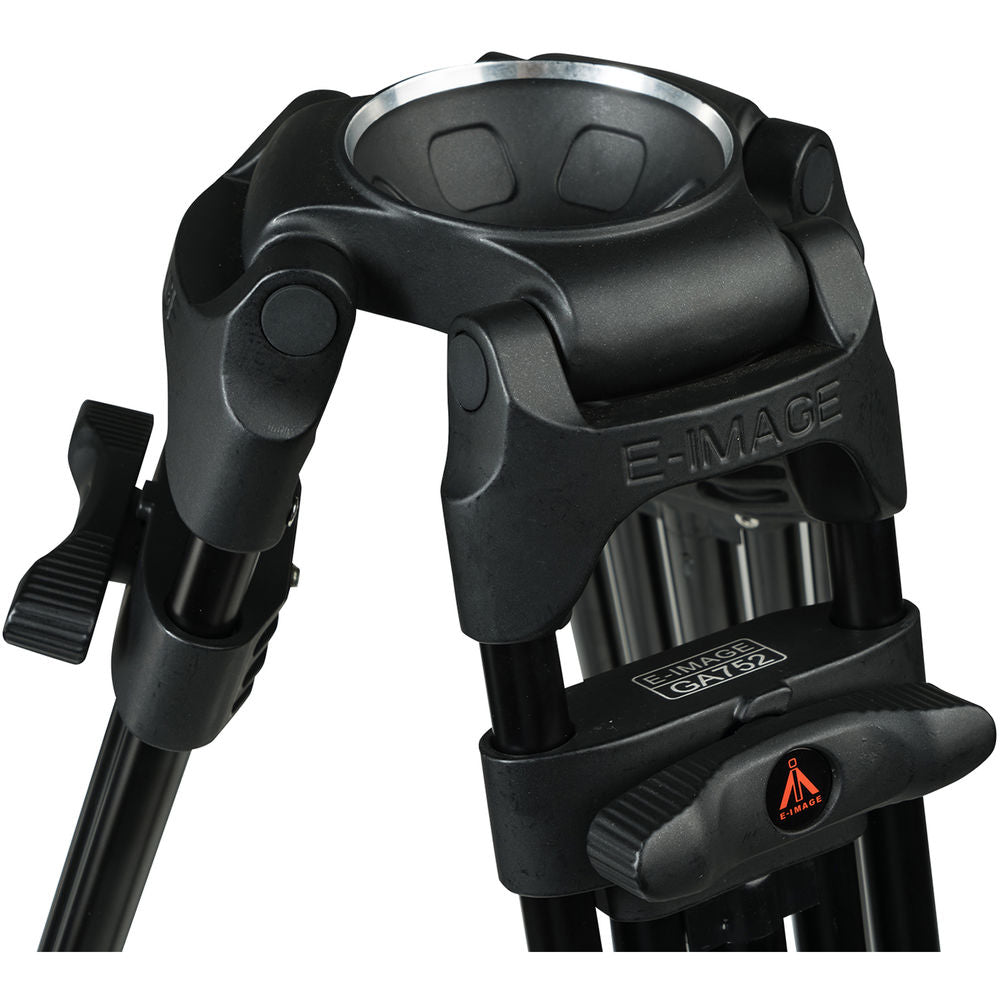

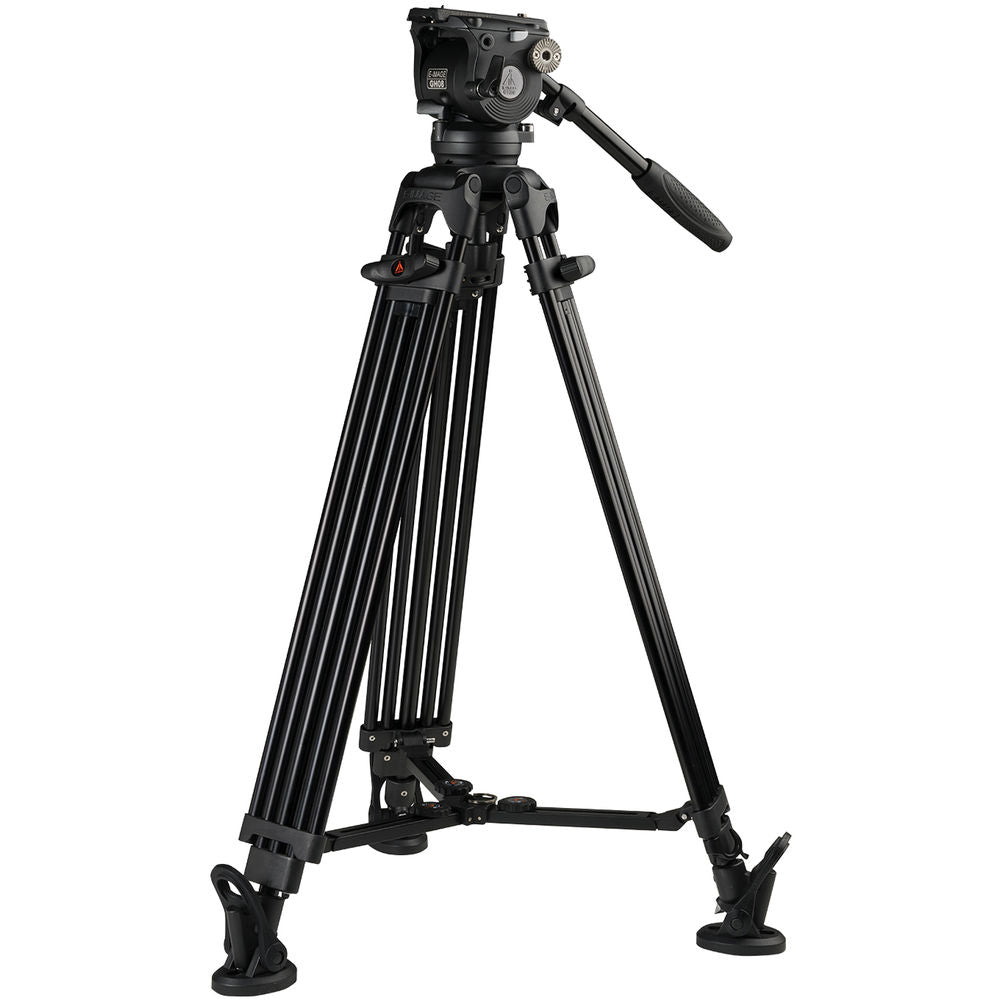

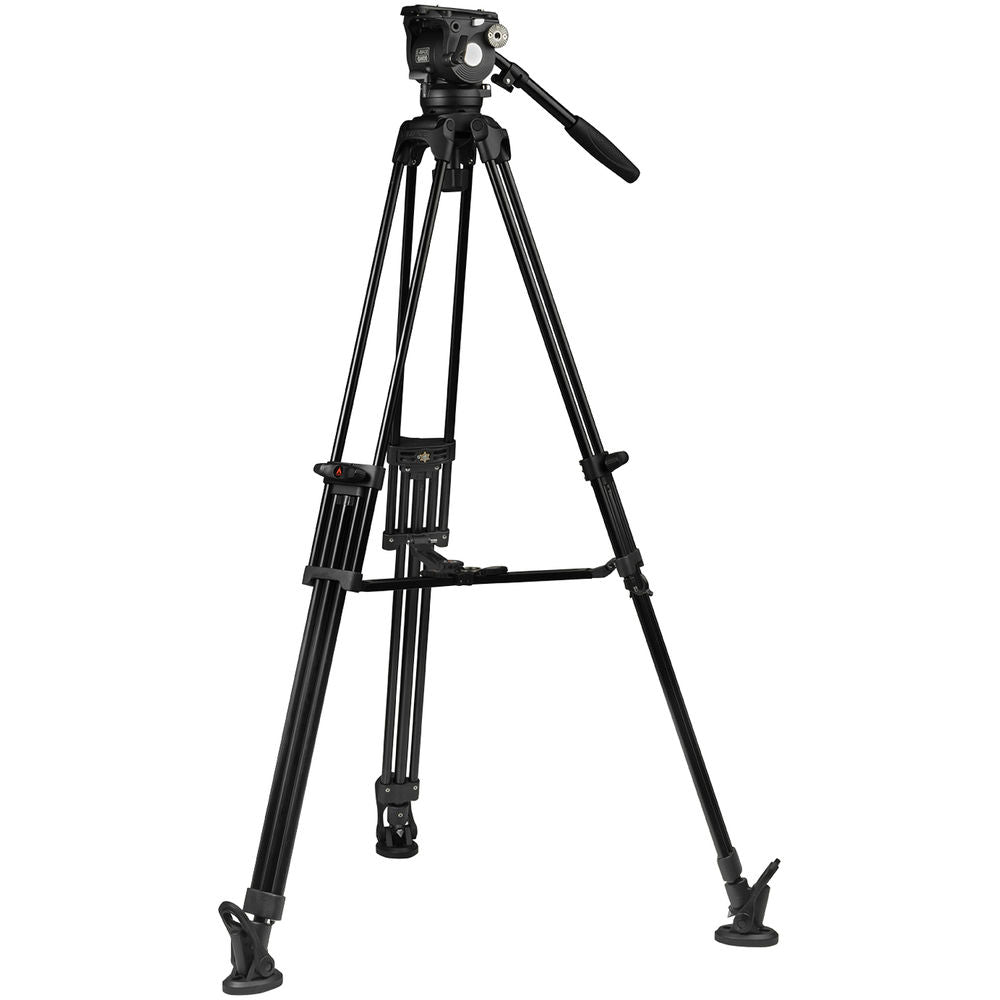

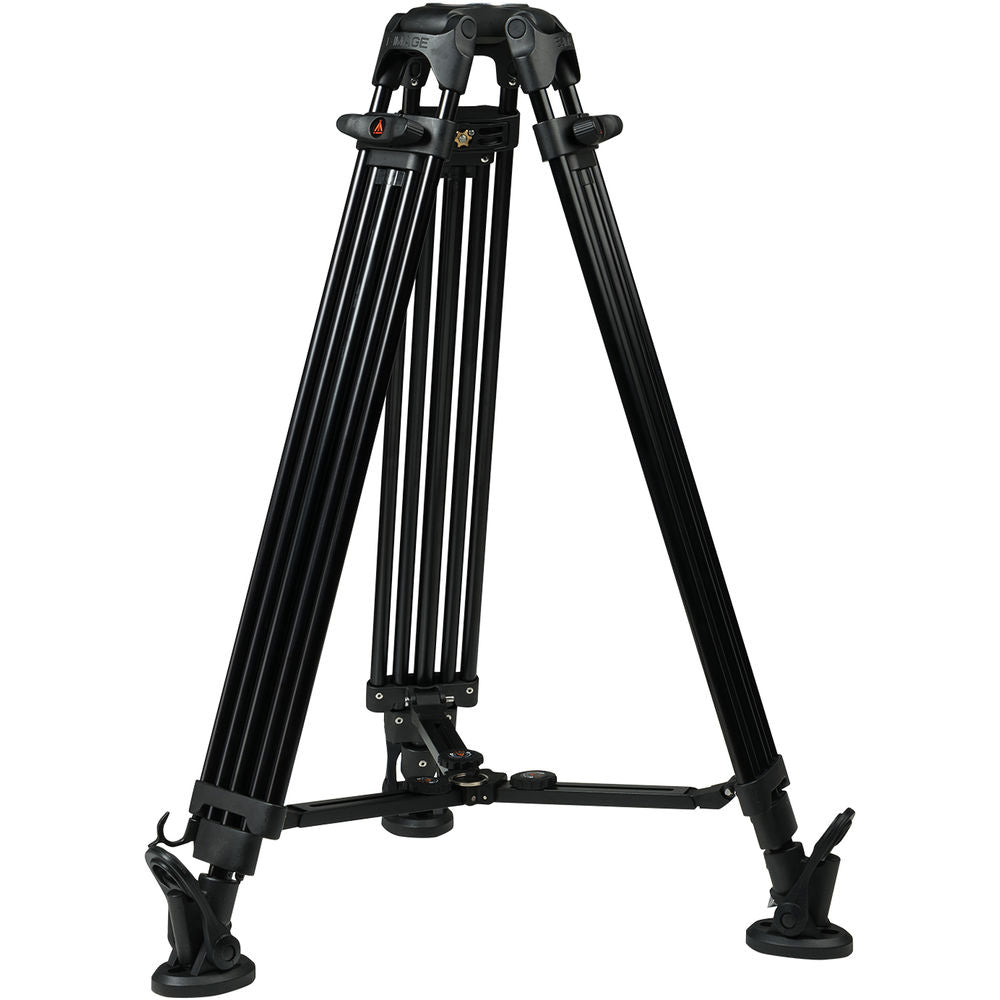

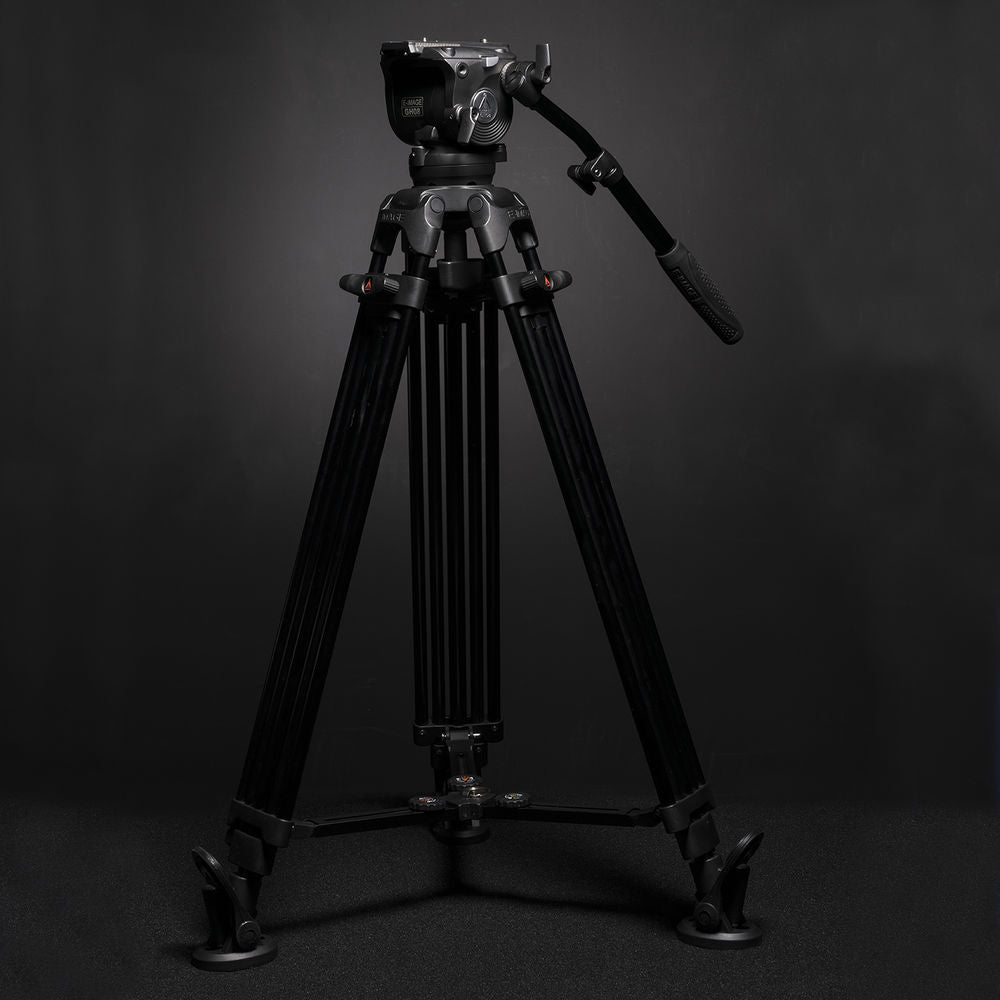

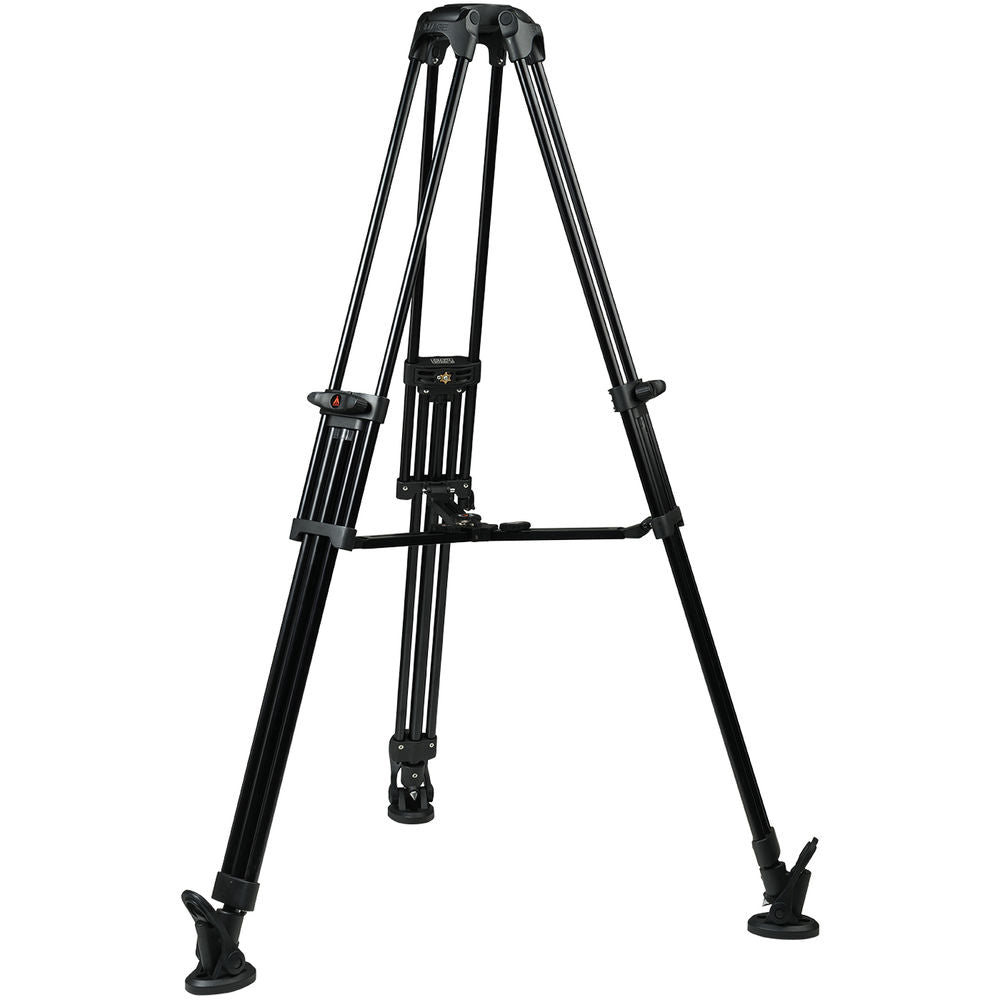

The E-Image EG08A2 Aluminum Tripod System supports cameras and accessories weighing up to 17.6 lb. It includes the GH08 fluid head with GB2 pan bar, GA752 two-stage aluminum tripod legs, and GS01 mid-level spreader. The tripod legs feature three sections with mono-lock leg locks. The system offers height adjustment from 2.5 to 5.6 ft, and collapses down to 33.3".

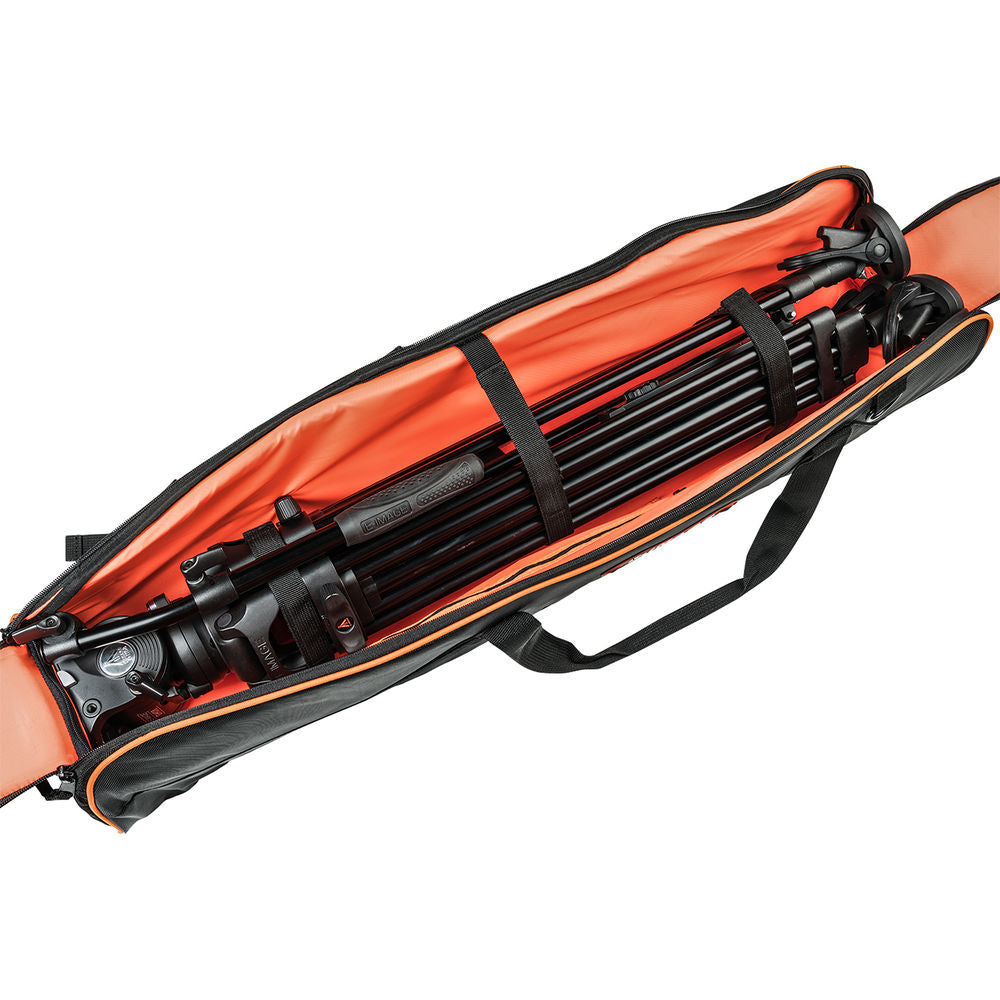

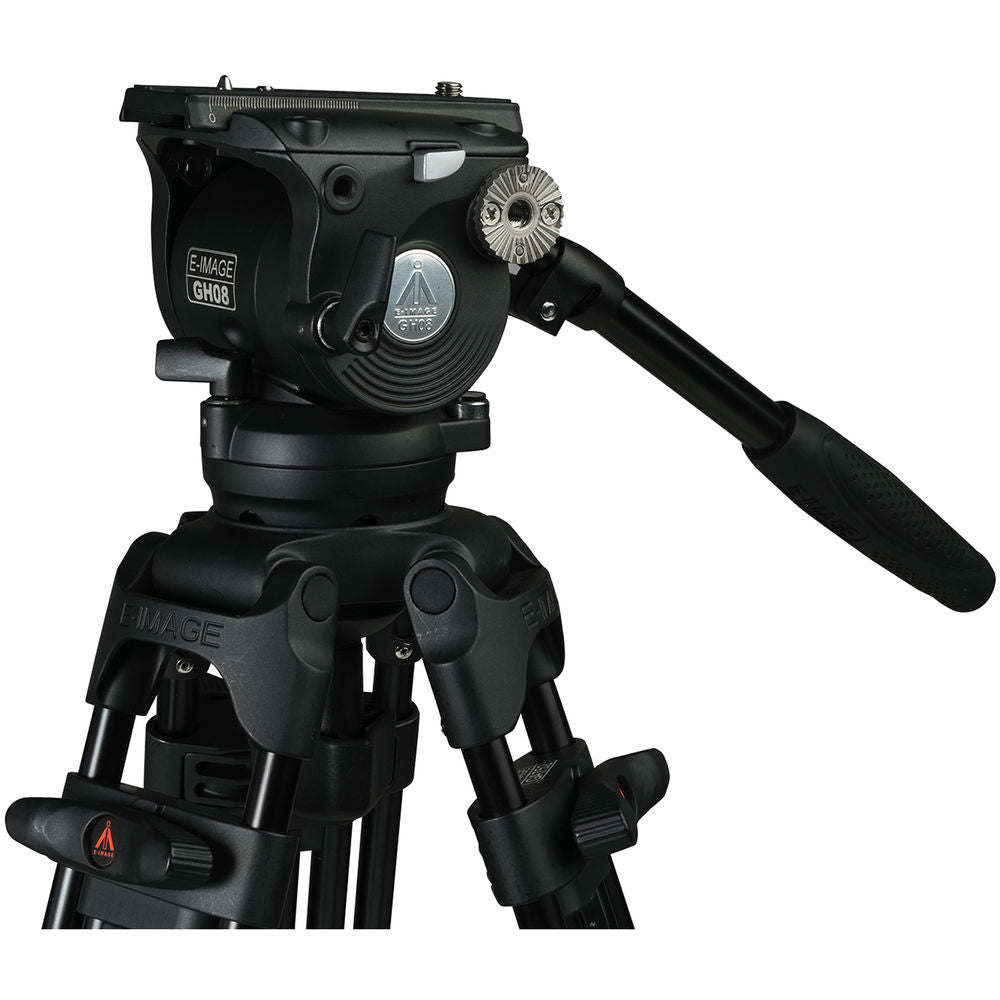

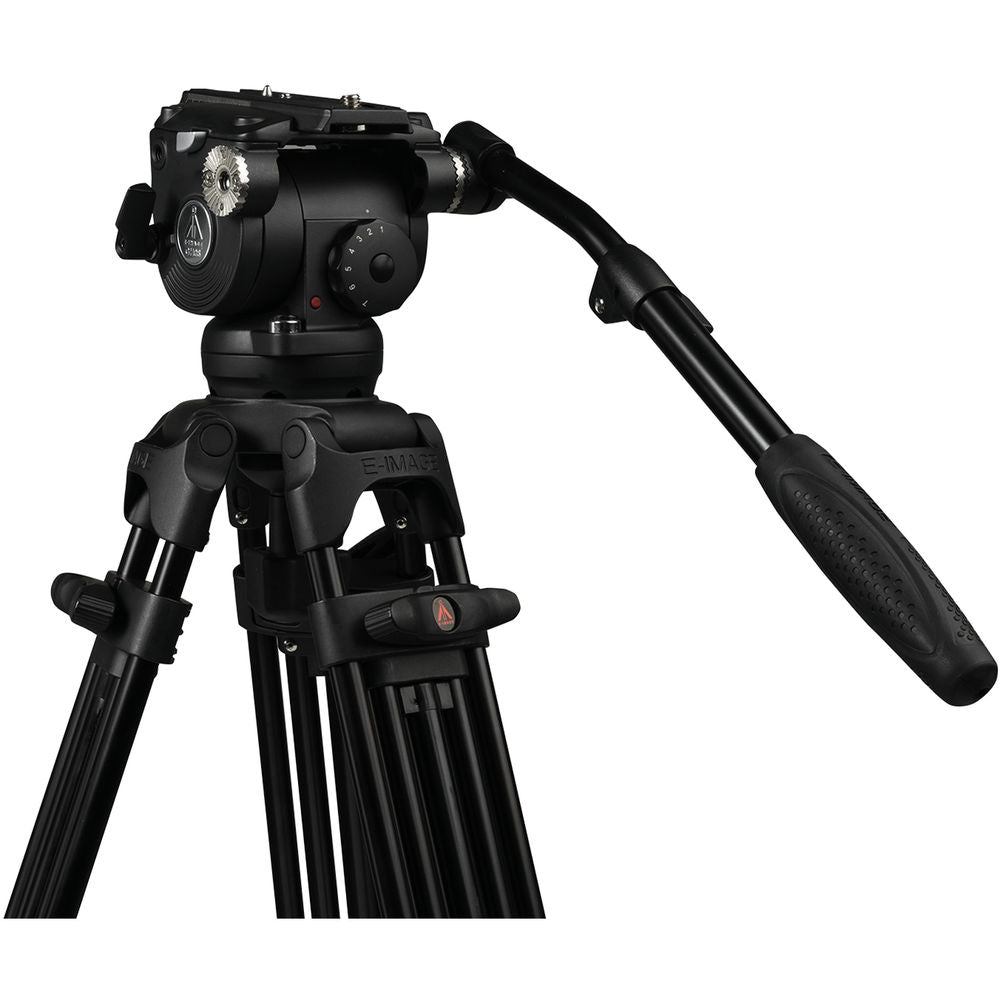

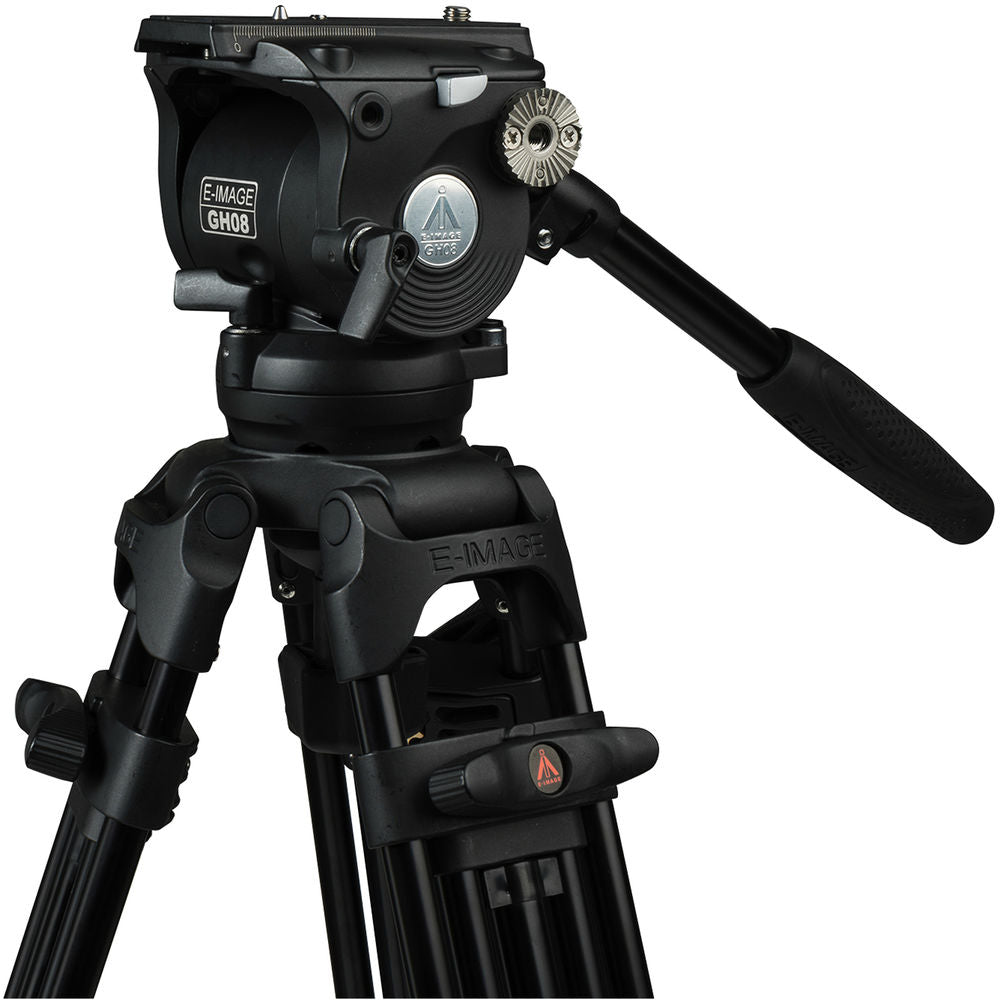

The GH08 head is specially designed for supporting handheld camcorders, and features a quick release sliding balance plate system. It provides six counterbalance settings plus zero, and features fixed drag on both pan and tilt. The head also features an illuminated spirit level and 1/4"-20 and 3/8"-16 threads for attaching an articulating support arm or other accessories. The included carry bag allows for easy storage and transportation.
UPC: 847983025039
E-Image EG08A2 specs
| General |
| Load Capacity | 17.6 lb (8 kg) |
| Maximum Height | 5.6' (169.5 cm) |
| Minimum Height | 2.5' (76.0 cm) |
| Folded Length | 33.3" (84.5 cm) |
| Leveling Bubble/Illuminated | Yes / Yes |
| Weight | 12.1 lb (5.5 kg) |
| Head |
| Counterbalance System | Yes, 1 to 7 grades |
| Ball Base | 75 mm ball |
| Quick Release/Wedge Plate | Sliding plate |
| Slide Length | 3.3" (83.0 mm) |
| Balance Plate | Yes |
| Tilt Drag | Installed |
| Tilt Range | -60 to 90° |
| Tilt Lock | Yes |
| Pan Range | Not specified by the manufacturer |
| Pan Drag | Installed |
| Pan Lock | Yes |
| Legs |
| Material | Aluminum |
| Head Attachment Fitting | 75 mm bowl |
| Leg Stages/Sections | 2 / 3 |
| Leg Lock Type | Mono-lock |
| Independent Leg Spread | Yes |
| Spiked/Retractable Feet | Spiked feet with removable rubber covers |
| Packaging Info |
| Package Weight | 18.55 lb |
| Box Dimensions (LxWxH) | 36.5 x 8.25 x 8.25" |
In the Box

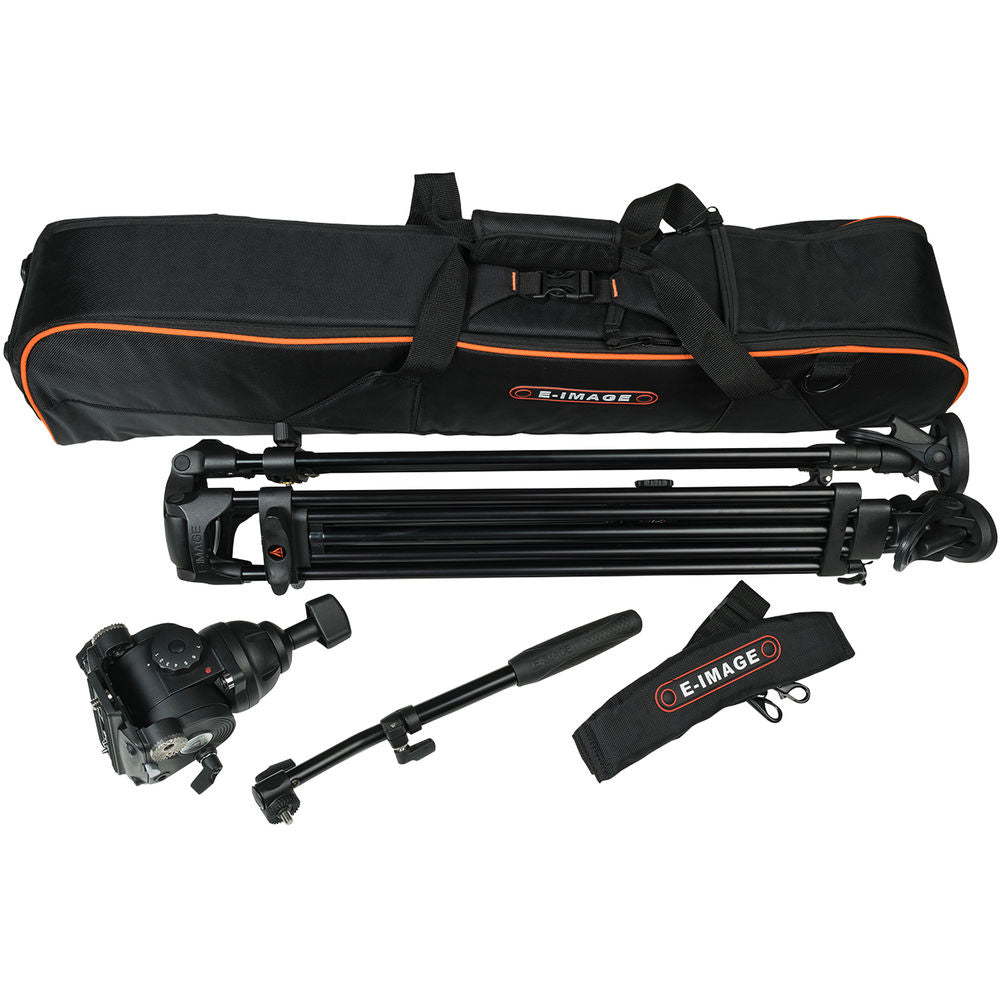

E-Image EG08A2 2-Stage Aluminum Tripod System with GH08 Fluid Head
