- Head & Legs Support up to 11 Pounds
- 2-Stage Aluminum Tripod Legs
- 75mm Ball/Bowl
- 12.5 to 55.5" Head & Legs' Height Range
- GH03 Fluid Head with Leveling Ball
- Easy Lock Baseplate
- Fixed Counterbalance
- Variable Fluid Tilt Drag
- 1/4"-20 Threaded Accessory Socket

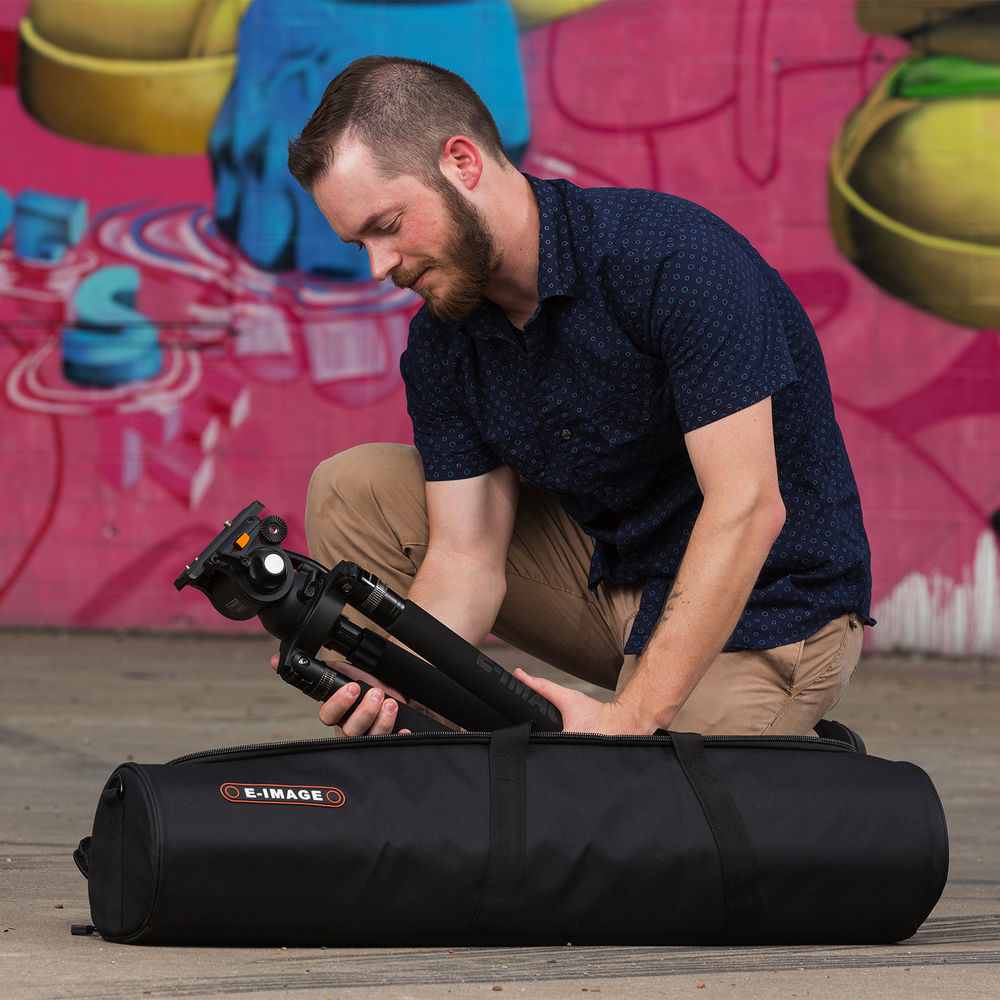

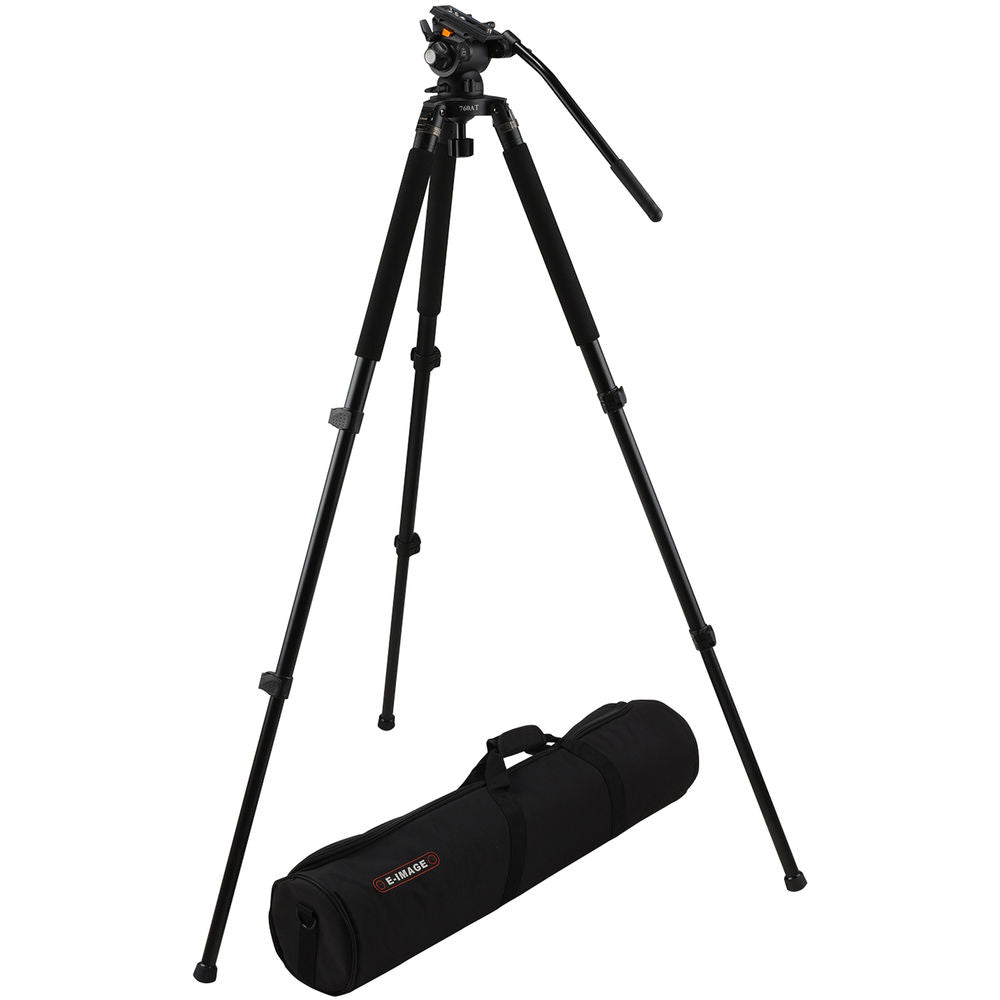

- Padded Bag

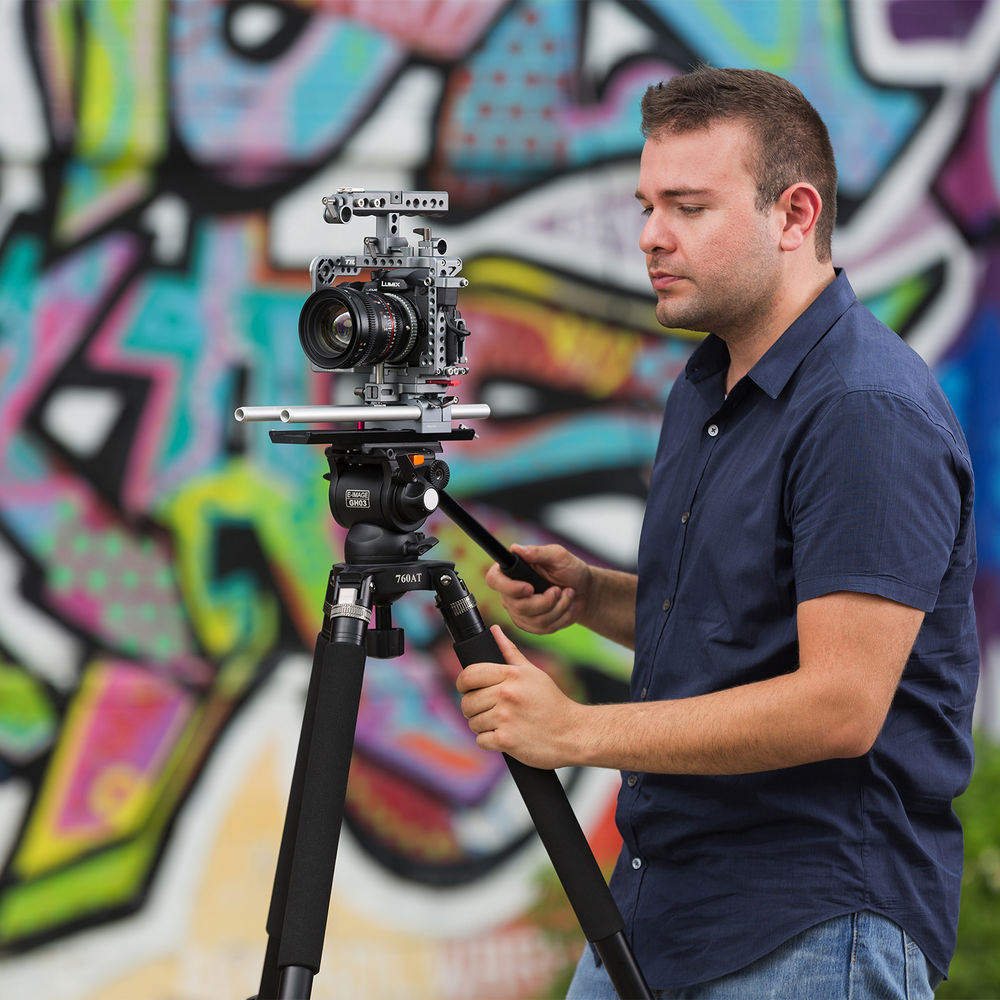

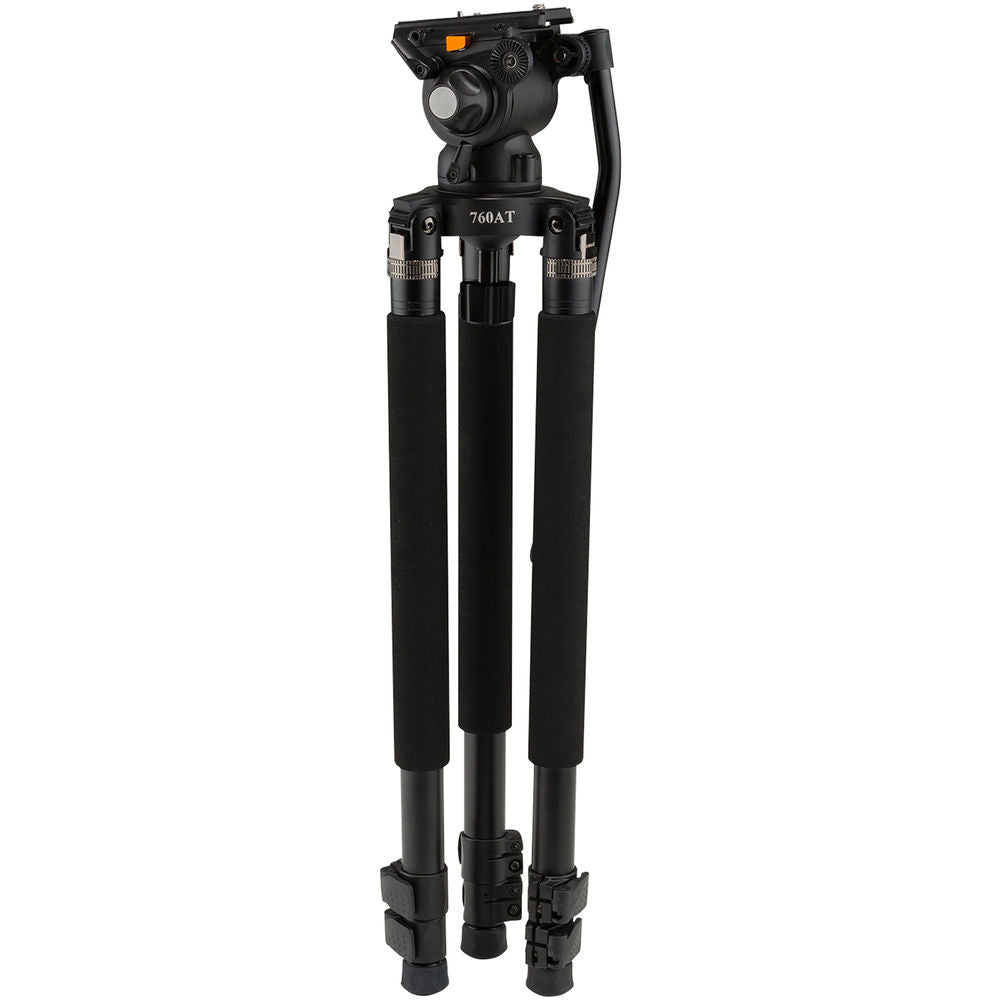

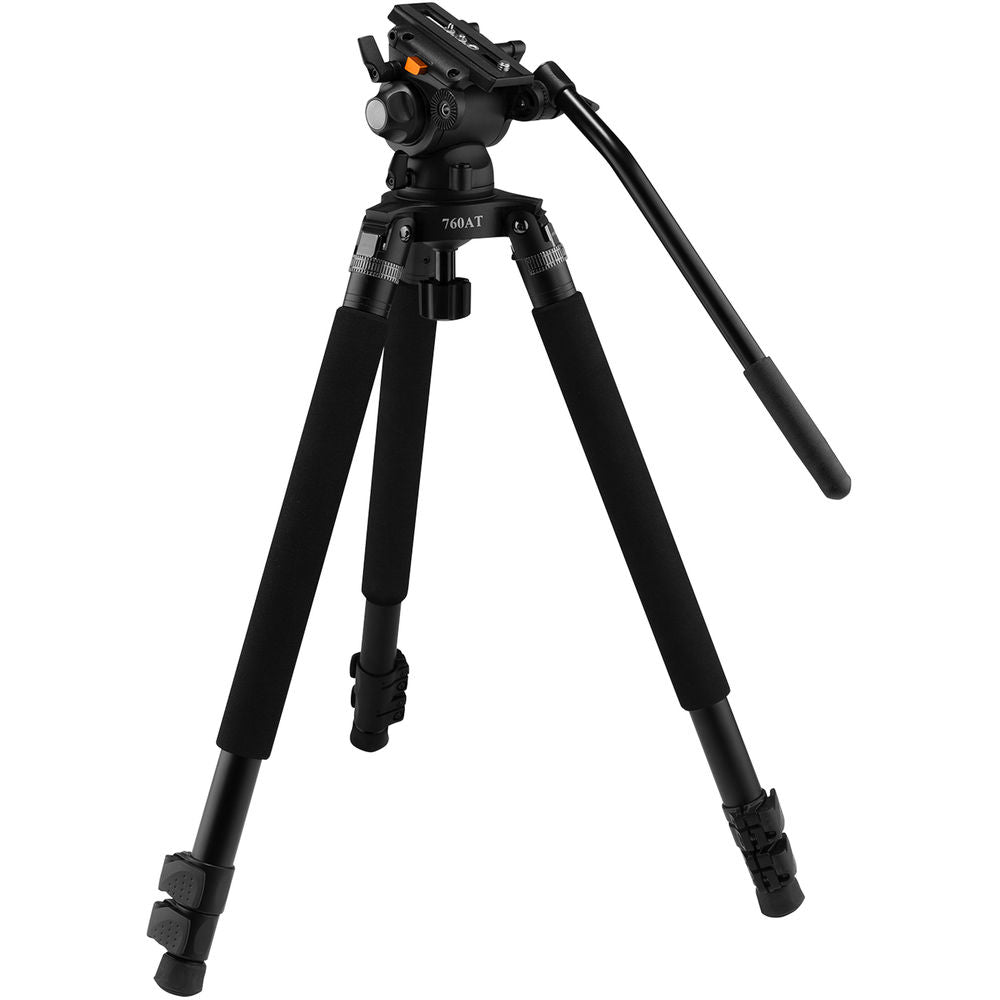

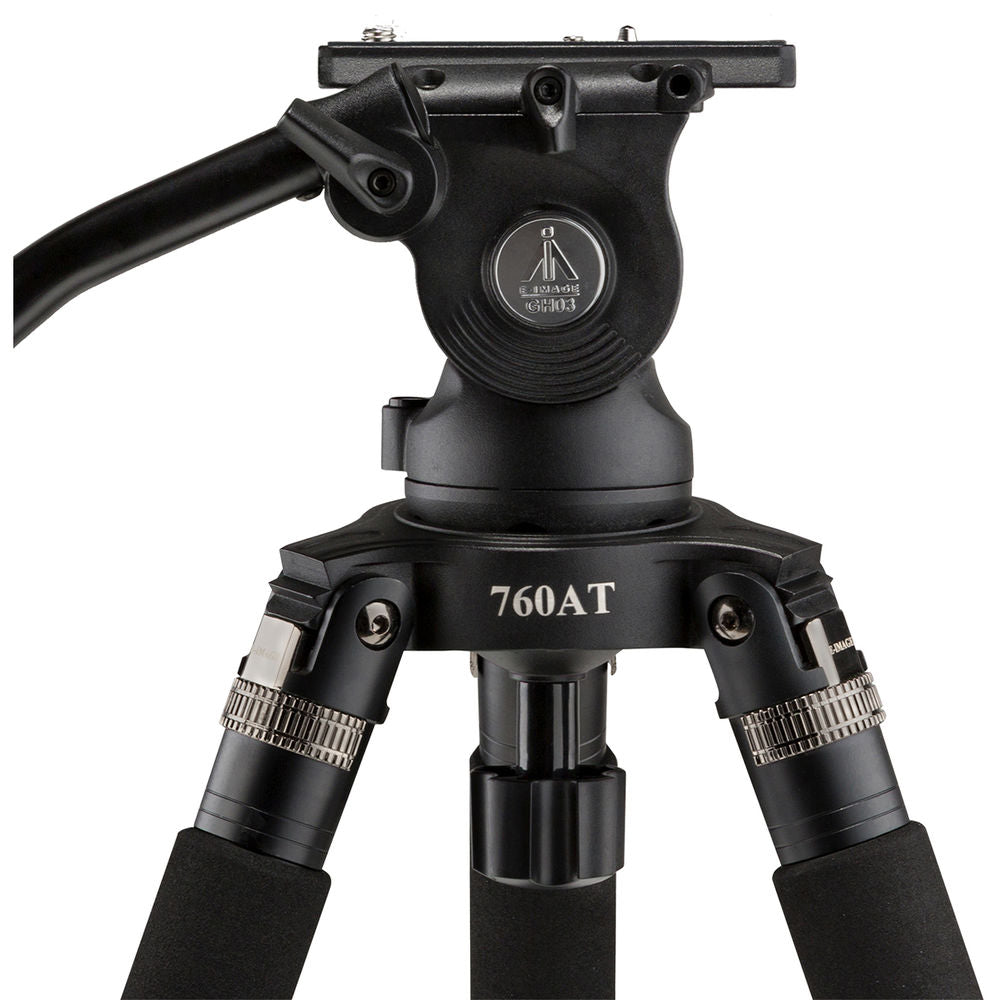

The E-Image 760AT Aluminum Tripod with GH03 Head supports cameras and accessories weighing up to 11 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide platform. The legs are made from aluminum and feature three sections, with individual locks for each leg section. The tripod with the head mounted is height-adjustable from 12.5 to 55.5".

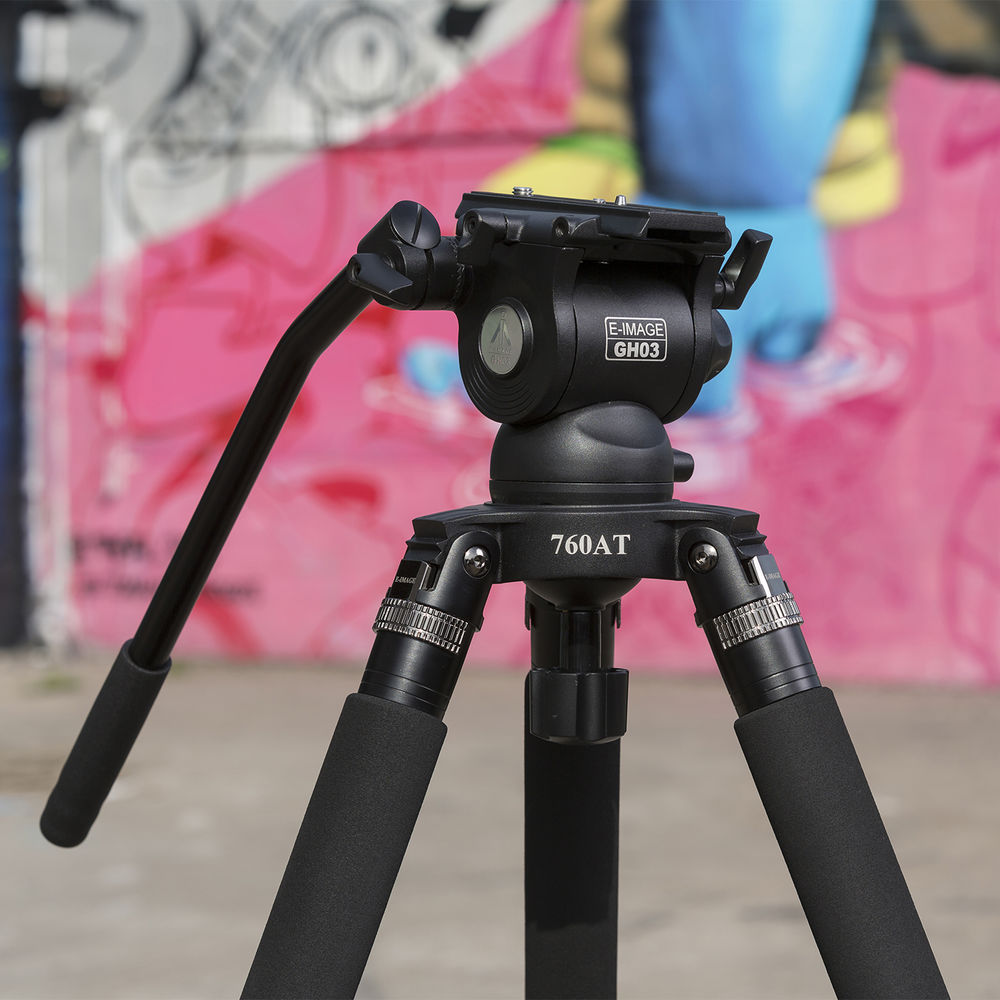

The GH03 head features an Easy Lock baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. It provides fixed counterbalance that helps the fluid head support loads up to 11 pounds. With variable fluid drag on the tilt axis, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built-in 1/4"-20 accessory socket for available monitor support arms or other accessory items. It includes a padded carry bag with a shoulder strap.
System
- The fluid head and legs support cameras and accessories up to 11 pounds.
- The 75mm bowl/ball enables rapid leveling without having to adjust the legs.

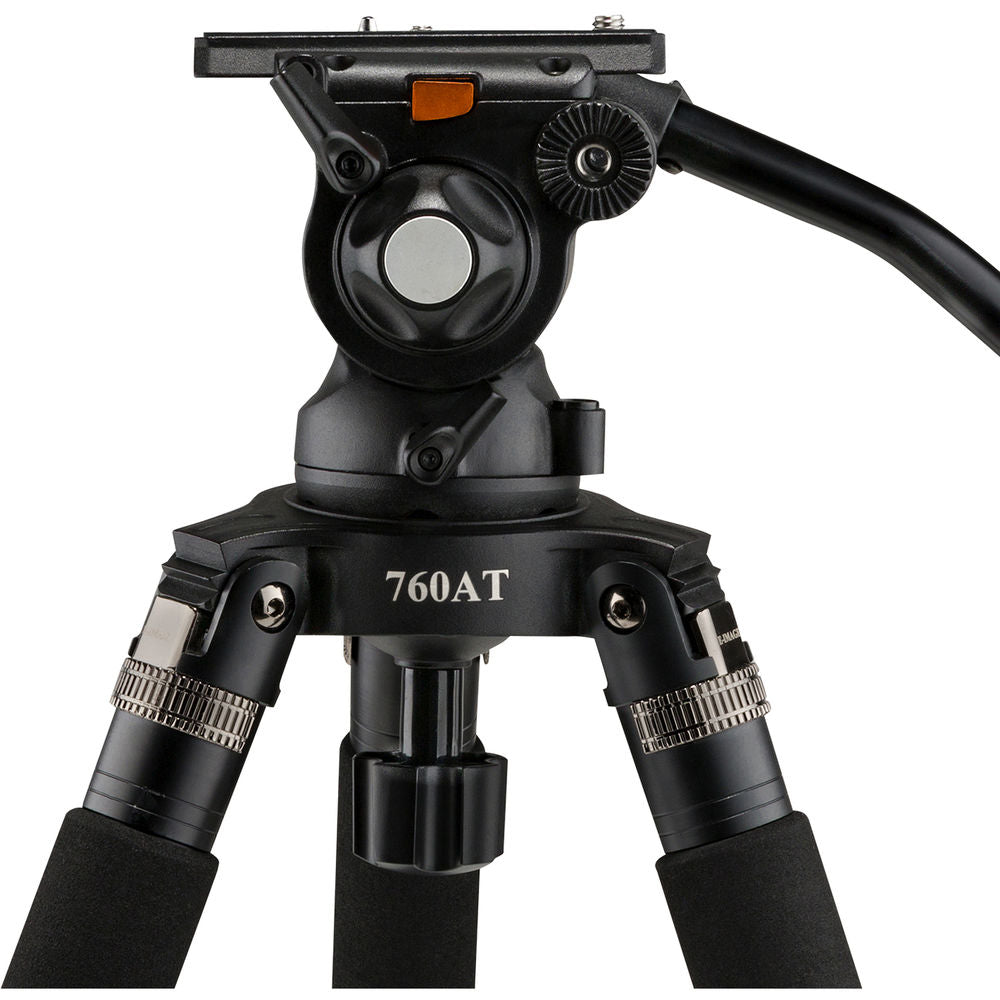

Fluid Head
- The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate while combining the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera, while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
- The Easy Lock camera plate features a guided sled with a locating pin, and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
- The fluid head incorporates two 1/4"-20 threaded accessory mounting holes.
Legs

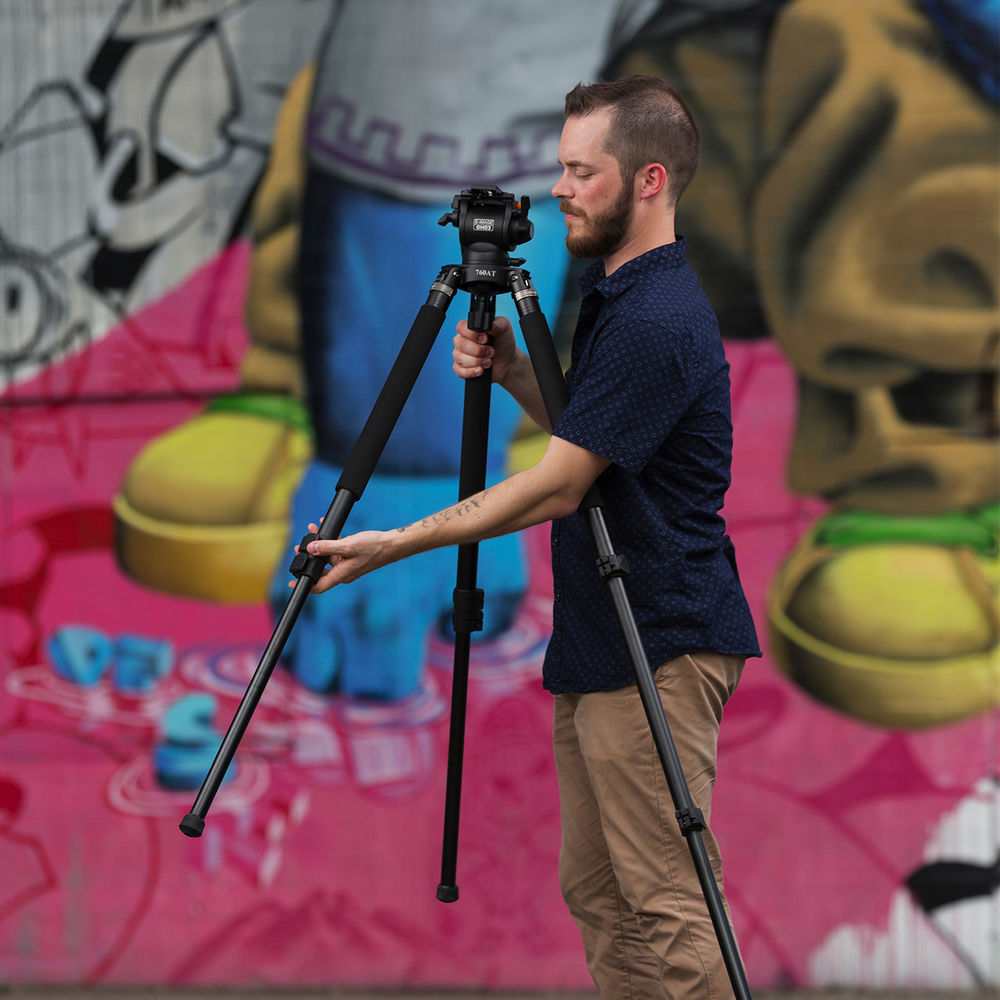

- Individual leg angle adjustment.
- The legs feature locks on each section. This allows you to individually adjust the height of each leg.
- Each leg features a foot with a retractable spike.
UPC: 847983019489
In the Box
E-Image 760AT Aluminum Tripod with GH03 Head
| General |
| Payload | 11 lb / 5 kg |
| Leveling Bubble/Illuminated | Yes / No |
| Weight | 8.5 lb / 3.8 kg |
| Head |
| Load Capacity | 11 lb / 5 kg |
| Counter Balance System | Fixed |
| Quick Release/Wedge Plate | Easy Lock system |
| Balance Plate | Easy Lock |
| Tilt Drag | Variable |
| Tilt Range | -60 to 90° |
| Tilt Lock | Yes |
| Pan Lock | Yes |
| Legs |
| Material | Aluminum |
| Head Attachment Fitting | 75 mm bowl |
| Minimum Height | 12.5" / 31.8 cm |
| Maximum Height | 55.5" / 141.0 cm |
| Leg Stages/Sections | 2/3 |
| Leg Lock Type | Flip-locks |
| Spiked/Retractable Feet | Retractable spiked feet |
| Packaging Info |
| Package Weight | 14.0 lb |
| Box Dimensions (LxWxH) | 37.0 x 8.0 x 8.0" |
