- Supports Up to 13 Pounds
- 75mm Ball/Bowl
- GA752 2-Stage Legs with Mono-Lock Design
- 26 - 61" Tripod Legs Height Range
- Easy Lock Baseplate
- 5-Step Counterbalance
- Adjustable Fluid Pan & Tilt Drag
- 1/4"-20 Threaded Accessory Socket
- Padded Bag with Shoulder Strap

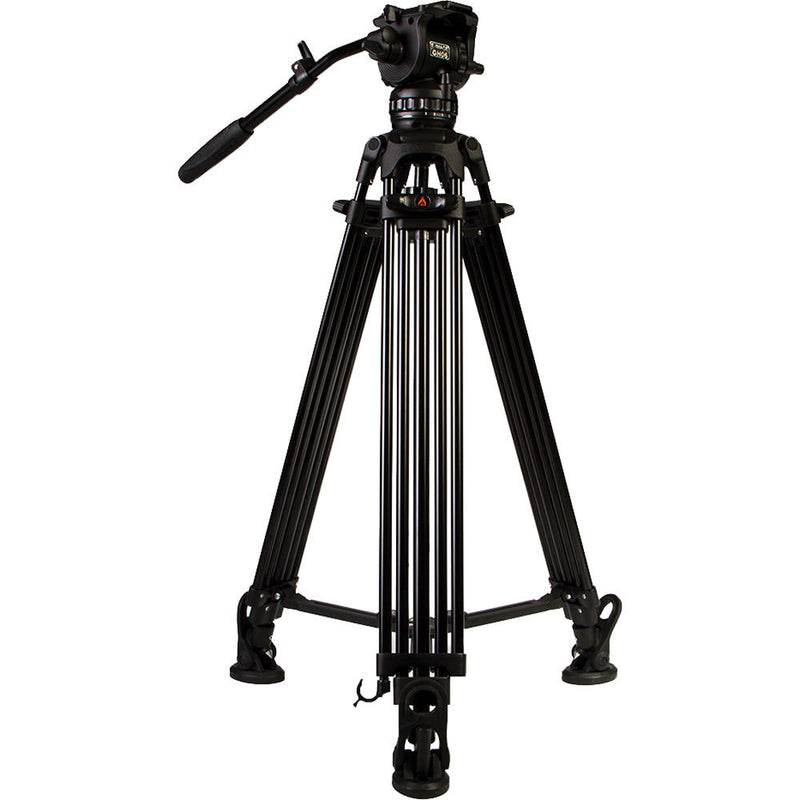

The E-Image 2-Stage Aluminum Tripod Legs with GH06 Head supports cameras and accessories weighing up to 13 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide support platform. The legs are made from aluminum and feature three leg sections, with mono-lock leg locks. The mono-lock design allows you to lock and unlock all the sections of each leg using only one rotating locking lever. The tripod legs are height adjustable from 26 to 61".
The GH06 head features an Easy Lock Baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. It provides five counterbalance settings (plus a zero setting for no counterbalance) that helps the fluid head support loads up to 13 pounds. With three fluid drag grades plus a zero setting on both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. It includes a padded carry bag with a shoulder strap

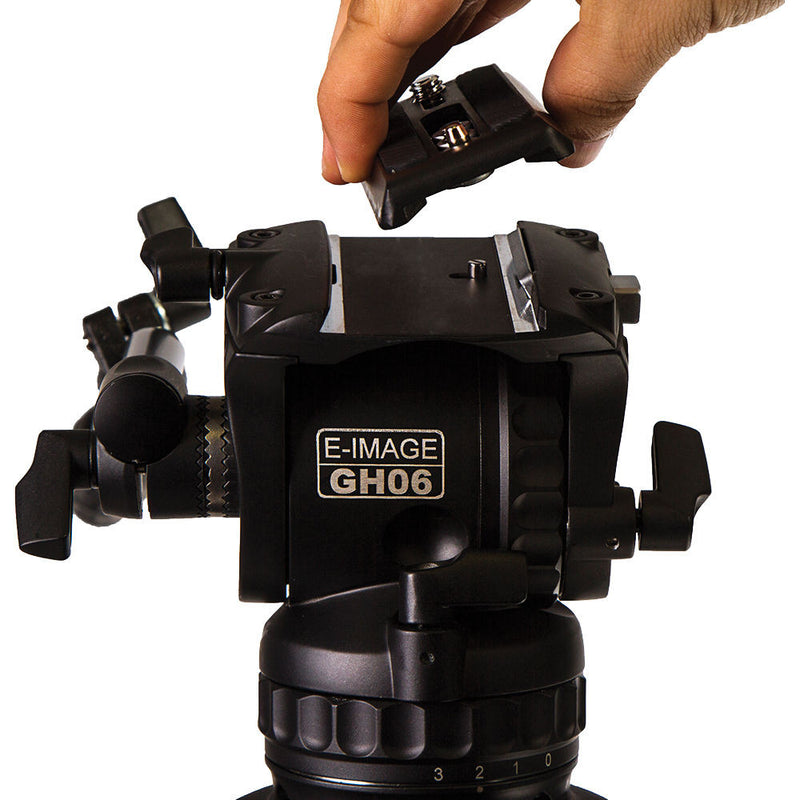

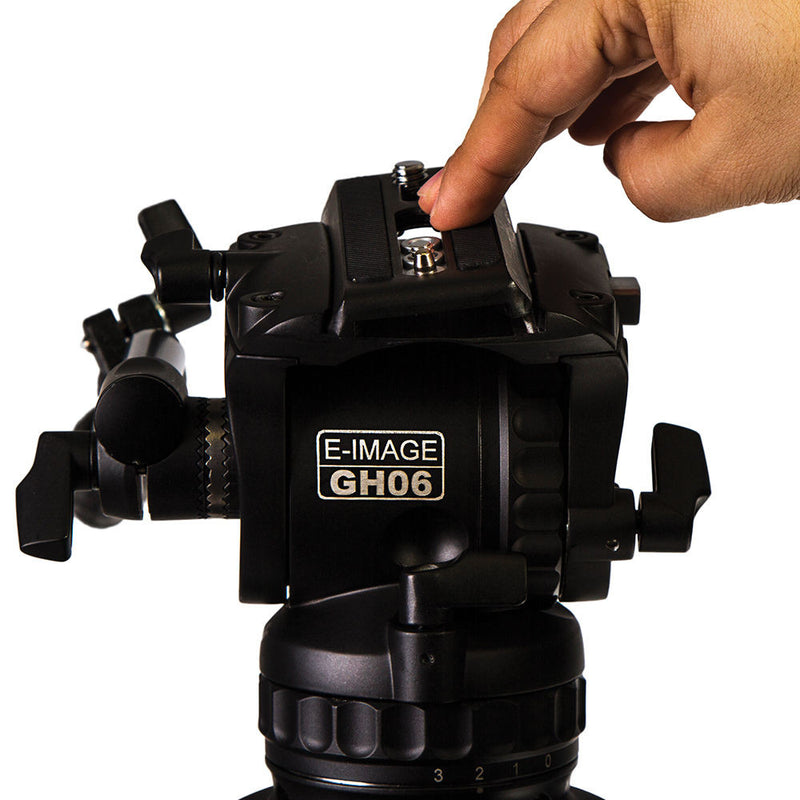

- The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate but combines the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
- Mono-Lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing your back from having to bend down to open a bottom leg lock to raise the legs.
- The legs feature dual spiked feet that provide solid purchase in soft surfaces when the legs are spread wide or extended to full height.
- The rubber feet attach to the spiked feet for working on delicate or hard surfaces.
- The Easy Lock camera plate features a guided sled with a locating pin and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
UPC: 847983009763
| General |
| Leveling Bubble/Illuminated | Yes/No |
| Weight | 16 lb (7.3 kg) |
| Head |
| Load Capacity | 13 lb (5.9 kg) |
| Counter Balance System | Fixed |
| Quick Release/Wedge Plate | Easy Lock System |
| Balance Plate | Easy Lock |
| Tilt Range | -60 to 90° |
| Tilt Drag | 3-steps plus 0 |
| Tilt Lock | Yes |
| Pan Drag | 3-steps plus 0 |
| Pan Lock | Yes |
| Legs |
| Material | Aluminum |
| Head Attachment Fitting | 75mm bowl |
| Minimum Height | 26" (66 cm) |
| Maximum Height | 61" (155 cm) |
| Leg Stages/Sections | 2/3 |
| Leg Lock Type | Mono-Lock - rotating lever |
| Spiked/Retractable Feet | Spiked Feet |
| Packaging Info |
| Package Weight | 17.0 lb |
| Box Dimensions (LxWxH) | 40.2 x 9.5 x 9.4" |
In the Box
E-Image 2-Stage Aluminum Tripod with GH06 Head
