Description

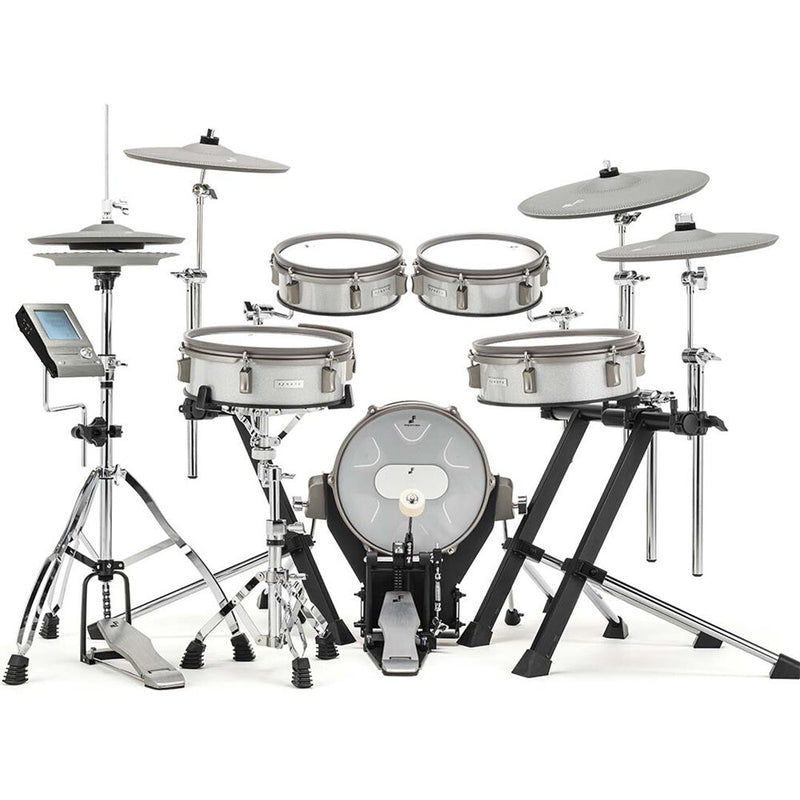

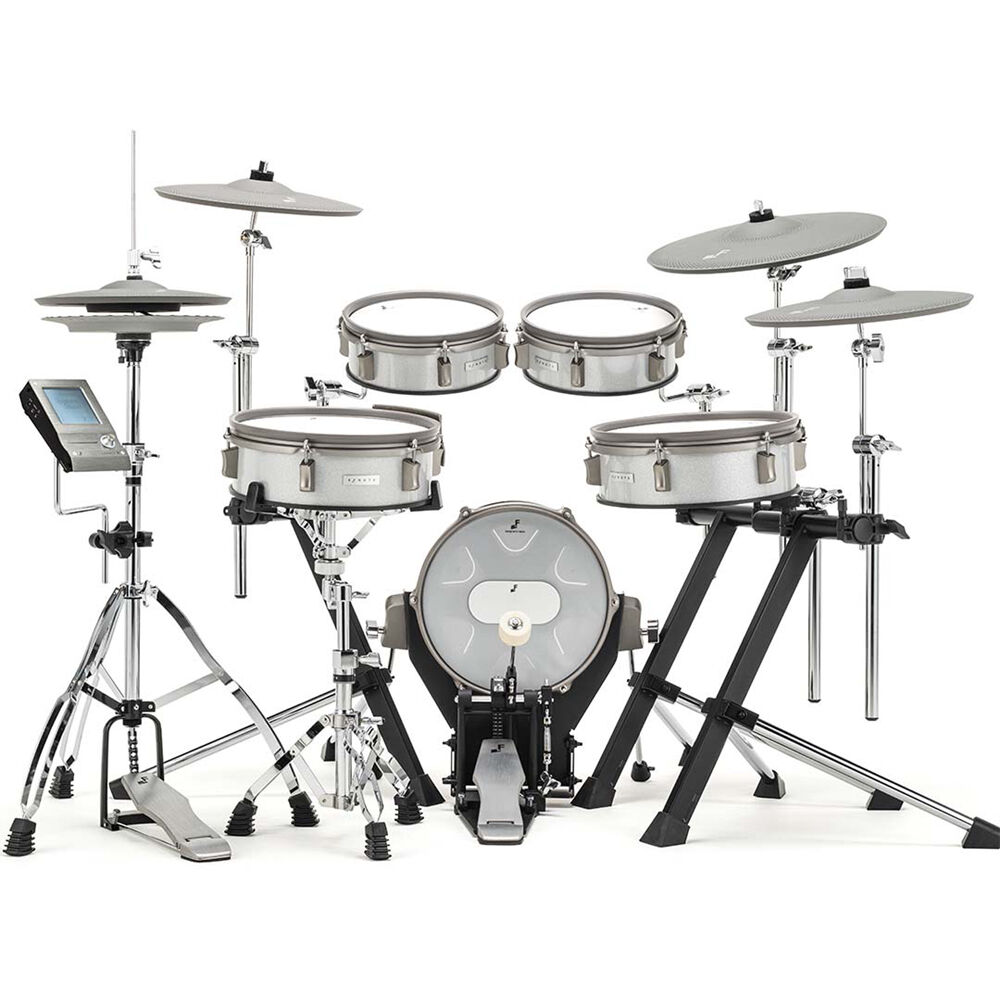

E F NOTE 3B DRUM KIT Overview
Offering playability equal to EF Note's flagship series in a more compact and affordable package, the EFB is a 5-piece electronic drum kit sporting monocoque low-profile drum pads and four cymbal pads with choke. With the compact EFD-3 sound module, you can be inspired by up to 50 customizable drum kits and ELISE sensing, which picks up the nuance of your playing.
This drum kit consists of one 12" snare drum pad with three zones (head, rim, and side/rim), two 10" 2-zone rack tom pads, one 12" two-zone floor tom pad, and one 8" kick pad with multiple sensors to support single or double kick pedals. Cymbals include a 12" hi-hat cymbal pad with Tru-Motion and precision optical sensor technology, two 14" crash cymbal pads, and one 16" ride cymbal pad. All cymbals sport 360° flat sensing, choke muting, weight simulation, a fine engraved surface, and three zones (bow, edge, and cup). The EFD-3 sound module provides a wide array of features, including numerous practice, recording, and stage performance functions. Analog, USB, MIDI, and Bluetooth connectivity ensure your kit will fit into any setup or application with ease. The EF Note 3B includes two breakout cables, four 1/4" TRS trigger cables, and cable ties.
Drums and Cymbals
Tru-Motion Hi-Hat Pedal
- Intertia weight simulation technology
- Precision optical sensing
- True-Motion technology for expressiveness
- Open-close stroke gap adjustment
- Spring tension adjustment
- Dedicated nonskid rubber grip
3-Zone Cymbals
- 16" ride cymbal
- Two 14" crash cymbals
- 3 zones (bow, edge, and cup)
- Multisensor 360° play/choke area
- 360° free-swinging design
- Responsive thin edge
Beautiful Cymbal Surface
The elegant warm-gray surface sports fine engravings for a textured feel. The clean silicone rubber surface is resistant to drumstick marks, meaning they will stay pristine for years to come.
Monocoque Drum Shells
- 10 x 3.5" and 12 x 4" acoustic-style low-profile drum shells
- 6 lugs and 2-ply mesh drum heads
- Monocoque FRP shell for stiffness and durability
- Multisensor design eliminates hot spots and provides high-resolution sound
- Suspended tom mount with softer striking feel, less rebound, and anti-crosstalk vibration design
Independent Side/Rim
Easy, intuitive, and reliable, the independent side/rim on the snare pad provides a dedicated place to perform rim shots. The sensor requires no switch to operate and sports an elegant arc design.
Comfortable Strike Kick Pad
- Low-rebound fabric head
- Angle-adjustable kick pedal attachment
- Stable multisensing for single or double beaters
- Rugged spars with rubber/spike tips
Lamba Tripods
Enjoy simple and flexible setup with the independent rack stand design provided by the 3B's Lambda tripods. These stable metal tripod stands offer reliability and easy customization of positions for an optimal drum kit configuration.
Sound Module
Ultracompact Sound Module
- Very small form factor
- Metal chassis with aluminum finish
- High-quality DAC and audio circuit
- High-powered headphone amplifier
- Touchscreen with intuitive user interface
ELISE Sensing Processor
- Captures drummer's nuances from each stroke
- Low latency, wide dynamic range, and consistent and stable sensing
- Optimized for EF Note Multisensor drum, cymbal, and hi-hat pads
Full-Scale Acoustic Sound
Full stereo acoustic drum and cymbal samples were recorded from scratch by EF Note. Tru-Aco sound technology provides truly realistic drum and cymbal sound behaviors. This results in raw sound without the need for resynthesis.
Practice and Training Features
- Multifunctional metronome with beat LED indicator
- Built-in metronome speaker for daily practice without headphones
- Onboard drum recording function, up to 15 tracks
- Stroke analyzer
- Rhythm Box feature provides over 90 basic drum beats
Recording Features
- USB 8-channel individual audio output with Mac or Windows PC (ASIO)
- USB 2-channel audio input for playback
- Analog 4-channel audio output
- USB MIDI I/O with individual MIDI channels
- MIDI output via DIN 5-pin connector
Ideal for Small Gigs
- Setlist feature enables you to configure your kit order with tempo for each song
- Kick and snare can be output individually with analog 4-channel outputs
- Click and audio input can be assigned for headphones only
Stroke Analyzer
The 3B sports a Stroke Analyzer function to rapidly improve your playing. The Stroke Scope displays your strike points on a timeline. The Accuracy Score estimates your strike accuracy.
Sound Editing
- Tuning, muffling, and 2-band EQ for each pad
- Pad layer function can overlay two sounds
- User Instrument Library enables you to store 128 customized instruments
- Onboard reverb
- Dedicated level control screen
Flexible Audio Routing
- 10-channel output buses
- Flexible output routing for each pad
- Output assignable click
- Analog, Bluetooth, or USB 2-channel input
Bluetooth
Bluetooth audio input provides you with a way to play along with Spotify and YouTube content on your smartphone. The sound module also supports Bluetooth MIDI functions. The EF Note Tools app can control Bluetooth remotely.
EF Note Tools App
Carry Data with You
You can back up, restore, and share drum kit data and trigger settings with your smartphone. Now you'll never be without your personalized settings. You can also get new drum kits to inspire your creativity with the official Kit Library.
Adjust Remotely and Swap Sounds
For small gigs, drummers often cannot rely on FOH engineers. Now, you can remotely adjust the level of each pad while playing back your beat with the built-in recorder.
With the Swap feature, you can easily swap each tom or cymbal sound. This makes it easier than ever to change your setup and edit kits.
Items Included
- E F NOTE 3B 5-Piece Electronic Drum Kit
- EFD-3 Sound Module
- E F NOTE Electronic Drum Snare Pad (12", White Sparkle)
- E F NOTE Electronic Kick Pad (8", White Sparkle)
- 2 x E F NOTE Half-Shell Tom Pad (10", White Sparkle)
- E F NOTE Half-Shell Tom Pad (12", White Sparkle)
- E F NOTE EFD-C12 Electronic Standard Cymbal (12")
- E F NOTE Hi-Hat Pedal for EFNOTE 3
- E F NOTE EFD-C14 Electronic Standard Cymbal (14")
- E F NOTE EFD-C16 Electronic Standard Cymbal (16")
- Power Supply for Sound Module
- 4 x Lambda Tripod Stand
- E F NOTE EFD-SS5 Snare Drum Stand
- 3 x E F NOTE EFD-CM3 Cymbal Mount for EF NOTE 3 and 3X
- Hi-Hat Boom Cymbal Arm
- 3 x Cymbal Boom Arm
- Sound Module Arm
- Smartphone Tray
- EFD-MULTI-A3 Breakout Cable
- FD-MULTI-B Breakout Cable
- 4 x Trigger Cable
- Cable Ties
- Limited 1-Year Manufacturer Warranty
Not Included
- Essential Pedals
- Essential Drum Thrones
Additional Resources
No additional resources available
E F NOTE 3B DRUM KIT Specs
| Kit Configuration |
Sound Module: EFD-3
Snare: 12 x 4" Triple-Zone Snare Pad Tom 1/2: 10 x 3.5" Dual-Zone Tom Pad Tom 3: 12 x 4" Dual-Zone Tom Pad Hi-Hat: 12" Triple-Zone Cymbal Pad Crash 1/2: 14" Triple-Zone Cymbal Pad Ride: 16" Triple-Zone Cymbal Pad |
| Drum Kits |
Preset: 16 (Customizable)
User: 34 |
| Instruments |
50
|
| Effect Types |
Ambience (8 Types)
|
| Song Player (SD Card) |
N/A
|
| Recorder |
N/A
|
| Bluetooth |
Bluetooth Audio and MIDI
|
| Display |
Yes
|
| Connectors |
11 x 1/4" TRS Female Trigger Input
2 x 1/4" TS Female Line Output 2 x 3.5mm TRS Female Headphone Output 1 x DIN 5-Pin Female MIDI Output 1 x USB Micro-B 2.0 Input/Output |
| Power Supply |
12 VDC (Included)
|
| Current Draw |
Nominal: 500mA
Max: 800mA |
| Dimensions (W x D) |
4.1 x 6.7" / 10.6 x 17.2 cm (Excluding Protrusions)
|
| Weight |
24.6 oz / 700g
|
