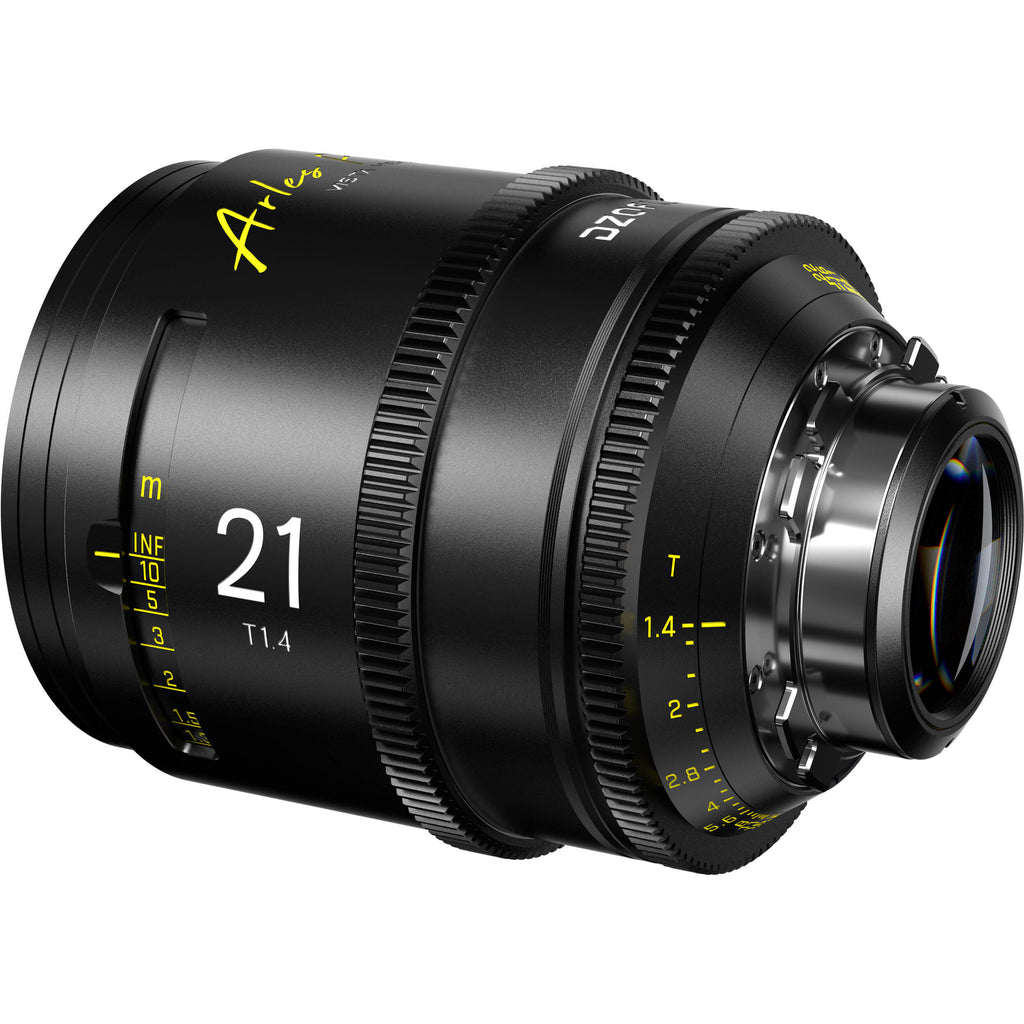

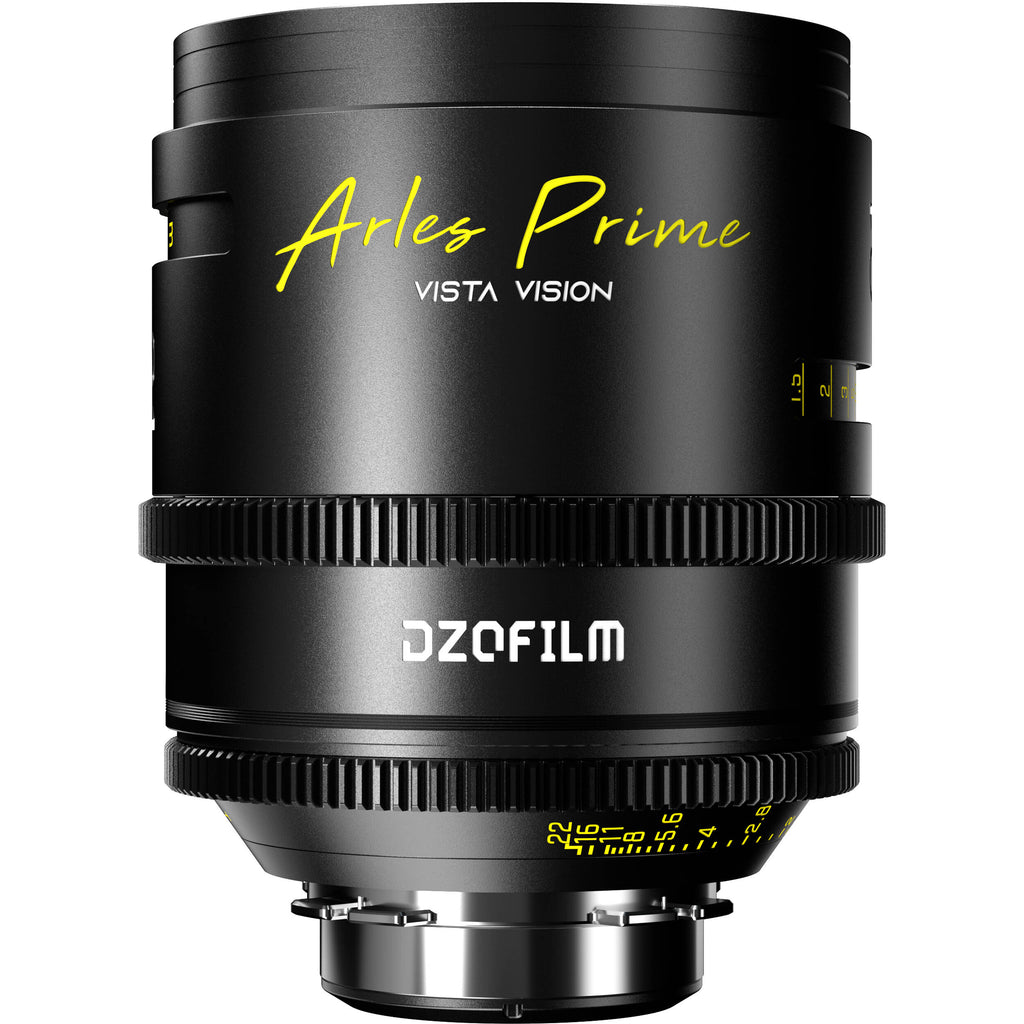

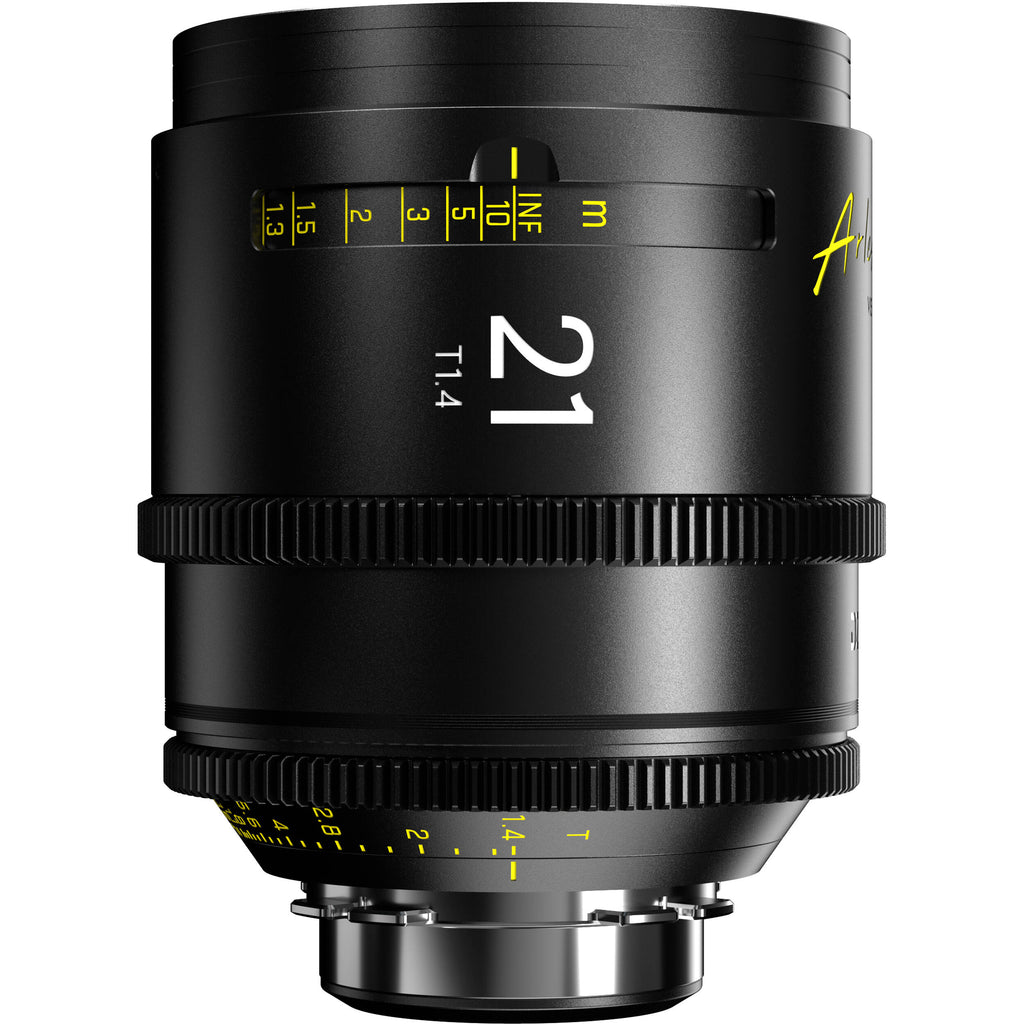

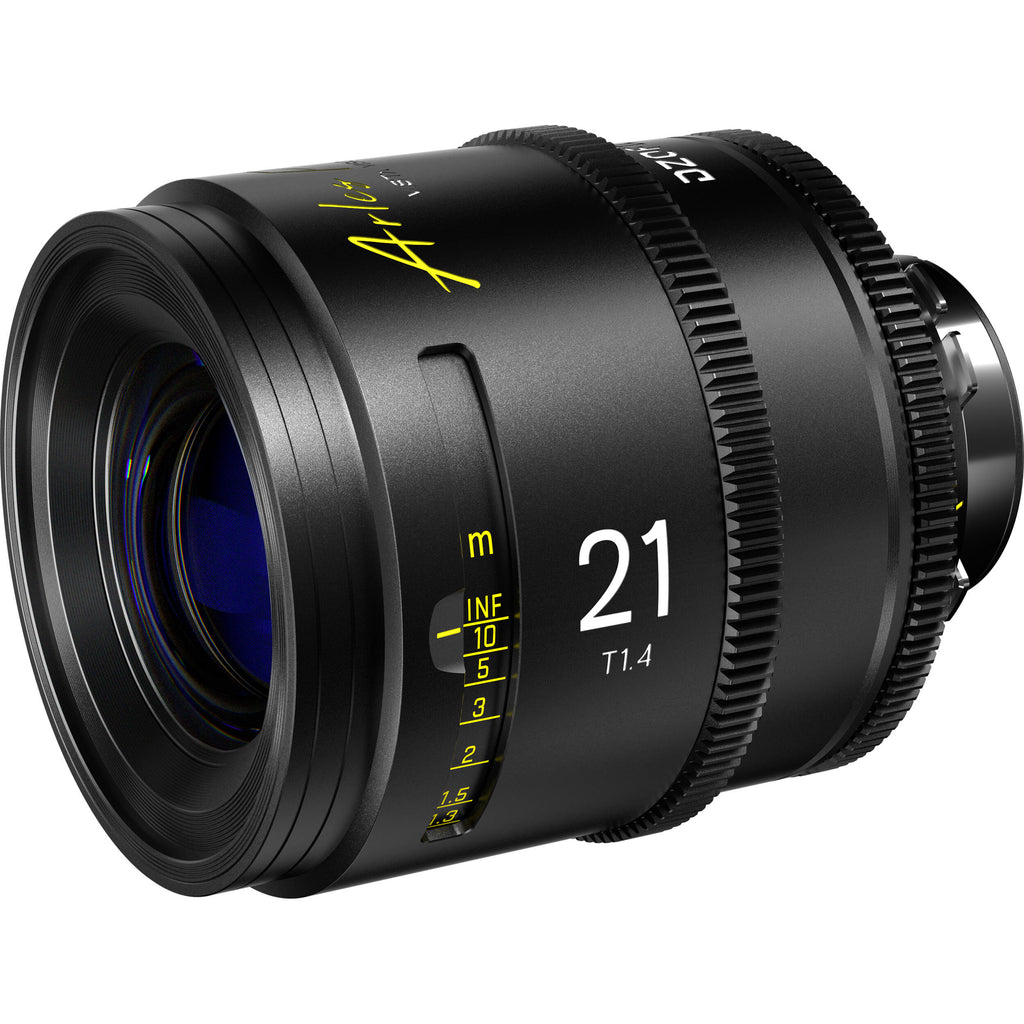

DZOFilm Arles 21mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Equip your full-frame ARRI PL-mount camera with the Arles 21mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture consistently sharp, natural-looking imagery. This 21mm prime lens has an aperture range of T1.4 to T22, offering excellent low-light capture and arrestingly shallow depth of field. A 16-blade iris and optical construction of multiple grouped elements provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.

• The Arles series lenses have a 50mm image circle, providing compatibility with large-format camera sensors.

Use the Arles series lenses at maximum aperture to create a soft, lower contrast look with slightly swirling peripheral bokeh.

• Floating elements minimize breathing during focus shifts.
• The inclusion of aspherical elements helps to improve low-light capture.
• Precision manufacturing includes low-dispersion optical materials that reduce chromatic aberration.

This ARRI PL-mount lens can be used with a separately available Canon EF mount, offering compatibility with a wide range of cine-style, mirrorless, and DSLR cameras.

A 95mm outer diameter and an M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. Each lens in the Arles series has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.

DZOFilm ARLES 21mm T1.4 (ft) Specs

Focal Length	21mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Interchangeable Mount	Yes
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Angle of View	Full Frame Diagonal: 89° Horizontal: 54° Vertical: 96°
Focus Scales	Imperial
Optical Design	14 Elements in 12 Groups
Filter Thread	86 mm
Minimum Focus Distance	From Camera Sensor: 1.1' / 33 cm
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus: 270° (Manual Only) Iris: 77° (Manual Only)
Electronic Communication	No
Coating	Multi-Coated
Diameter	3.7" / 95 mm
Length	4.8" / 121 mm
Weight	3.3 lb / 1.5 kg

Package Weight	5.53 lb
Box Dimensions (LxWxH)	12.9 x 7 x 6.9"
