Description
Product Overview

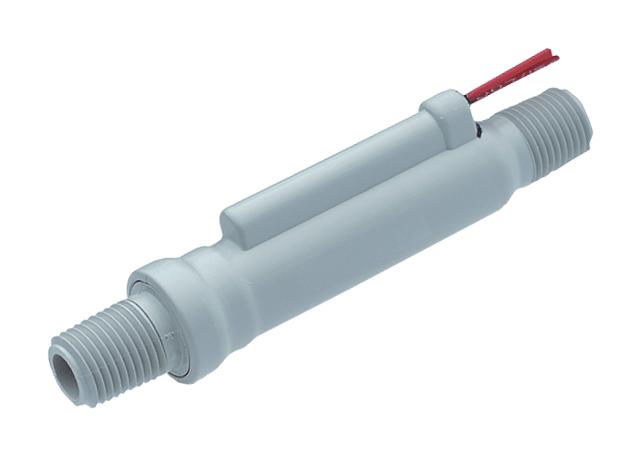

P2-15 is a series P2 flow switch which utilizes a piston-type design for air applications. It is used for heat exchangers and cooling applications.
- Actuation set point 0.42CFM (11.9LPM) for air
- Piston design incorporates a hermetically sealed SPST magnetic reed switch
- All wetted parts are FDA compliant
- PPE & PS (polyphenylene ether and polystyrene) housing and piston and 316 SS spring and stop pin
- Economical design
- Temperature limit range from 0 to 212°F (-18 to 100°C)
- Pressure limit of 150psig (10.3bar) at 70°F (21°C), 50psig (3.4bar) at 212°F (100°C)
- 22AWG, 45.7cm, PVC lead wires electrical connection
- 1/4" male NPT process connection
- Mounted in any position
Product details
Other details
| Brand | DWYER |
| Part Number | P2-15 |
| Quantity | Each |
| Technical Data Sheet EN |  |
