Description
Product Overview

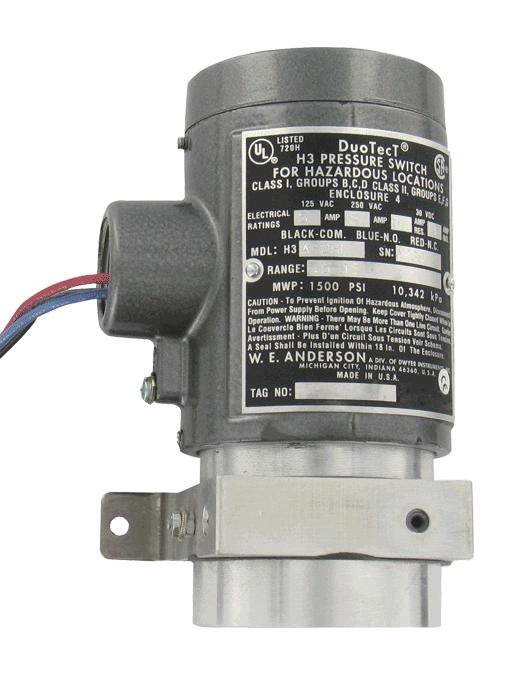

H3S-2SL is a series H3 explosion-proof differential pressure switch. It is a heavy duty, industrial unit with a unique new design that provides sensitivity to differential pressures as low as 10inches of water (254mm w.c.), yet handles total pressure of 1500psi (103bar). The Series H3 utilizes a rotary motion transfer shaft that prevents a change in total pressure from causing a set point shift. Typical applications include water flow proving with an orifice plate, differential pressure across chiller and liquid filter status.
- Explosion-proof differential pressure switch
- 316 SS chamber with fluoroelastomer diaphragm
- Adjustable operating range from 0.5-15psid (0.03-1bar)
- SPDT snap action switch rated 5A at 125/250VAC, 30VDC
- 18 AWG x 18 inch lead wires electrical connection
- Rotary motion design prevents set point shifts
- Explosion-proof housing for use in applications where protection of process and personnel is needed
- 3/4? female NPT conduit connection
- 1/8? female NPT process connection
- Vertical mounting orientation and ATEX, CE, CSA, UL compliance
Product details
Other details
| Brand | DWYER |
| Part Number | H3S-2SL |
| Quantity | Each |
| Technical Data Sheet EN |  |
