Description

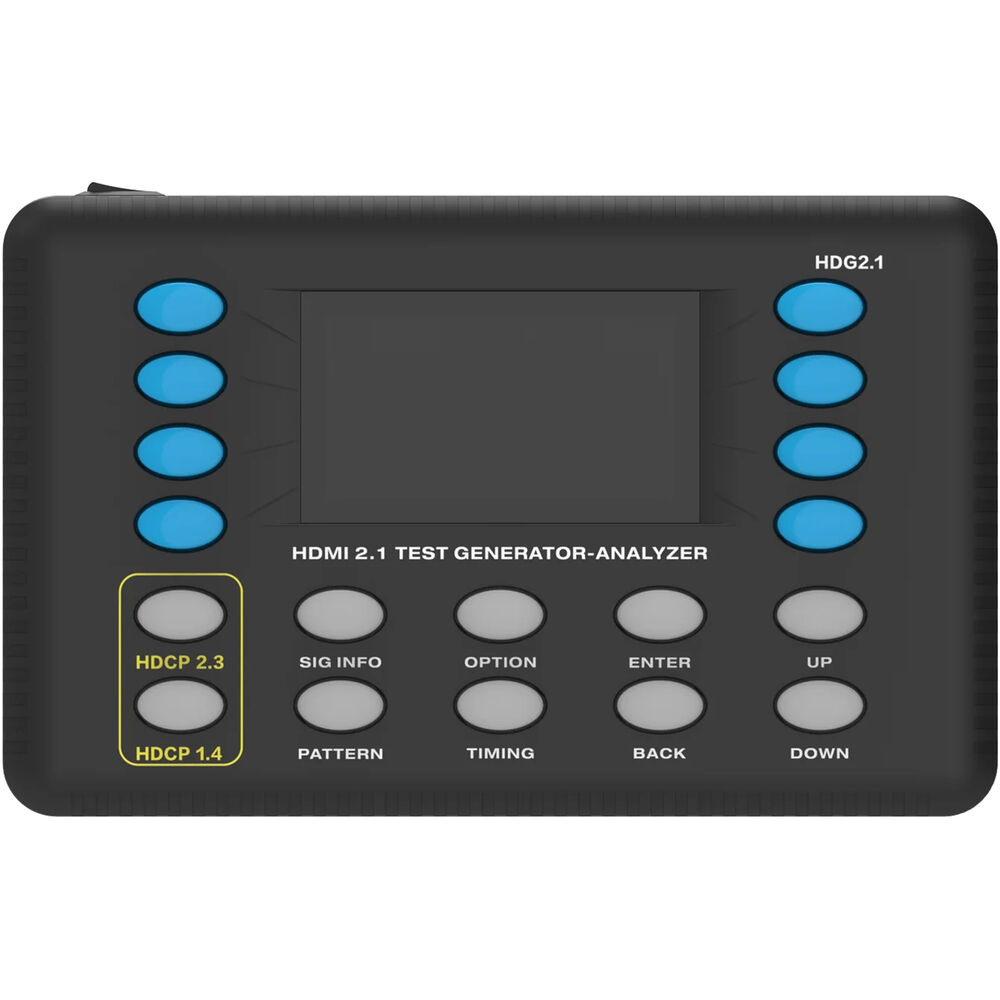

DVDO 8KSGA-1 Overview
Verify your HDMI system fits HDMI 2.1 and HDCP 2.3 compliance specifications with the DVDO 8K HDMI Signal Generator and Analyzer. The generator features HDMI input and output ports to test both source and display devices. Optical S/PDIF audio input and outputs route the audio signals separately. The device can output up to 64 different video resolution signals up to 8K60 as well as up to 33 test patterns. Test and control functions are available for color space, color depth, HDCP, EDID, HDR, CEC control, and more. Onboard button controls toggle different test modes. Power to the device can be delivered via the included power supply or using the internal 2910mAh battery.
- Outputs resolutions up to 8K60 4:2:0 10-bit and 40Gb/s video bandwidth as specified in HDMI 2.1
- Up to 64 video resolutions and 33 patterns
- Color space: RGB/YCC 4:4:4/YCC 4:2:2/YCC 4:2:0
- Color depth: 8/10/12-bit
- Built-in HDR test function in HDMI 2.1
- HDMI audio source can be from the internal audio or external S/PDIF input audio
- HDCP 2.3/1.4 encryption verification pass or fail indication
- EDID Read/Write functionality
- Analysis of Timing/Format/Info frame/HDCP of HDMI input signal
- CEC control
- Control via front-panel buttons
- Portable design, built-in lithium battery of 2910mAh
Items Included
- DVDO 8K HDMI Signal Generator and Analyzer
- 3.5mm to DB-9 Serial Cable (3.3')
- Power Adapter (5V, 2A)
- Limited 3-Year Manufacturer Warranty
Additional Resources
DVDO 8KSGA-1 Specs
| Video I/O |
1x HDMI Input
1x HDMI Output |
| Audio I/O |
1x TOSLINK Input
1x TOSLINK Output |
| Other I/O |
1 x 3.5mm Service Port
|
| Power Source |
AC Adapter with Power Brick, Battery
|
| Battery Type |
1x Internal Rechargeable
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
7.5 W (Maximum)
|
| Mounting |

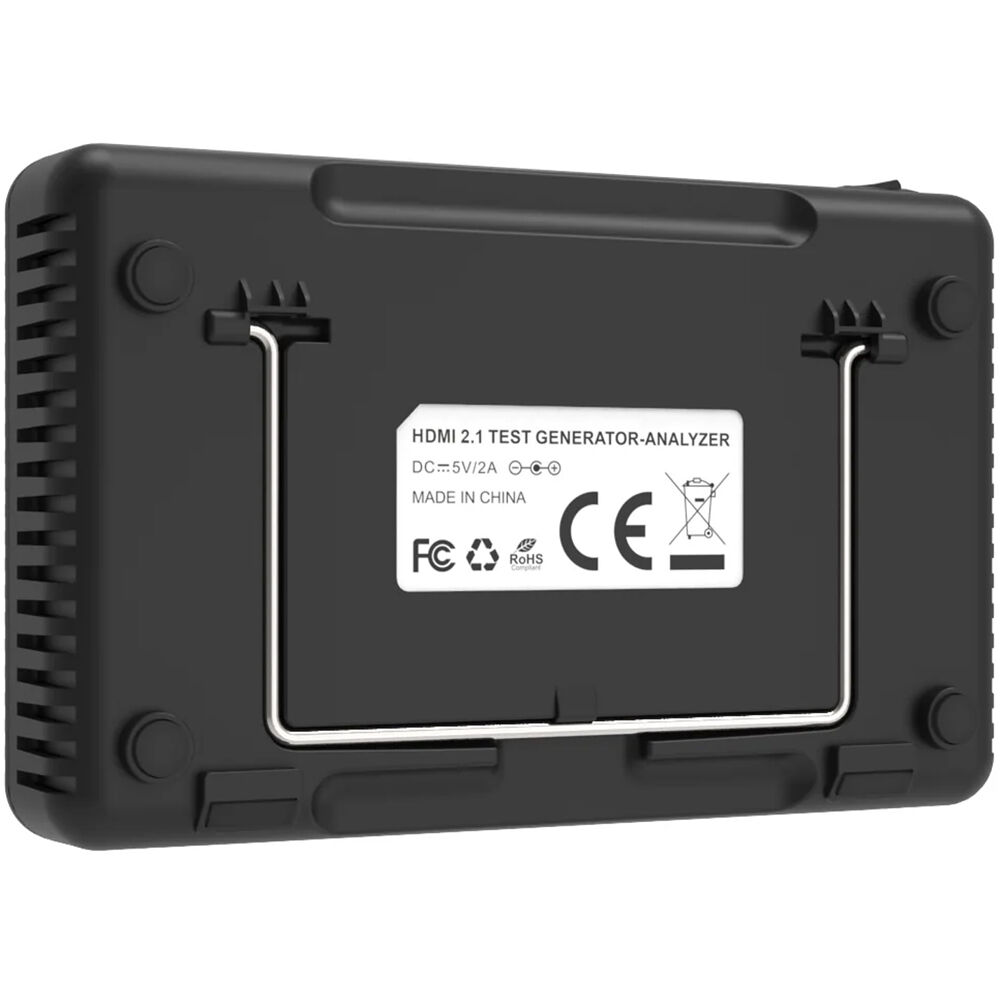

1x Back Clip
|
| Color |
Black
|
| Material of Construction |
Plastic
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 20 to 90% Humidity
|
| Cable Length |
3.3' / 1 m (Serial Cable)
|
| Dimensions |
6.5 x 4.1 x 1.5" / 165 x 103 x 37.4 mm
|
| Weight |
11.3 oz / 320 g
|
| Package Weight |
1.455 lb
|
| Box Dimensions (LxWxH) |
10.2 x 8.1 x 2.1"
|
