Description

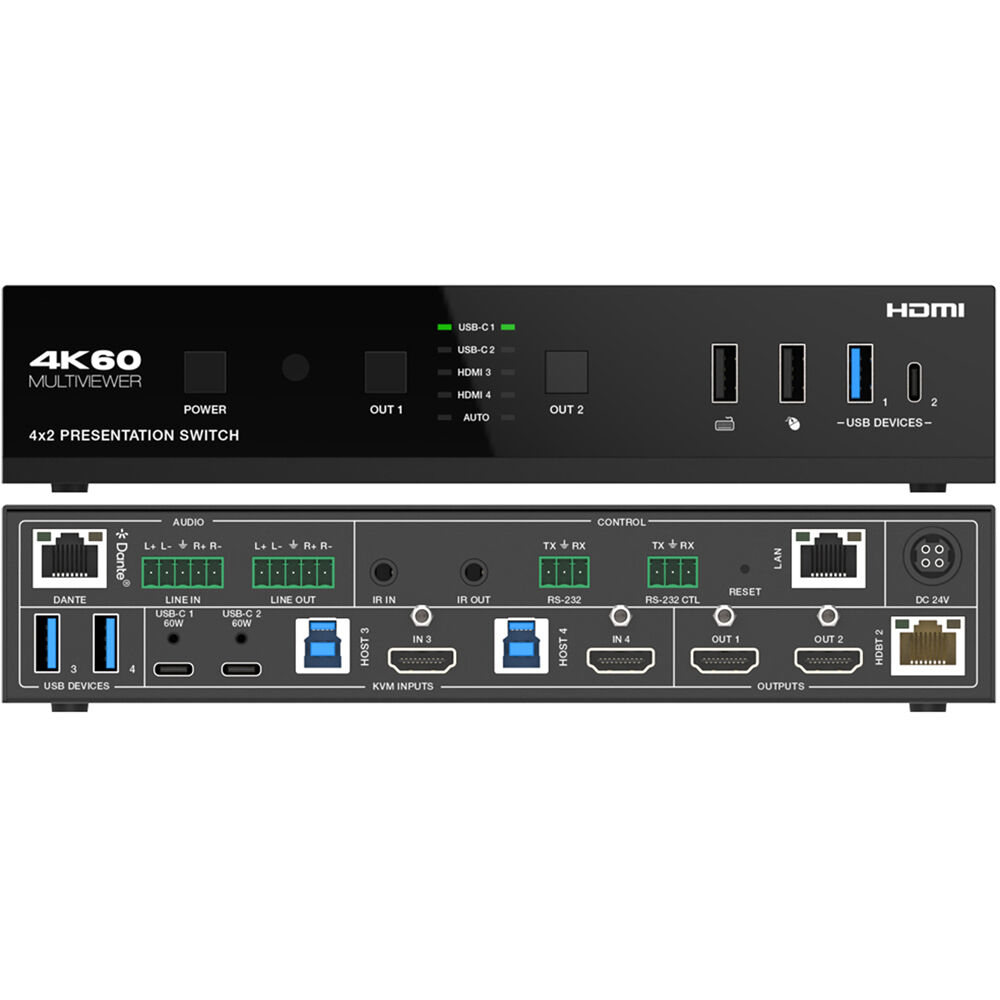

DVDO 4K 4x2 Seamless Presentation Switcher/Ex... Overview

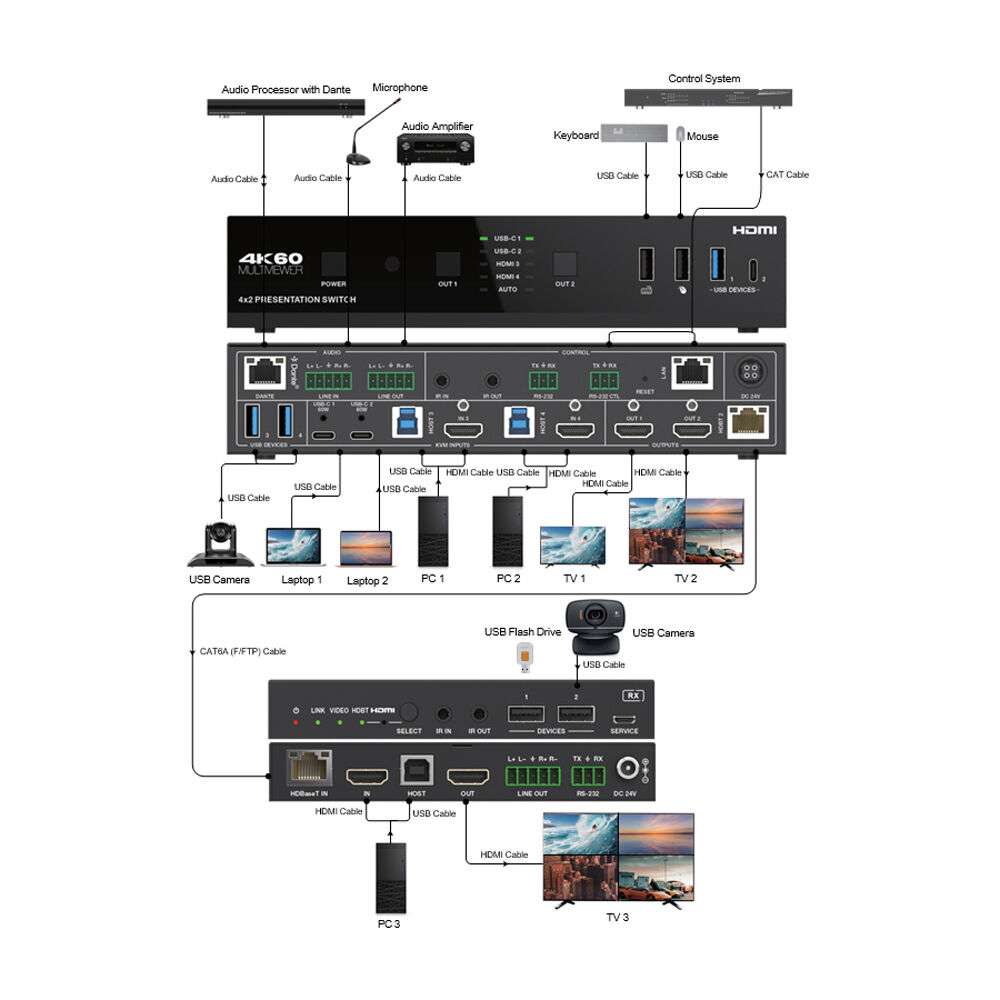

Route up to two HDMI sources and two USB-C sources to two HDMI outputs and extend the output signal over HDBaseT with this 4K 4x2 Seamless Presentation Switcher/Extender with Dante Audio from DVDO. The versatile switcher supports resolutions up to 4K60 with a 4:4:4 color space and can extend that same signal to distances up to 132', or a 1080p60 signal to up to 230' via a single Cat 6a Ethernet cable.
Connectivity options include 2x2 Dante audio inputs and outputs, HDMI and USB-C inputs and outputs, and 5-Pin Phoenix analog audio ports. Other interfaces, including RS-232, RJ45 LAN, IR, and various USB options, are available for control protocols and KVM. Audio can be embedded and de-embedded to a single 3.5mm stereo output or via Dante, and the system offers built-in audio DSP with gain, EQ, volume, and delay adjustments.
All video outputs support either single full screen or a wide array of multiview display modes (Auto, Dual, PIP, PBP, Triple, Quad, and Custom). The unit also supports HDMI 2.0b with an 18 Gb/s video bandwidth, HDCP 2.3, EDID management, and PoE (Power over Ethernet). Control can be achieved via front-panel buttons, RS-232 or TCP/IP with an intuitive WebGUI, or using the included IR remote.
- Supports HDMI 2.0b, HDCP 2.3, HDBaseT 3.0, and DP 1.4
- Video resolutions up to 4K60 with 4:4:4 color space at 18 Gb/s
- Transmission of 4K30 and1080p signals up to 230' and 4K60 signals up to 132' over HDBaseT 3.0
- Multiple multiview display modes: Auto, Single, PIP, PBP, Triple, Quad, and Custom
- 4x2 seamless switching (single screen) and fast switching (multiview)
- Manual and auto switching modes
- USB-C supports 4K60 DisplayPort Alt Mode, USB 3.2 Gen 1 up to 5 Gb/s, 1G LAN and 60W charging
- Local USB 3.2 switching and extending USB 2.0 over HDBT 3.0
- Local USB KVM hotkeys and mouse switching
- Audio embedding and de-embedding
- Built-in DSP with gain, equalizer, volume, and delay control
- Advanced EDID management
- CEC/RS-232 control to turn external devices On/Off
- Control via front panel buttons, IR remote, RS-232, TCP/IP or intuitive WebGUI
- Standard PoE from transmitter to receiver (TX_PSE, RX_PD)
Items Included

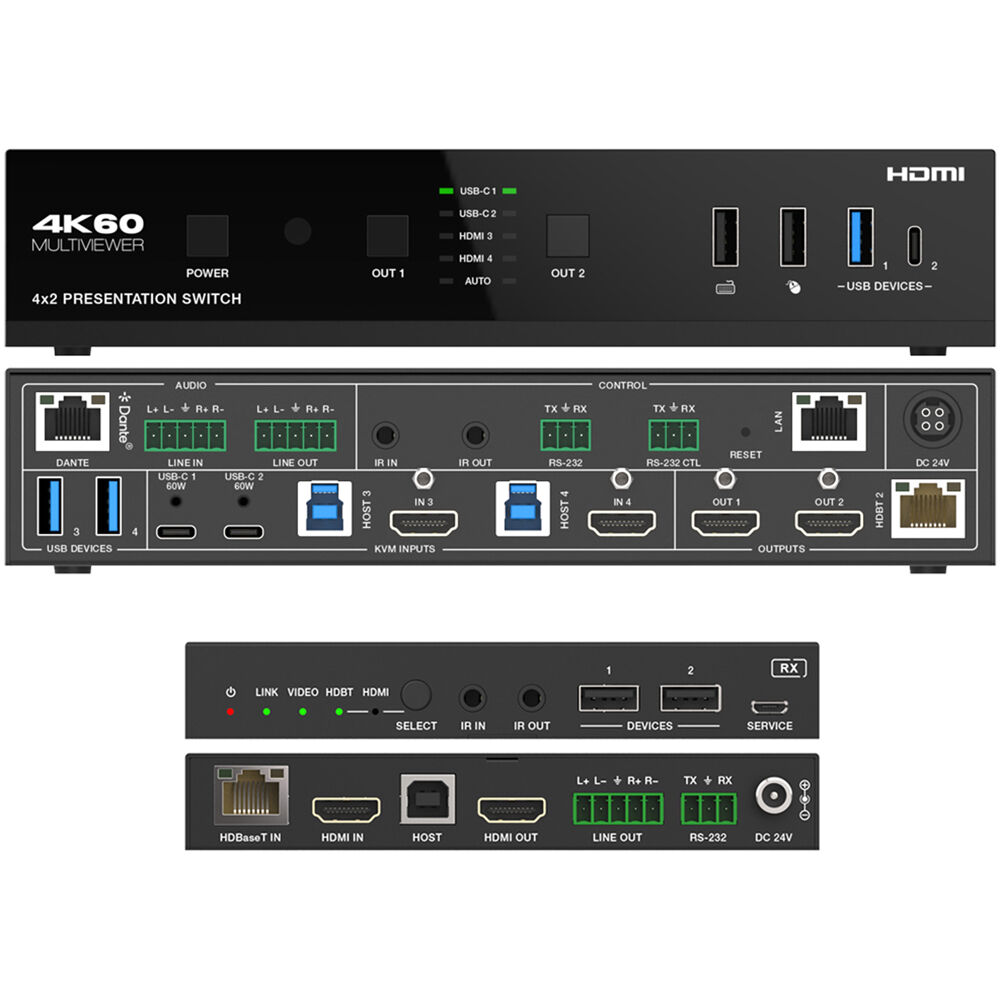

- DVDO 4K 4x2 Seamless Presentation Switcher/Extender with Dante Audio

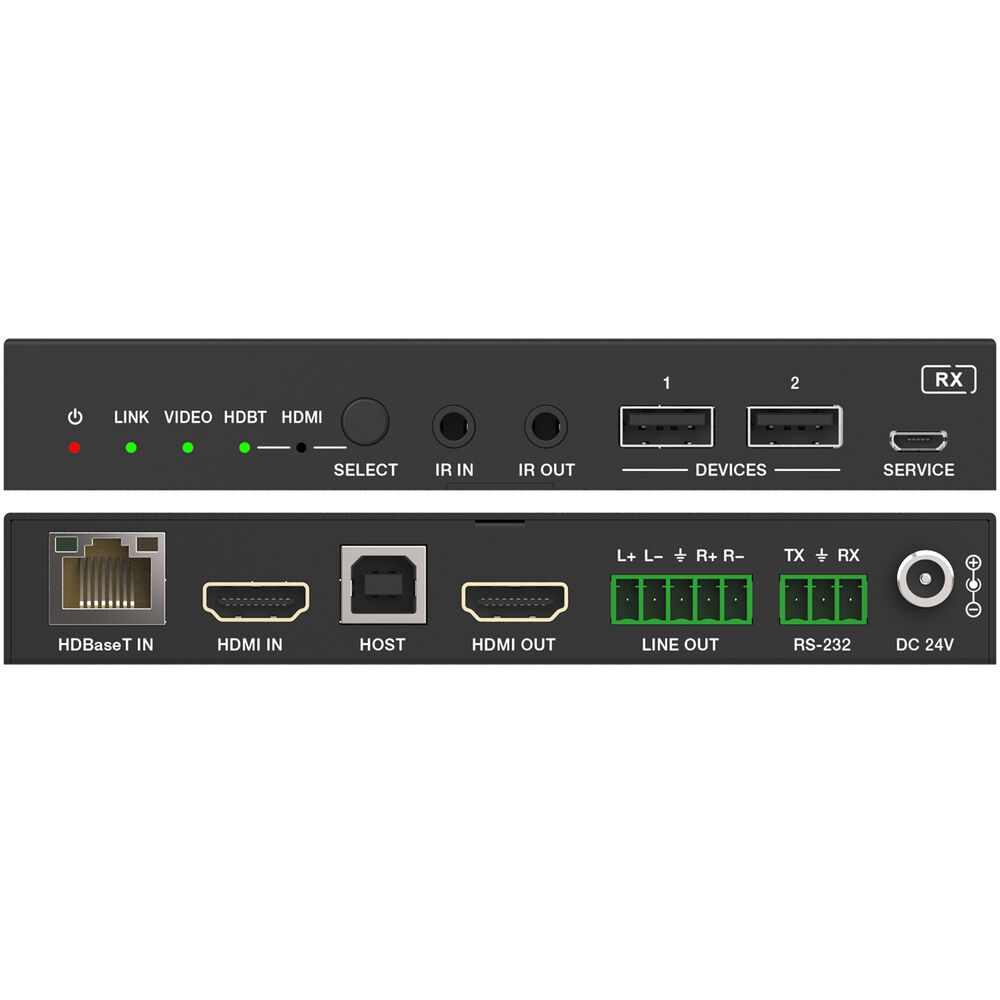

- HDBaseT Receiver
- IR Blaster Cable (4.9')
- IR Receiver Cable (4.9')
- 3 x 3-Pin Phoenix Connector
- 3 x 5-Pin Phoenix Connector
- 24V, 8A Power Supply
- Power Cord (4.9')
- 4 x Mounting Ear
- 8 x Machine Screw
- IR Remote
- Limited 1-Year Manufacturer Warranty
Additional Resources
DVDO 4K 4x2 Seamless Presentation Switcher/Ex... Specs
| Switching Type |
IR Remote, Pushbutton, Software
|
| Latency |
2 to 10 ms
|
| Processing Resolution |
UHD 4K at 60
|
| Color Processing |
8-Bit, 10-Bit, 12-Bit 4:4:4 RGB
8-Bit, 10-Bit, 12-Bit 4:4:4 YCbCr 8-Bit, 10-Bit, 12-Bit 4:2:2 YCbCr 8-Bit, 10-Bit, 12-Bit 4:2:0 YCbCr |
| Audio Processing |
96 kHz / 24-Bit
|
| Video Inputs |
3x HDMI (2.0b) Female
2x USB-C Female 1x RJ45 (HDBaseT) Female |
| Input Video Format |
HDMI / RJ45 / USB-C (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
UHD 4K up to 60 fps |
| Audio Inputs |
1x Block 5-Pin Stereo Analog
1x RJ45 Stereo Female |
| Input Audio Format |
LPCM (Linear Pulse-Code Modulation): 192 kHz / 24-Bit
LPCM (Linear Pulse-Code Modulation): 96 kHz / 24-Bit |
| Embedded Audio Input |
HDMI: 2-Channel (per Input)
RJ45: 2-Channel (per Input) USB-C: 2-Channel (per Input) |
| Video Outputs |
3x HDMI (2.0) Female
1x RJ45 (HDBaseT) Female |
| Output Video Format |
HDMI / RJ45 (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
UHD 4K up to 60 fps |
| Audio Outputs |
2x Block 5-Pin Stereo Analog Female
|
| Output Audio Format |
Analog
|
| Embedded Audio Output |
HDMI
RJ45 |
| Multiview Output |
4-Way Multiview via HDMI, RJ45
|
| Other I/O |
1x RJ45 Control, LAN, PoE
1x USB-C Unspecified 3x Block 3-Pin RS-232 2x USB-B 3.1/3.2 Gen 2 3x USB-A 3.1/3.2 Gen 2 4x USB-A Unspecified 2x 1/8" / 3.5 mm IR Input 2x 1/8" / 3.5 mm IR Output |
| Digital Audio Decoding |
LPCM
|
| HDCP Support |
Yes, Version 2.3
|
| HDR Support |
Yes
|
| Wireless |
No
|
| Power I/O |
1x DIN 4-Pin (100 to 240 VAC ) Input
1x Barrel (24 VDC at 8 A) Output |
| Power Consumption |
170 W
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
|
| Certifications |
CE, FCC, UL
|
| Dimensions |
8.7 x 8.7 x 1.8" / 220 x 220 x 44.5 mm
|
| Weight |
3.92 lb / 1.78 kg
|
