Description

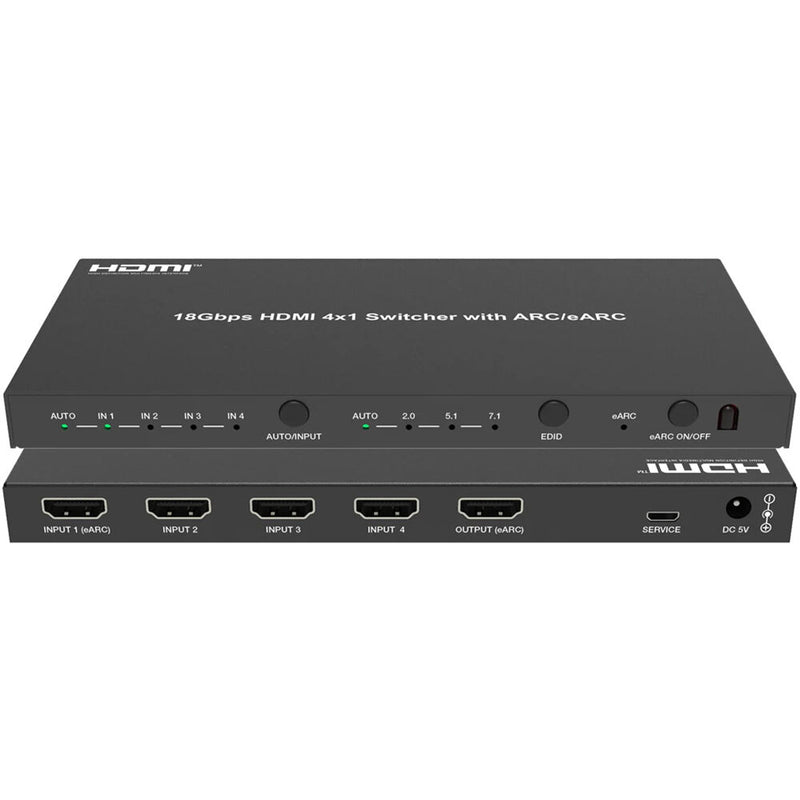

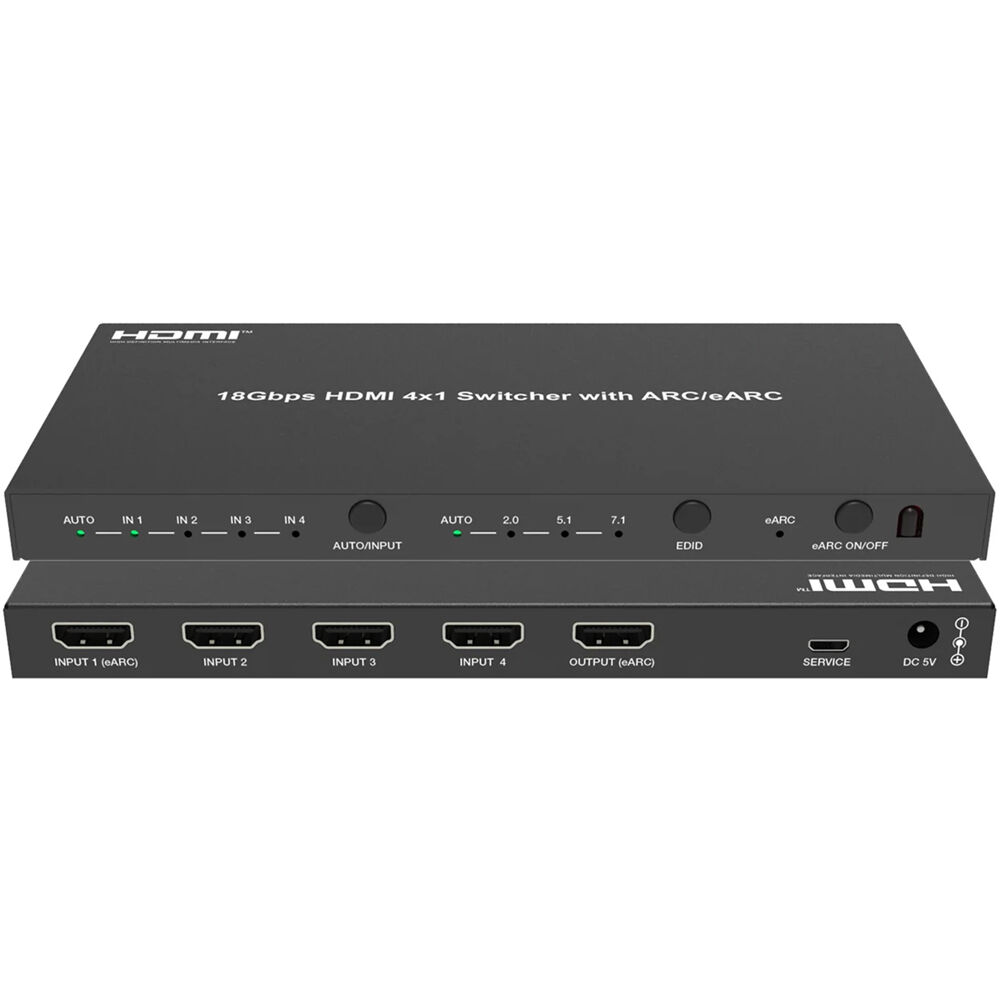

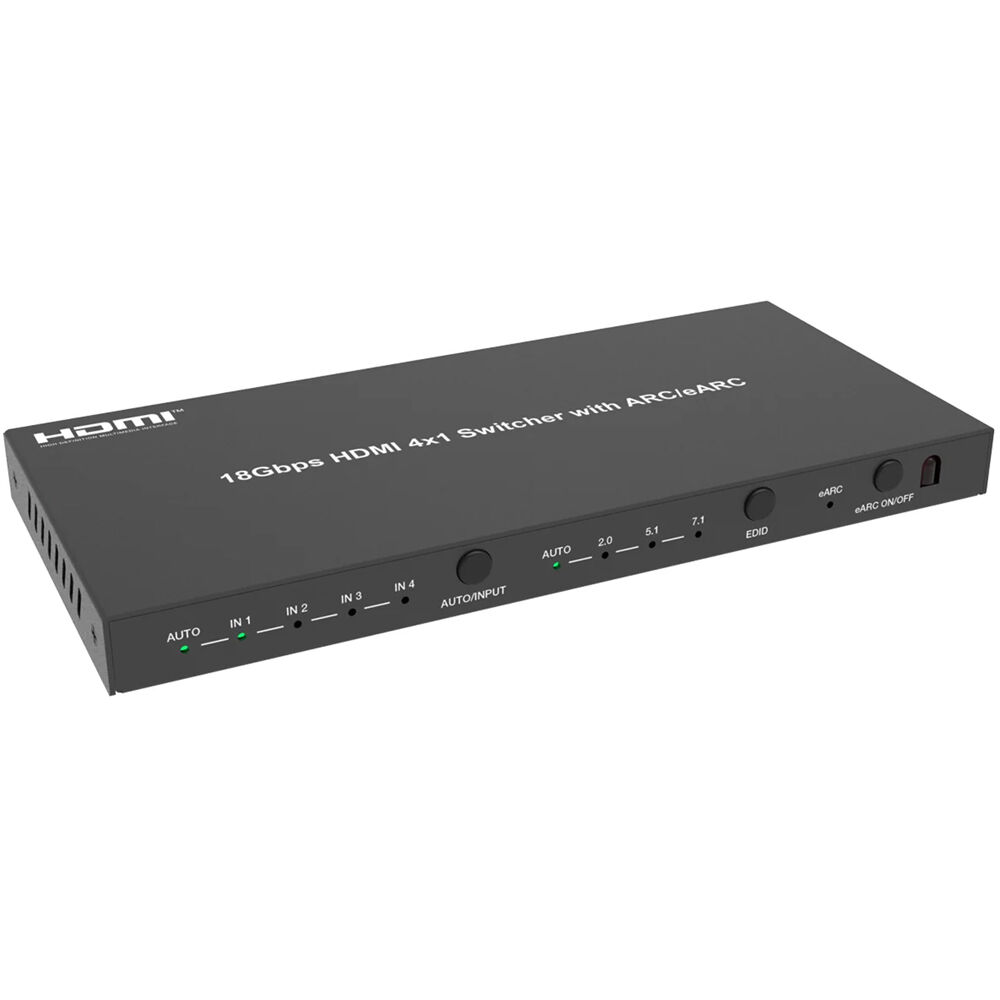

DVDO SWITCHER-41-ARC Overview
Switch among four HDMI inputs to a single HDMI output with 18 Gb/s video bandwidth using this 4K 4x1 HDMI Switcher with ARC from DVDO. Supporting resolutions up to 4K60 RGB/YCbCr in a 4:4:4 color space, the unit integrates ARC/eARC functionality on its input 1 port, 3D, 10-bit HDR, and CEC control. The unit is also compliant with HDCP 2.2/1.x and DVI 1.0, in addition to supporting advanced EDID management. Flexible control options are available via front-panel buttons and the included IR remote control.
Features at a Glance
- HDMI 2.0b, HDCP 2.2 / 1.x, and DVI 1.0 compliant
- Video resolutions up to 4K60 RGB/YCbCr 4:4:4
- Supports 18 Gb/s video bandwidth
- Supports 3D, HDR, HDR10, HDR10+, and Dolby Vision passthrough
- Supports LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD
- Supports auto/manual switching mode for input source
- Supports ARC/eARC function on Input 1
- Supports advanced EDID management
- Flexible control via front-panel buttons or IR remote control
UPC: 880802002064
Items Included
- DVDO 4K 4x1 HDMI Switcher with ARC
- IR Remote Control
- 5 VDC, 1A Power Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
DVDO SWITCHER-41-ARC Specs
Processing
| Switching Type |
IR Remote, Pushbutton
|
| Processing Resolution |
DCI 4K at 60
|
| Color Processing |
8-Bit 4:4:4 YUV
8-Bit, 10-Bit, 12-Bit 4:4:4 RGB 8-Bit, 10-Bit, 12-Bit 4:2:2 YCbCr 8-Bit, 10-Bit, 12-Bit 4:2:0 YCbCr |
Input
| Video Inputs |
4x HDMI (2.0b) Female
|
| Input Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV, YCC)
DCI 4K up to 60 fps |
| Embedded Audio Input |
HDMI: 8-Channel (per Input)
|
Output
| Video Outputs |
1x HDMI (2.0b) Female
|
| Output Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV, YCC)
DCI 4K up to 60 fps |
| Embedded Audio Output |
HDMI: 8-Channel
|
Connectivity
| Other I/O |
1x Micro-USB Control, Service Input/Output
|
| Digital Audio Decoding |
DTS-HD Master Audio, Dolby Digital Plus, Dolby Digital EX, Dolby Digital / AC3, Dolby Atmos, DTS, DTS-HD High Resolution, Dolby TrueHD
|
| HDCP Support |
Yes, Version 2.2
|
| HDR Support |
Yes, HDR10/HDR10+/Dolby Vision
|
| DTS Compatibility |
DTS, DTS-HD High Resolution, DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD
|
| Wireless |
No
|
Power
| Power I/O |
1x Barrel (5 VDC at 1 A) Output
|
| Power Consumption |
2 W
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
7.2 x 3.3 x 0.6" / 182 x 84 x 15.5 mm
|
| Weight |
0.8 lb / 370 g
|
Packaging Info
| Package Weight |
1.495 lb
|
| Box Dimensions (LxWxH) |
10.1 x 5.2 x 2.9"
|
