Description
Product Overview

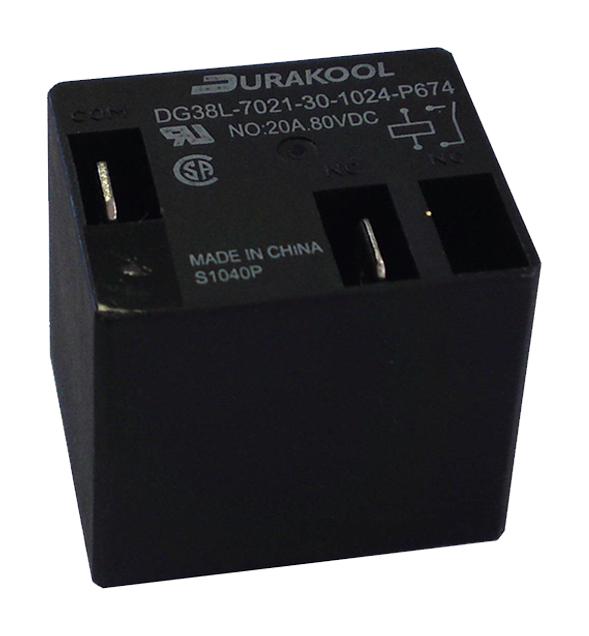

DG38L-7021-30-1024 is a DG38L series PCB and industrial power relay. It is a PCB power relay switching upto 45A and 80VDC maximum switching voltage.
- Improved DG38 with magnetic arc quench
- AgSnOInO contact material, SPST-NO (1NO) contact arrangement
- In cover, sealed - IP67 environmental protection
- PCB + QC terminals for contacts
- 80VDC maximum switching voltage, 45A maximum continuous current
- 45A (20A at 80VDC) maximum switching current, 0.9W rated power consumption
- 24VDC nominal voltage, 660 ohm coil resistance at (±10%, 23°C)
- 15ms maximum operate time, 10ms maximum release time
- Dimension is 32.2 x 27.5 x 28mm (lxwxh)
- Ambient temperature range from -55°C to +85°C
Product details
Other details
| Brand | DURAKOOL |
| Part Number | DG38L-7021-30-1024 |
| Quantity | Each |
| Technical Data Sheet EN |  |
