Description

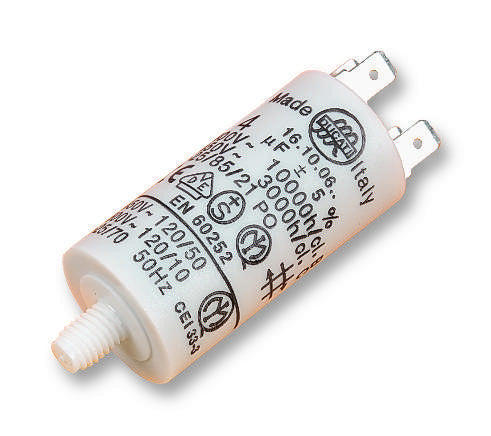

The 4.16.10.15.64 is a metalized polypropylene Film Capacitor with snap-in terminals. The dielectric is polypropylene film, the electrodes consist of an extremely thin metal coating obtained by vacuum evaporation. Case and cover are made with self-extinguishing plastic material, the capacitive element is sealed with polyurethane resin.
- Low losses non-inductive winding
- Self-healing property avoiding short circuits
- Small size and limited weight
- No leakage risk
- Class-P0 safety protection
Applications
Motor Drive & Control
Product details
| Operating Temperature Min | -25�C |
| Capacitor Terminals | Quick Connect, Snap-In |
| Operating Temperature Max | 85�C |
| dv/dt Rating | - |
| Stud Size - Metric | - |
| Product Range | 4.16.10 Series |
| Diameter | 36mm |
| Automotive Qualification Standard | - |
| Capacitor Case Style | Can |
| Capacitance | 10�F |
| Voltage Rating V AC | 450V |
| Capacitance Tolerance | � 5% |
| Packaging | Each |
| Capacitor Dielectric Type | PP (Polypropylene) |
| Height | 58mm |
Other details
| Brand | DUCATI |
| Part Number | 4.16.10.15.64 |
| Quantity | Each |
| Technical Data Sheet EN |  |
