Description

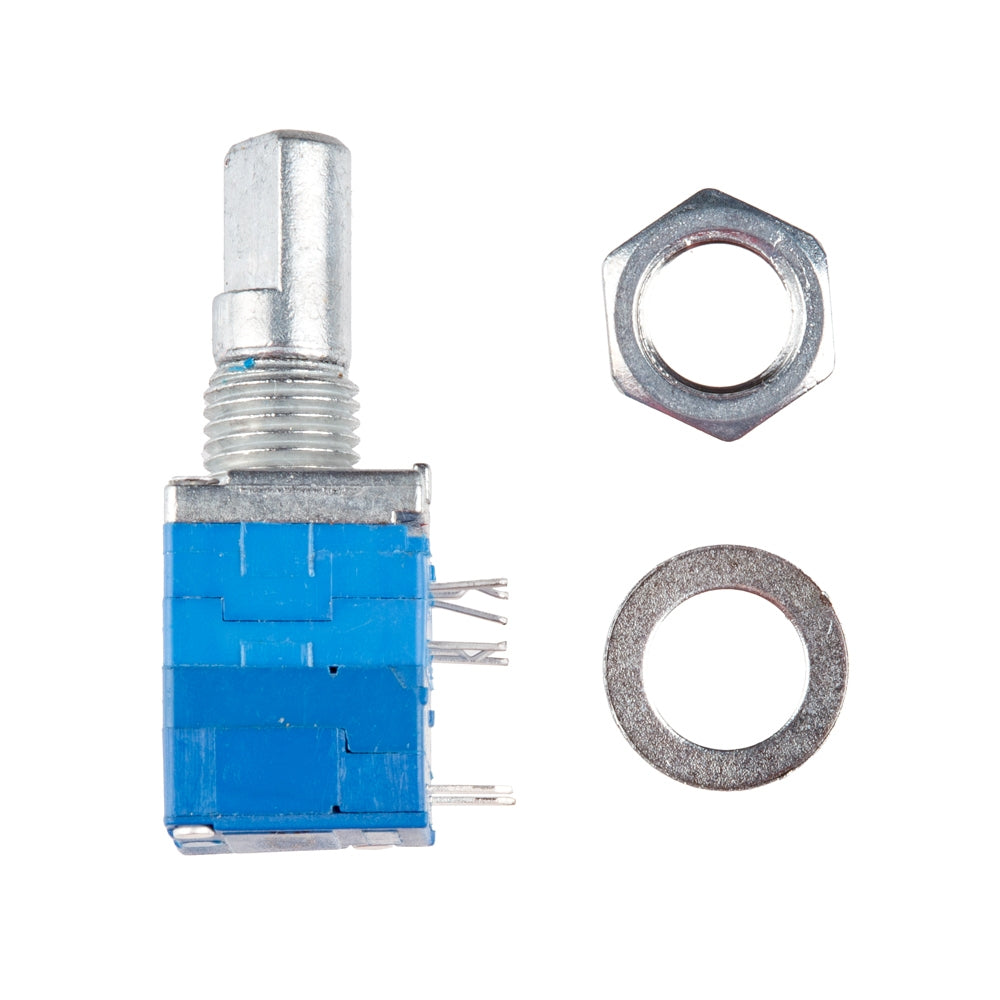

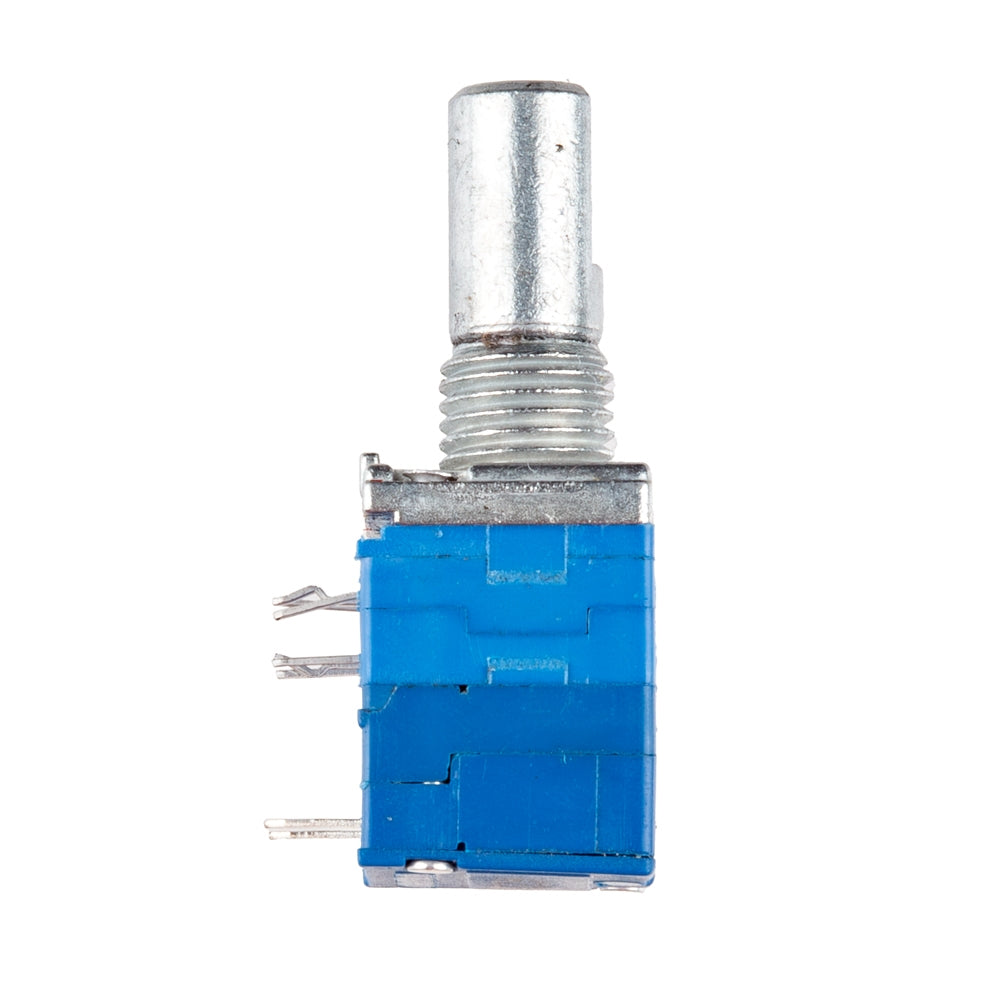

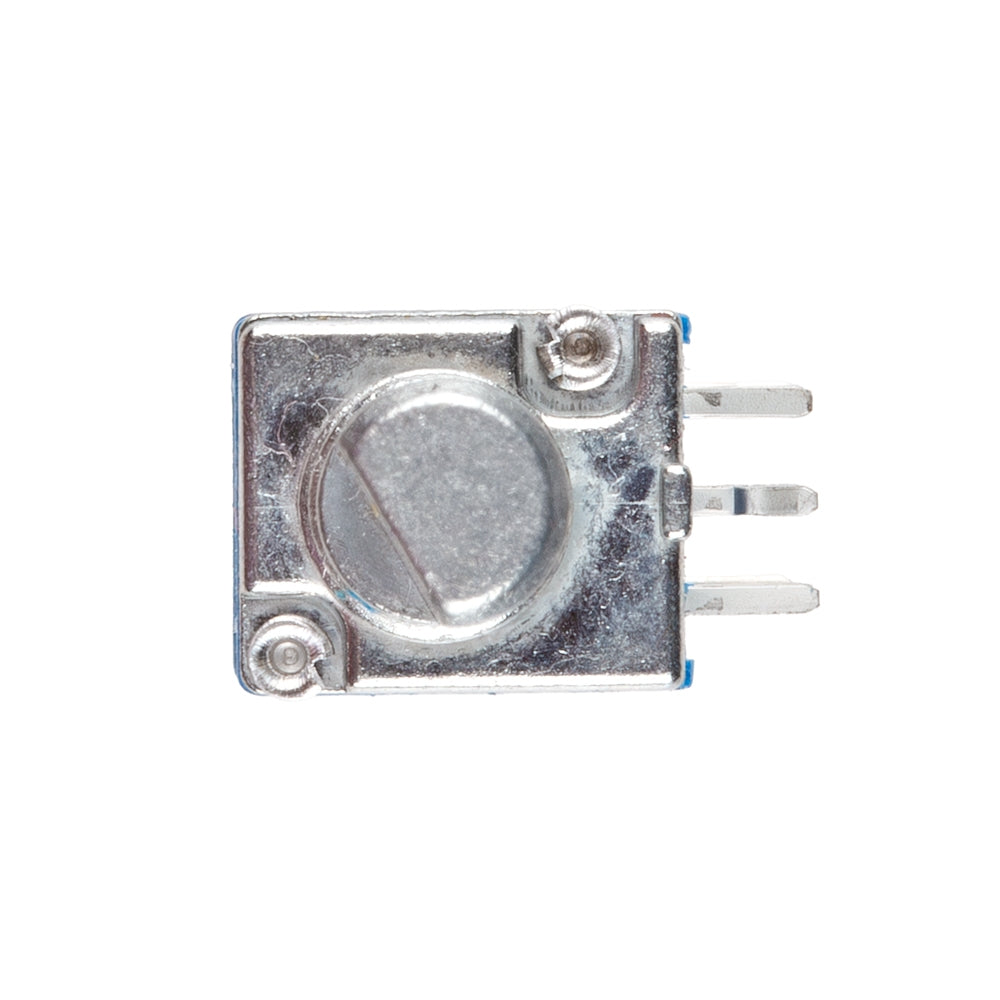

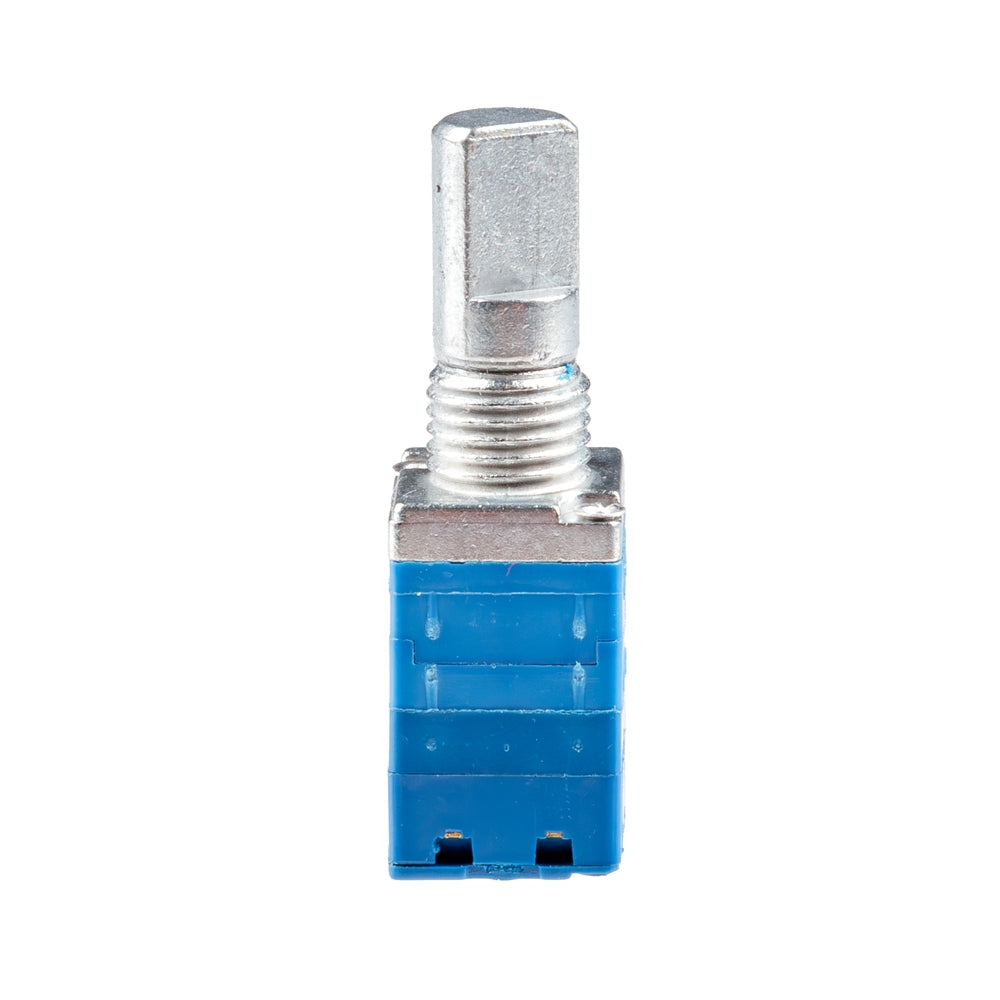

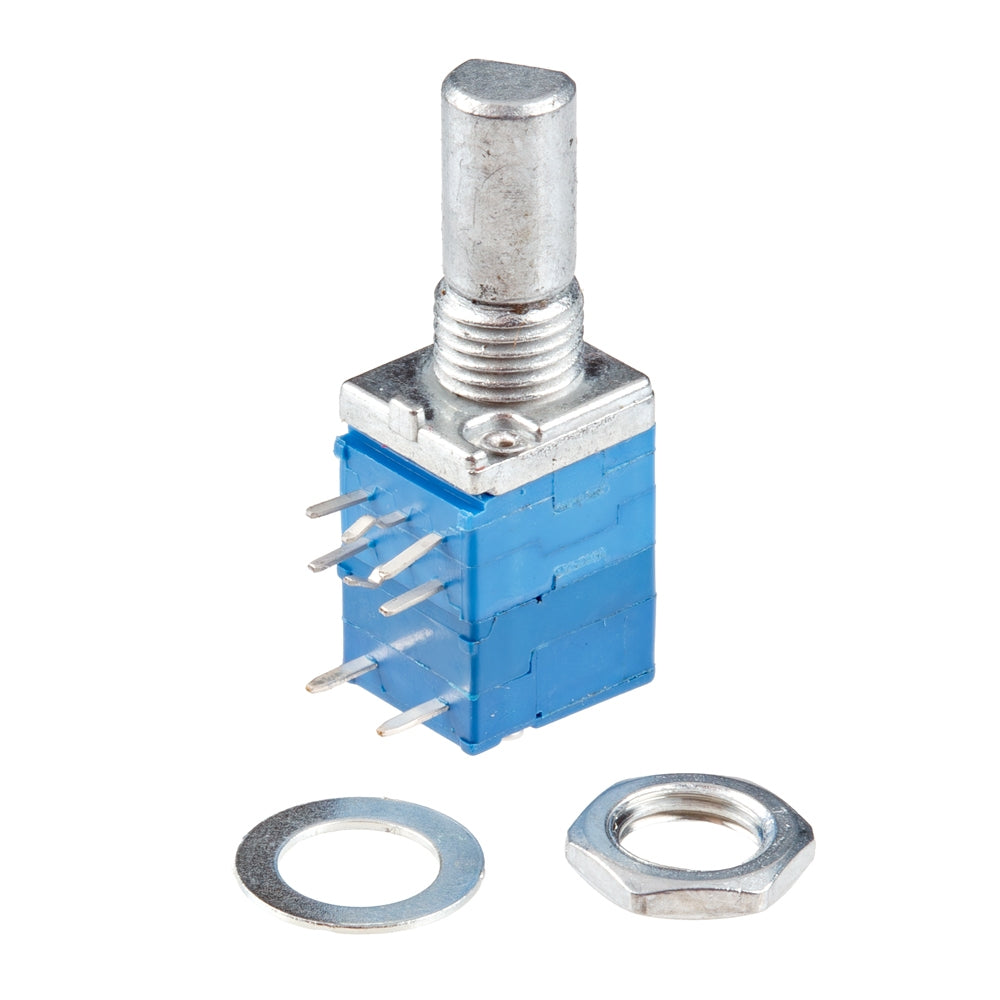

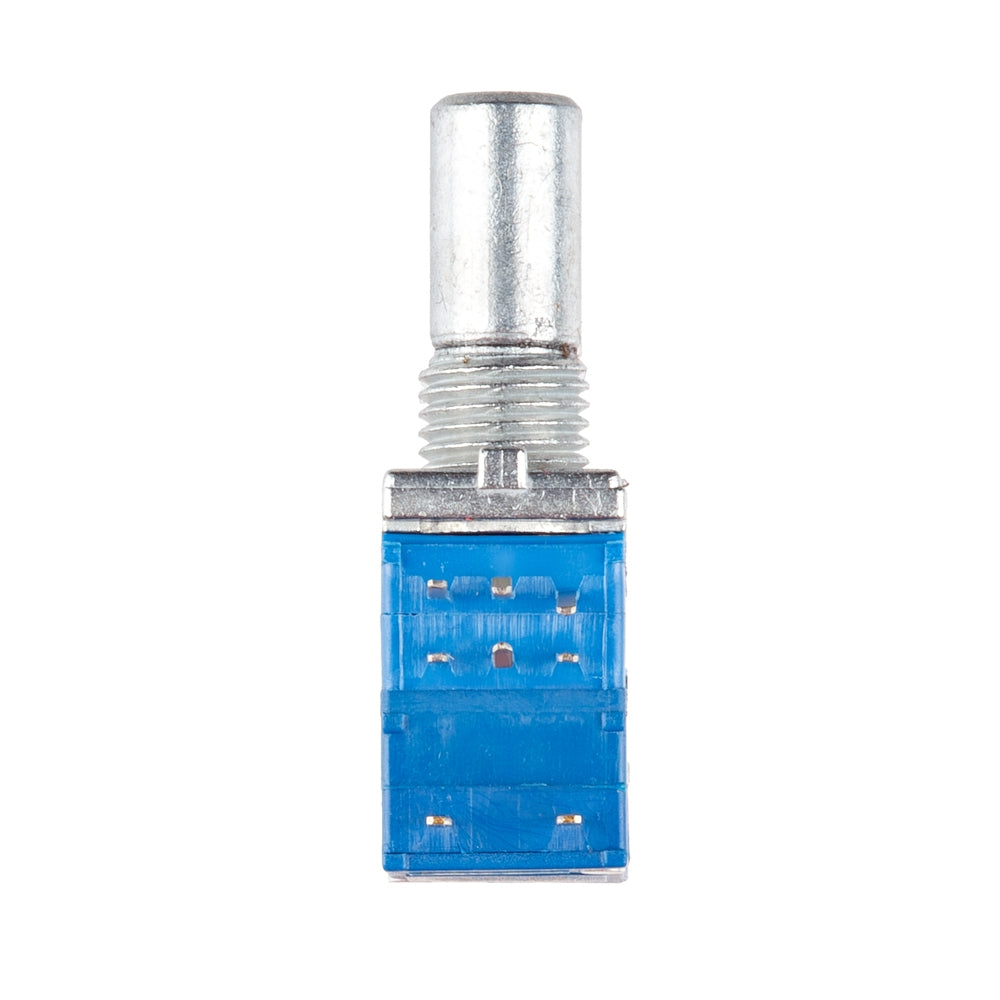

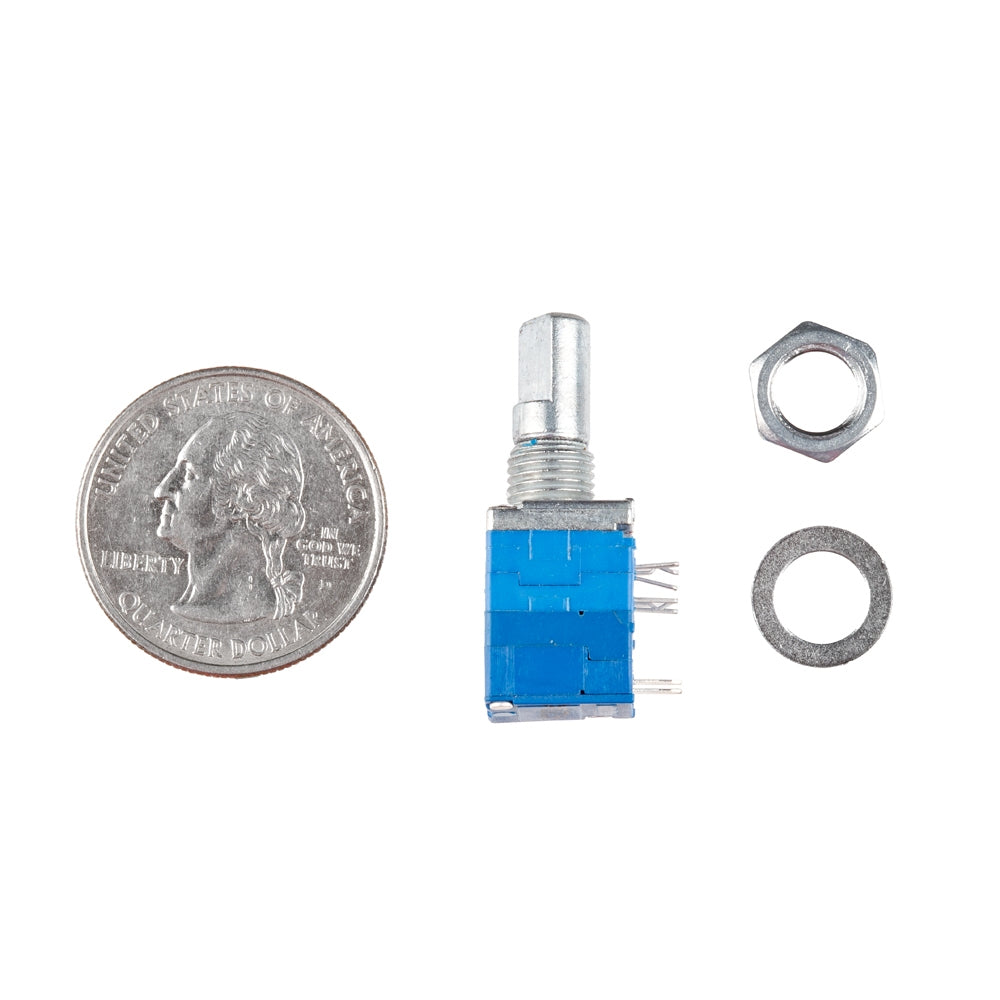

Dual-Gang potentiometers are commonly used in stereo audio volume control and other applications where two channels must be adjusted at the same time.
Features & Specs
- Resistance (Ohms): 20K
- Tolerance: ±20%
- Power (Watts): 0.025W, 1/40W
- Built in Switch: Rotary, SPST
- Number of Turns: 1.0
- Taper: Logarithmic
- Number of Gangs: 2
- Adjustment Type: Side Adjustment
- Rotation: 300°
- Resistive Material: Carbon
- Termination Style: PC Pins, Board Locks
- Actuator Type: Flatted
- Actuator Length: 15mm (0.591")
- Actuator Diameter: 6mm (0.236")
- Bushing Thread: M7 x 0.75
- Mounting Type: Panel Mount
Features & Specs
- Resistance (Ohms): 20K
- Tolerance: ±20%
- Power (Watts): 0.025W, 1/40W
- Built in Switch: Rotary, SPST
- Number of Turns: 1.0
- Taper: Logarithmic
- Number of Gangs: 2
- Adjustment Type: Side Adjustment
- Rotation: 300°
- Resistive Material: Carbon
- Termination Style: PC Pins, Board Locks
- Actuator Type: Flatted
- Actuator Length: 15mm (0.591")
- Actuator Diameter: 6mm (0.236")
- Bushing Thread: M7 x 0.75
- Mounting Type: Panel Mount
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 970.2 |
| 3-5 | ₹ 960.3 |
| 5-10 | ₹ 940.5 |
| 10+ | ₹ 920.7 |
Bulk discount will be automatically applied during checkout based on quantity.
