Description
Drawmer SP2120 Overview

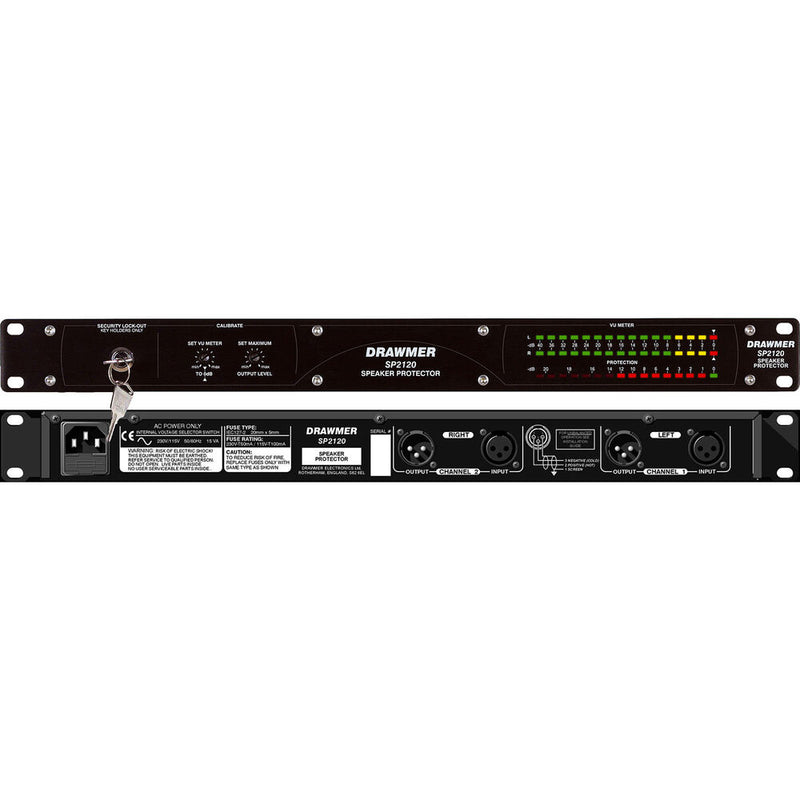

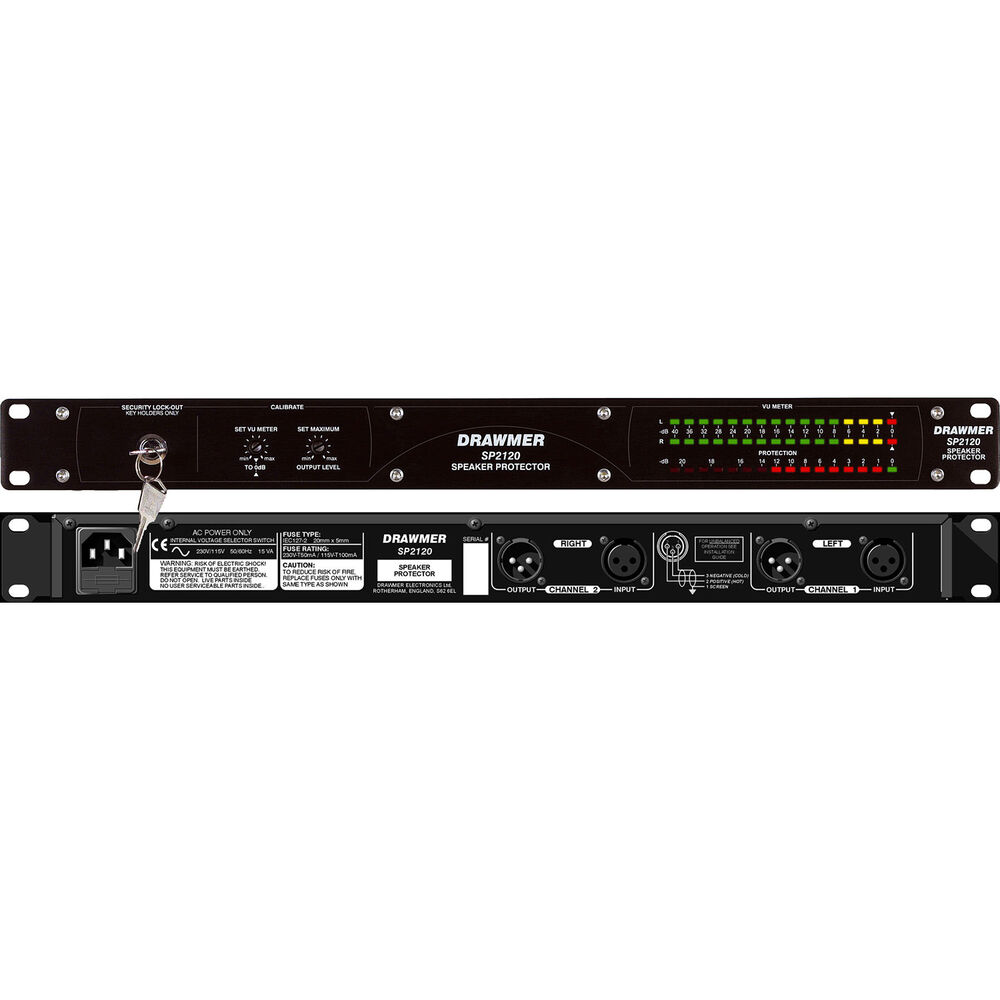

Designed to offer both strict level control and tremendous peace of mind for contractors, installers, and live performance venues, the SP2120 from Drawmer is a stereo, 1 RU speaker protector and brickwall limiter that protects sensitive speaker systems from spikes, pops, and over-enthusiastic DJs or engineers. Designed for absolute security and full compliance with local authority regulations concerning noise levels, the SP2120 sports two simple front-panel controls, maximum output level (threshold) and meter calibration, which are locked and protected from tampering with a convenient key, ensuring that only the key holder can make adjustments.
The SP2120 features two 16-segment LED meters for at-a-glance signal monitoring as well as a 16-segment protection meter that displays the level of active protection. The AGC (automatic protection circuit) allows for powerful signal limiting with minimal input, reducing downtime, replacement costs, or equipment servicing, with no loss of sound quality, allowing small overloads to sound louder, even though they're not. The SP2120 includes an AC power cord and a globally compatible PSU for easy and simple installation in any venue.
In the Box
- Drawmer SP2120 Dual-Channel Speaker Protector and Brickwall Limiter
- AC Power Cord
- Limited 1-Year Manufacturer Warranty
Drawmer SP2120 Specs
| Input Impedance |
20 Kilohms
|
| Output Impedance |
100 Ohms
|
| Maximum Input Level |
+21 dBu
|
| Maximum Output Level |
+14 dBu
|
| CMR |
>40 dB (22 Hz to 22 kHz)
|
| Balance |
>40 dB (22 Hz to 22 kHz)
|
| Crosstalk |
>90 dB (at 20 kHz)
|
| Noise |
-103 dB (Unity Gain, Reference +4 dBu / 22 Hz to 22 kHz)
|
| Audio I/O |
2x XLR 3-Pin Line Input (1 Stereo Pair)
2x XLR 3-Pin Line Output (1 Stereo Pair) |
| Power Source |
AC Input (Built-In)
|
| Power Consumption |
9 VA
|
| AC Input Power |
115 / 230 VAC, 50/60 Hz
|
| Certifications |
CE
|
| Mounting |
Back: 4 x Standard Rackmount Hole
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
19 x 6.3 x 1.7" / 48.2 x 16 x 4.4 cm
|
| Weight |
4.9 lb / 2.2 kg
|
| Package Weight |
6.175 lb
|
| Box Dimensions (LxWxH) |
22.6 x 14.9 x 4.5"
|
