Description

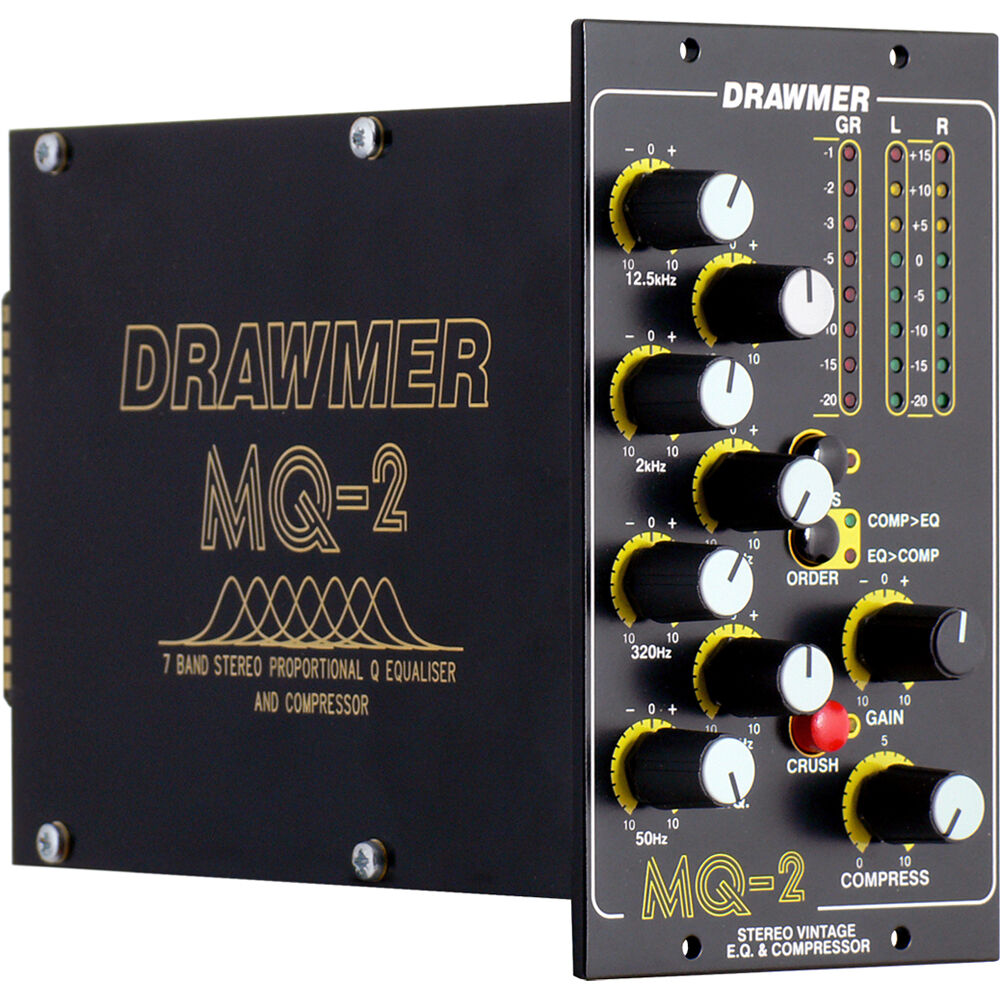

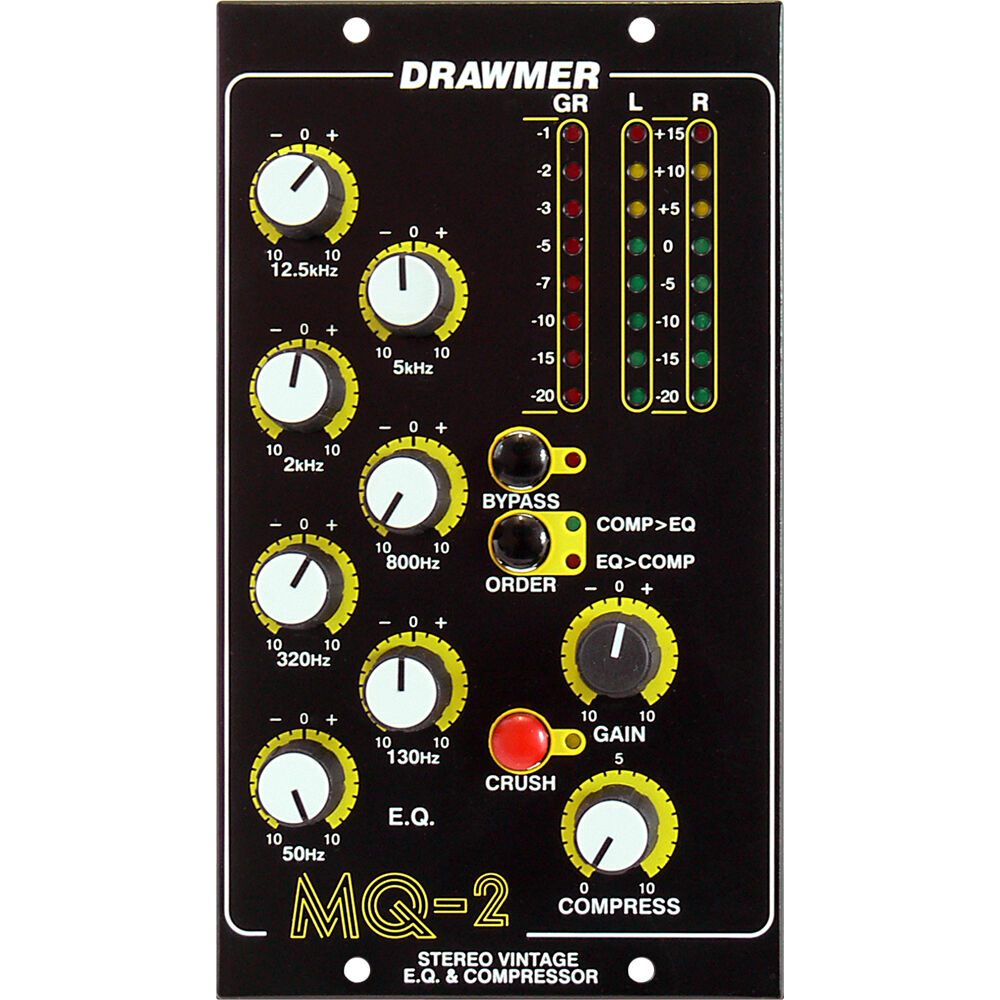

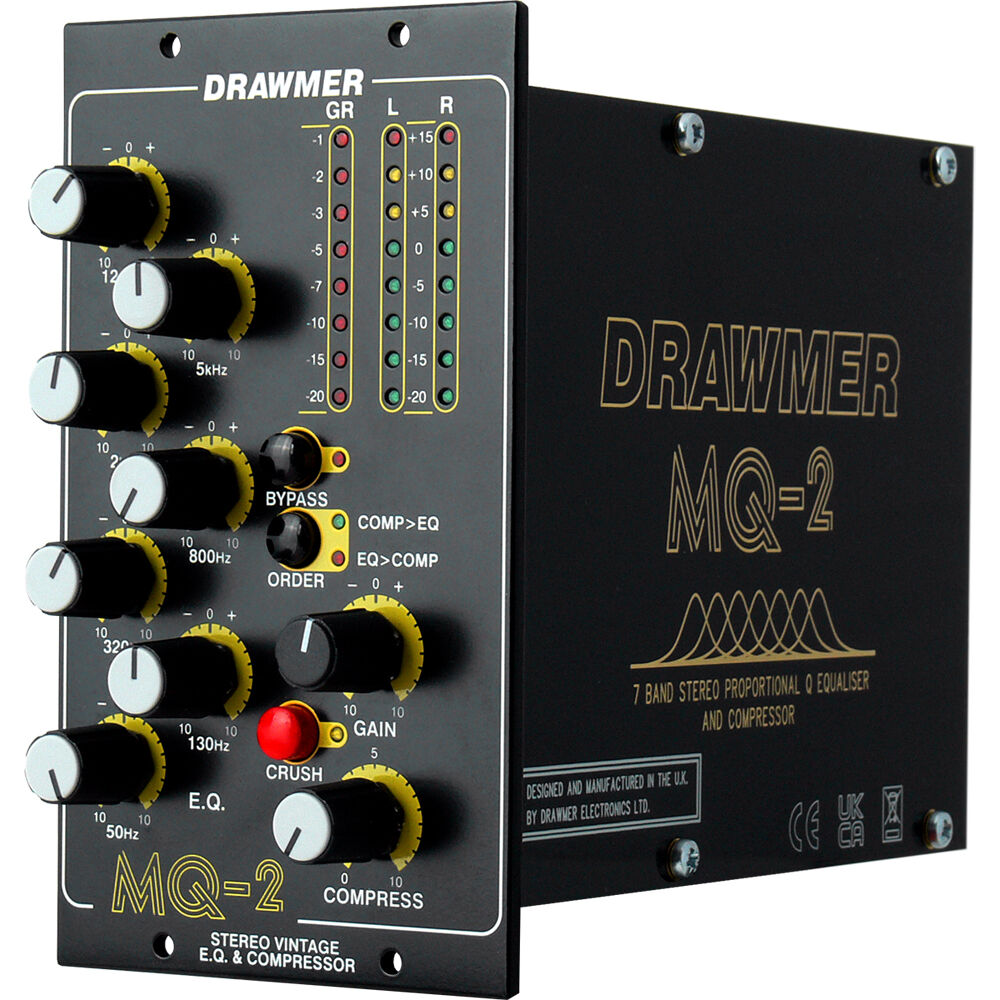

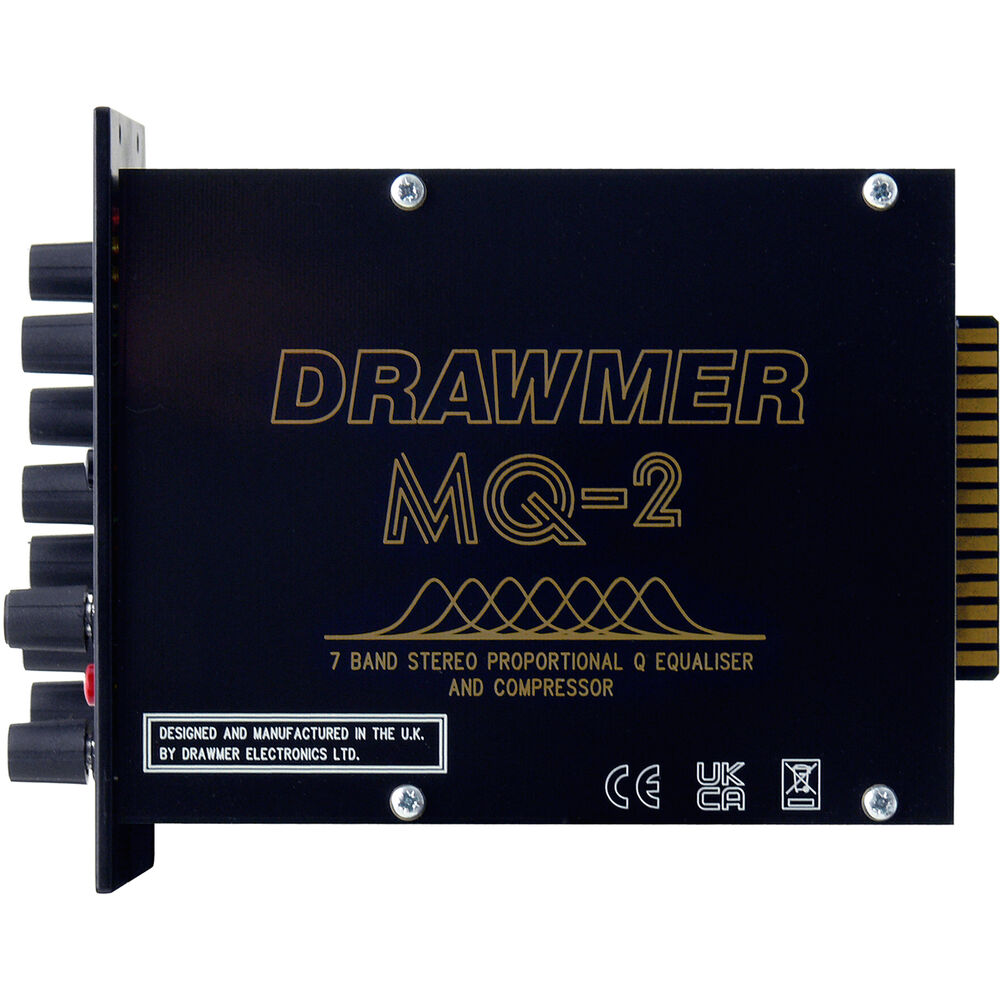

Drawmer MQ-2 Overview
Enhance your 500-Series rack with the Drawmer MQ-2, a stereo processor that combines the warmth and character of vintage EQ and compression with the convenience and precision of modern design. The MQ-2 features a 7-band, proportional-Q parametric equalizer inspired by the iconic 1960s Motown EQ, delivering smooth, musical tone shaping with an unmistakable retro vibe. Paired with this is a one-knob compressor equipped with the unique Crush feature, adding harmonic saturation and rich warmth to your mix.
Designed for effortless operation, the MQ-2 employs single controls for both channels, making it easier than ever to bring classic analog warmth and character to your tracks.
Equalizer
- The 7-band proportional-Q parametric equalizer is designed to deliver the vintage tonal characteristics of Detroit studios from the 1960s.
- The 100% analog EQ features seven bell-shaped curves, each offering ±10 dB of cut/boost, precisely set at the same musically rich frequencies as the original.
Compressor with Crush Function
- The program-dependent, single-knob compressor intuitively adapts its envelope to the incoming signal, ensuring effortless level control.
- The compressor incorporates the highly acclaimed Crush feature, borrowed from the Drawmer 1971. Engaging the Crush circuit introduces pleasing harmonic saturation and classic analog warmth, imbuing your tracks with vibrant character.
- Whether you�re fattening the bass, adding presence to the mids, or enhancing the shimmer in the highs, driving the EQ and compressor harder amplifies the Crush effect for a more pronounced tonal impact.
Signal Path Flexibility
- The Order switch allows you to choose whether the signal passes through the EQ or the compressor first, enabling two distinct tonal options. This flexibility offers unparalleled creative control, letting you shape the sound to your preference.
Additional Features
- Bypass Switch: Engage the bypass to route the input signal directly to the output without processing, making it easy to perform A/B comparisons.
- Gain Reduction Meter: An 8-segment LED bar graph monitors the compressor's gain reduction, with a range of 0 to 30 dB.
- Output Level Meters: Two 8-segment LED bar graphs display the left and right output signal levels, ranging from -20 to +15 dB.
At a Glance
- Stereo 7-band proportional Q Equalizer for 500 series
- Inspired by the 1960s Motown EQ
- Takes two 500-series slots
- Integrated Crush feature warms up your mix with harmonic saturation
- Fully variable 10 dB boost or cut
- One-knob compressor to easily tame levels
- Swap EQ/compressor in the signal path
- Comprehensive metering
- Hardwired bypass
- Designed and manufactured in the UK
Items Included
- Drawmer MQ-2 Stereo Vintage Equalizer and Compressor for 500 Series
- Limited 1-Year Manufacturer Warranty
Additional Resources
Drawmer MQ-2 Specs
General
| Input |
Input Impedance: 20 Kilohms Maximum Input Level: +16 dBu
|
| Output |
Output Impedance: <100 Ohms
|
| Frequency Response |
20 Hz to 20 kHz, +/-0.5 dB
|
| THD + N |
0.01%, at 1 kHz ref 0 dBu
|
| Noise |
-80 dB, at Unity Gain
|
Power
| Power Source |
Proprietary Interface
|
Physical
| Mounting |
2x 500 Series Rack
|
| Color |
Black
|
| Weight |
1.2 lb / 540 g
|
Packaging Info
| Package Weight |
1.445 lb
|
| Box Dimensions (LxWxH) |
9.6 x 6.4 x 3.6"
|
