Description

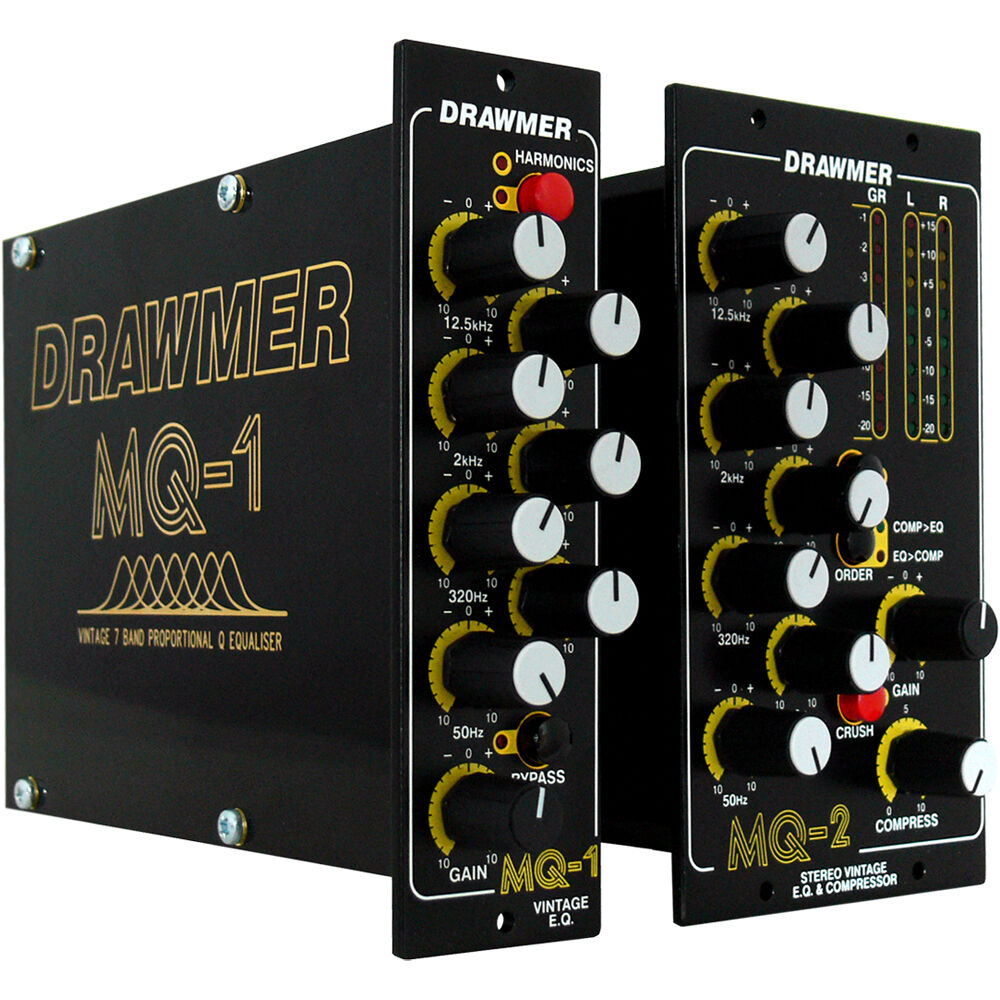

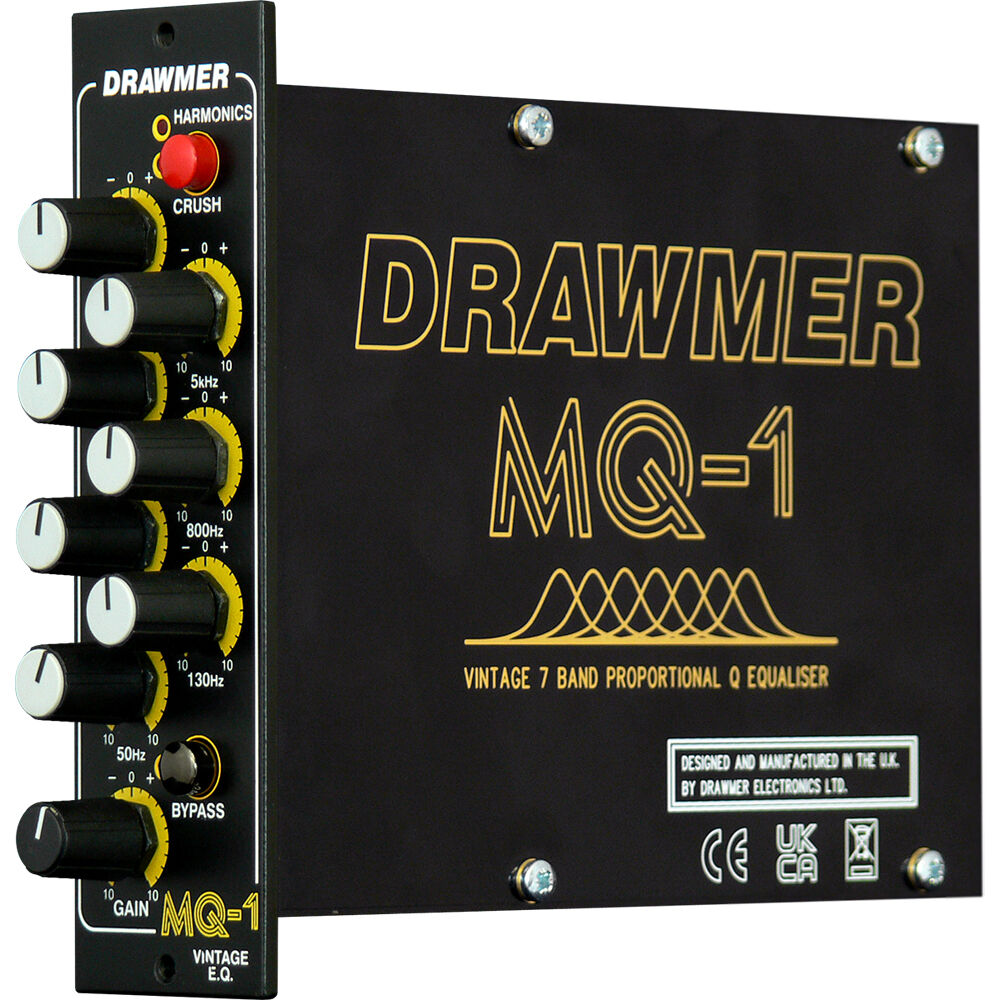

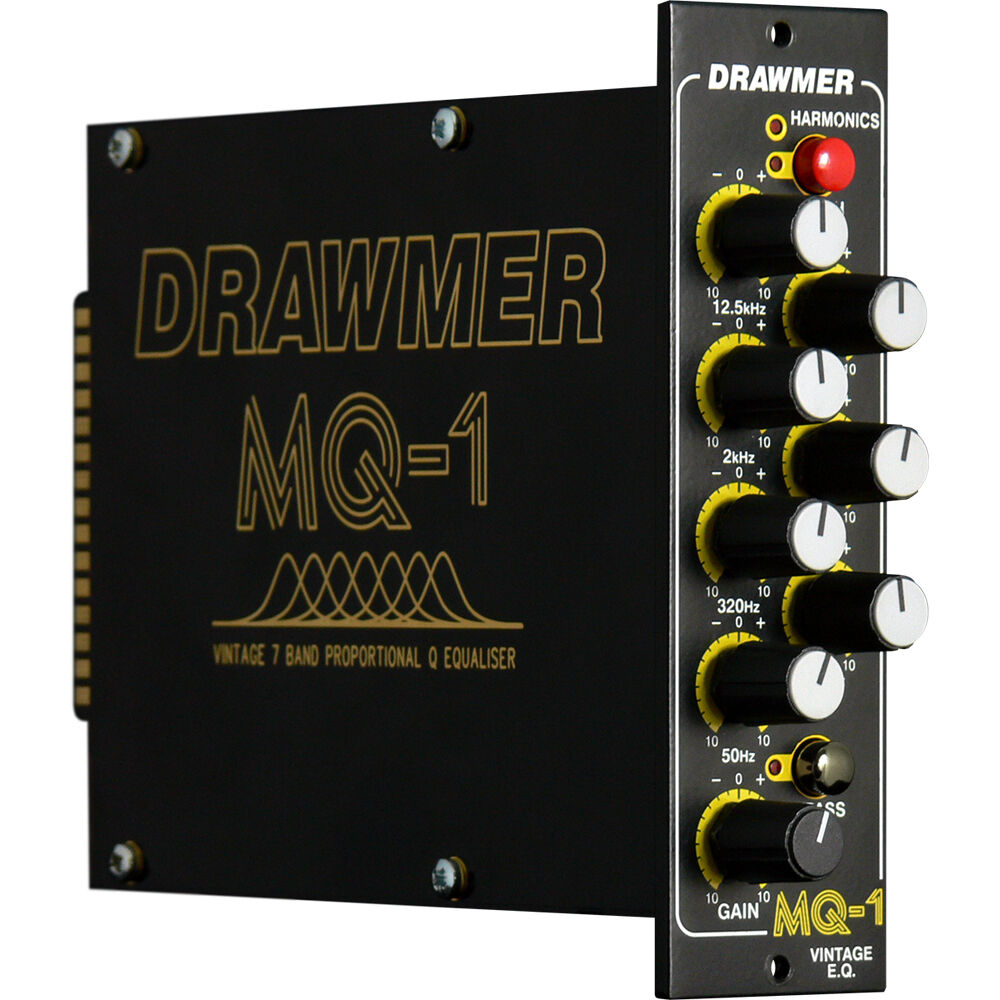

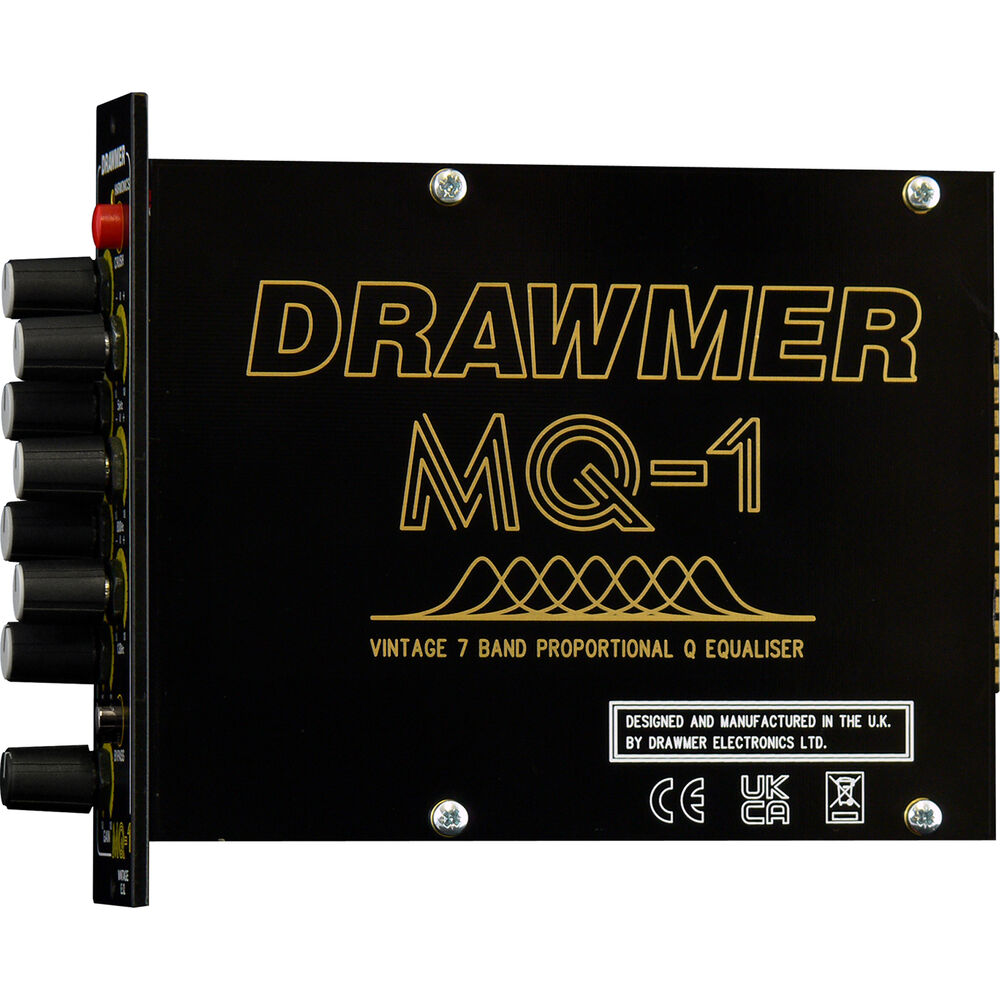

Drawmer MQ-1 Overview
Enhance your 500-Series rack with the Drawmer MQ-1, a single-channel processor that combines the classic character of vintage gear with the precision and flexibility of modern design. At its core is a 7-band proportional-Q parametric equalizer, inspired by the legendary 1960s Motown EQ, delivering smooth, musical tone shaping with a distinct retro vibe. Paired with this is the unique Crush feature, which infuses your sound with rich harmonic saturation and analog warmth, adding depth and character to any mix.
Equalizer
- The 7-band proportional-Q parametric equalizer is designed to deliver the vintage tonal characteristics of Detroit studios from the 1960s.
- The 100% analog EQ features seven bell-shaped curves, each offering ±10 dB of cut/boost, precisely set at the same musically rich frequencies as the original.
Crush Feature
- The highly acclaimed Crush feature is borrowed from the Drawmer 1971. Engaging the Crush circuit introduces pleasing harmonic saturation and classic analog warmth, imbuing your tracks with vibrant character.
- Whether you�re fattening the bass, adding presence to the mids, or enhancing the shimmer in the highs, adding more Boost amplifies the Crush effect for a more pronounced tonal impact.

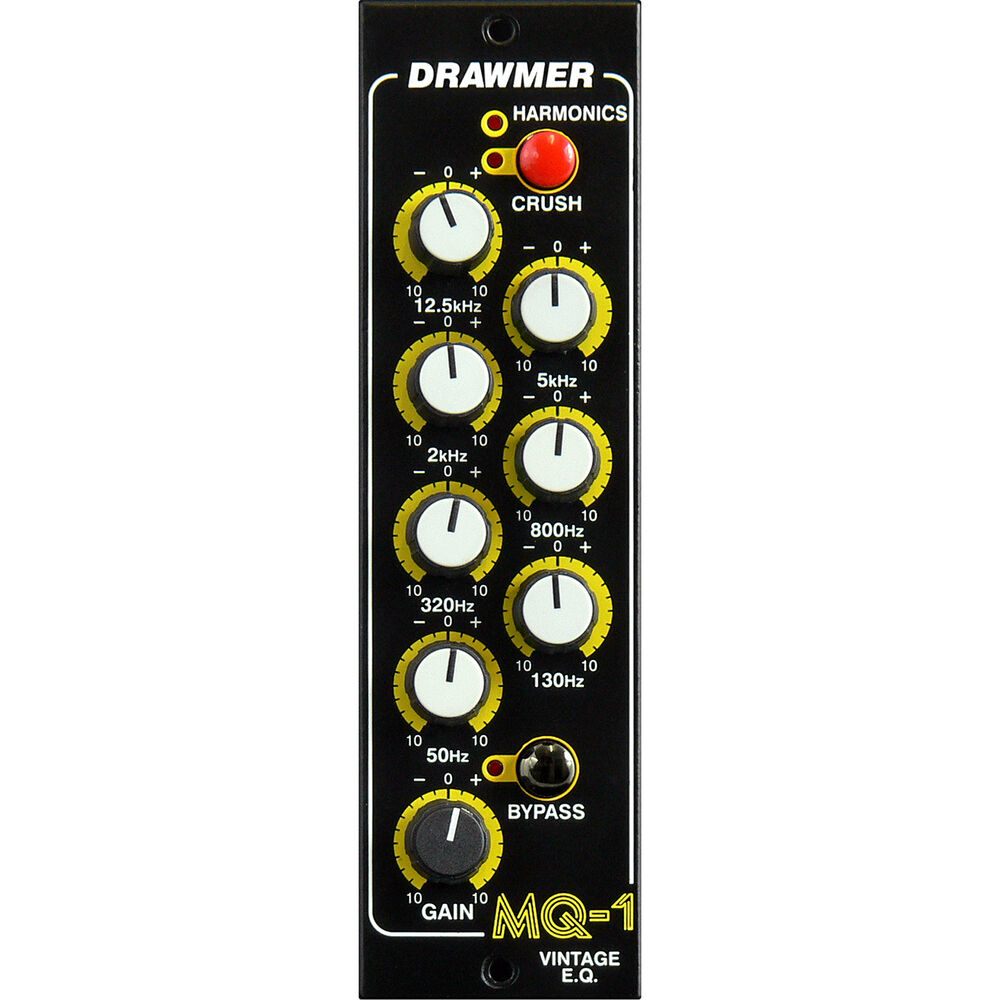

Harmonics LED
- This LED indicates the level of harmonics available using the current equalizer settings.
- These harmonics are switched in and out of the circuit using the Crush control.
- The LED is progressive and lights up brighter as you turn up the EQ/Crush drive.
At a Glance
- 7-band proportional-Q equalizer for 500 series
- Inspired by the 1960s Motown EQ
- Takes up a single 500-series slot
- Integrated Crush feature warms up your mix with harmonic saturation
- Fully variable 10 dB boost or cut
- Hardwired bypass
- Designed and manufactured in the UK
Items Included
- Drawmer MQ-1 Single-Channel Vintage 7-Band Equalizer for 500 Series
- Limited 1-Year Manufacturer Warranty
Not Included
- Essential Expansion Chassis
Additional Resources
Drawmer MQ-1 Specs
General
| Input |
Input Impedance: 20 Kilohms
Maximum Input Level: +21 dB |
| Output |
Output Impedance: <100 Ohms
|
| Frequency Response |
20 Hz to 20 kHz, +/-0.5 dB
|
| THD + N |
0.002%, at 1 KHz ref 0 dBu
|
| Noise |
-93.5 dB, at Unity Gain
|
Power
| Power Source |
Proprietary Interface
|
Physical
| Mounting |
1x 500 Series Rack
|
| Color |
Black
|
| Weight |
0.8 lb / 380 g
|
Packaging Info
| Package Weight |
1.105 lb
|
| Box Dimensions (LxWxH) |
11.6 x 7.9 x 3.7"
|
