Description
Drawmer D-Clock-R Overview
- 1Description
- 2Dual Redundant Power Supply
- 3LCD Display with 3 Measurement Modes
- 4Auto-Sensing, Dual Redundant BNC Inputs

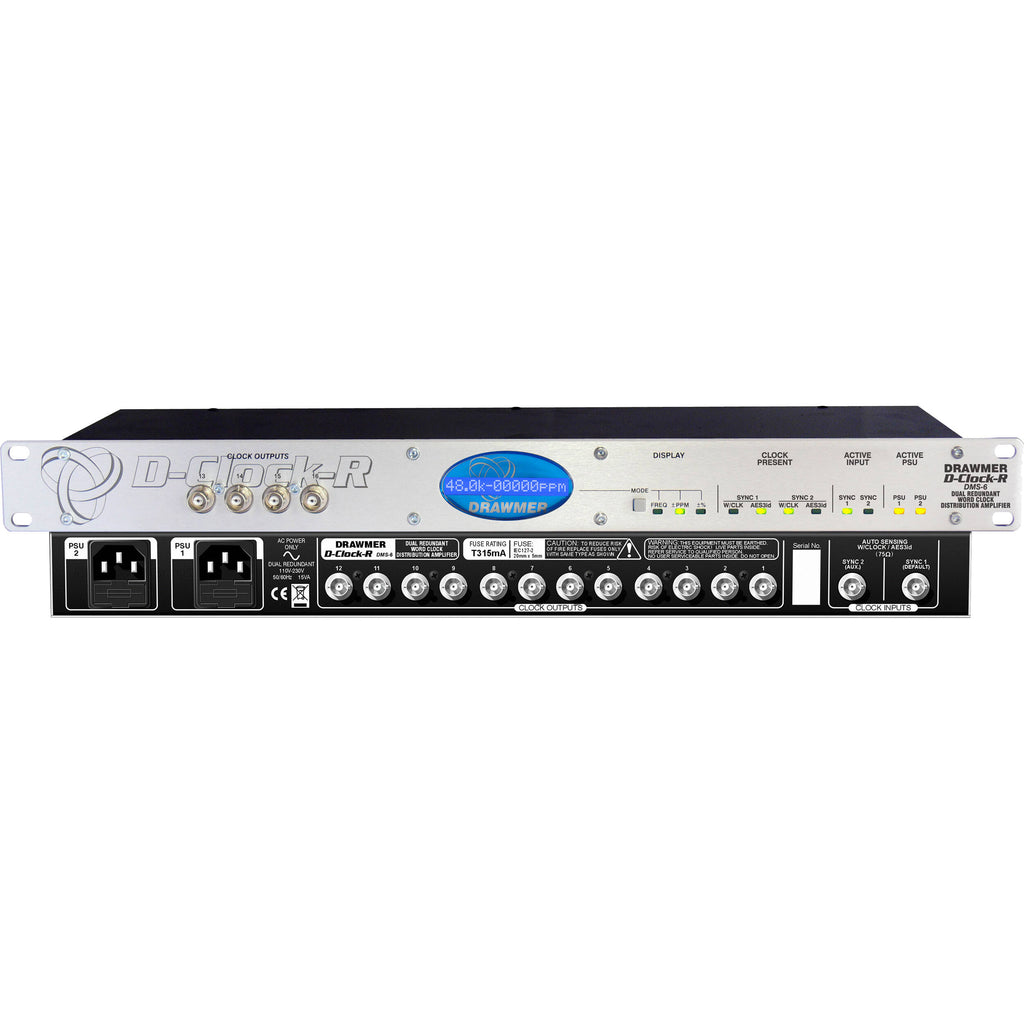

Designed to provide continuous and reliable performance in live and broadcast environments, the D-Clock-R from Drawmer is a dual redundant, 2x16 word clock distributor and amplifier, capable of providing word clock signals to up to 16 devices. The special feature of this 19", 1 RU word clock distributor is its dual redundant operation: Both the power supply and word clock input are doubled with identical circuits to ensure that should one fail, the other will seamlessly take over, preventing a loss of signal or operation during crucial broadcasts and performances.
The D-Clock-R supports sample rates from 32 to 768 kHz on word clock signals and up to 192 kHz on AES-3id signals, easily measured from the three-mode LCD display within ±2 ppm and maintained by a highly stable TXCO. This unit comes with two AC power cords for its universal, globally compatible mains inputs.
In the Box
- Drawmer DMS-6 D-Clock-R Dual Redundant Word Clock Distribution Amplifier
- 2 x AC Power Cable
- Limited 1-Year Manufacturer Warranty
- Description
- Dual Redundant Power Supply

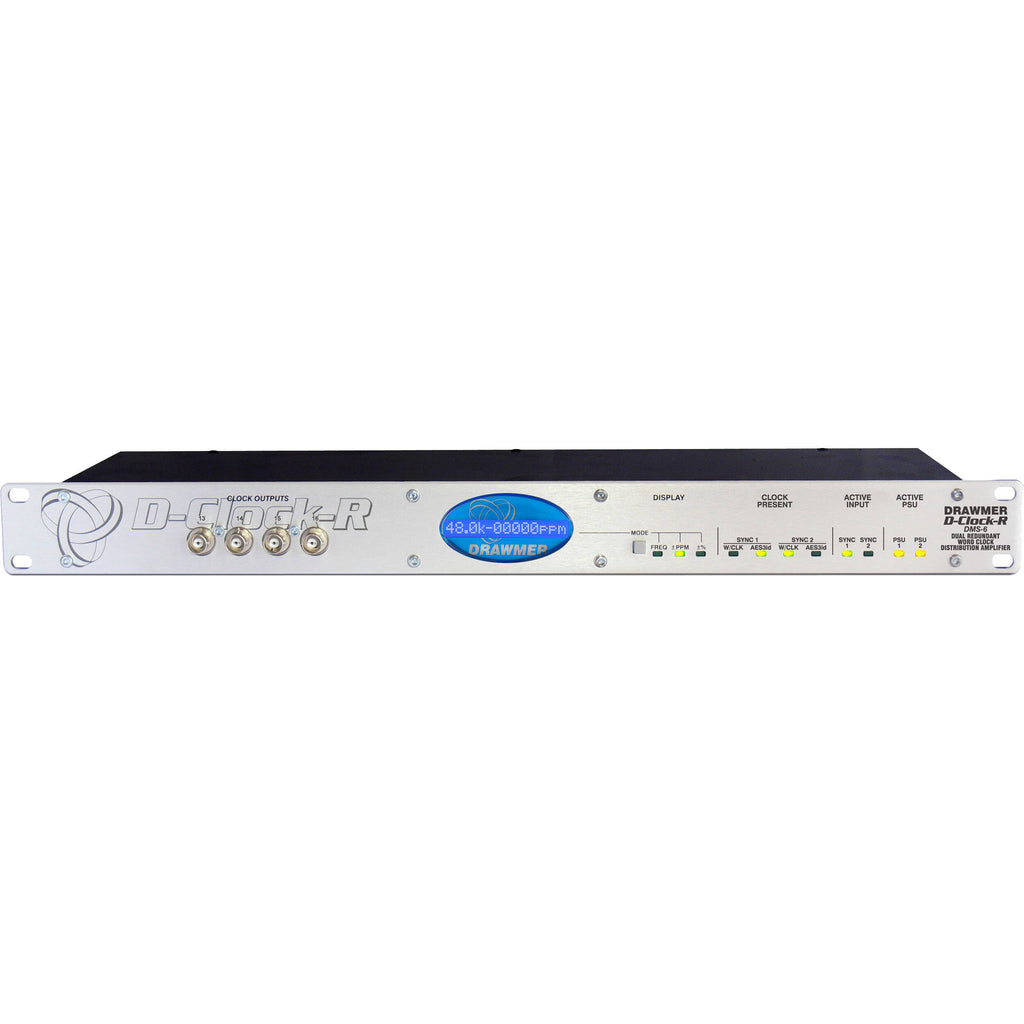

- LCD Display with 3 Measurement Modes
- Auto-Sensing, Dual Redundant BNC Inputs
Drawmer D-Clock-R Specs
| Clock Type |
Master Clock & Distribution
|
| Oscillator |
TCXO (Temperature-Compensated Crystal Oscillator)
|
| Clock Frequency and Supported Sample Rates |
Word Clock Input:
32 to 768 kHz AES3 Input: 32 to 192 kHz |
| Supported Frame Rates |
No
|

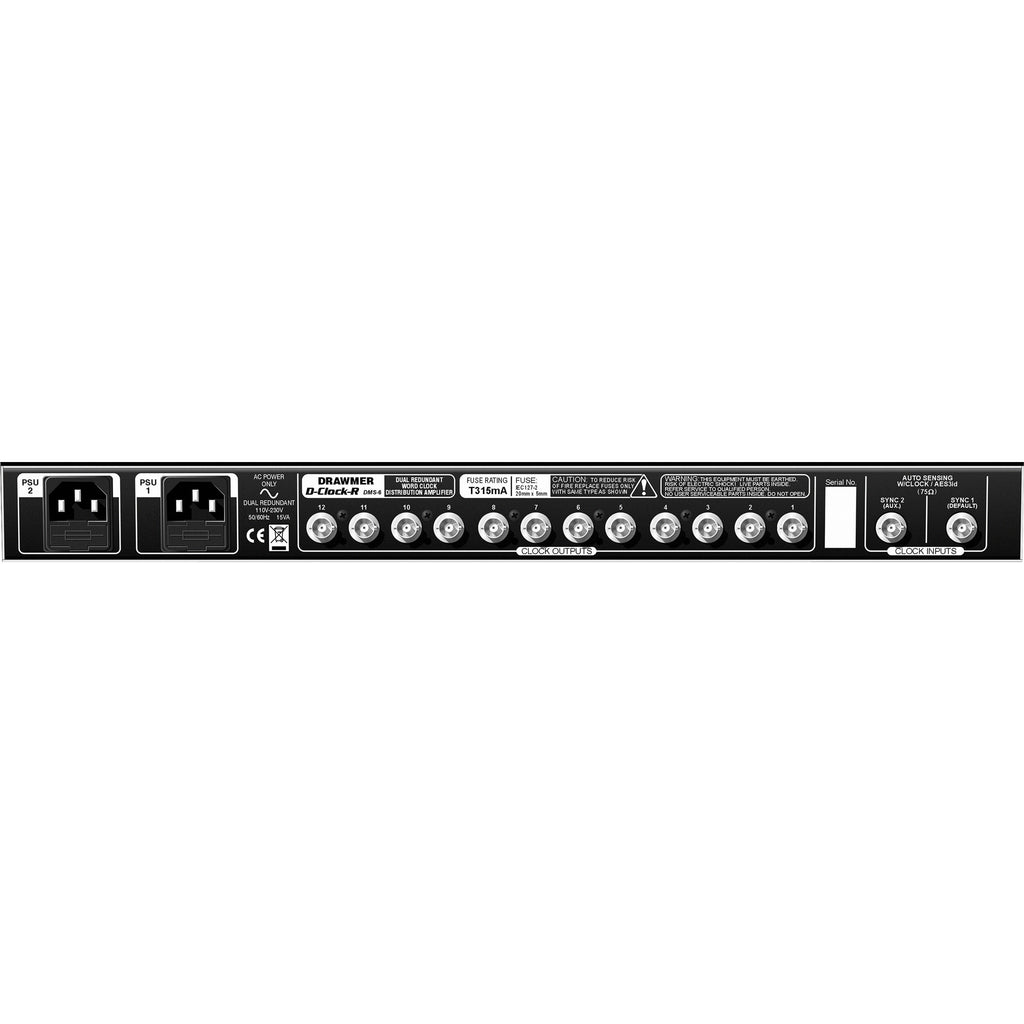

| Inputs |
2x BNC AES-3id/Word Clock
|
| Outputs |
12x BNC Word Clock Output
4x BNC Word Clock Output (Front Panel) |
| USB |
No
|
| Clock Accuracy |
±2 ppm
|
| Clock/Oscillator Stability |
±2 ppm
|
| Impedance |
BNC Word Clock Input:
75 Ohms BNC Word Clock Output: 33 Ohms |
| Mobile App Compatible |
No
|
| AC Input Power |
110 to 230 VAC, 50 / 60 Hz (T 500 mA)
|
| Power Consumption |
10 W
6 W (Standby) |
| Rackmount Size |
1 RU
|
| Dimensions |
19 x 5.7 x 1.7" / 48.26 x 14.5 x 4.4 cm
|
| Weight |
3.7 lb / 1.7 kg
|
