Description

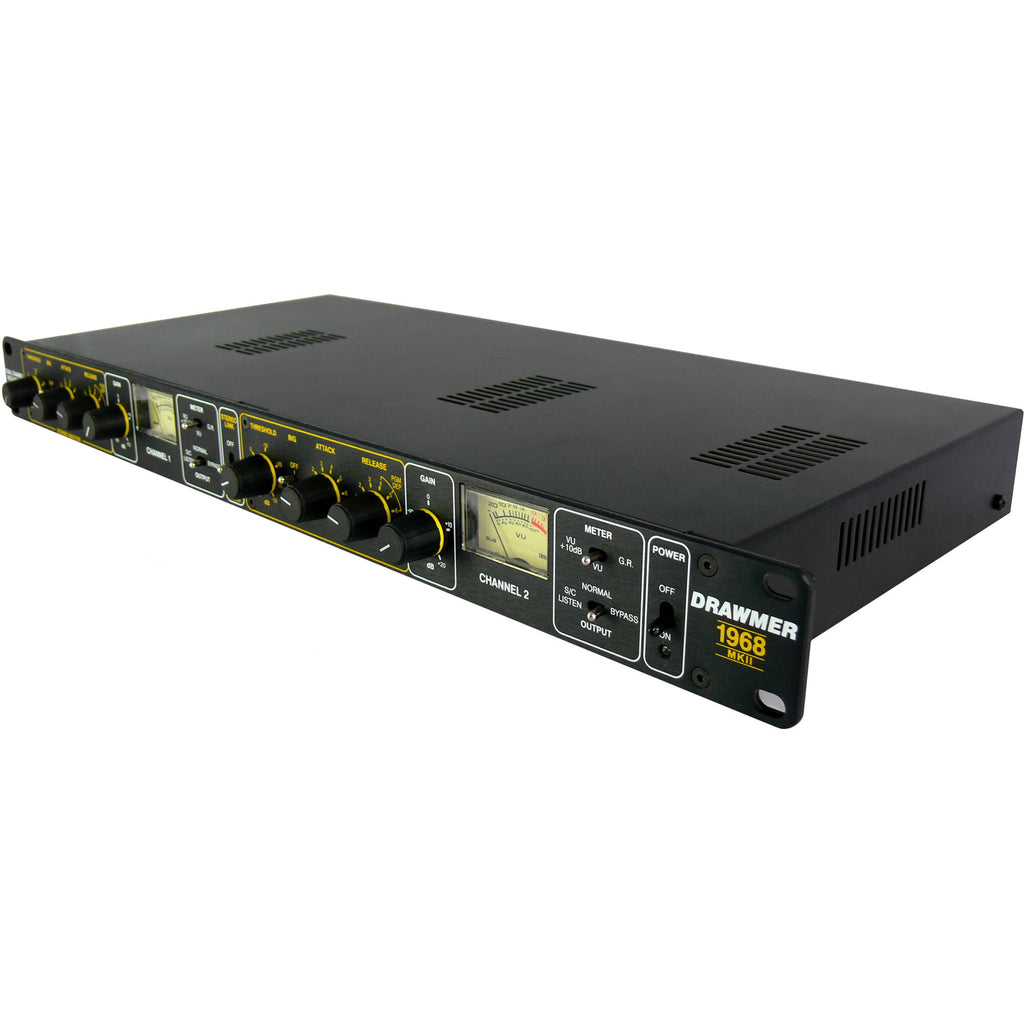

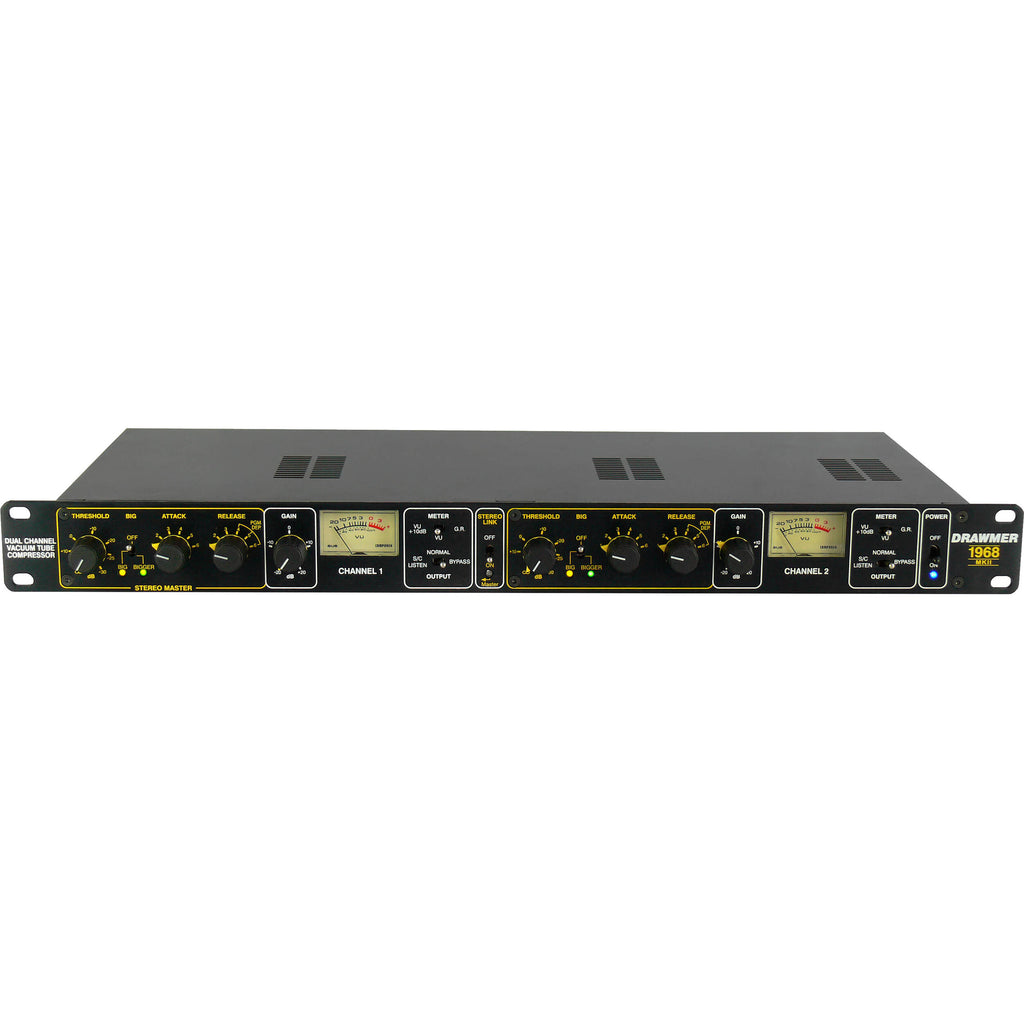

Drawmer 1968 MK2 Overview
- 1Description
- 2Big and Bigger Modes
- 3Sidechain Away
- 4Real Analog VU Meters
Experience the best that both sides of the analog world have to offer with the improved 1968 Mk II from Drawmer, a two-channel hybrid FET/tube compressor with dual mono or stereo operation. The 1968 Mk II sports an ultrafast JFET circuit for the compression section, and a warm 12AX7 tube circuit for the amplifier, delivering up to +20 dB of makeup gain.
This 1 RU, soft-knee compressor features six switched attack times (2, 9, 15, 25, 30, and 50 ms) and three fixed release times (100 ms, 500 ms, and 1 second) as well as three automatic, program-dependent release times: 200 ms to 2 sec, 500 ms to 5 sec, and 1 to 10 seconds. Full stereo sidechain facilities are provided via 1/4" inserts, and the 1968 Mk II also brings a few extra tricks to the table as well, including Big and Bigger modes which activate 75 and 150 Hz filters respectively to lessen low-frequency processing and enhance low-end response as well as numerous internal jumpers for customizing performance features, such as removing the soft clip section, or increasing the output level by 6 dB when needed. This compressor includes an AC power cord and an internal voltage switch for global compatibility.
The result is a solid bottom end with enhanced sub-bass and a smoother, wider frequency response overall. This lets the operator use more compression on an overall mix with less pumping action caused by a kick or bass instrument.
In the Box
- Drawmer 1968 Mk II Dual-Channel FET/Tube Compressor
- AC Power Cable
- Limited 1-Year Manufacturer Warranty
- Description
- Big and Bigger Modes
- Sidechain Away
- Real Analog VU Meters
Drawmer 1968 MK2 Specs
| Frequency Range |
<17 Hz to 28 kHz (-1 dB)
<10 Hz to 47 kHz (-3 dB) |
| Input Impedance |
20 Kilohms
|
| Output Impedance |
50 Ohms
|
| Maximum Input Level |
+20 dBu
|
| Maximum Output Level |
+21 dBu
|
| Noise |
-85 dB (at Unity Gain, 22 Hz to 22 kHz, RMS)
|
| Crosstalk |
70 dB (at 10 kHz)
100 dB (at 1 kHz) |
| THD + N |
With Bypass Selected: <0.01%
With Normal Selected: <0.35% |

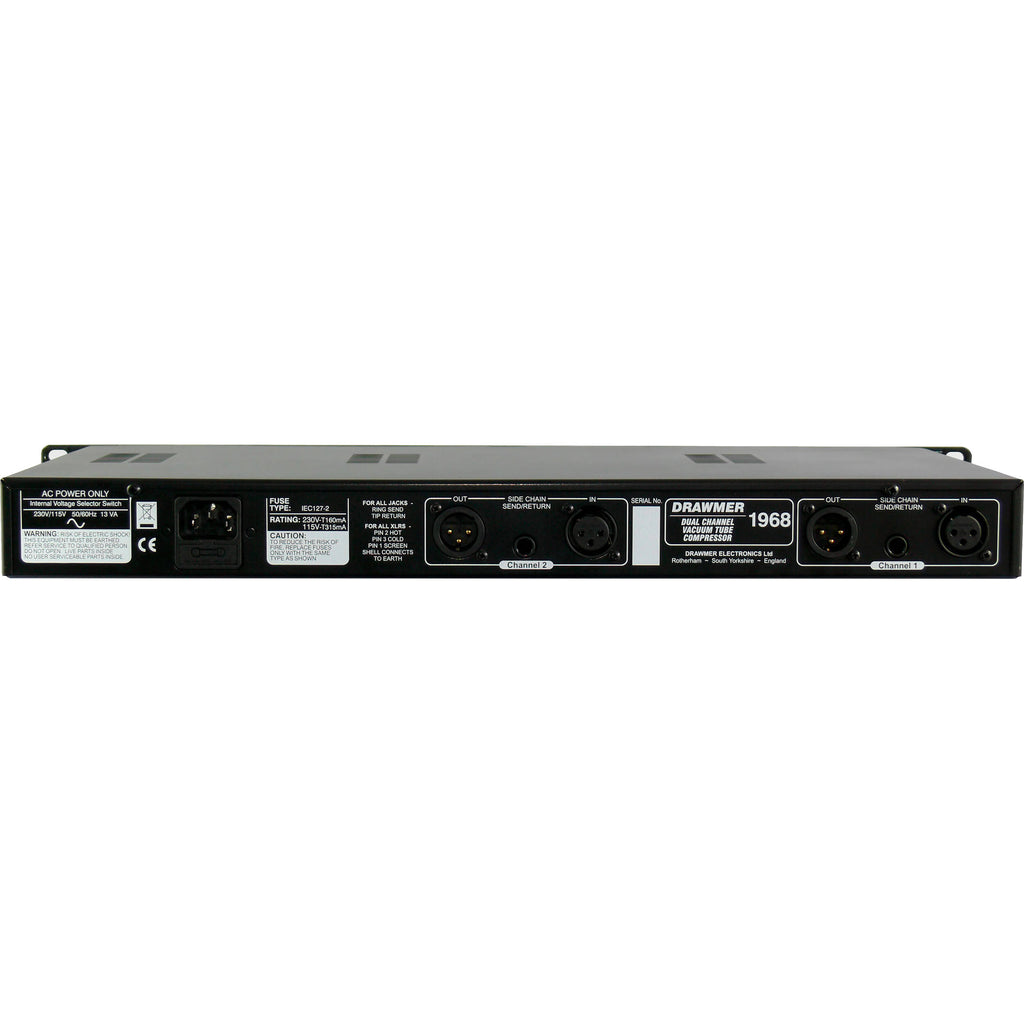

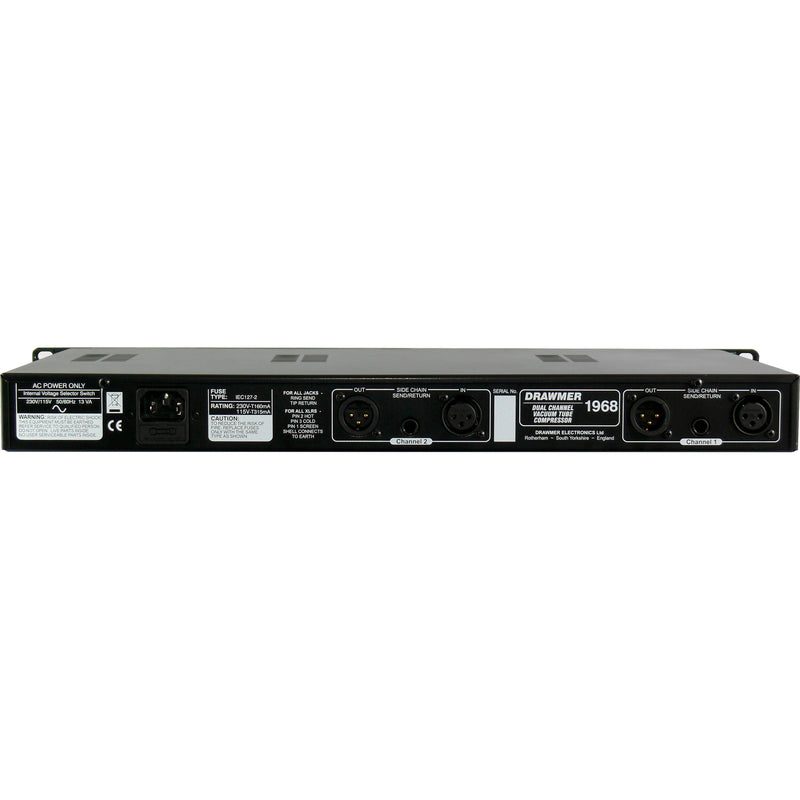

| Audio I/O |
2x XLR 3-Pin Line Input (1 Stereo Pair)
2x 1/4" TRS Input (Sidechain, 1 Stereo Pair) 2x XLR 3-Pin Line Output (1 Stereo Pair) |
| Power Source |
AC Input (Built-In)
|
| Power Consumption |
13 VA
|
| AC Input Power |
115 / 230 VAC, 50/60 Hz (User Selected)
|
| Certifications |
CE, WEEE
|
| Mounting |
Front: 4 x Standard Rackmount Hole
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
19 x 8.9 x 1.7" / 48.2 x 22.5 x 4.4 cm
|
| Weight |
8.8 lb / 4 kg
|
