Dracast X-500 RGB RGB Overview
-
1Description
-
2Dracast LED500 X-Series RGB and Bi-Color LED Light
-
3Dracast Compact Collapsible Light Stand for Silver Series LED Panels
-
4Dracast Barndoors for DRX 500 LED Panels
-
5Dracast Nylon Padded Travel Case

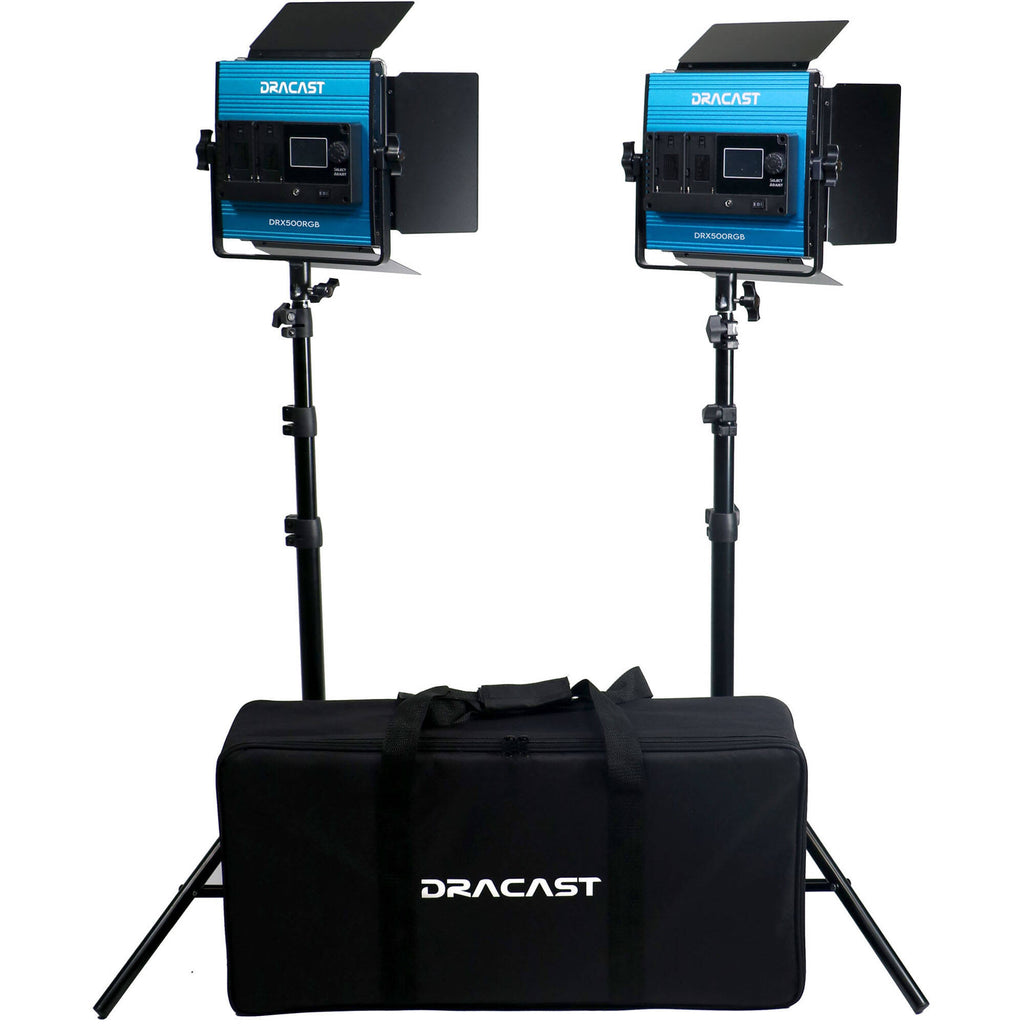

This LED500 X-Series RGB Bi-Color 2-Light Kit with Padded Travel Case from Dracast offers power and color options for working in the studio or on location. The kit includes two LED500 X-Series RGB Bi-Color Light Panels, each with barndoors, a diffusion filter, a collapsible light stand, and an individual case. A padded kit carrying case is also included for storage and transport.

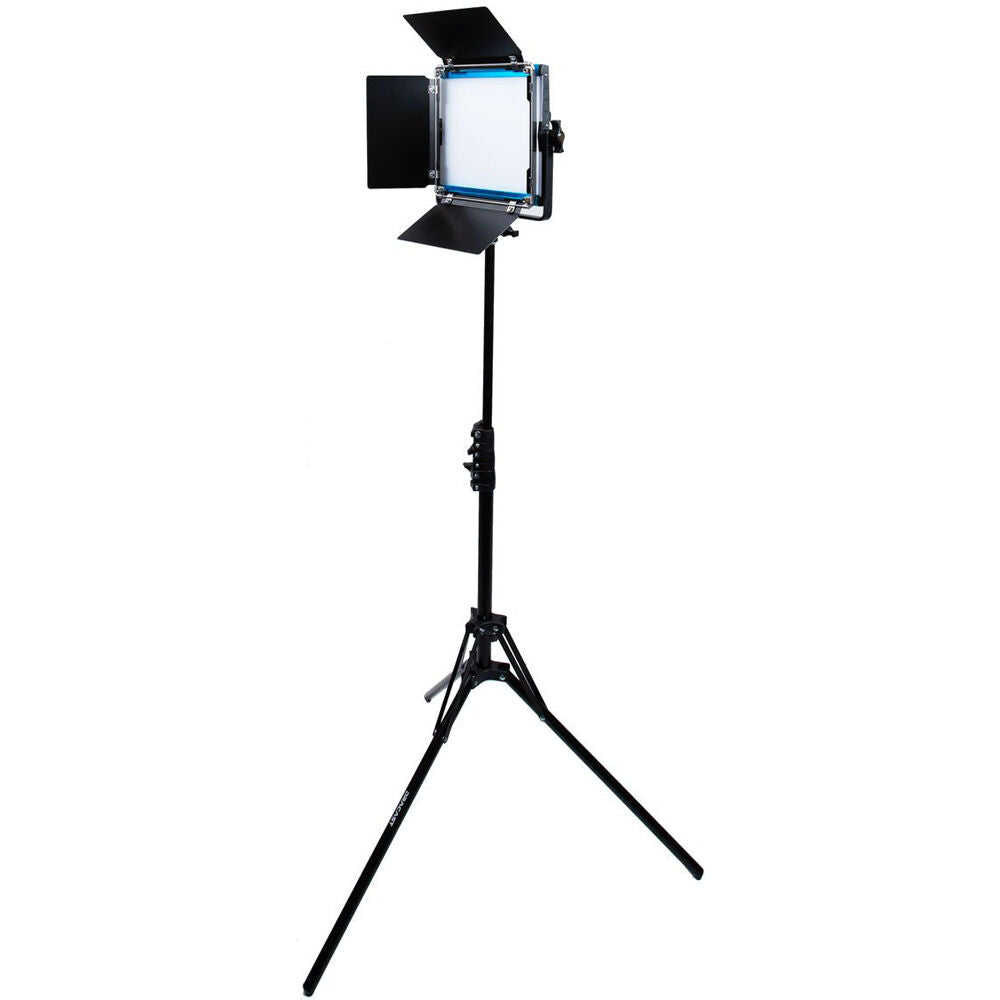

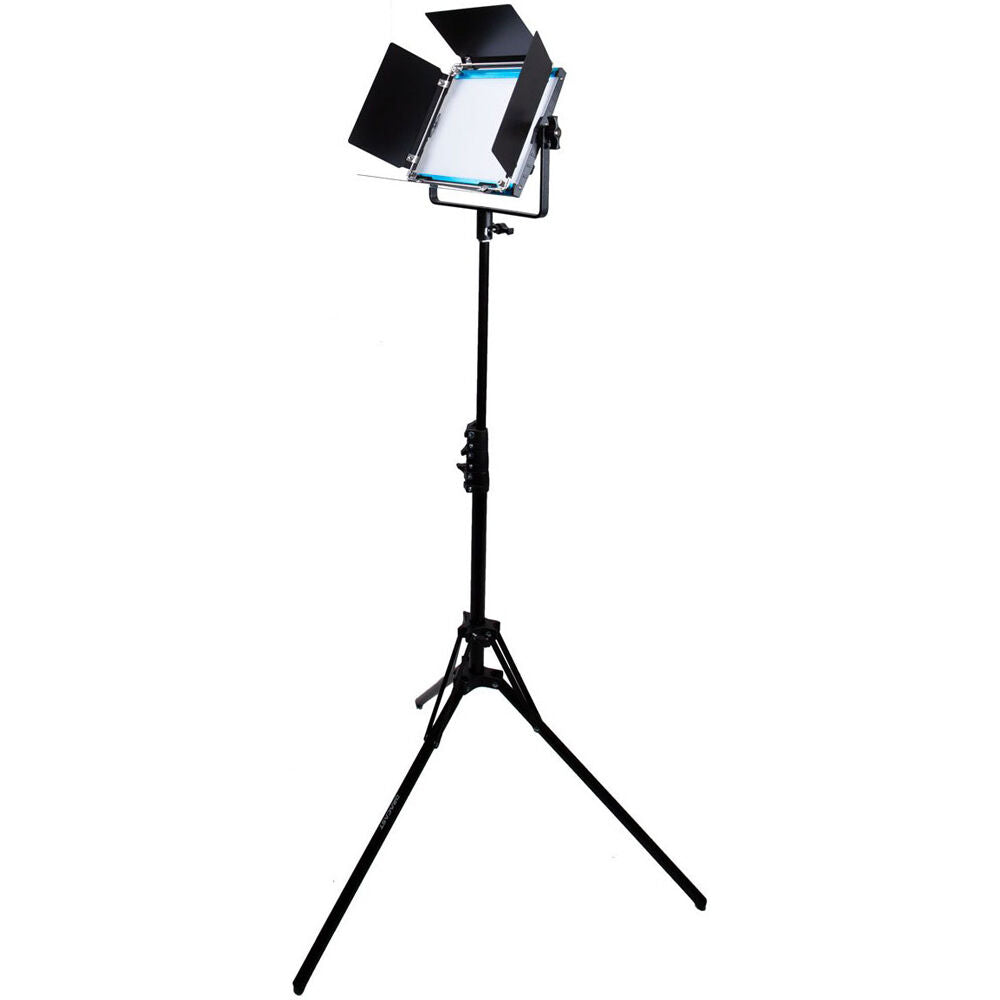

Dracast LED500 X-Series RGB and Bi-Color LED Light
Featuring impressive color control, power options, and remote adjustment capability, the LED500 X-Series RGB and Bi-Color LED Light from Dracast is a 13.6 x 13.5 x 6.4" panel that can be used in the studio or on the road. The LED500 has a variable color range from 3200 to 5600K and a high CRI of 96 which is your assurance of advanced color reproduction. The output is dimmable, and while you can of course make these adjustments on the panel, you can also make them wirelessly with a free DRX app available for iOS and Android smartphones and tablets.

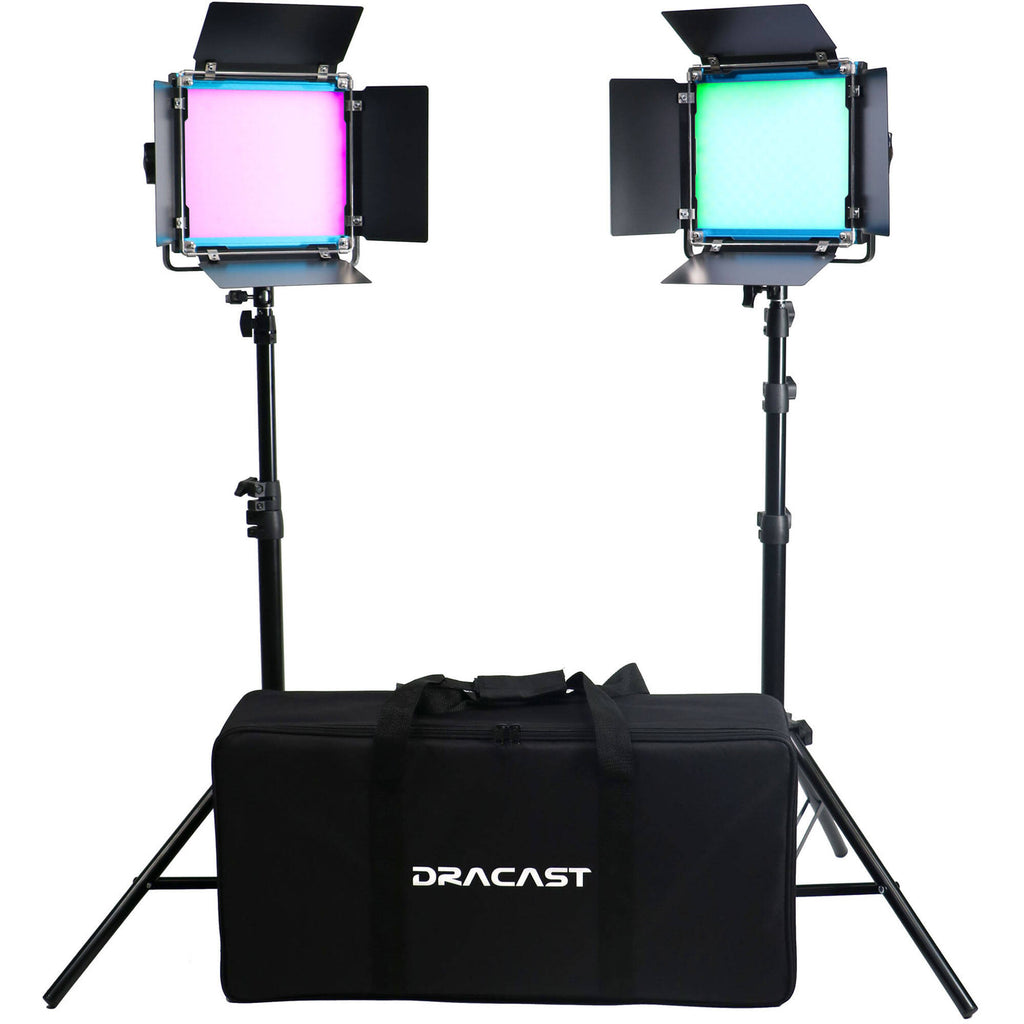

While those features might be enough for some, the LED500 also has an RGB mode to allow you access to the 360° color wheel and all of its tints and hues for a myriad of custom colors. The LED500 is ready for worldwide use thanks to its 100 to 240V power supply, but you can also run it on two NP-F-type batteries when AC power is unavailable. A case is included for transport and storage.
![]()
UPC: 610877749867

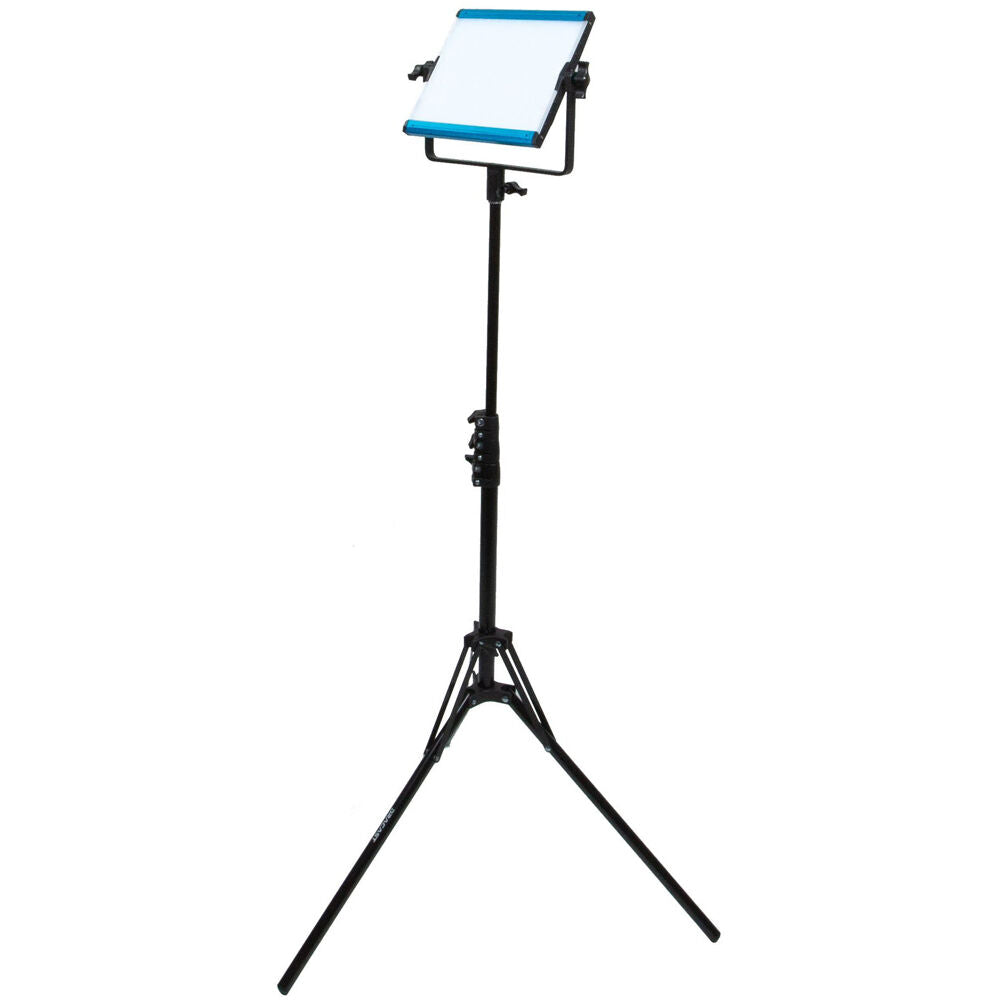

Dracast Compact Collapsible Light Stand for Silver Series LED Panels
This Dracast Compact Collapsible Light Stand is designed to hold the Silver Series LED light panels.
![]()
UPC: 722589274268

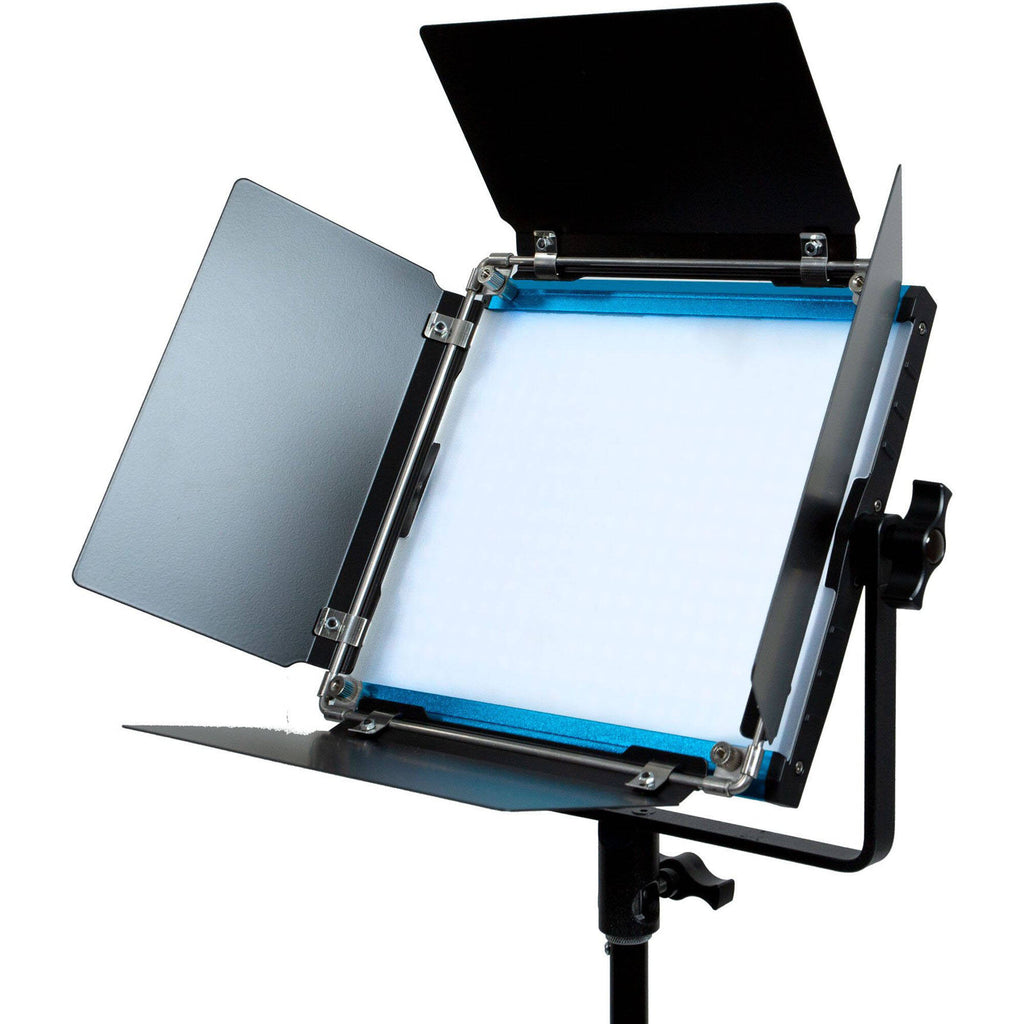

Dracast Barndoors for DRX 500 LED Panels
Constructed from aluminum and easily mounted, the Barndoors for DRX 500 LED Series Panels from Dracast feature a 4-way design that allows you to modify the light's wide beam spread. Simply swing one or more of the barndoor leaves into the light's beam path to light areas you want to keep illuminated while keeping light from areas you don't.
![]()
UPC: 610877749812
Dracast Nylon Padded Travel Case
Safely store and transport your Dracast 2- or 3-light kit in this black Nylon Padded Travel Case. The case interior measures 23.5 x 11.5 x 11.5" and has lightly padded walls for protection. It comes with a removable padded divider that prevents your gear from shifting or knocking together during handling. Simple strap handles give you an easy way to carry the case and it has a zippered closure.
![]()
UPC: 610877757404
In the Box
- 2 x Dracast LED500 X-Series RGB and Bi-Color LED Light
- Diffusion Filter
- AC Power Adapter with Power Cord
- Carry Case
- Limited 1-Year Warranty
- 2 x Dracast Compact Collapsible Light Stand for Silver Series LED Panels
- 2 x Dracast Barndoors for DRX 500 LED Panels
- Dracast Nylon Padded Travel Case
- Padded Divider
- Carry Handle
- Limited 1-Year Warranty
- Limited 1-Year Warranty
Table of Contents
- Description
- Dracast LED500 X-Series RGB and Bi-Color LED Light
- Dracast Compact Collapsible Light Stand for Silver Series LED Panels
- Dracast Barndoors for DRX 500 LED Panels
- Dracast Nylon Padded Travel Case
Dracast LED500 X-Series RGB and Bi-Color LED Light Specs
Light Fixture
| Beam Angle |
45° |
| Color Temperature |
3200 to 5600K |
| Color Modes |
Full RGB Tuning |
| Color Accuracy Standard |
CRI 96 |
| Cooling System |
Passive |
| Dimming |
Yes, 0 to 100% |
| Fixture Dimensions |
13.6 x 13.5 x 6.4" / 34.5 x 34.3 x 16.3 cm |
| Fixture Weight |
5.5 lb / 2.5 kg |
Connectors
| Battery Plate |
2 x Sony L-Series (NP-F) |
Mounting
| Fixture Mount |
5/8" Receiver |
Remote Operation
| Remote Control Type |
Bluetooth |
Power
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Source |
AC Adapter, External Battery |
Packaging Info
| Package Weight |
4.75 lb |
| Box Dimensions (LxWxH) |
13.7 x 13.1 x 3.9" |
Dracast Compact Collapsible Light Stand for Silver Series LED Panels Specs
| Stand Type |
1 x General Purpose Stand |
Mounting
| Stand/Column Top Mount |
5/8" Stud |
Packaging Info
| Package Weight |
2.1 lb |
| Box Dimensions (LxWxH) |
20.2 x 4.6 x 4.3" |
Dracast Barndoors for DRX 500 LED Panels Specs
| Item Type |
4-Leaf Barndoors |
| Light Compatibility |
Proprietary Mount: For Dracast DRX Series 500 LED |
| Materials |
Aluminum |
Packaging Info
| Package Weight |
0.72 lb |
| Box Dimensions (LxWxH) |
9.2 x 9 x 1.2" |
Dracast Nylon Padded Travel Case Specs
Interior
| Interior Dimensions |
23.5 x 11.5 x 11.5" / 59.7 x 29.2 x 29.2 cm |
| Dividers |
Yes |
Exterior
| Closure Type |
Zipper |
| Carry and Transport Options |
2 x Handle |
| Material of Construction |
Nylon |
| Water Resistance |
Water Resistant |
| Exterior Dimensions (W x H x D) |
24 x 12 x 12" / 61 x 30.5 x 30.5 cm |
| Weight |
6.5 lb / 2.9 kg |
Packaging Info
| Package Weight |
6.885 lb |
| Box Dimensions (LxWxH) |
25.8 x 14.6 x 12.8" |
