Dracast LED3000 Bi-Color Overview
-
1Description
-
2App Remote Control
-
30-100% Dimming
-
4DMX512 Input and Output
-
5Variable Color Temperature
-
64-Way Barn Doors
-
7Soft Diffusion

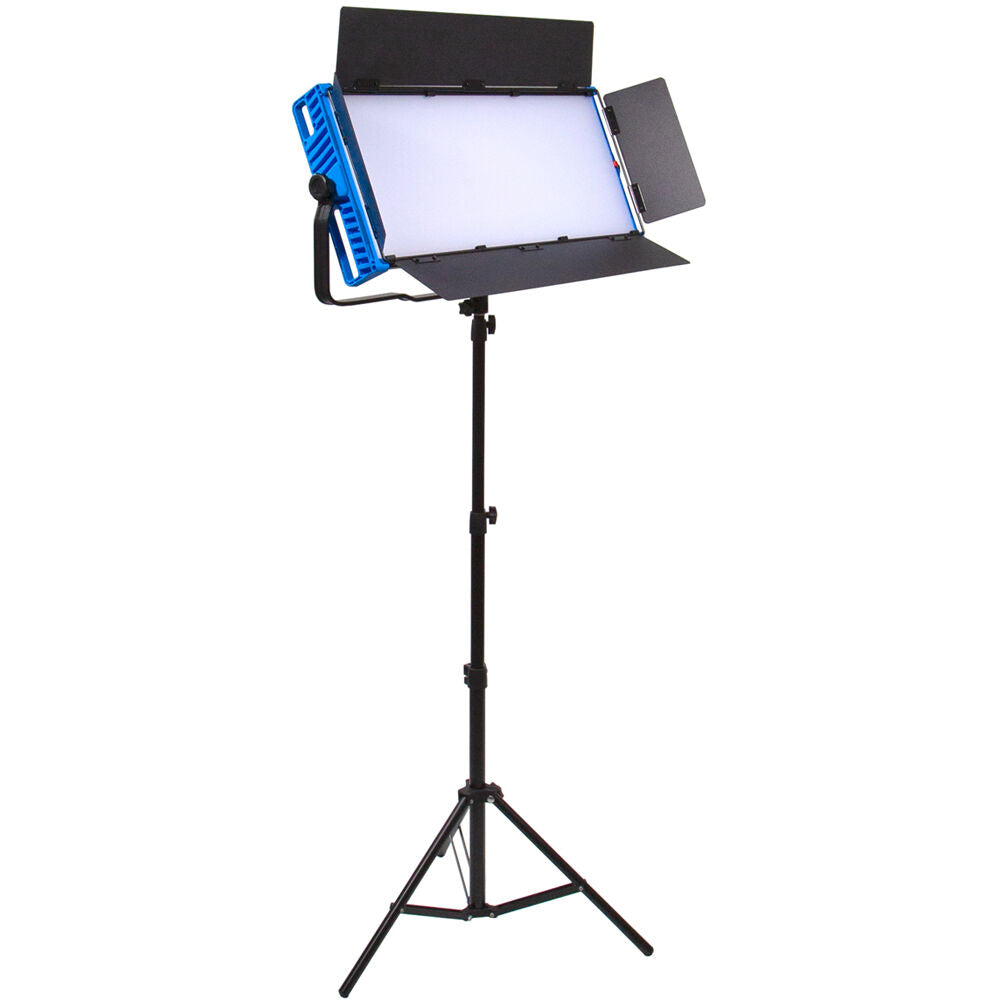

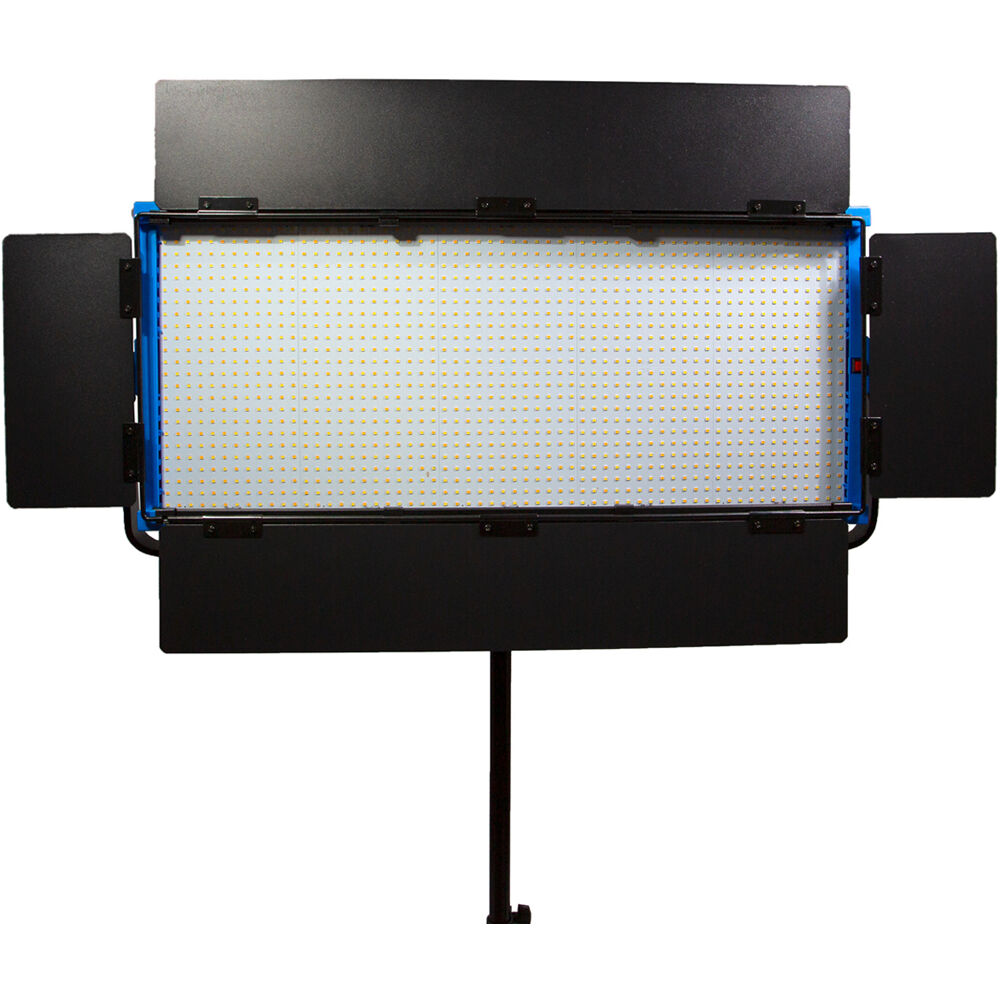

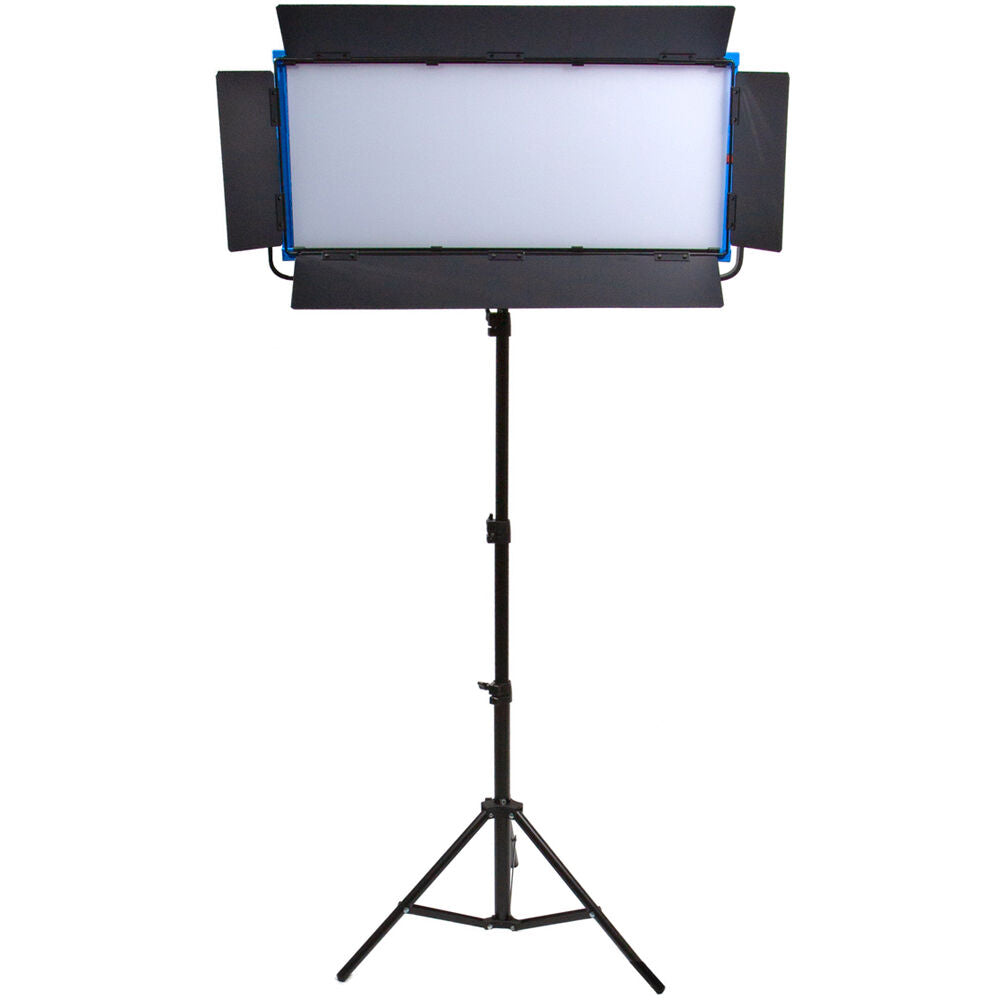

The Kala Plus Series LED3000 Bi-Color Panel Light from Dracast offers power, control, and advanced color management evinced by its CCT range of 2800 to 6500K to blend seamlessly with any ambient light situation, match other fixtures, or spark creative impulses.
The panel has a high CRI/TLCI rating of 96/97 indicating superior performance in color reproduction. It is dimmable from 0 to 100% and you can make adjustments locally on the fixture or remotely from a DMX console. A free app allows you to control the LED3000 wirelessly with a smartphone or at distances up to 100' using a master/slave setup. The 29.5 x 15.3 x 3" panel is ready for worldwide use thanks to its 100-240 VAC power supply, but it will also run on two V-mount batteries when AC current is unavailable.
App Remote Control
App remote offers full control of your Kala Plus Series panel light. Using the Dracast Kala Plus app available for iOS and Android, you can control your light or groups of Kala Plus Series lights simultaneously
0-100% Dimming
Kala Plus Series lights can be manually dimmed via the onboard control knobs for quick and easy light adjustment. Smoothly increase or decrease your light output from full output to total blackout with zero dimmer stepping

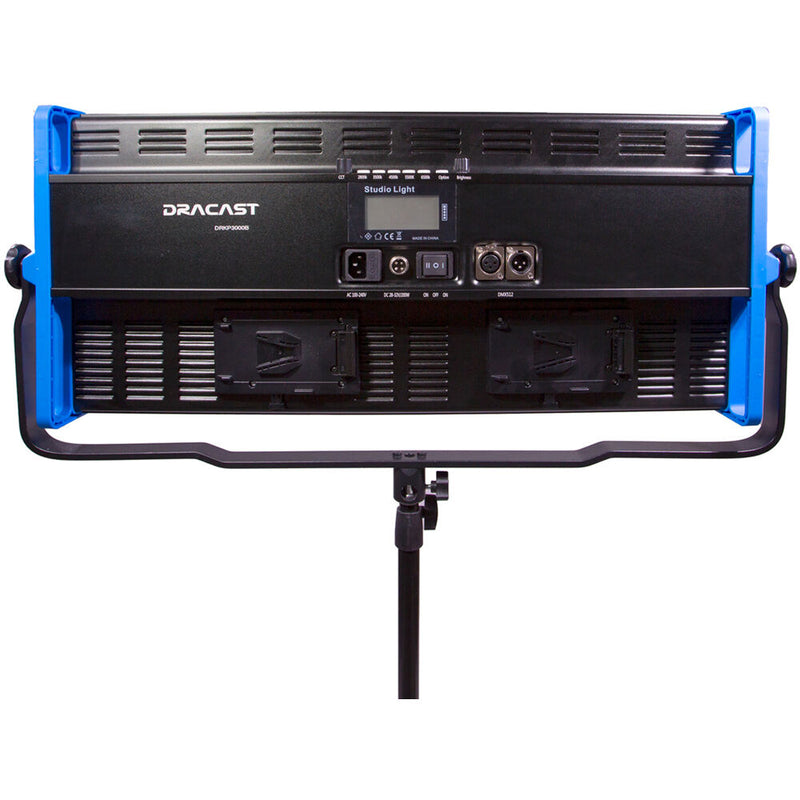

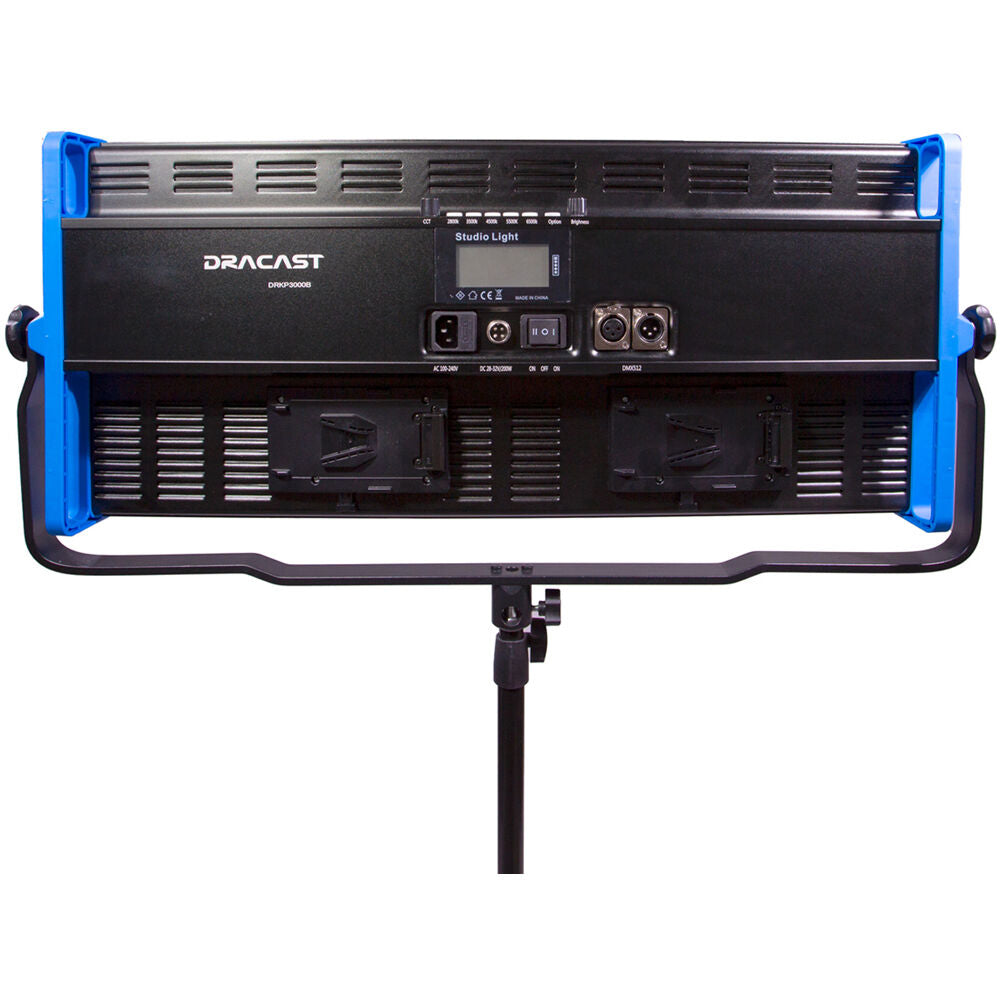

DMX512 Input and Output
Use your Kala Plus Series lights in studio with 3-pin DMX512 input and output ports

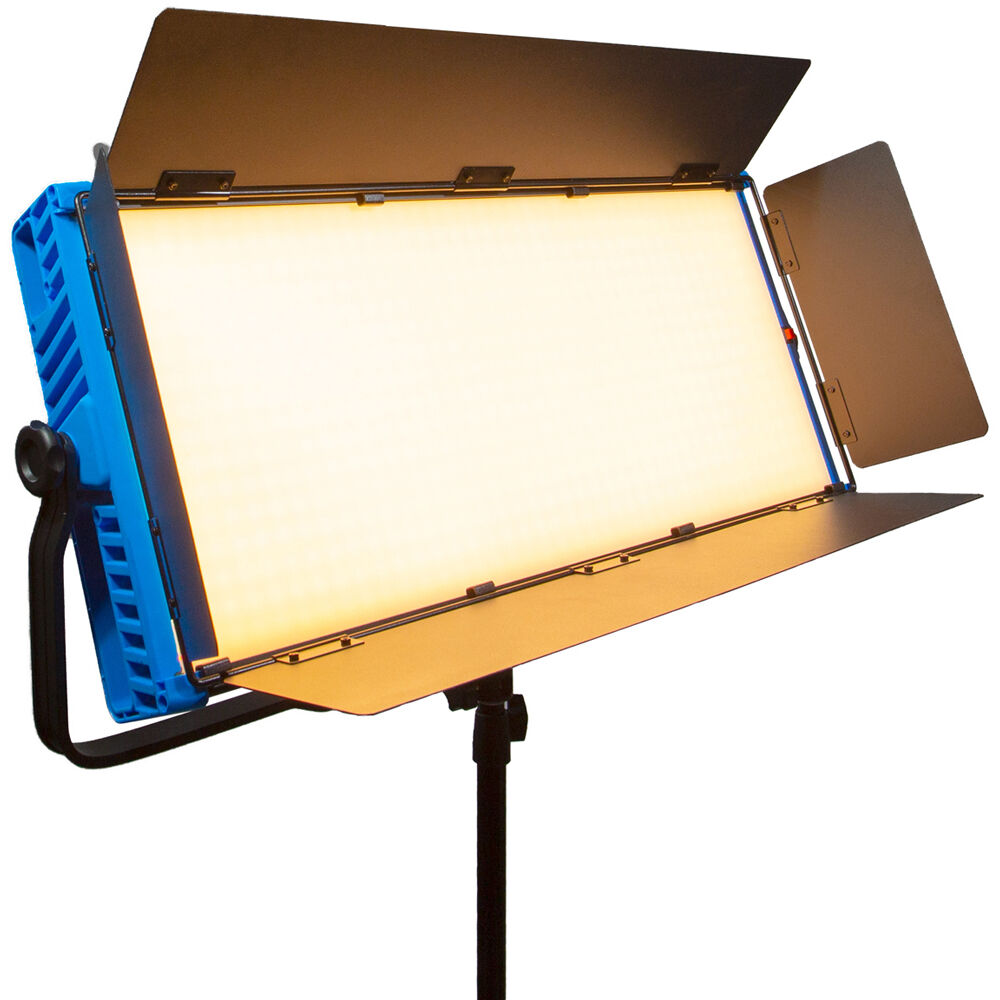

Variable Color Temperature
Adjust the color temperature from 2800-6500K to match other light sources or ambient light in your shooting environment. Match subject skin tone easily and quickly without the need for color correction filters

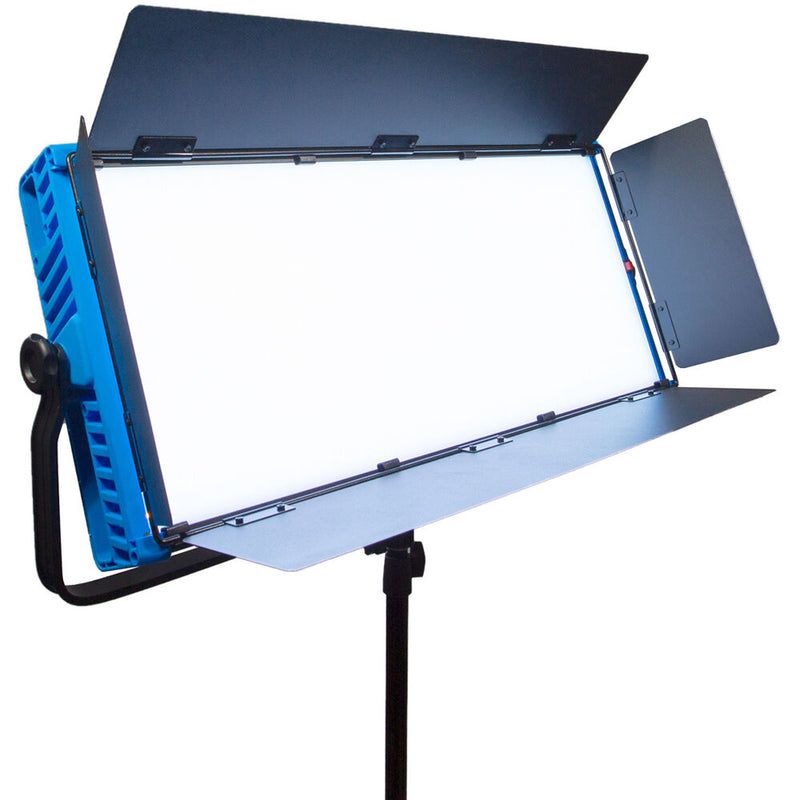

4-Way Barn Doors
Shape and control your light output with included four-way barn doors. This accessory comes preinstalled with each Kala Plus Series panel light
Soft Diffusion
Soften your light output with the included removable diffusion filter
![]()
UPC: 610877758661
In the Box
- Dracast Kala Plus Series LED3000 Bi-Color Panel Light
- AC Adapter with Power Cord
- 4-Way Barndoors
- Diffusion Filter
- Case for Light
- Limited 1-Year Warranty
Table of Contents
- Description
- App Remote Control
- 0-100% Dimming
- DMX512 Input and Output
- Variable Color Temperature
- 4-Way Barn Doors
- Soft Diffusion
Dracast LED3000 Bi-Color Specs
Light Fixture
| Color Temperature |
2800 to 6500K |
| Color Accuracy Standard |
CRI 96
TLCI 97 |
| Cooling System |
Passive |
| Dimming |
Yes, 0 to 100% |
| Display |
LCD |
| Housing Material |
Metal, Plastic |
| Number of LEDs |
720 (Daylight)
720 (Amber) |
| Beam Angle |
120° |
| Fixture Dimensions |
29.5 x 15.4 x 3.1" / 75.0 x 39.0 x 8.0 cm |
| Fixture Weight |
12.34 lb / 5.60 kg |
Connectors
| Battery Plate |
2 x V-Mount |
| DMX Connection |
3-Pin XLR |
Mounting
| Fixture Mount |
5/8" Receiver |
Remote Operation
| Remote Control Type |
Bluetooth, DMX |
| Number of DMX Channel Modes |
512 |
Power
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Source |
AC Adapter, External Battery |
| Max Power Consumption |
150 W |
Packaging Info
| Package Weight |
17.245 lb |
| Box Dimensions (LxWxH) |
33.3 x 19.6 x 6.2" |
