Dracast LED1000 Overview
-
1Description
-
2App Remote Control
-
30-100% Dimming
-
4DMX512 Input and Output
-
5V-Mount Battery Plates
-
64-Way Barn Doors
-
7Soft Diffusion
Featuring a slim, lightweight design at just 6.4 lb, the Kala Plus Series LED1000 Bi-Color Panel with DMX Control from Dracast is an ideal choice for location work, interviews, and small sets where color accuracy, control, and flicker-free output are of major importance. Variable color temperature from 2800-6500K or anywhere in between means you can quickly match the prevailing ambient or artificial light balance with a simple twist of the knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 0-100% with negligible color shift. The low electrical draw of just 60W means a timely return on your investment. The light is controllable from a distance via built-in DMX. Featuring a durable aluminum frame supported by a sturdy, U-shaped yoke, it has locking knobs on each side and a standard 5/8" receiver. The LED1000 can be used worldwide, powered by the included 100-240 VAC adapter or by optional V-mount 14.8V batteries. A carry case is included.
App Remote Control
Using the new Dracast Kala Plus app available for iOS and Android, you can control your light or groups of Kala Plus Series lights simultaneously. Control dimmer, CCT, RGB, HSI, special effects, and more right from your phone or tablet.
0-100% Dimming
Kala Plus Series lights can be manually dimmed via the onboard control knobs for quick and easy light adjustment. Smoothly increase or decrease your light output from full output to total blackout with zero dimmer stepping.

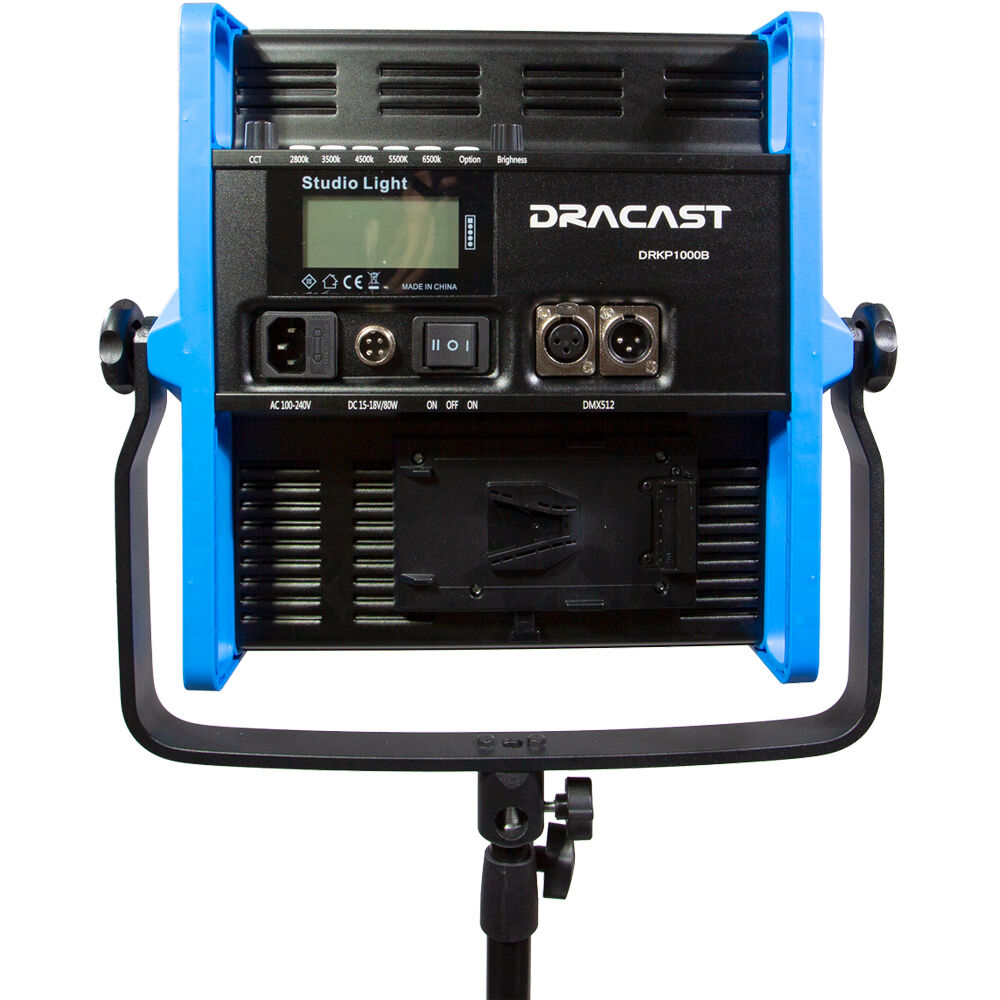

DMX512 Input and Output
Use your Kala Plus Series lights in studio with 3-pin DMX512 input and output ports. Kala Plus lights include multi-channel DMX settings for dimmer, color temperature, RGB, HSI, special effects, and more.
V-Mount Battery Plates
All Kala Plus Series panel lights include either single or dual V-mount battery plates so your lights can easily be used on location.

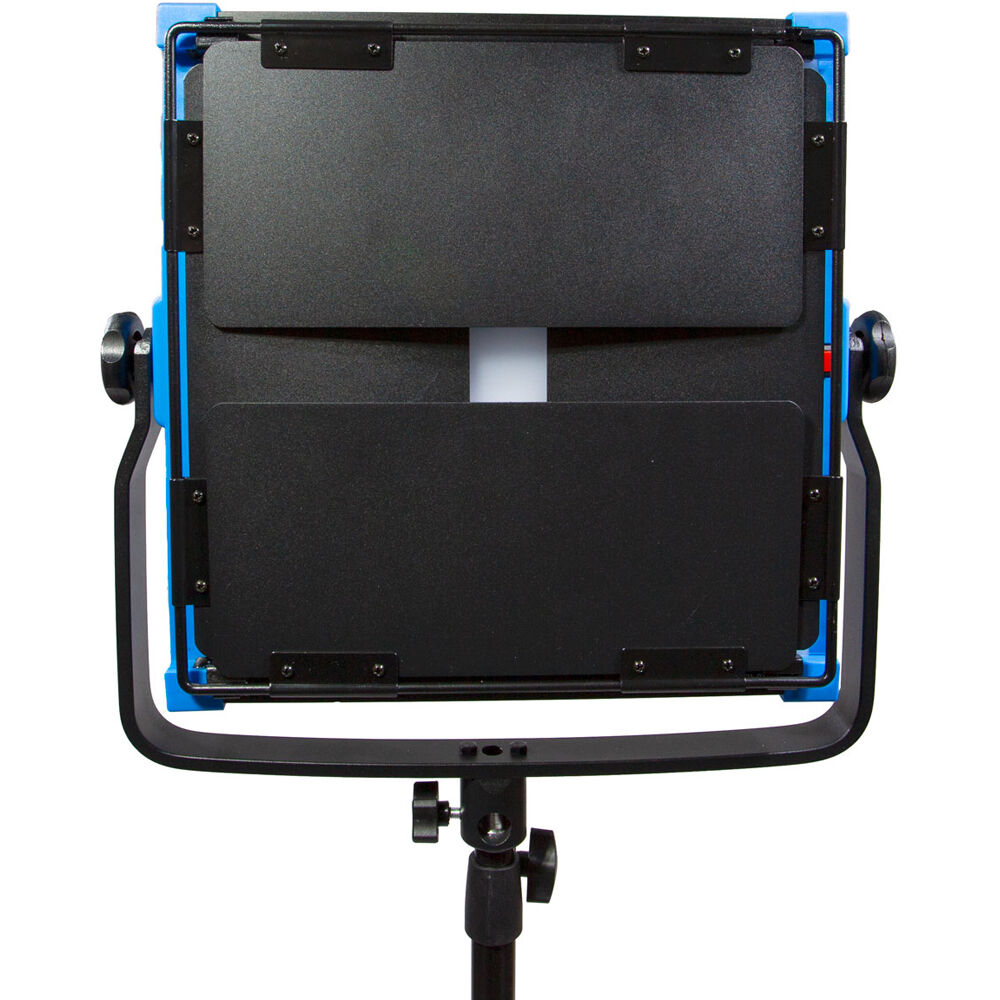

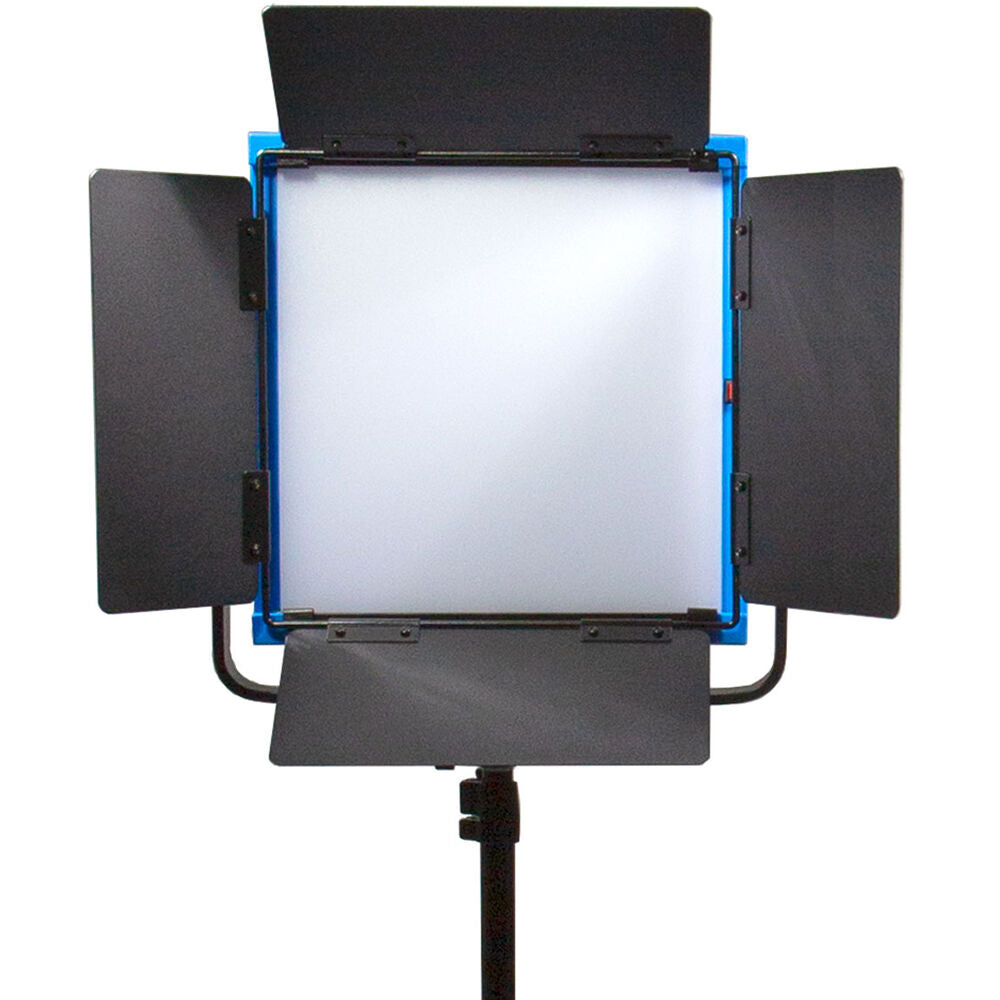

4-Way Barn Doors
Shape and control your light output with the 4-way barn doors. This accessory comes preinstalled with each Kala Plus Series panel light.
Soft Diffusion
Soften your light output with the included removable diffusion filter. This accessory comes preinstalled with each Kala Plus Series panel light.
![]()
UPC: 610877759392
In the Box
- Dracast Kala Plus Series LED1000 Bi-Color Panel with DMX Control
- LED1000 Bi-Color Panel Light with V-Mount Battery
- 4-Way Barndoors
- Diffusion Filter
- AC Adapter with Power Cord
- Carry Case
- Limited 1-Year Warranty
Table of Contents
- Description
- App Remote Control
- 0-100% Dimming
- DMX512 Input and Output
- V-Mount Battery Plates
- 4-Way Barn Doors
- Soft Diffusion
Dracast LED1000 Specs
Light Fixture
| Color Temperature |
2800 to 6500K |
| Color Accuracy Standard |
CRI 96
TLCI 97 |
| Cooling System |
Passive |
| Dimming |
Yes, 0 to 100% |
| Display |
LCD |
| Beam Angle |
120° |
| Fixture Dimensions |
14.0 x 15.4 x 3.1" / 35.5 x 39.0 x 8.0 cm |
| Fixture Weight |
6.39 lb / 2.90 kg |
Connectors
| Battery Plate |
1 x V-Mount |
| DMX Connection |
3-Pin XLR |
Mounting
| Fixture Mount |
5/8" Receiver |
Remote Operation
| Remote Control Type |
Bluetooth, DMX |
| Number of DMX Channel Modes |
512 |
Power
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Source |
AC Adapter, External Battery |
Packaging Info
| Package Weight |
10.235 lb |
| Box Dimensions (LxWxH) |
19 x 18.3 x 5.6" |
