Dracast LED1000 Overview
-
1Description
-
2App Remote Control
-
30-100% Dimming
-
4DMX512 Input and Output
-
5V-Mount Battery Plates
-
64-Way Barn Doors
-
7Soft Diffusion

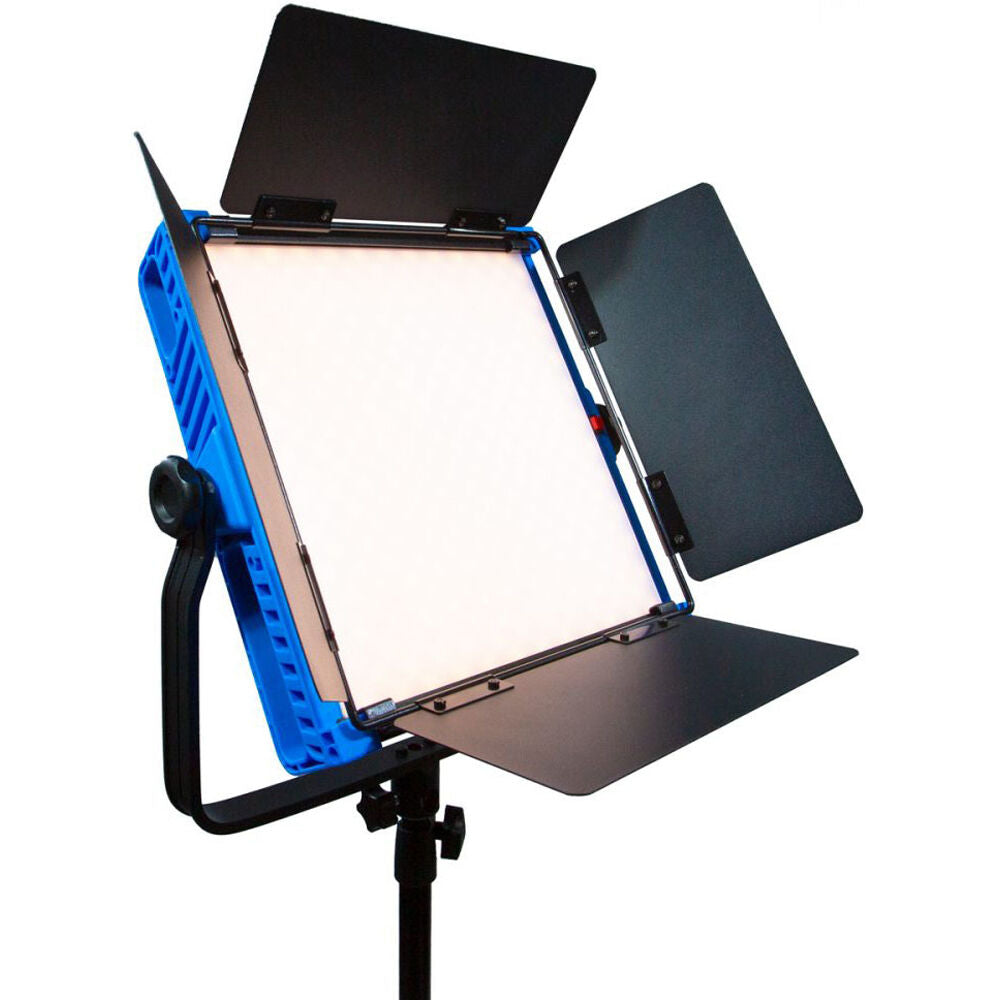

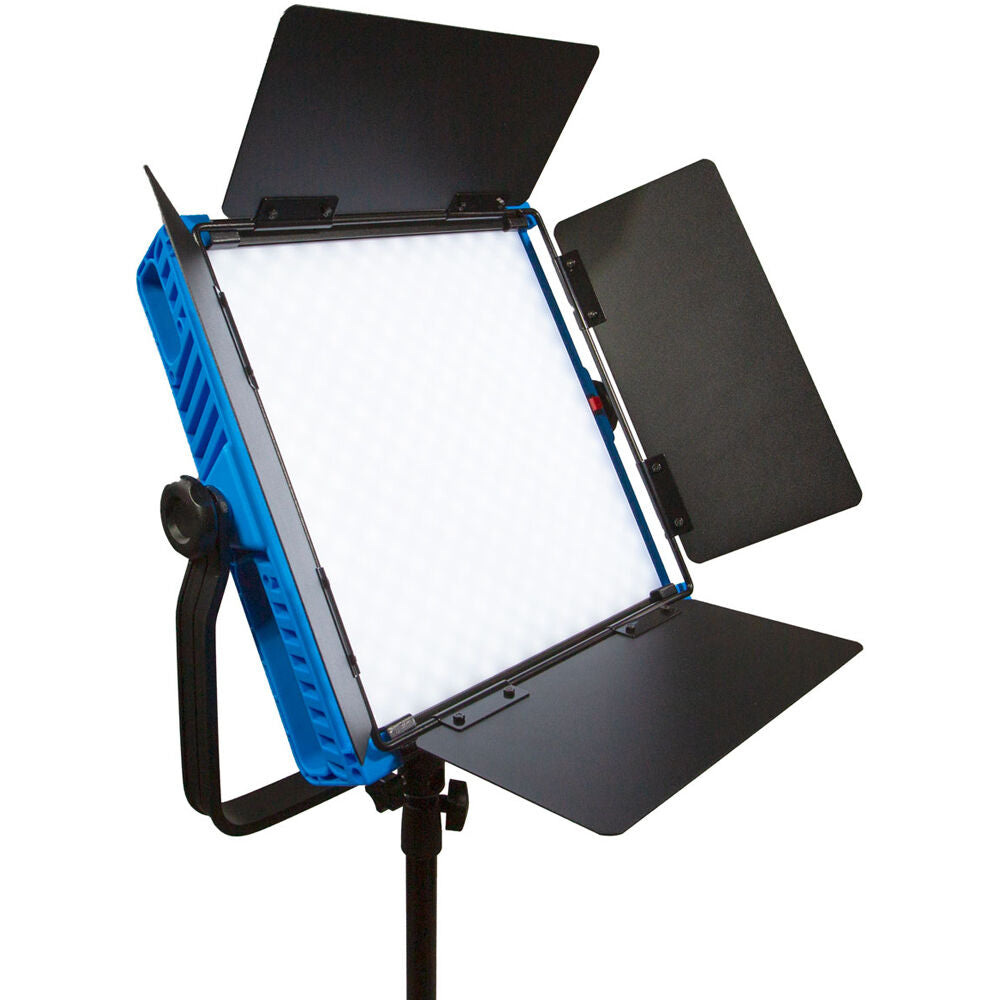

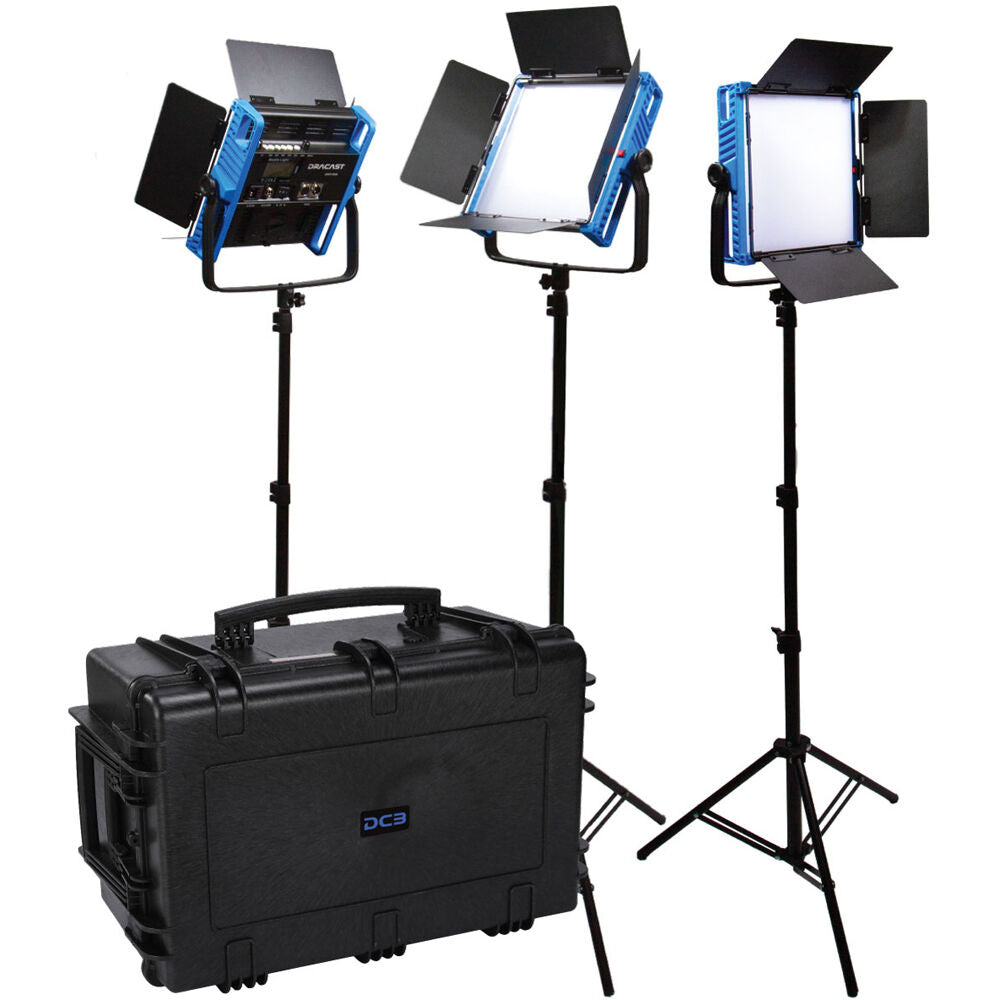

You're doing fine with one light but you start thinking (what if) - it's then that Dracast appears with the Kala Plus LED1000 Bi-Color 3-Light Kit. The kit comes with three Kala Plus LED panels, each with a stand, 4-way barndoors, and a V-Mount battery plate for situations where an AC plug can't be found. An injection-molded hard case is included for storage and transport.
App Remote Control
Using the new Dracast Kala Plus app available for iOS and Android, you can control your light or groups of Kala Plus Series lights simultaneously. Control dimmer, CCT, RGB, HSI, special effects, and more right from your phone or tablet.
0-100% Dimming
Kala Plus Series lights can be manually dimmed via the onboard control knobs for quick and easy light adjustment. Smoothly increase or decrease your light output from full output to total blackout with zero dimmer stepping.

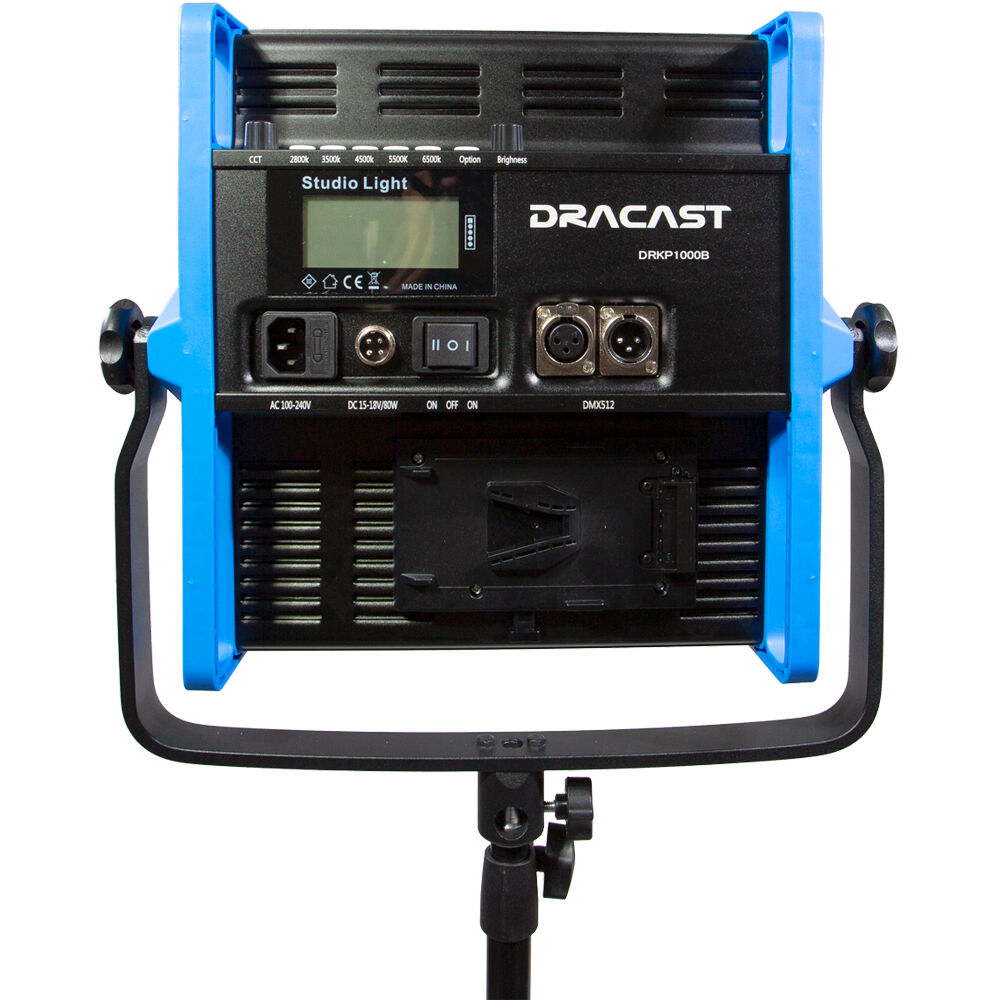

DMX512 Input and Output
Use your Kala Plus Series lights in studio with 3-pin DMX512 input and output ports. Kala Plus lights include multi-channel DMX settings for dimmer, color temperature, RGB, HSI, special effects, and more.
V-Mount Battery Plates
All Kala Plus Series panel lights include either single or dual V-mount battery plates so your lights can easily be used on location.

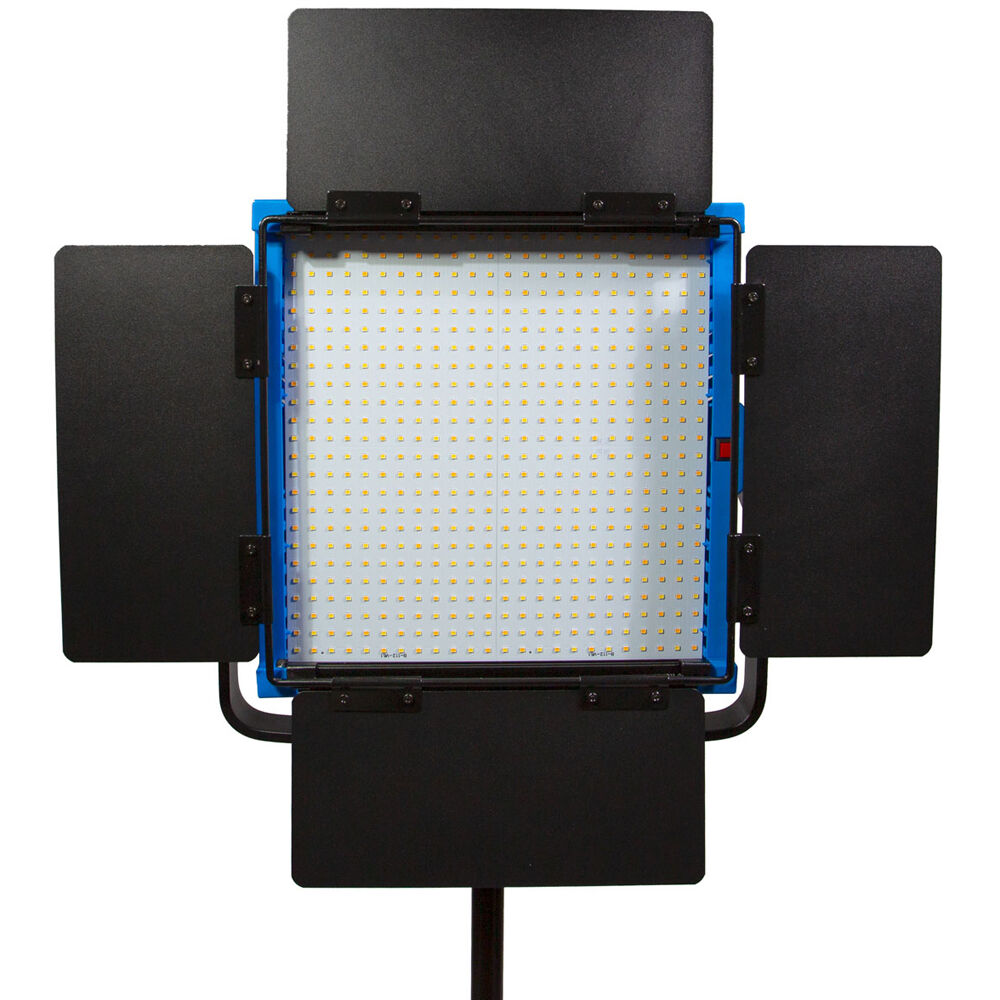

4-Way Barn Doors
Shape and control your light output with the 4-way barn doors. This accessory comes preinstalled with each Kala Plus Series panel light.

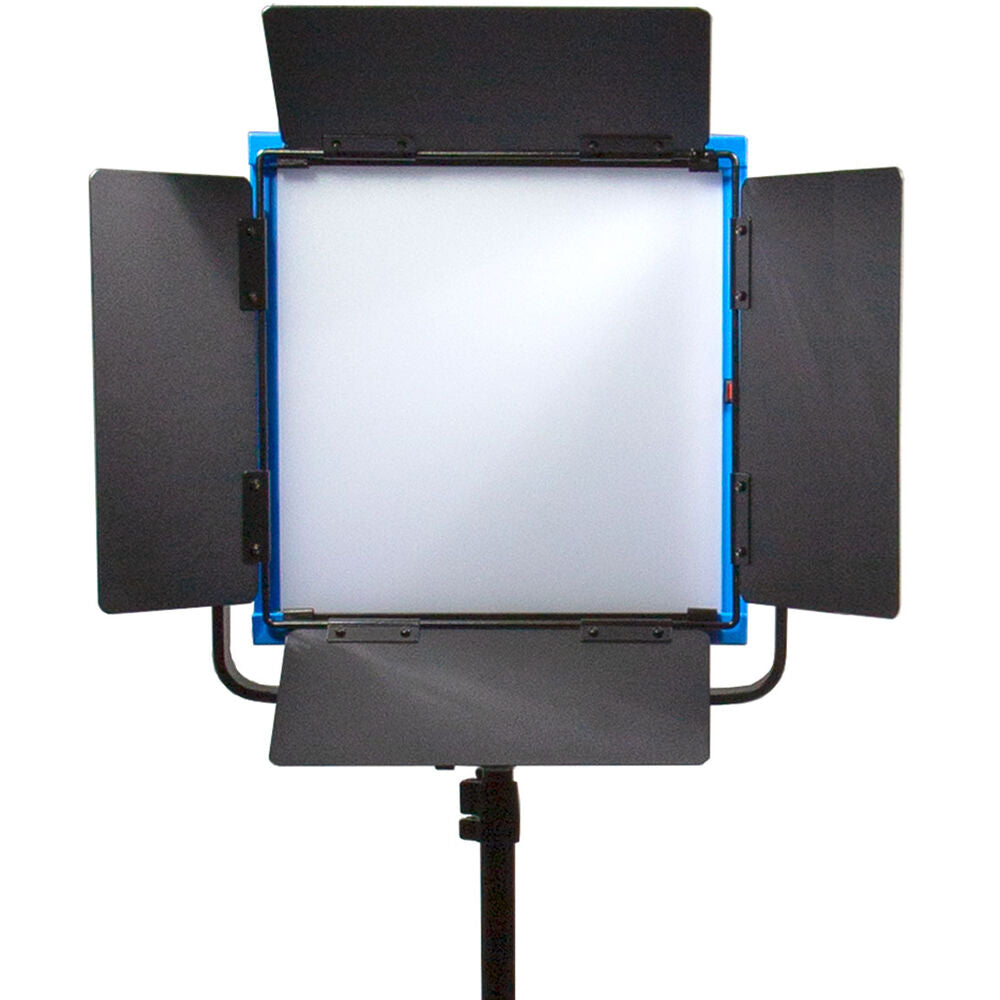

Soft Diffusion
Soften your light output with the included removable diffusion filter. This accessory comes preinstalled with each Kala Plus Series panel light.
UPC: 610877759392
In the Box
- 3 x Dracast Kala Plus Series LED1000 Bi-Color Panel with DMX Control
- LED1000 Bi-Color Panel Light with V-Mount Battery
- 4-Way Barndoors
- Diffusion Filter
- AC Adapter with Power Cord
- Carry Case
- Limited 1-Year Warranty
- 3 x Light Stands
- Injection-Molded Travel Case
- Limited 1-Year Warranty
Table of Contents
- Description
- App Remote Control
- 0-100% Dimming
- DMX512 Input and Output
- V-Mount Battery Plates
- 4-Way Barn Doors
- Soft Diffusion
Dracast LED1000 Specs
Light Fixture
Color Temperature |
2800 to 6500K |
Color Accuracy Standard |
CRI 96 TLCI 97 |
Cooling System |
Passive |
Dimming |
Yes, 0 to 100% |
Display |
LCD |
Beam Angle |
120° |
Fixture Dimensions |
14.0 x 15.4 x 3.1" / 35.5 x 39.0 x 8.0 cm |
Fixture Weight |
6.39 lb / 2.90 kg |
Connectors
Battery Plate |
1 x V-Mount |
DMX Connection |
3-Pin XLR |
Mounting
Fixture Mount |
5/8" Receiver |
Remote Operation
Remote Control Type |
Bluetooth, DMX |
Number of DMX Channel Modes |
512 |
Power
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
Power Source |
AC Adapter, External Battery |
Packaging Info
Package Weight |
10.235 lb |
Box Dimensions (LxWxH) |
19 x 18.3 x 5.6" |
