Description

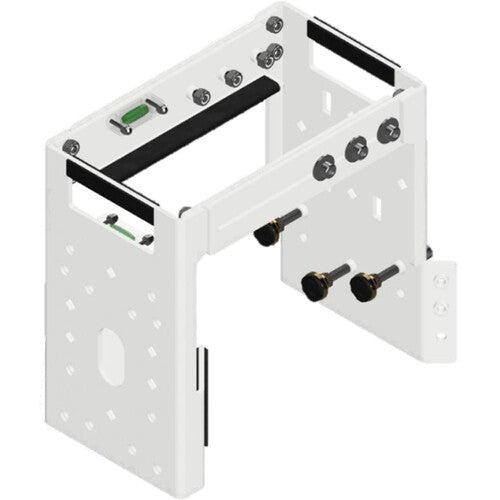

Dotworkz Z-BRACKET Overview

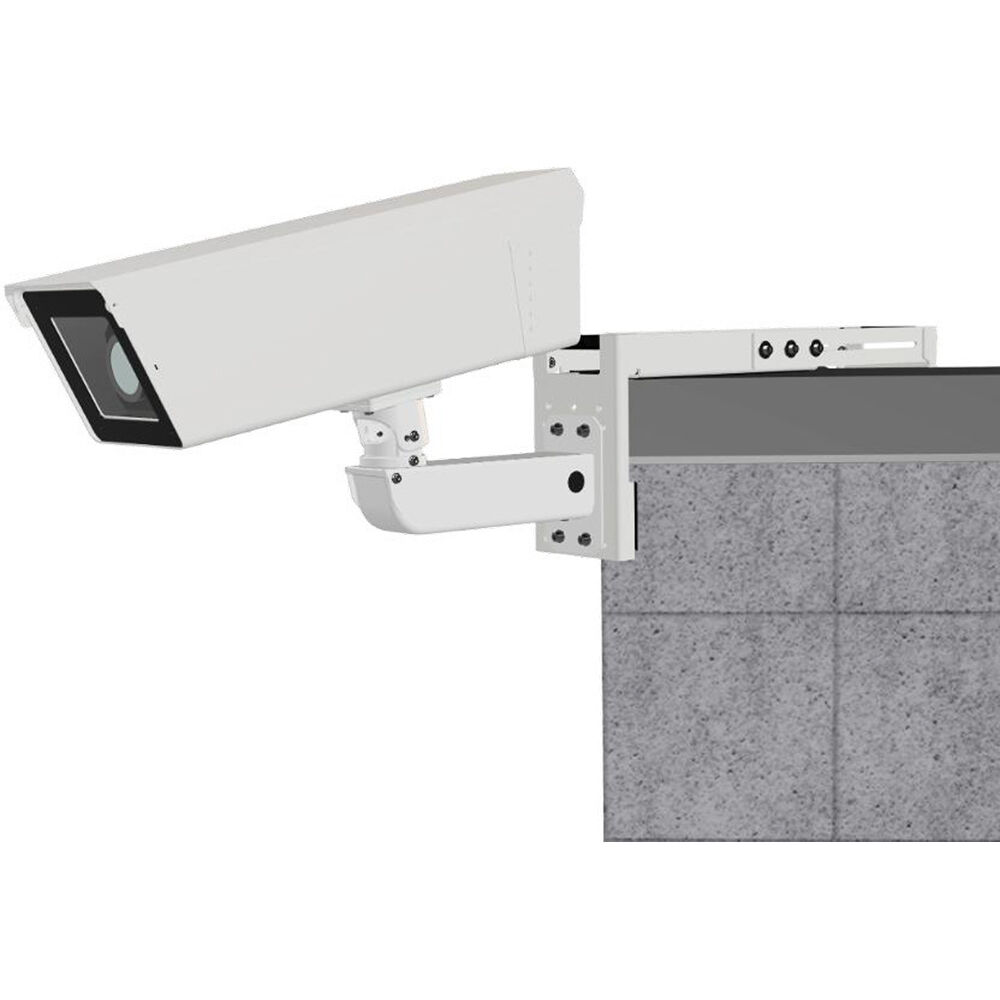

Mount your camera without drilling, lifts, or concrete ballasts with the Z-Bracket Universal Security Camera Roof Mount from Dotworkz. This fully adjustable mounting solution can be fitted to flat or 90? corner roof edges and parapet walls directly from a rooftop with only mechanical pressure. However, if you need more security, integrated holes do give you the option of concrete screw anchoring. The Z-Bracket has standard mounting patterns for cameras from top brands, such as Axis, Hanwha, Bosch, and more. Use it with PTZ, long-range, multi-sensor, and fixed models. It even has a dedicated mount for a Starlink antenna to facilitate wireless internet access at a location.
- Supports wall thicknesses from 2 to 34"
- Supports loads up to 35 lb
- Supports Dotworkz S-Type, D-Series, STXL, HD12, and Axis TQ5001-E, T91D61, and T98A Series mounting patterns
- Corner-ready wings
- Aux mount holes
- Built-in carry handle
- Hardware and tools included
Items Included
- Dotworkz Z-Bracket Universal Security Camera Roof Mount
- Wrench (13mm)
- Hex Screwdriver (6mm)
- Installation Hardware
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Dotworkz Z-BRACKET Specs
| Mounting |
Camera/Wall Mount
|
| Clamping Range |
2 to 34" / 5.1 to 86.4 cm
|
| Load Capacity |
35 lb / 15.9 kg
|
| Color |
White
|
| Pan |
No
|
| Tilt |
No
|
| Roll |
No
|
| Mounting |
Camera/Wall Mount
|
| Clamping Range |
2 to 34" / 5.1 to 86.4 cm
|
| Materials |
Aluminum, Stainless Steel
|
| Dimensions |
Length: 16.4 to 39.91" / 0.42 to 1.01 m
|
| Weight |
11 lb / 5 kg
|
| Package Weight |
11.29 lb
|
| Box Dimensions (LxWxH) |
16.4 x 8.3 x 6.5"
|
