Description
- -40°F Weather Protection
- De-Icing/Defrosting Circuitry
- Steady Step Camera Raising/Lowering
- 24/110/220 VAC Power Inputs
- High-Impact Plastic Alloy Construction
- Compatible with Analog/IP PTZ Cameras
- Accommodates Camera Peripherals
- Internal Camera Power Supply (12/24V)
- IP66-Rated Enclosure
- Heavy-Duty Optically Tinted Bubble

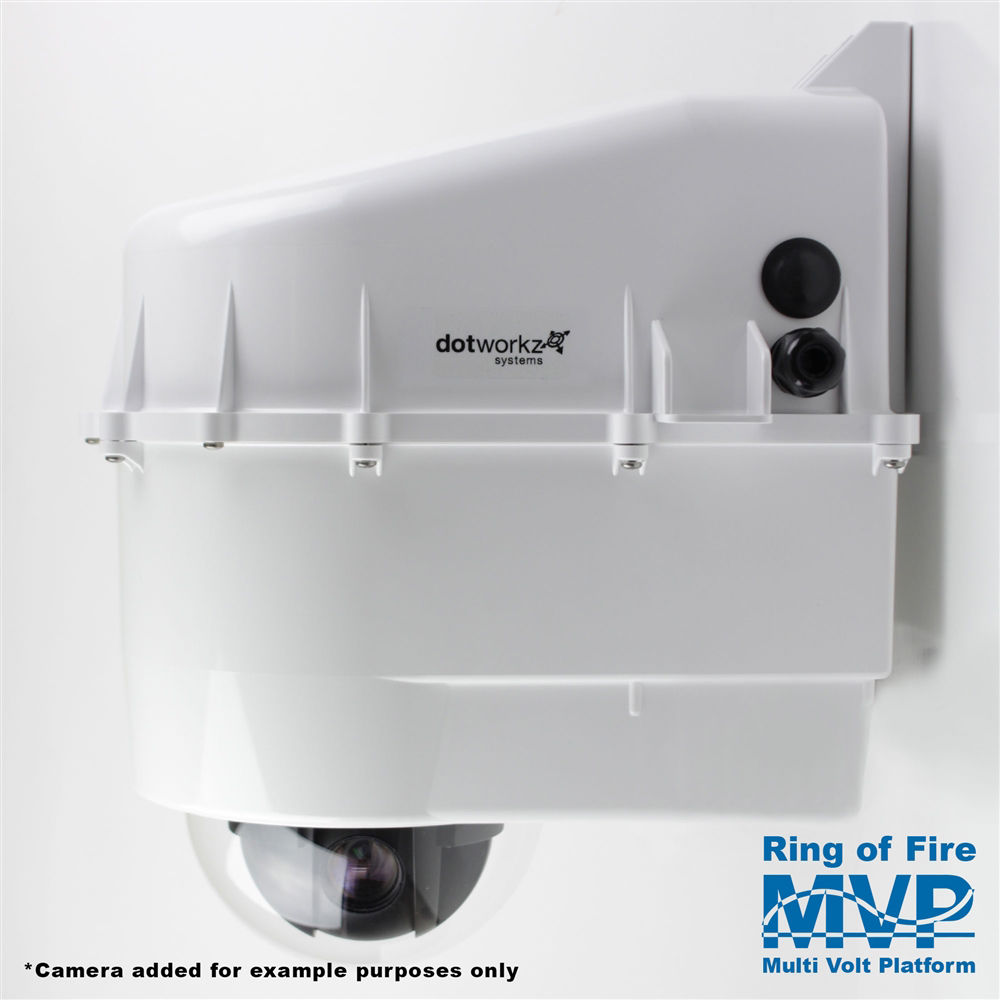

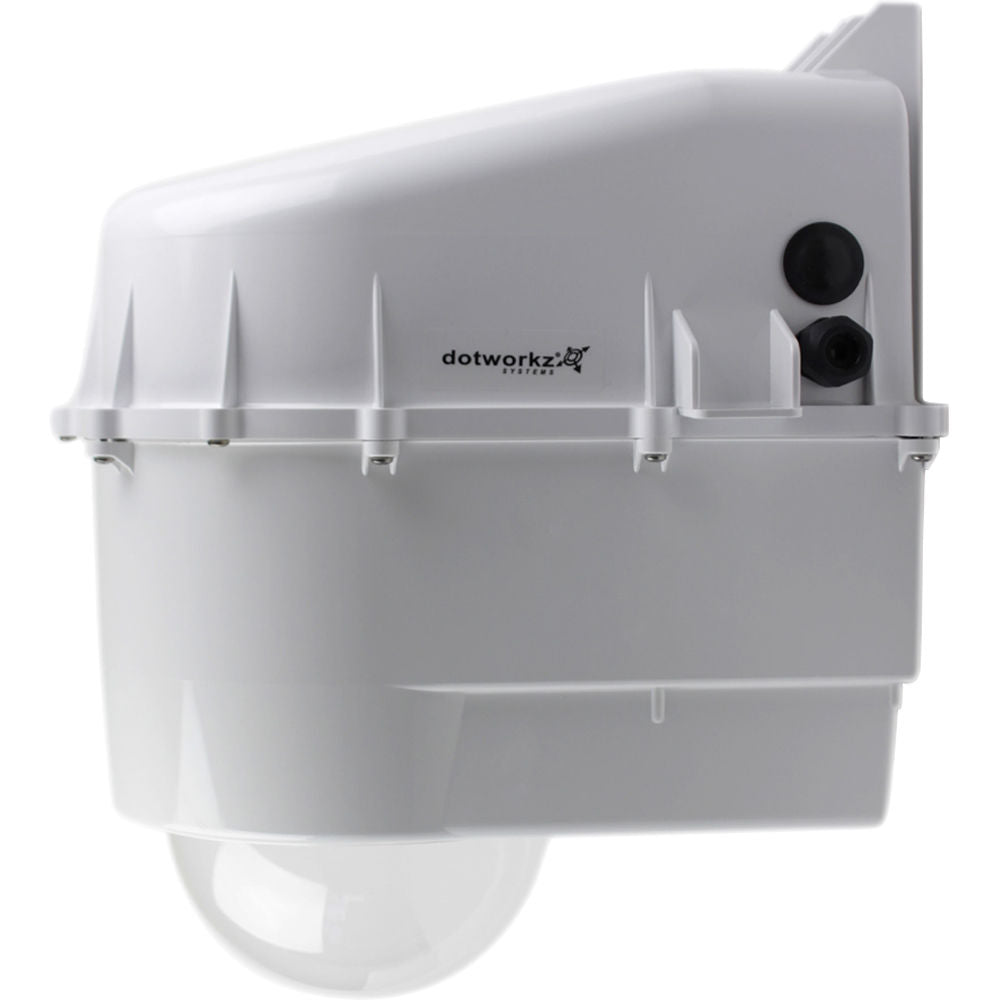

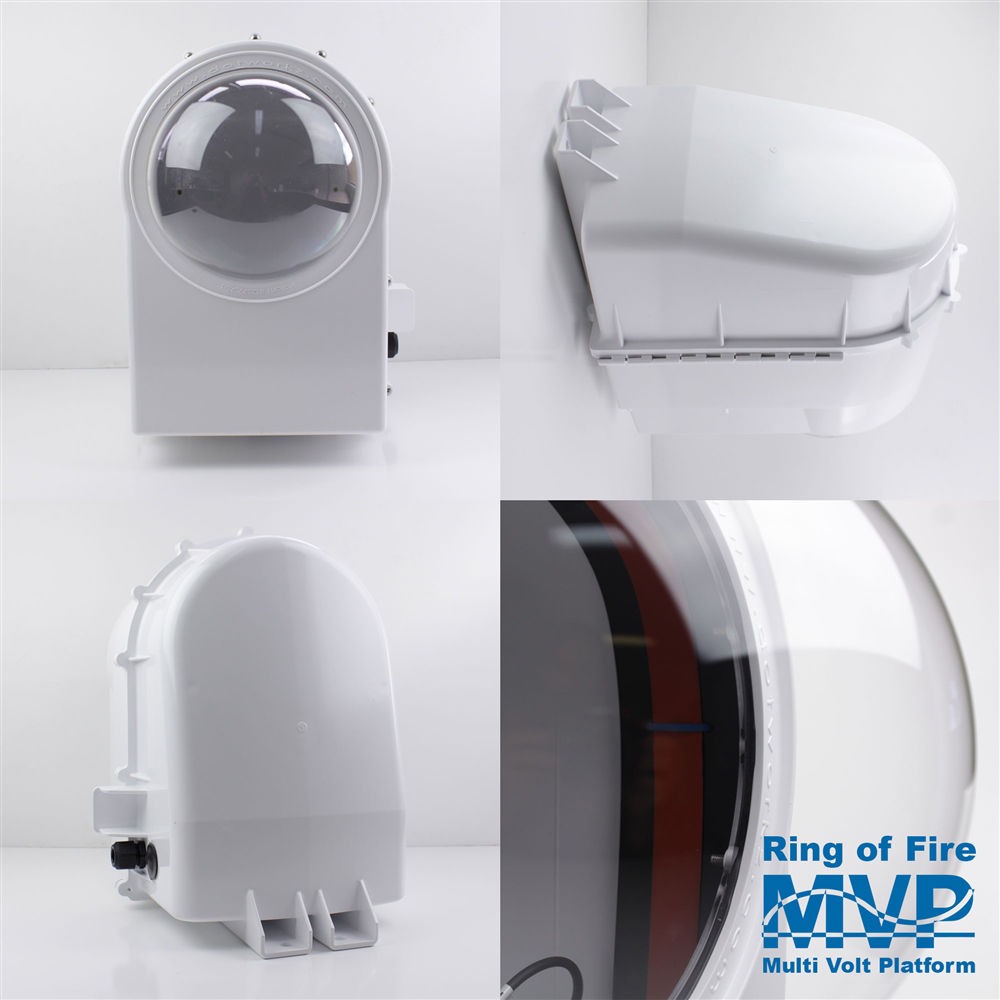

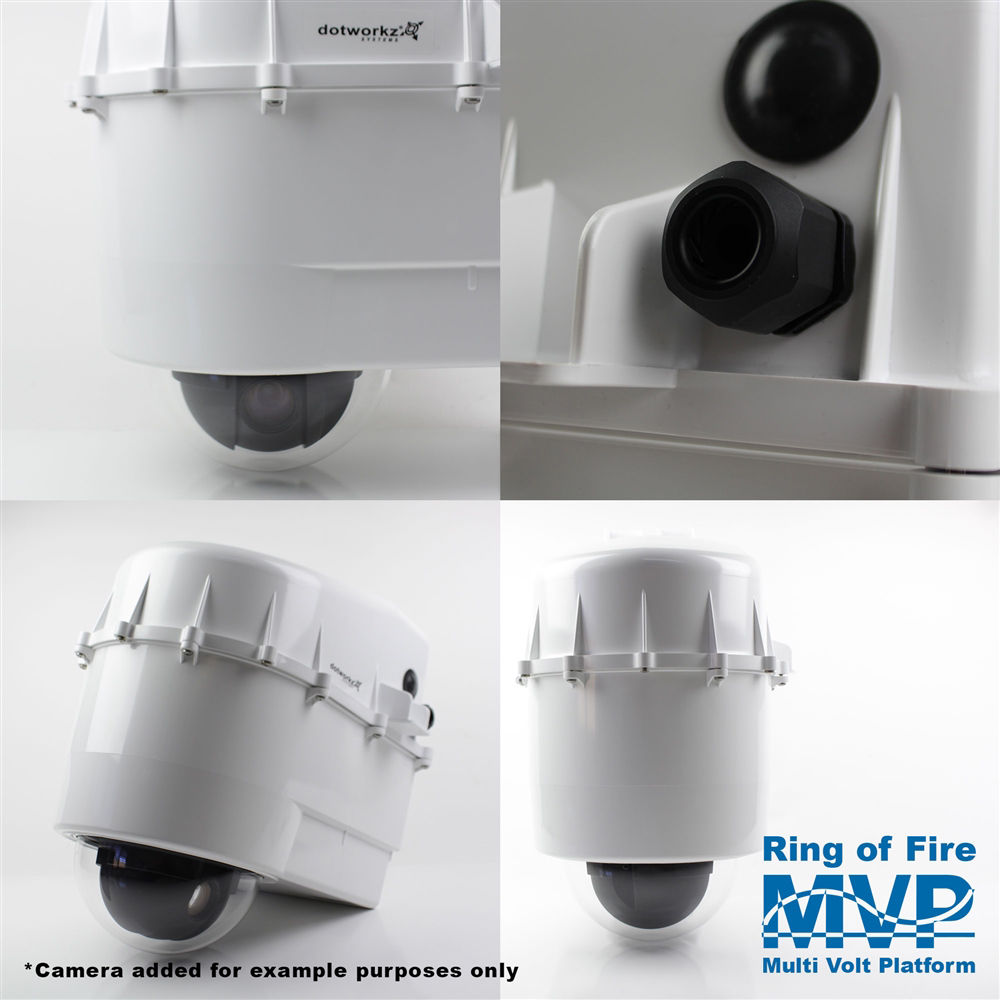

The Dotworkz D3 Ring of Fire De-Icing Outdoor Enclosure with MVP can be used in extremely cold environments, with its built-in heater system working to shield the camera from temperatures as low as -40°F (-40°C), and its de-icing/defrosting circuitry effective in keeping the viewing window clear from fog and ice. Along with providing cold protection, this housing is IP66-rated against dust, water, and salt water air ingress and features IP68-rated connection ports.
The key advantage this D3 model has over the D2 version is that it includes the Steady Step camera mount. Steady Step allows the camera to be raised and lowered without requiring special tools or the risk of dropping the camera. Steady Step is adjustable to fit all sizes of HD PTZ cameras. Because of its stability Steady Step also eliminates vibrations inside the housing.

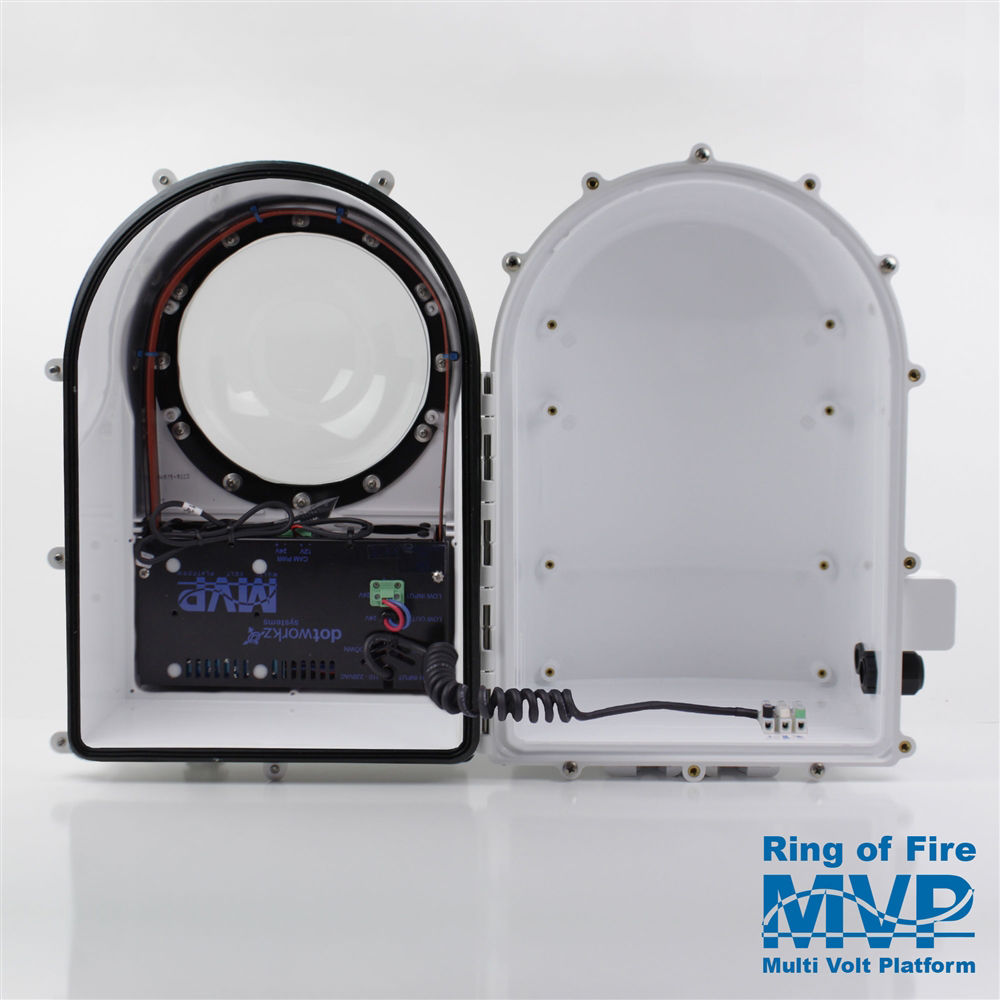

This housing can be powered from a 24, 110, or 220 VAC power source. It also has internal 12 VDC and 24 VAC outputs to power an IP or analog camera.

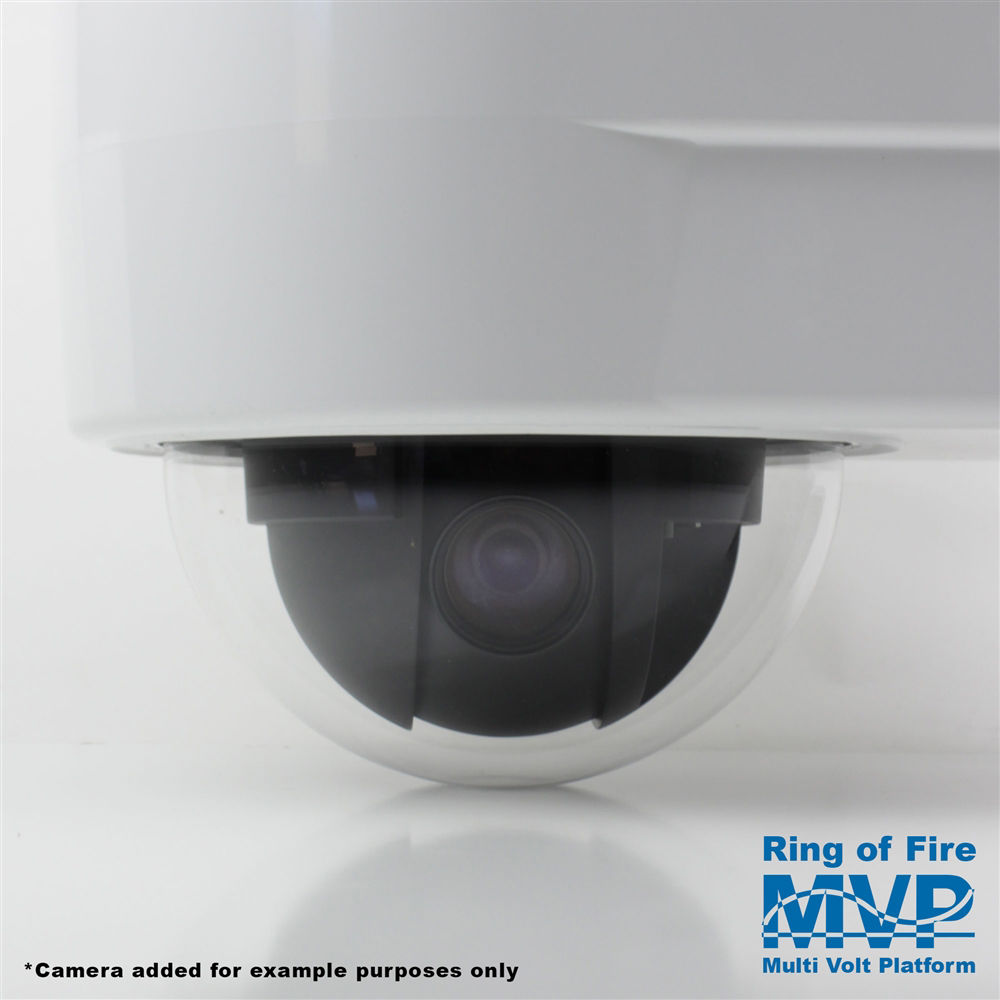

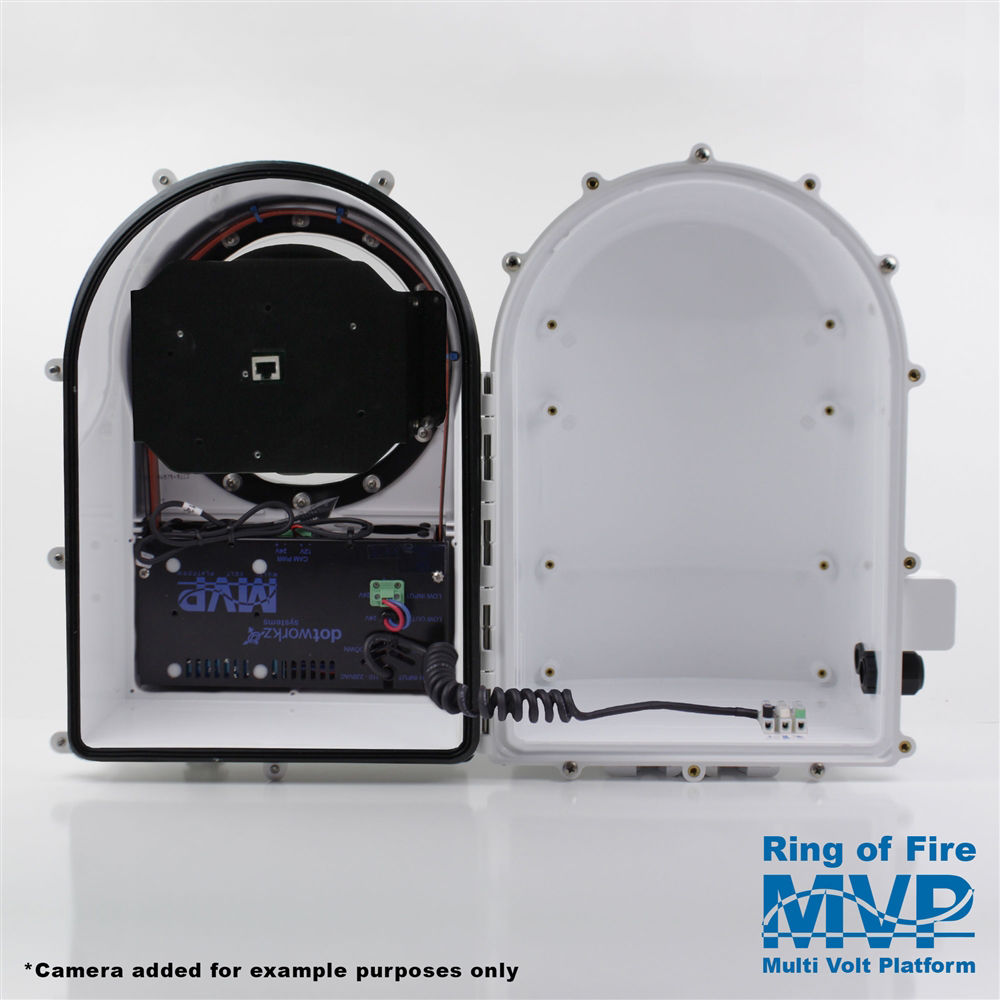

This housing is compatible with most analog or IP PTZ dome cameras and has extra room to accommodate peripherals such as encoders, hard drives, routers, etc. The lower dome is impact resistant and optically correct to ensure maximum image sharpness.
- IP and analog camera compatible
- Impact-resistant polycarbonate thermal plastic

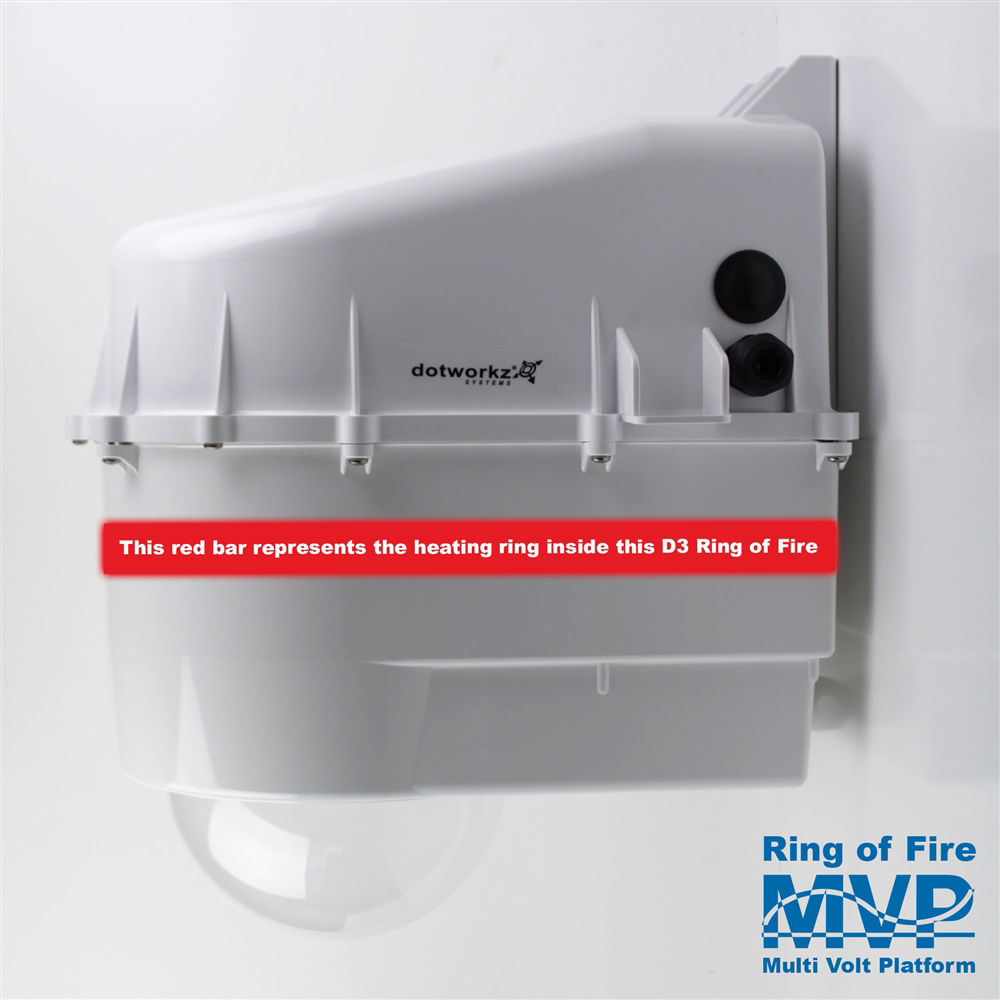

- Thermostatically controlled de-icing and heating element
- Rated protection down to -40°F
- IP66 rated against dust, water, and salt water air

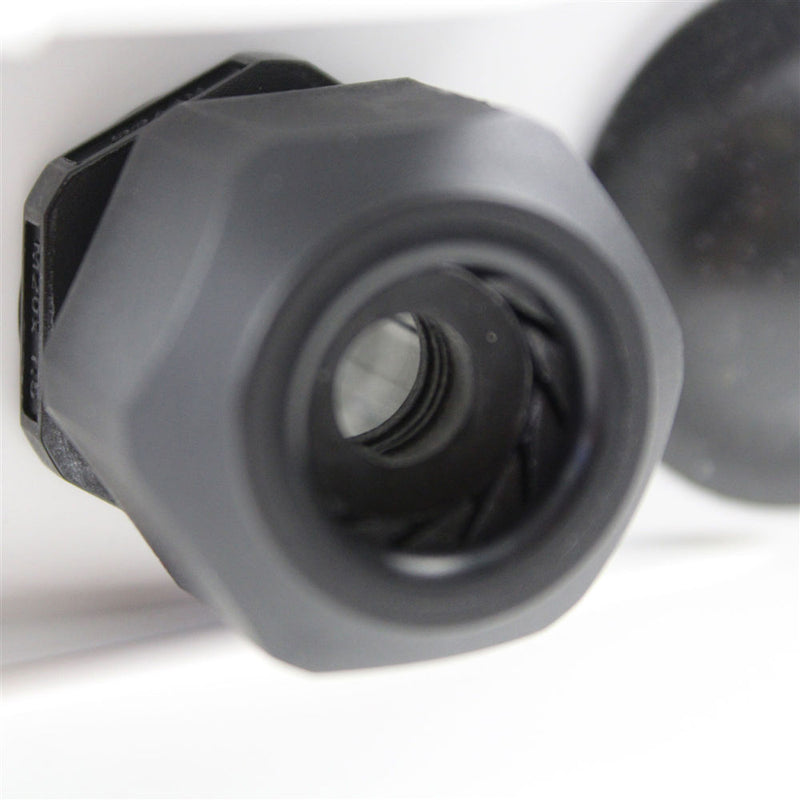

- IP68 (waterproof) connection ports
- Will not rust or corrode
- Onboard component mounting space for routers, cell networks, hard drives, UPS, WiMAX, mesh hardware, etc
- Onboard antenna mounting tab
- Heavy-duty lower lens
- 1-Year Warranty
Dotworkz D3 Series specs
| Mount Type | Wall mount (optional corner, pole brackets available) |
| Compatible Cameras | Analog or IP PTZ camera |
| Clear or Tinted | Tinted |
| Construction | Housing: Dotworkz thermoplastic alloy Bubble: Precision view high-impact acrylic |
| Enclosure Rating | IP66 with IP68 connection ports |
| Operating Temperature | Absolute: -40 to 140°F (-40 to 60°C) Recommended: -40 to 120°F (-40 to 49°C) |
| Power Input | 24, 110, or 220 VAC |
| Power Output | IP: 12, 24 VDC AC: 12 VDC, 24 VAC |
| Power Consumption | 3 amps at 115 VAC typical at full load |
| Dimensions | 11.7 x 17.5 x 14.9" (297 x 445 x 378 mm) |
