Description
- 24VAC / 110VAC / 220 VAC Power Inputs
- Steady Step Camera Raising/Lowering
- Thermostatically Controlled Heater
- Continuous Operating Blower
- High Impact Plastic Alloy Construction
- Compatible with Analog/IP PTZ Cameras
- Accommodates Camera Peripherals
- IP66 Rated Enclosure
- Internal Camera Power Supply (12V/24V)
- Heavy Duty Optically Clear Bubble

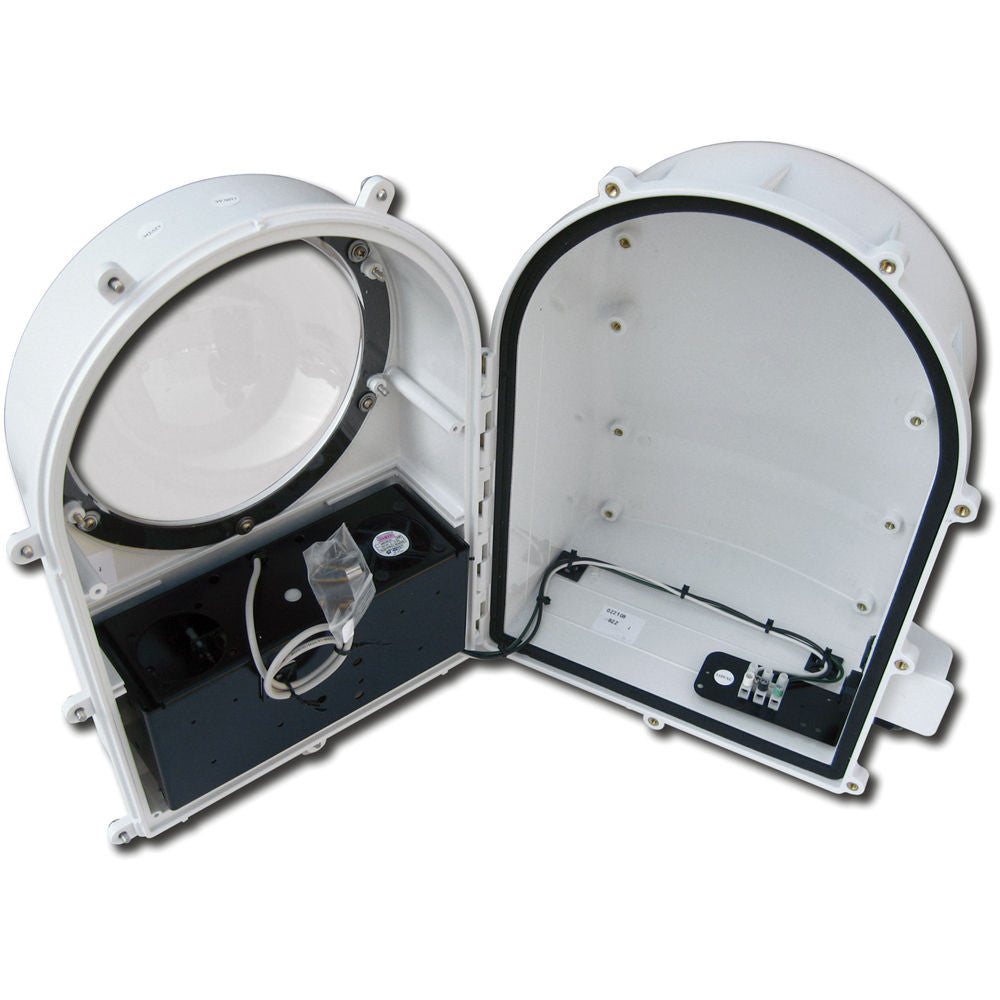

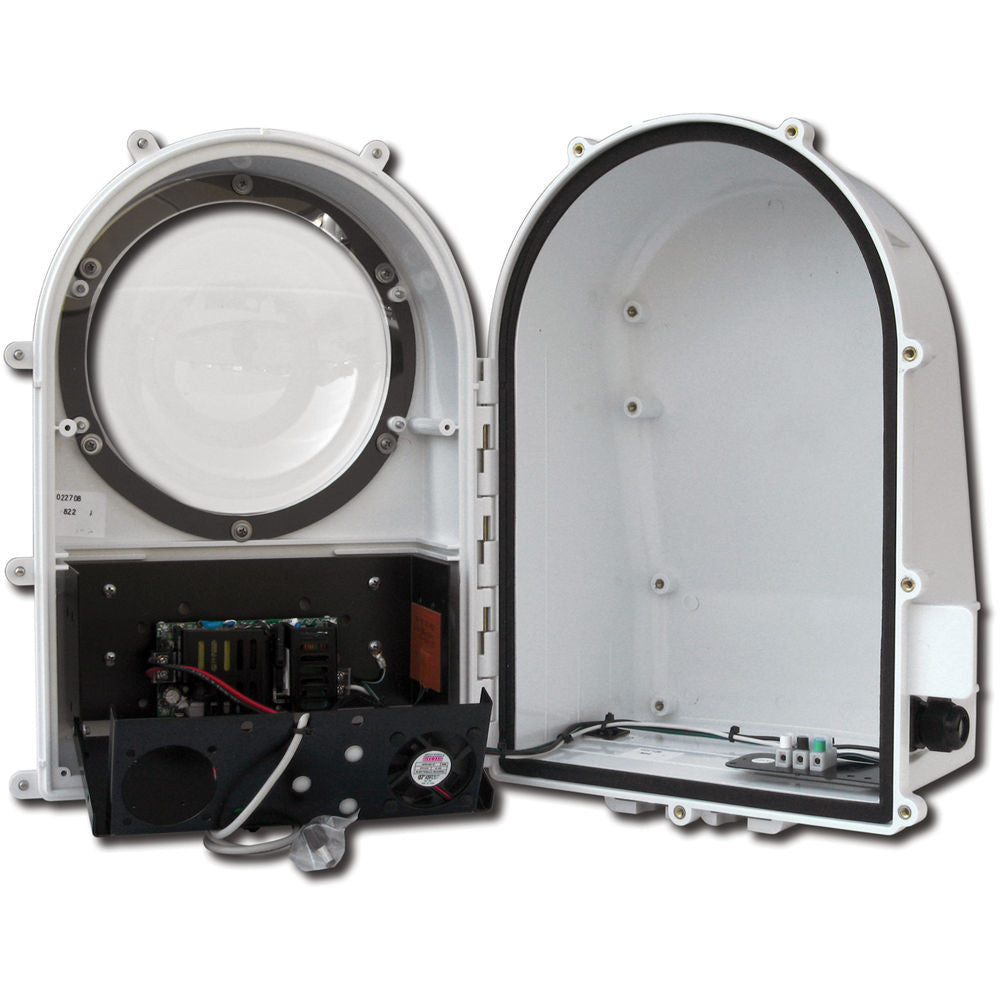

The D3 Dotworkz Heater Blower Enclosure with MVP is constructed of a rugged polycarbonate thermal plastic alloy material and uses a built-in heater and blower system to shield the camera from the cold and to keep the viewing window from fogging up in humid conditions. The heater is thermostatically controlled while the blower operates continuously. In addition to its internal climate control system, this housing is IP66 rated against dust, water, and salt water air ingress and features IP68 rated connection ports.
The key advantage this D3 model has over the D2 version, besides being a larger unit, is that it includes the Steady Step camera mount. Steady Step allows the camera to be raised and lowered without requiring special tools and without the risk of dropping the camera. Steady Step is adjustable to fit all sizes of HD PTZ cameras including the latest tall ones. Because of its rock solid stability Steady Step also eliminates any vibrations inside the housing.
This Multi Volt Platform housing can be powered from a 24VAC, 110VAC or 220VAC power source. It also has internal 12VDC and 24VAC outputs to power an IP or analog camera.
This housing is compatible with most analog or IP PTZ dome cameras and has extra room to accommodate peripherals such as encoders, hard drives, routers, etc. The lower dome is impact resistant and at the same time is optically clear to ensure maximum image sharpness.
- IP and analog camera compatible
- Vari-Fit internal bracket included for perfect fit
- Impact resistant polycarbonate thermal plastic
- Thermostatically controlled heater blower system
- IP66 rated against dust, water, and salt water air
- IP68 (waterproof) connection ports
- Will not rust or corrode
- Onboard Component mounting space for: routers, cell networks, hard drives, UPS, WiMAX, mesh hardware, etc
- Onboard antenna mounting tab
- Heavy-duty lower lens
- 1-Year Warranty
| Mount Type | Wall mount (optional corner, pole brackets available) |
| Compatible Cameras | Analog or IP PTZ camera |
| Clear or Tinted | Clear |
| Construction | Housing: Dotworkz thermoplastic alloy Bubble: Precision view high impact acrylic |
| Enclosure Rating | IP66 with IP68 connection ports |
| Heater/Blower | Heater activates at 40�F (4�C), deactivates at 60� (15�C) |
| Operating Temperature | Absolute: -25 ~ +140�F (-32 ~ +60�C) Recommended: 0 ~ 120�F (-17 ~ +49�C) |
| Power Input | 24VAC, 110VAC, or 220VAC |
| Power Output | (to camera) IP: 12VDC, 24VDC AC (CCTV): 12VDC, 24VAC |
| Power Consumption | 2 amps @ 115VAC typical at full load |
| Dimensions (WxHxD) | 11.7 x 17.5 x 14.9" (297 x 445 x 378mm) |
