Description
- Outdoor Housing System
- Operates at -40 to 155� F
- Input Voltage: 24VDC
- Active Thermo-electric Cooling System
- Internal Thermo-blanket/High-flow Fans
- Mounting Space for System Hardware
- Easy-to-Install Design
- Made of Polycarbonate Plastic Alloy
- IP66 & IP68 Rated
- Manufactured in the US

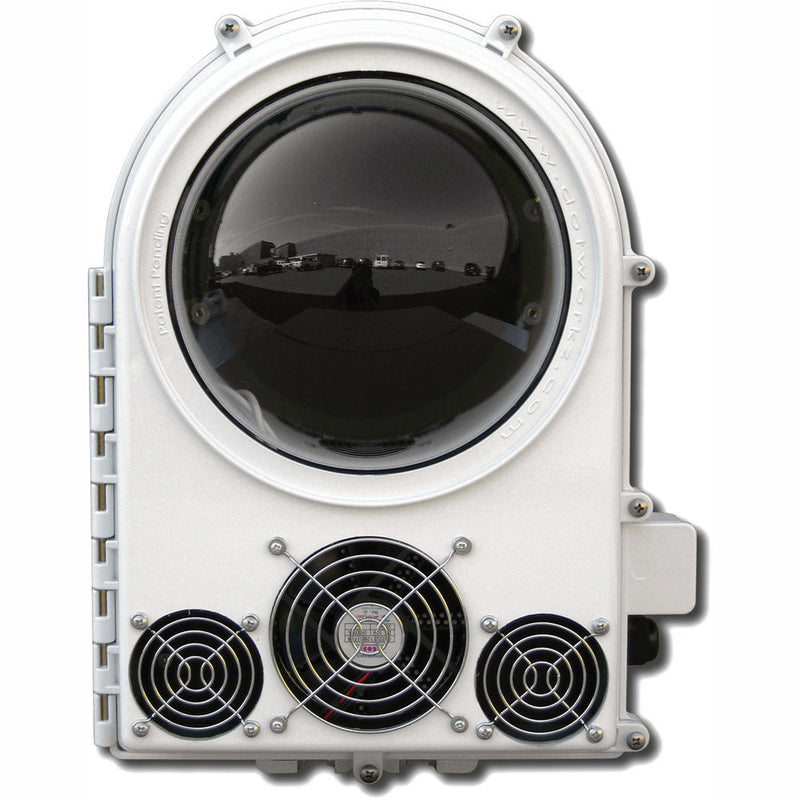

The Dotworkz D2 COOLDOME Active Cooling Camera Enclosure is an outdoor housing system that protects the camera and system related hardware from corrosion, rust, and leakage at operating temperatures ranging from -40 to 155� F. Ideal for application in the military and aeronautical industry, the enclosure is compatible with all size PTZ cameras such as IP, CCTV, HD, and analog PTZ cameras and has a input voltage of 24VDC.
�Equipped with active solid state COOLDOME thermo-electric cooling system, internal thermo-blanket, and high-flow fans, the D2 COOLDOME Active Cooling Camera Enclosure protects sensitive components inside the camera from excessive heat. You can switch upper and lower camera mounting locations to make maximum use of the storage space. It has a separate mounting space for system hardware such as routers, cell networks, NVR, hard drives, UPS, WiMAX devices, mesh hardware, etc.
Manufactured in the US, the easy-to-install D2 COOLDOME enclosure is made of polycarbonate thermal plastic alloy and has an internal bracket for fitting PTZ, megapixel or mini domes. Being IP66 and IP68 rated, it provides airtight protection from air, dust, water and salt water.
- Outdoor housing system that protects the camera and system related hardware from corrosion, rust, and leakage
- Operating temperature of -40 to 155� F
- Compatible with all size PTZ cameras such as IP, CCTV, HD, and analog PTZ cameras
- Ideal for application in the military and aeronautical industry
- With active solid state COOLDOME Thermo-electric Cooling System, internal thermo-blanket, and high-flow fans, the enclosure protects sensitive components inside the camera from burning out due to excessive heat
- Switchable upper and lower camera mounting locations for maximum usage of storage space
- Separate mounting space for system hardware such as routers, cell networks, NVR, hard drives, UPS, WiMAX, mesh hardware, etc
- Engineered and built in the US
- Easy-to-install enclosure is made of polycarbonate thermal plastic alloy material and has an internal bracket for fitting PTZ, megapixel or mini domes
- IP66 and IP68 rated - provides airtight protection from air, dust, water, and salt water
- Weight - 15 lbs (6.8 kg)
- 1-Year Warranty
| Mount Type | Wall mount (optional corner, pole brackets available) |
| Compatible Cameras | Analog or IP PTZ camera |
| Clear or Tinted | Clear |
| Construction | Housing: Dotworkz thermoplastic alloy Bubble: Precision view high impact acrylic |
| Enclosure Rating | IP66 with IP68 connection ports |
| Operating Temperature | Absolute: -40 ~ +160�F (-40 ~ +71�C) Recommended: 30 ~ 145�F (-1 ~ +63�C) |
| Power Requirements | Input Power Source options: 24VDC, 110 VAC, or 220 VAC Outputs for Camera Power: 24VDC (12VDC / 24VAC by special order) Internal Power Available for Camera: 6 amps @ 24VDC on typical model) |
| Power Consumption | (without camera) 9 amps @ 115 VAC typical at full load |
| Dimensions (WxHxD) | 11.7 x 13.4 x 14.9" (297 x 340 x 378mm) |
| Packaging Info | |
|---|---|
| Package Weight | 15.9 lb |
| Box Dimensions (LxWxH) | 17.0 x 16.0 x 13.0" |
