Description

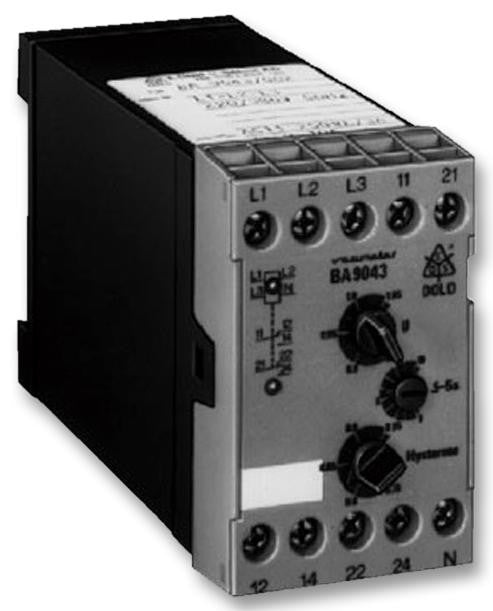

The BA 9043/001 3AC 50/60HZ 400V from Dold & Soehne is a voltage sensing relay. Suitable for undervoltage detection in 3 phase systems. According to IEC 255, EN 60 255, VDE 0435 part 303 standards.
- DPDT contact configuration
- Continuous operation
- Switching capacity of 3A for NO and 1A for NC at 230V
- Closed circuit operation
- LED indicator for operation and state of contact
- Dimension is 45mm x 73mm x 132mm
- Insensitive to harmonics
- Frequency up to 400 Hz
- Supply voltage is 400VAC
- Temperature range from -20�C to 60�C
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Relay Mounting | DIN Rail |
| Product Range | BA 9043 Series |
| Relay Terminals | Screw |
| Contact Current | 3A |
| Approvals & Standards | - |
| Power Consumption | - |
| Contact Voltage VAC | 230VAC |
| Contact Configuration | DPDT |
| Supply Voltage Max | 400VAC |
| Contact Voltage VDC | - |
Other details
| Brand | DOLD & SOEHNE |
| Part Number | BA 9043/001 3AC 50/60HZ 400V |
| Quantity | Each |
| Technical Data Sheet EN |  |
