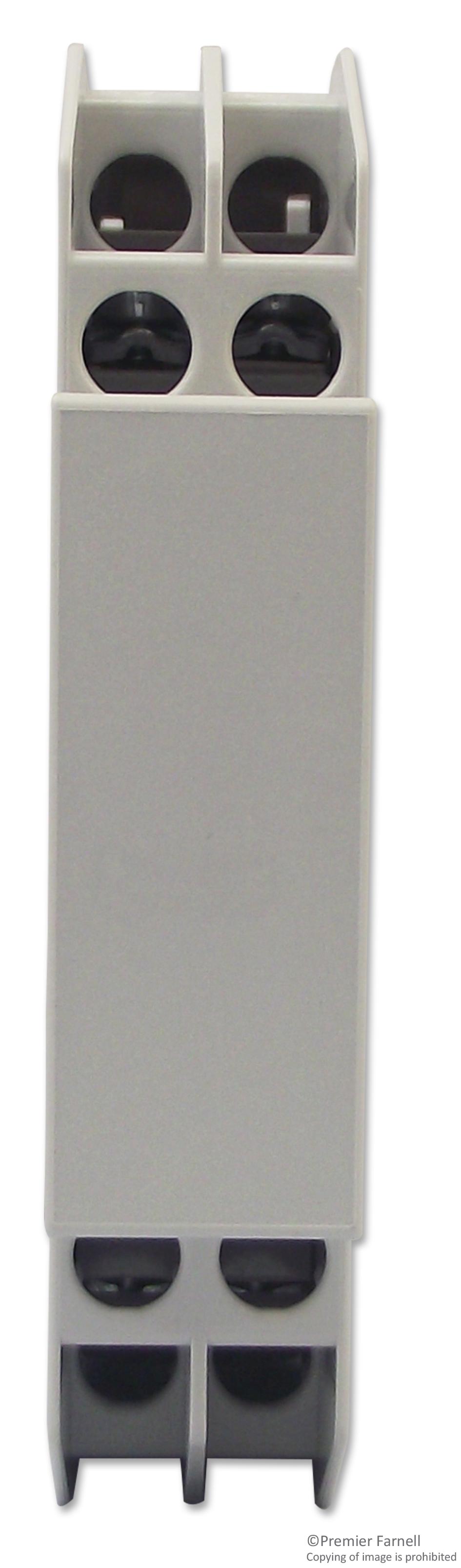

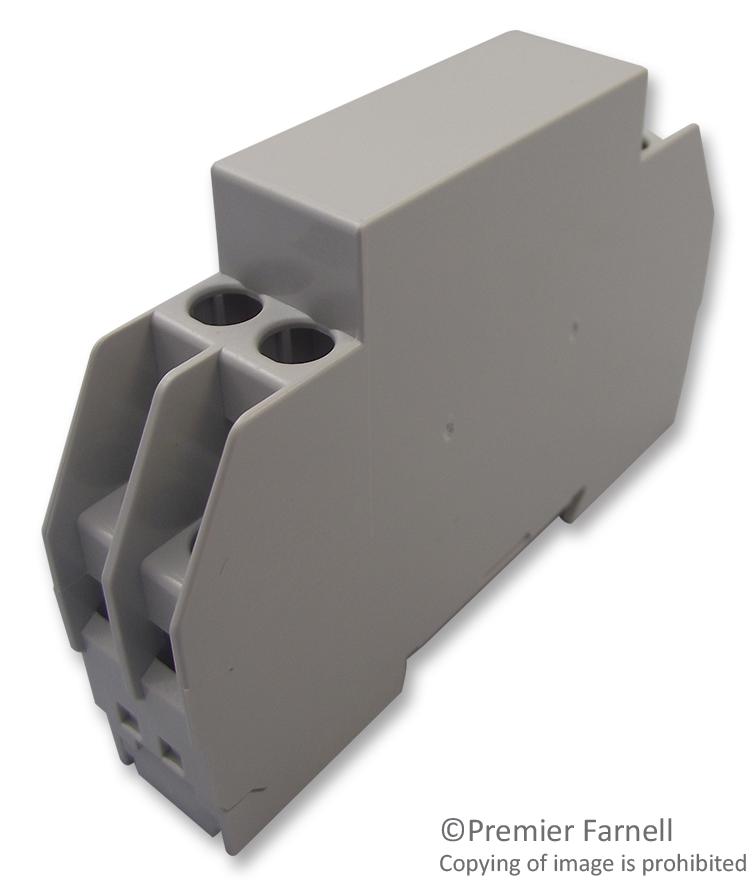

The KU4087.0031867 is an Insulated Enclosure made of grey plastic for building-into distribution cabinets or surface mounting. It is standard version vertical PCB. Plus-minus-terminal screws with self raising terminal washers.
- Secure termination of 2 connection wires of differing cross section
- Machine solder able connection pins
- Additional wire connection possible
Applications
Consumer Electronics
Product details
| Enclosure Type |
DIN Rail |
| Enclosure Material |
Plastic |
| External Height - Metric |
90mm |
| External Width - Metric |
17.5mm |
| External Depth - Metric |
58mm |
| IP Rating |
IP40 |
| Body Colour |
Grey |
| NEMA Rating |
- |
| External Height - Imperial |
3.54" |
| External Width - Imperial |
0.69" |
| External Depth - Imperial |
2.28" |
| Product Range |
- |
Other details
| Brand |
DOLD |
| Part Number |
KU4087.0031867 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
