Description
DJI Wireless Video Receiver Overview
- 1Description
- 2Long-Distance HD Live Feed
- 3Voice Call Function
- 4End-to-End Ultralow Latency
- 5Transmission and Output
- 6Seamless Auto Frequency Hopping
- 7One Transmitter with Multiple Receivers for Coordinated Shooting
- 8Encrypted Transmission

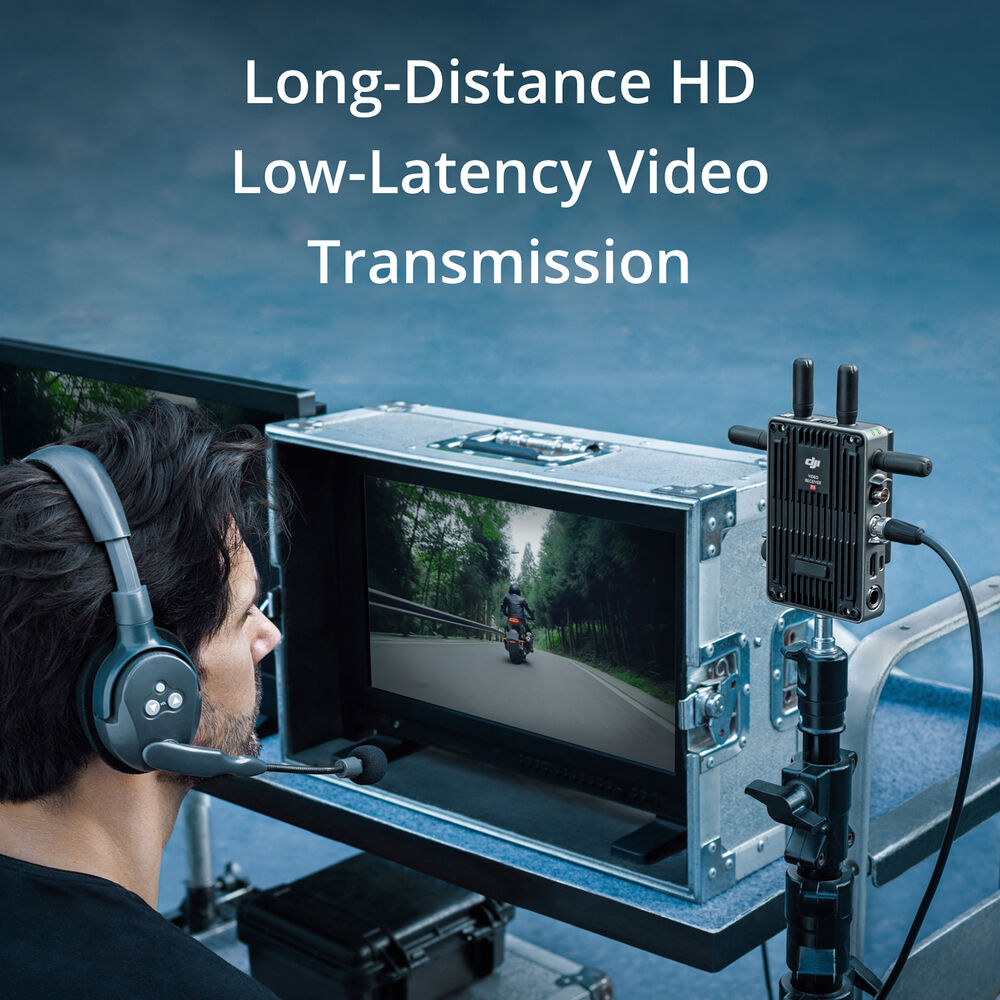

Receive high-definition video from over 3 miles (line-of-sight) away from your DJI video transmitter with this Wireless Video Receiver from DJI. The receiver pairs with a separately available transmitter and transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. The receiver also supports talkback/voice calling between ends using the USB-C ports and optional mics.
The receiver supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to simultaneously receive alongside other receivers such as the High-Bright Remote Monitor, and the separately available transmitter can transmit to unlimited receivers in broadcast mode with a slightly lower performance. The receiver can be powered via an optional L-series battery, an optional WB37 battery, or its DC power input.
- O3 Pro adds a DFS band on top of the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.

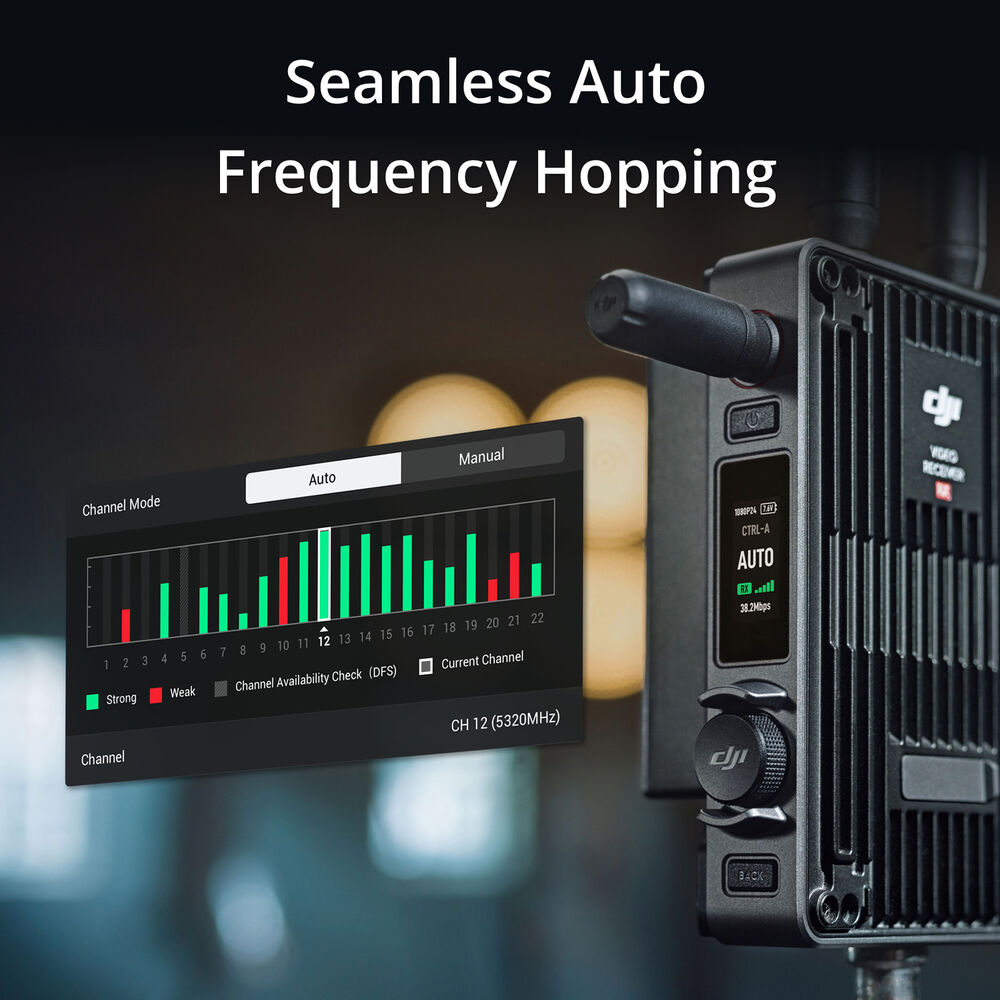

- DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
- With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.
- By mounting high-gain antennas, transmission capability is further boosted.
- Two transmission modes are available.
- In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while the gimbal of Ronin 2 and RS 3 Pro and camera can be controlled remotely.

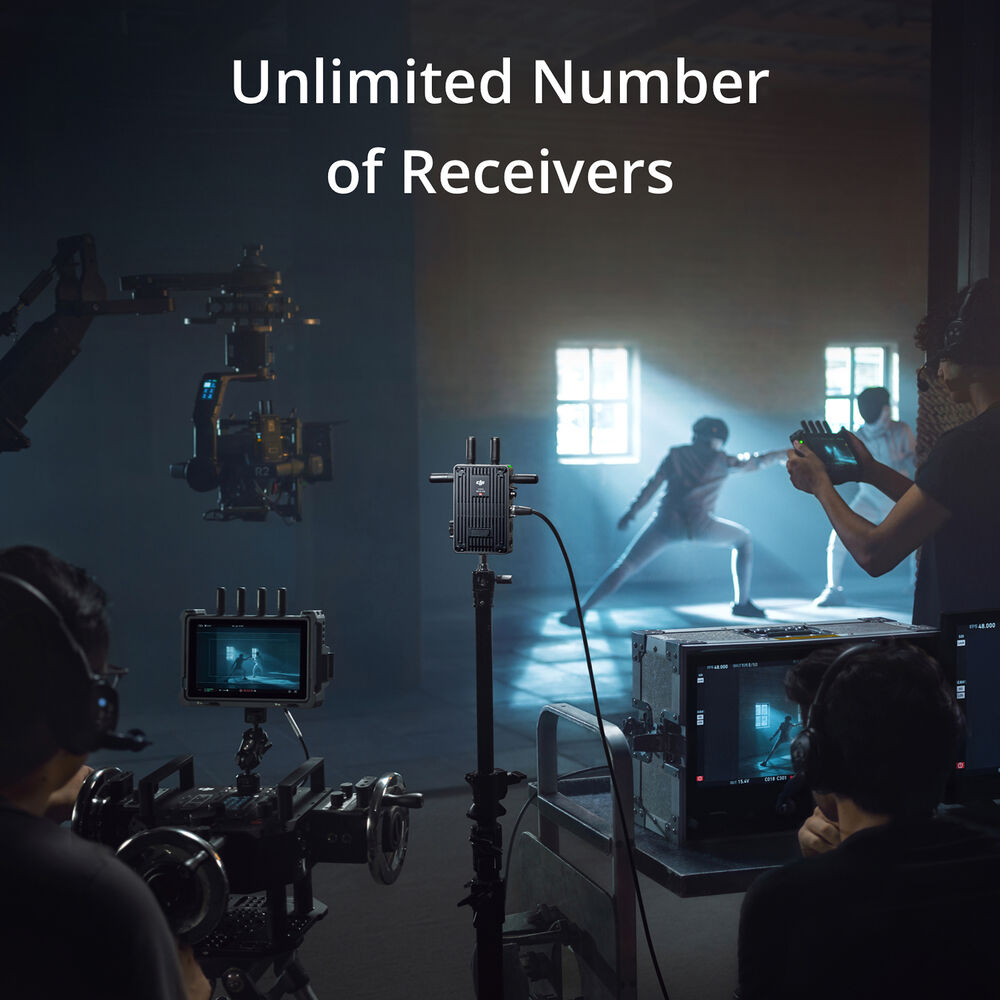

- Broadcast mode can be enabled on top of Control mode to enable an unlimited number of receivers (transmission performance differs from Control mode).
- On larger and more dynamic, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more devices, resulting in a smooth, coordinated experience that's difficult to get with traditional transmission setups.

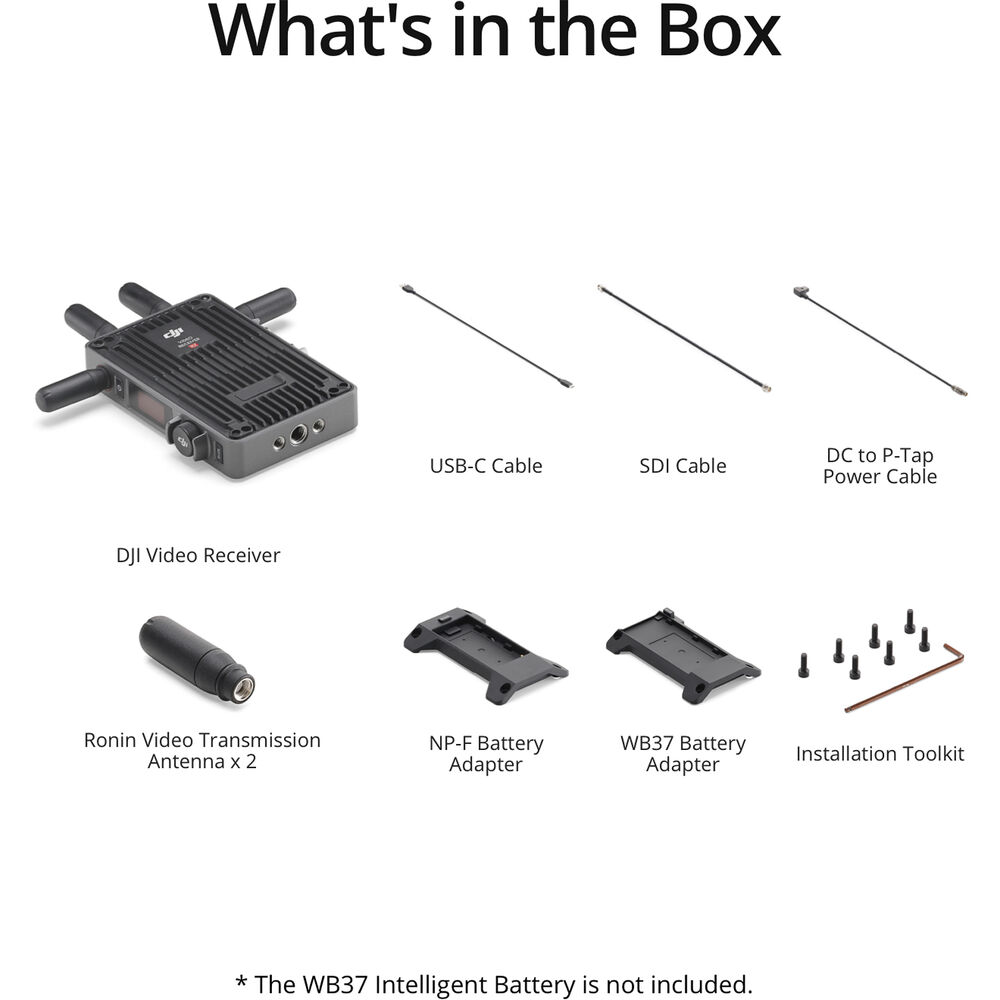

In the Box
- DJI Wireless Video Receiver
- L-Series/NP-F Battery Adapter
- WB37 Battery Adapter
- 2 x Antenna
- USB-C Cable
- SDI Cable
- D-Tap Power Cable
- Installation Toolkit
- Limited 2-Year Manufacturer Warranty
- Description
- Long-Distance HD Live Feed
- Voice Call Function
- End-to-End Ultralow Latency
- Transmission and Output
- Seamless Auto Frequency Hopping
- One Transmitter with Multiple Receivers for Coordinated Shooting
- Encrypted Transmission
DJI Wireless Video Receiver Specs
Video I/O |
1x BNC (3G-SDI) Output
1x HDMI 1.4 Output |
Embedded Audio |
HDMI/SDI
|
Latency |
70 ms
|
Video Format |
HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Battery Type |
1x L-Series, DJI WB37 (Interchangeable Mount)
|
Power Consumption |
9 W
|
Antenna I/O |
2x RP-SMA Female
|
Video I/O |
1x BNC (3G-SDI) Output
1x HDMI 1.4 Output |
Embedded Audio |
HDMI/SDI
|
Audio I/O |
No
|
Power I/O |
1x USB-C Input
1x Barrel Input |
Encryption |
256-Bit AES
|
Wireless Range |
3.7 Miles / 6 km (Line-of-Sight)
|
# of Channels |
23
|
Channel Bandwidth |
40 MHz
|
Frequency Range |
Non-DFS Frequencies
2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz |
Latency |
70 ms
|
Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
Bluetooth |
No
|
Mobile App Compatible |
No
|
Cellular Support |
No
|
Video Format |
HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Audio Format |
16-Bit 48 kHz PCM Audio
|
Wireless Video Compression |
Compressed
|
Timecode Support |
No
|
DC Input Power |
6 to 18 VDC
|
Battery Type |
1x L-Series, DJI WB37 (Interchangeable Mount)
|
Power Consumption |
9 W
|
Certifications |
CE, FCC
|
Operating Temperature |
22 to 77°F / -10 to 45°C
|
Dimensions |
5 x 3.4 x 1" / 127 x 87 x 26 mm
|
Weight |
12.3 oz / 350 g
|
Package Weight |
1.94 lb
|
Box Dimensions (LxWxH) |
7.8 x 7 x 2.9"
|
