Description
DJI Ronin 4D 8K Overview
DJI Ronin 4D All-In-One Gimbal Camera | Hands-on ReviewDJI Ronin 4D TeaserDJI - Introducing DJI Ronin 4DDJI Ronin 4D- live event
By Photo's
Mary Latvis
Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-8K camera and the three-axis gimbal stabilization. Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers. The full-frame capture at rates up to 8K30 in ProRes HQ and Ronin's CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a "B" or 2nd unit camera for larger cine-style productions.
This combo includes the main Zenmuse X9-8K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Kit items include a DL lens mount, a LiDAR range finder, one ProSSD 1TB drive, one TB50 battery, a charging hub, and left and right control handgrips.
Note:
A wireless video transmitter is not included in this combo kit.
All-in-One Camera Gimbal System
- This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig
- Combination design reduces your setup time at the start of the day and in between setups and locations
- Included modular components:
- Left and right control handgrips
- ProSSD 1TB media drive
- LiDAR range finder
- Top Handle
- Baseplate
- Separately available components:
- 7" high-bright, touchscreen monitor
- Wireless video transmitter
- X9 focus motor
- Leica M lens mount
- 3-channel FIZ lens control unit
Firmware Update at Launch
- Internal Apple ProRes Raw will not be supported as initially planned
- A Mirror Control Mode will enable the High-Bright Remote Monitor to view and control the main camera monitor
- The Remote Monitor Expansion Plate will now offer a clean video output for viewing by the director/video village
- Select third-party lenses will be supported by the LiDAR focus system
- Apple ProRes 4444 XQ will be available via a firmware update later in 2022
CineCore 3.0 Imaging Processing System
- The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
- The Ronin 4D uses the CineCore 3.0 system to support internal recording of ProRes 422 HQ and H.264 video
- Industry-standard ACES workflow support provide easy compatibility with other cinema cameras
Advanced 4-Axis Stabilization
- Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
- Z-axis stabilization built into the camera, 3-axis stabilization in the gimbal
- Tilt stabilization uses dual, symmetrical motors
- Pan and X (roll) axes with additional stiffness buffering
- Downward ToF (time of flight) sensor
- Forward and downward-facing dual-vision sensors
- Built-in IMU (inertial measurement unit) and barometer
- New and improved stabilization algorithm

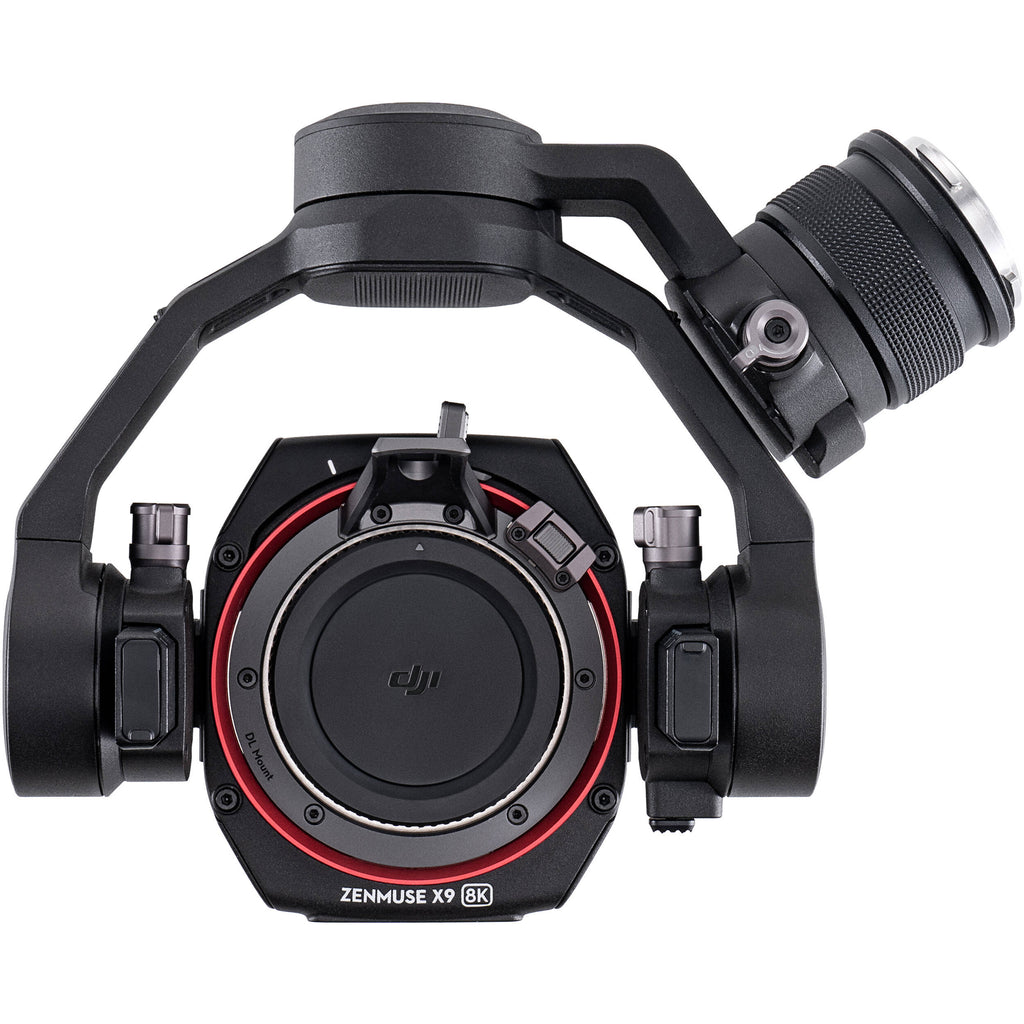

Zenmuse X9-8K Camera with DL Lens Mount
- The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses
- Full-frame capture with all but the 16mm DL lens
- Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses
- Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses
- Please see the current lens compatibility list here
ProRes 422 HQ and H.264 Capture
- Capture up to 8K30 ProRes 422 HQ video in 17:9 full frame
- Capture up to DCI 4K60 ProRes 422 HQ or H.264 in 17:9 full-frame or Super35
Dual Native ISO
- 800/5000 dual native ISO
- EI 200 to 12800
- 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions
In-Camera ND Filters
- Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
- Especially handy for outdoor shoots with changing cloud cover
- Motorized filter system
- Carry in "built" mode for easy company moves
LiDAR Focus Control
- LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range
- Excellent focusing performance even in low-light environments
- Focus pulling can be viewed graphically, thanks to a built-in depth meter
- Intuitive and highly accurate focusing system
- Modular LiDAR focusing module attached to the front of the D4 rig
Autofocus Features
- Maintains focus, even when motion blur is produced by fast-moving subjects
- Separately available focus motor for use with manual lenses
- Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators
Automated Manual Focus
- The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
- Operators can grab the focus wheel of the right handgrip at any time to manually focus
- Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes
ActiveTrack Pro
- DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
- ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system
Dual Focus, Iris, and Control Grips
- Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
- Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode
Single User or Crew-Assisted Operation
- Top-notch stabilization in a lightweight form
- Ideal for both solo operators as well as assistant-accompanied shoots
- Designed to counter footsteps from inexperienced gimbal shooters
- Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
- Sport mode is available with the touch of a button, accommodating faster-paced action
- Use in standard, underslung, jib, and crane setups
Media Storage Options
- Requires a ProSSD 1TB drive (included) to capture raw footage
- USB Type-C port for external recording; no reader needed to offload footage
- Integrated CFexpress Type-B card slot
Built-In 5.5" Touchscreen Monitor
- 5.5" 1920 x 1080 monitor
- 1000 cd/m² display
- Touchscreen control
Audio Recording
- Integrated stereo microphones capture dual-channel 24-bit audio
- Built-in 3.5mm audio input port and XLR port via expander plate
Power Options
- Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
- Each battery provides up to 2.5 hours of capture time
- Batteries charge fully in approximately 1.5 hours
- Support auto-heating for cold weather use
- AC adapter for uninterrupted shooting
UPC: 190021047792
In the Box
- DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
- Zenmuse X9-8K Gimbal Camera
- DL Mount
- DL Mount Body Cap
- DL Mount Lens Cap
- X9 Gimbal Base Cap
- Ronin 4D Gimbal Base Cap
- Main Body
- 2 x Handgrip
- Handgrip Extended Control Stick
- Top Handle
- High-Bright Main Monitor
- TB50 Battery Mount
- TB50 Intelligent Battery
- 2 x Handgrip Strap
- Power Adapter
- 8 x AC Power Cable
- TB50 Charging Adapter
- Baseplate
- LiDAR Range Finder/Focus Motor Cable
- USB Type-A to Type-C Cable
- Ronin 4D Carrying Case
- Ball-End Allen Key (3mm)
- 6 x 1/4"-20 Screw (10mm)
- LiDAR Range Finder
- LiDAR Range Finder Holder
- C-Shaped DL Mount Ring
- 2 x M2-3 Screw (3mm)
- Ball-End Allen Key (1.5mm)
- Limited 1-Year Warranty
Guides & Manuals
Firmware Updates
v01.03.0200, Feb '22
DJI Ronin 4D 8K Specs
Imaging
| Lens Mount | DJI DL |
| Sensor Resolution | Effective: 35.4 Megapixel |
| Sensor Type | Full-Frame CMOS |
| Image Stabilization | Digital, 4-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters |
| Internal Filter Holder | Yes |
| ISO Sensitivity | 800 to 5000 (Native) 200 to 12,800 |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/24 to 1/8000 sec |
| Advertised Dynamic Range | 14 Stops |
| White Balance | 2000 to 11,000K |
Gimbal
| Rotation Range | Yaw (Pan): 285° Pitch (Tilt): 210° (-55 to 155°) Roll: 70° (-35 to 35°) |
| Z-Axis Adjustment Range | 5.1" / 130 mm |
| Follow Speed | Pan/Tilt/Roll: 360°/s using DJI Master Wheels or Pro Force Pan/Tilt/Roll: 120°/s using Ronin 4D Handgrip |
| Load Capacity | 2.1 lb / 960 g |
Internal Recording
| Recording Modes | ProRes 422HQ: 8192 x 4320p at 23.98/24/25/29.97/30 fps 4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/120 fps H.264 4:2:0 10-Bit: 4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60 fps |
| Gamma Curve | HDR-HLG, Rec709 |
| Audio Recording | 2-Channel 48 kHz LPCM Audio |
| Still Image Support | None |
External Recording
| Video Output | USB: 8192 x 4320p at 23.98/24/25/29.97/30 fps 4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps SDI/BNC: 8192 x 4320p at 23.98/24/25/29.97/30 fps 4096 x 2160p at 23.98/24/25/29.97/59.94/60 fps |
| IP Streaming | None |
Interface
| Media/Memory Card Slot | Single Slot: DJI ProSSD Single Slot: CFexpress Type B |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Built-In Microphone Type | Stereo |
| Other I/O | 1 x USB Type-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output 1 x Proprietary Monitor Output 1 x BNC (Timecode) |
Monitor
| Size | 5.5" |
| Resolution | 1920 x 1080 |
| Display Type | Tilting Touchscreen LCD |
EVF
| Type | Optional, Not Included |
Power
| Battery Type | DJI TB50 |
| Power I/O | 1 x Barrel (12 to 30 VDC) Input |
Environmental
