Description

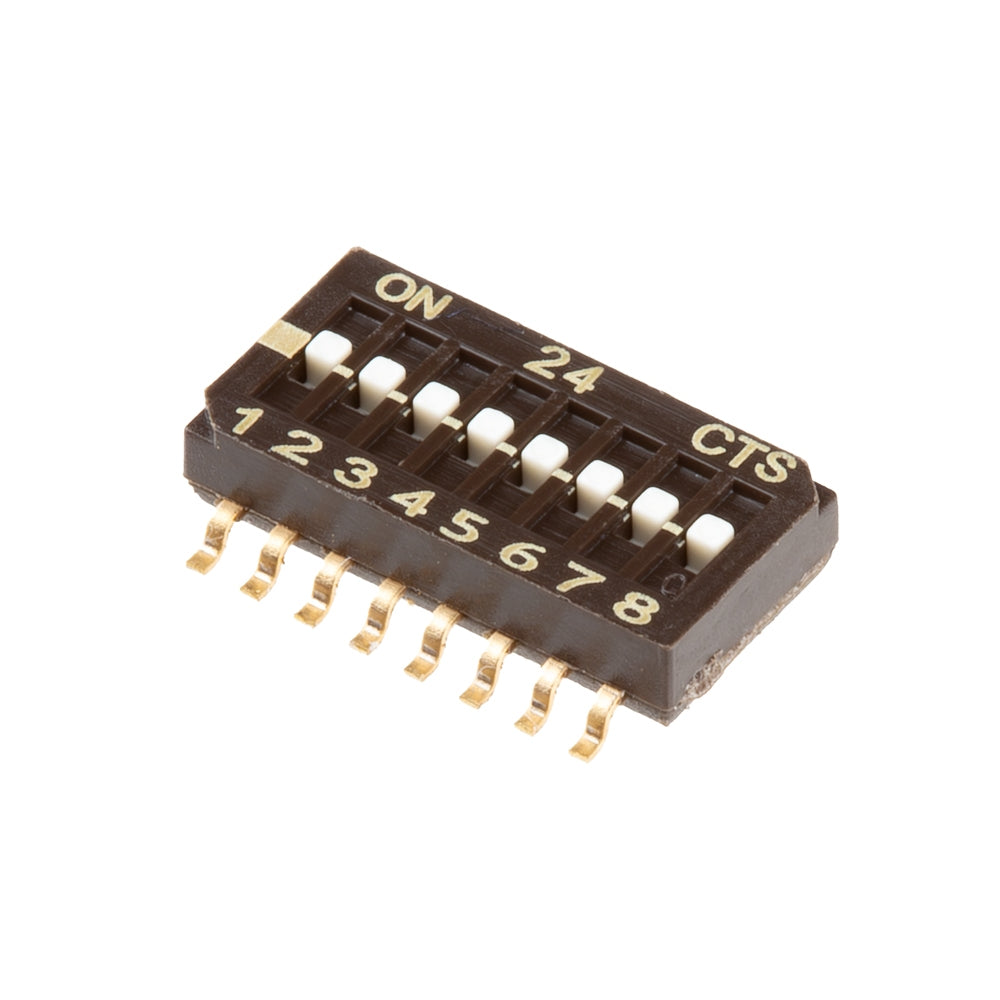

A SMD DIP switch with 8 individual switch positions. Works great as general control switches.
Features & Specs
- Circuit: SPST
- Number of Positions: 8
- Current Rating (Amps): 25mA
- Voltage Rating: 24VDC
- Actuator Type: Slide (Standard)
- Actuator Level: Flush, Recessed
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Height Above Board: 0.104" (2.65mm)
- Mounting Type: Surface Mount
- Termination Style: Gull Wing
- Pitch: 0.050" (1.27mm), Half
- Washable: Yes
- Features: Epoxy Sealed Terminals, Tape Seal
- Operating Temperature: -55°C ~ 85°C
- Length: 0.446" (11.33mm)
- Electrical Life: 1,000 Cycles
- Mfg #: 218-8LPSTR
Features & Specs
- Circuit: SPST
- Number of Positions: 8
- Current Rating (Amps): 25mA
- Voltage Rating: 24VDC
- Actuator Type: Slide (Standard)
- Actuator Level: Flush, Recessed
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Height Above Board: 0.104" (2.65mm)
- Mounting Type: Surface Mount
- Termination Style: Gull Wing
- Pitch: 0.050" (1.27mm), Half
- Washable: Yes
- Features: Epoxy Sealed Terminals, Tape Seal
- Operating Temperature: -55°C ~ 85°C
- Length: 0.446" (11.33mm)
- Electrical Life: 1,000 Cycles
- Mfg #: 218-8LPSTR
