The ZXLD1366ET5TA is a continuous mode inductive Step-down Converter. It is designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage. It uses a high-side output current sensing circuit which uses an external resistor to set the nominal average output current. The output current can be adjusted above or below the set value, by applying an external control signal to the ADJ pin. Enhanced output current dimming resolution can be achieved by applying a PWM signal to the ADJ pin. Soft-start can be forced using an external capacitor from the ADJ pin to ground. Applying a voltage of 0.2V or lower to the ADJ pin turns the output off and switches the device into a low current standby state.
- Typically better than 0.8% output current accuracy
- Simple and with low part count
- Single pin on/off and brightness control using DC voltage or PWM
- 1000:1 PWM resolution
- High efficiency (up to 97%
- 1MHz Switching frequencies
- Inherent open-circuit LED protection
- Halogen-free
Applications
Lighting, LED Lighting
Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Device Topology |
Buck (Step Down) |
Input Voltage Min |
6V |
Input Voltage Max |
60V |
Output Voltage Max |
60V |
Output Current Max |
1A |
Switching Frequency |
500kHz |
No. of Outputs |
1Outputs |
IC Mounting |
Surface Mount |
Driver Case Style |
TSOT-23 |
No. of Pins |
5Pins |
Operating Temperature Min |
-40°C |
Operating Temperature Max |
125°C |
Product Range |
- |
Automotive Qualification Standard |
AEC-Q100 |
MSL |
- |
Other details
Brand |
DIODES INC. |
Part Number |
ZXLD1366ET5TA |
Quantity |
Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
|

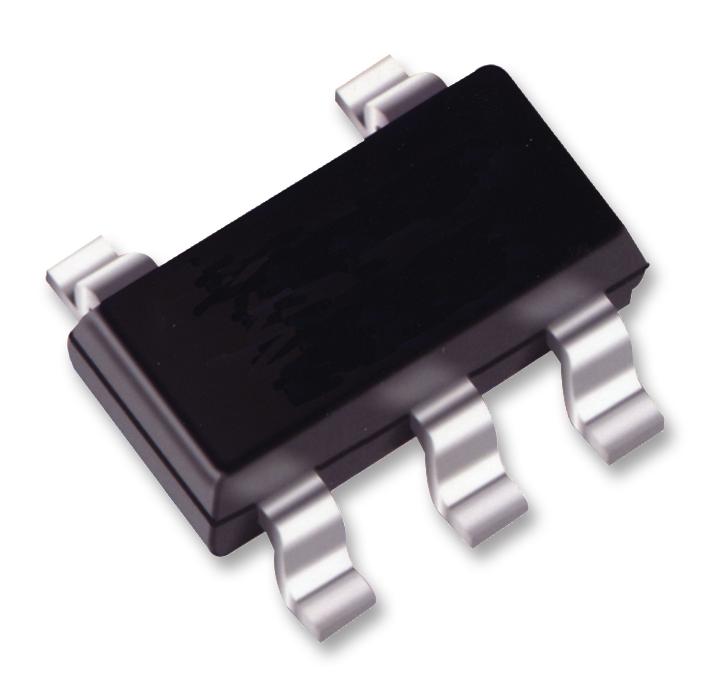

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
